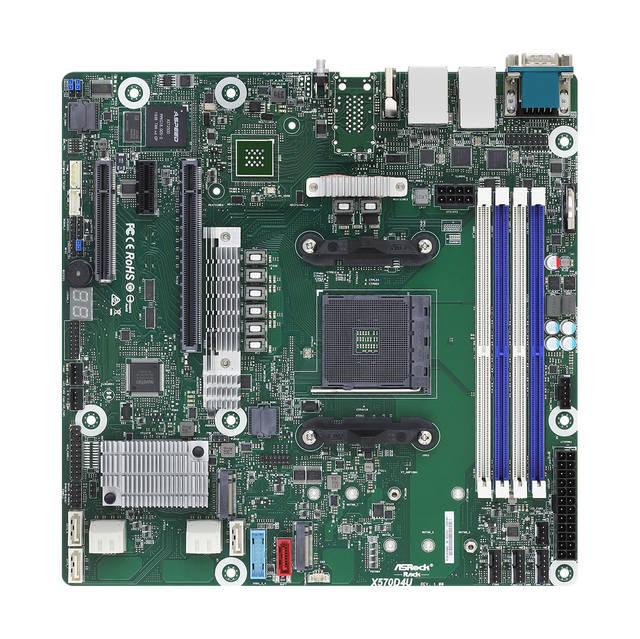

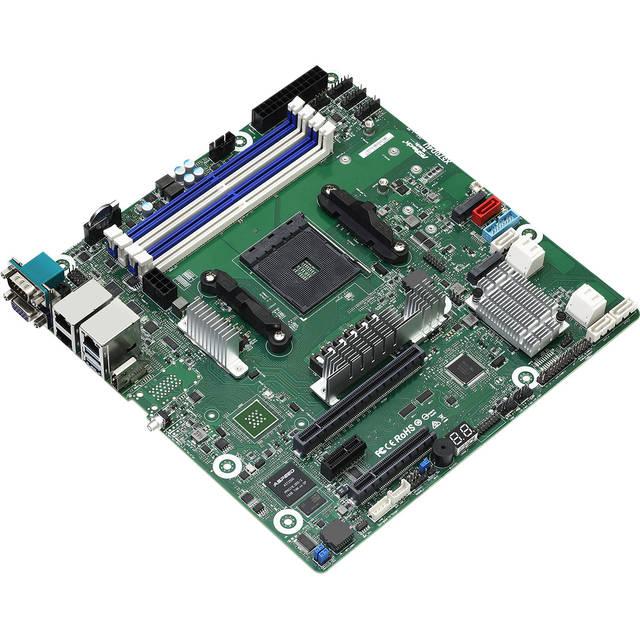

Name: Asrock Rack X570D4U Socket Am4/ Amd X570/ Ddr4/ Sata3&Usb 3.2/ Micro-Atx Server Motherboard
Brand: ASRock Rack
SKU: X570D4U
Price: 329.10 USD
Availability: OutOfStock

Asrock Rack X570D4U Socket Am4/ Amd X570/ Ddr4/ Sata3&Usb 3.2/ Micro-Atx Server Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: X570D4U
CPU:
- supports:

  - AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics

  - AMD Ryzen PRO 4000 and 3000 Series Desktop Processors

  - 3rd Gen AMD Ryzen Desktop Processors

  - 2nd Gen AMD Ryzen Desktop Processors with Radeon Vega Graphics
Socket: AM4 PGA 1331
Power Design: 105W
Chipset: AMD X570
System Memory:
- Capacity: 4 DIMM slots (2DPC)
- Type: 288-pin DDR4 ECC and non-ECC UDIMM.
- DIMM Size Per DIMM: up to 32GB per DIMM
- DIMM Frequency:

  - AMD Ryzen 4000 Series Desktop Processors with Radeon Graphics/ 3rd Gen AMD Ryzen Processors: up to 3200 MHz

  - 2nd Gen AMD Ryzen Desktop Processors with Radeon Vega Graphics: up to 2666 MHz
- Voltage: 1.2V
Expansion Slots:
- 1 x PCIe 4.0 x 16
  - SLOT6: Latch PCIe x16 (PCIe 4.0 x16) [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied

  (Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Desktop Processors with Radeon Graphics)
- 1 x PCIe 4.0 x 8

  - SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) [CPU]

  (Disabled when using 2nd Gen AMD Ryzen Desktop Processors with Radeon Graphics)
- 1 x PCIe 4.0 x 1

  - SLOT5: PCIe 4.0 x1 (Supports PCIe3.0 when using 2nd Gen AMD Ryzen Desktop Processors with Radeon Graphics
- 2 x M.2

  - 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]

  - 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]

  (Supports PCIe3.0 when using 2nd Gen AMD Ryzen Desktop Processors with Radeon Graphics)
SATA Controller:
- X570 (12 SATA 6Gb/s, support RAID 0/1/10):

  - 8 SATA 7-pin connectors, including 1 support SATA DOM

  - 4 SATA via optional M2-HD M.2 device
Additional GbE Controller: 2 RJ45 (1GbE) by Intel i210
Management:
- BMC Controller: ASPEED AST2500: IPMI (Intelligent Platform Management Interface) 2.0
- IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN
Controller:
- ASPEED AST2500: 1 DB15, 1 (15-pin) header
- AMD Ryzen 4000 Series Desktop Processors with Radeon Graphics/ 2nd Gen AMD Ryzen Desktop Processors with Radeon Vega Graphics: 1 HDMI

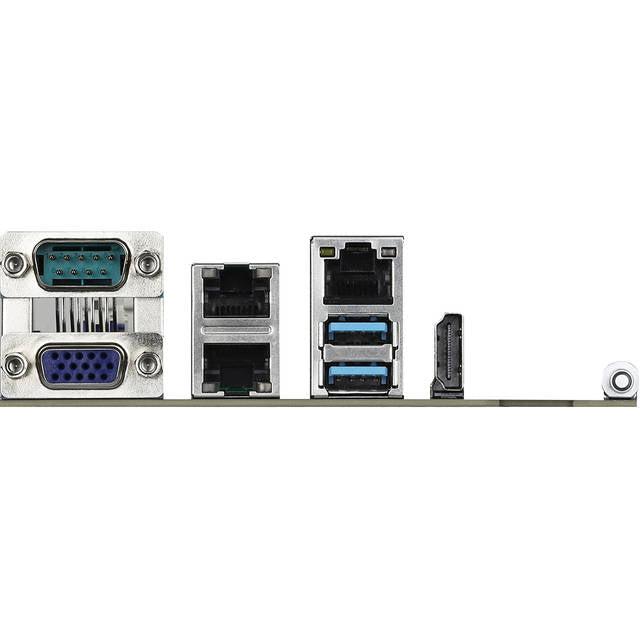

Rear Panel I/O:
- 1 x HDMI
- 1 x VGA Port
- 2 x USB 3.2 Gen2 Port
- 2 x RJ45(1GbE) Lan Port
- 1 x Dedicate LAN
- 1 x Serial Port
- 1 x UID Button/UID LED
Internal Connector :
- 1 x Front Lan LED Connector for LAN3/LAN4
- 1 x Auxiliary Panel Header (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
- 1 x TR1 Header
- 1 x TPM Header(17-pin, LPC), 1 x TPM Header(13-pin, SPI)
- 1 x IPMB Header
- 1 x VGA Header
- 1 x PMBus CONN
- 1 x Buzzer
- 3 x (6-pin) Fan Header, 3 x (4-pin) Fan Header
- 1 x Front Panel (9-pin): power switch, reset switch, system power LED, HDD activity LED
- 1 x Speaker Header
- 1 x BMC_SMB Header
- 1 x ATX main (24-pin) Power Connector, 1 x ATX 12V (8-pin) Power Connector
- 1 x contact pads Clear CMOS
Onboard LED:
- 1 x Standby PWR LED 5vsb
- 1 x 80 Debug Port LED
- 6 x Fan Fail LED
System BIOS:
- BIOS Type: 32MB AMI UEFI Legal BIOS
- BIOS Features: Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor:
- Temperature: CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing
- Fan

  - Fan Tachometer

  - Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

  - Fan Multi-Speed Control
- Voltage: 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment Temperature: Operation temperature: 10C ~ 35C / Non operation temperature: -40C ~ 70C
Form Factor: micro-ATX
Dimensions: 9.6"x9.6" (244mmx 244mm)
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

General Information

UPC	4710483932618

Asrock Rack X570D4U Socket Am4/ Amd X570/ Ddr4/ Sata3&Usb 3.2/ Micro-Atx Server Motherboard
