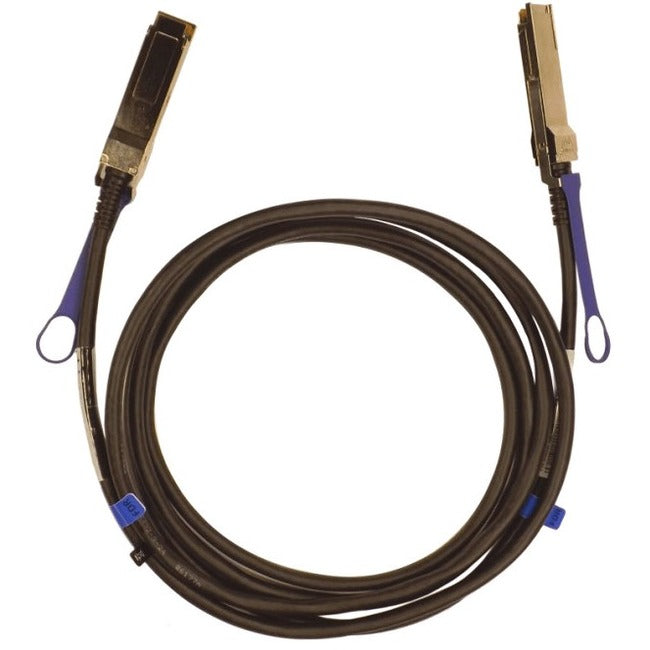

Mellanox LinkX Twinaxial Network Cable
Mellanox® QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 56Gb/s InfiniBand or 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Up to 56Gb/s data rate for MC22071xx, MCP170L
- Up to 40Gb/s data rate for MC22061xx, MC22101xx, MCP1700
- SFF-8685 compliant QSFP+
- Operating case temperature of 0-70°C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I²C management interface
Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Brand Name: Mellanox
Manufacturer: Mellanox Technologies Ltd
Product Name: LinkX Twinaxial Network Cable
Product Line: LinkX
Manufacturer Part Number: MCP1700-B003E
Manufacturer Website Address: http://www.mellanox.com
Limited Warranty: 1 Year
