Description
OREI 4x4 4k HDMI Matrix Extender Up To 400 Feet- With Audio Extraction, Bi-directional IR & Power Over Cable Functionality
Key Features:
HDMI 2.0b and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz YUV 4:4:4
18Gbps video bandwidth
6 HDMI inputs, 2 HDMI outputs, and 4 HDBaseT outputs
Extension of HDMI signals up to 132 feet at 4K@60Hz & 230 Feet at 1080P@60Hz
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Audio matrixing with 2x L/R, Coaxial & Optical Inputs and 6x L/R & coaxial outputs
Bi-directional IR support for controlling the source device from the receiver’s location and vice versa

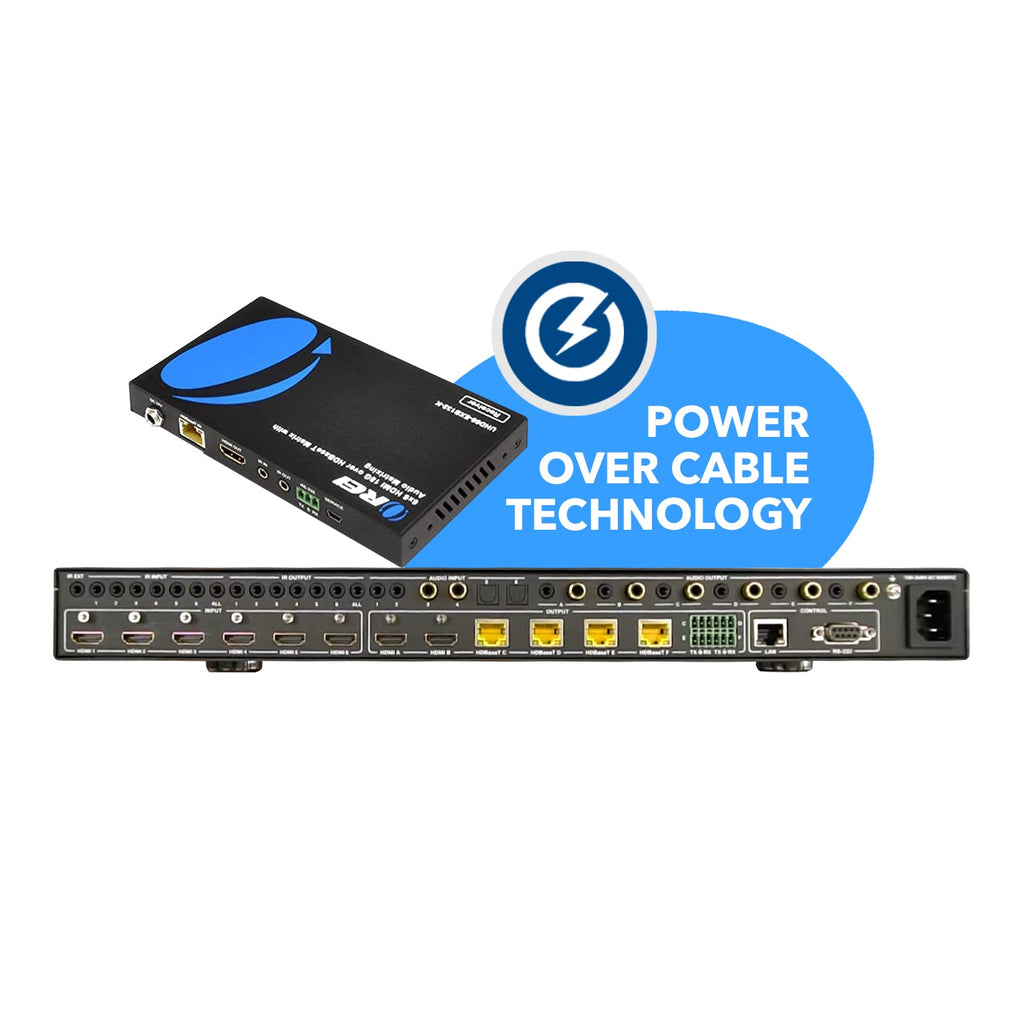

Power over cable on all HDBaseT outputs to power up the receiver units
Control via front panel buttons, IR remote, RS-232, LAN & WebGUI
1U Rack-mounted design for flexible installation
Perfect for commercial and personal setups

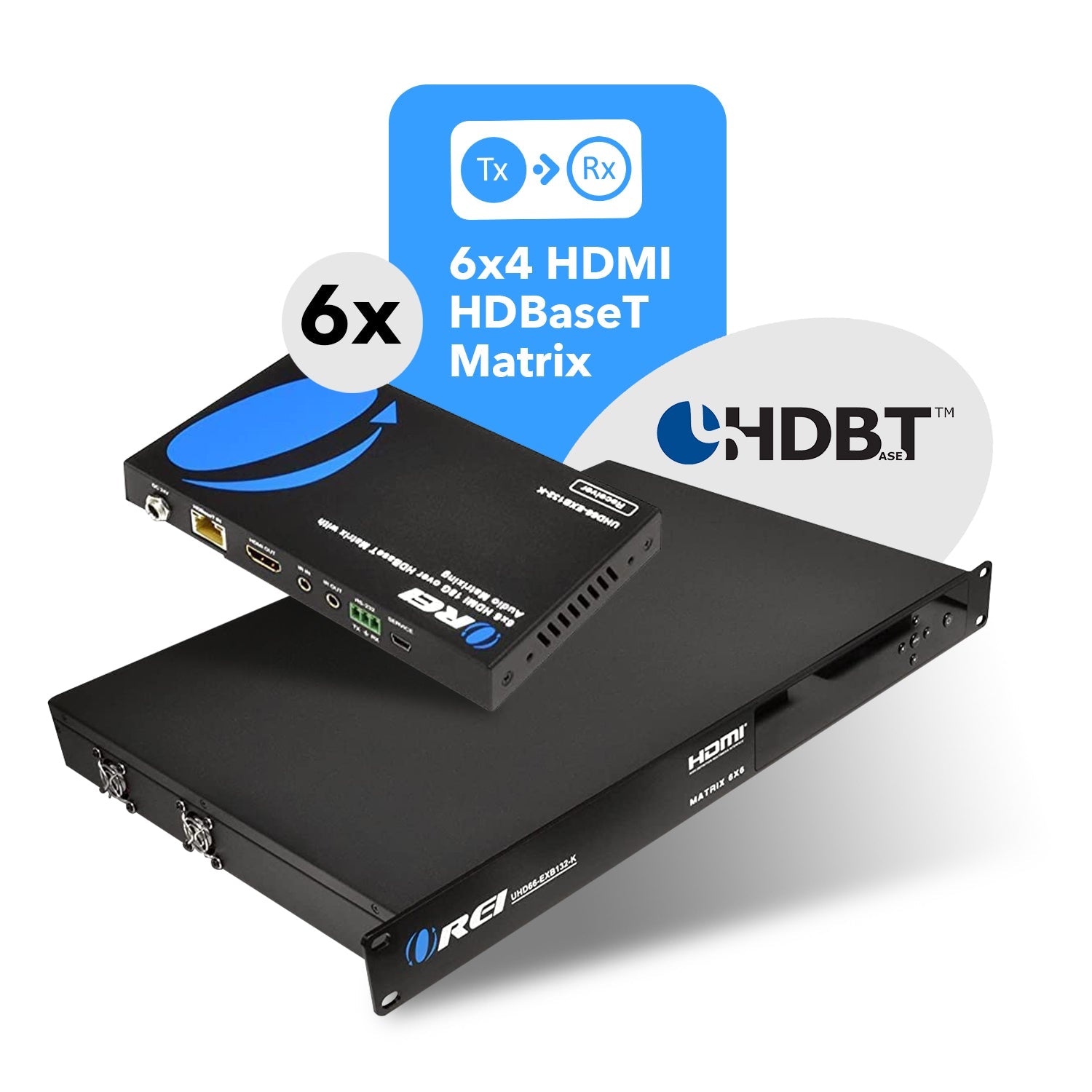

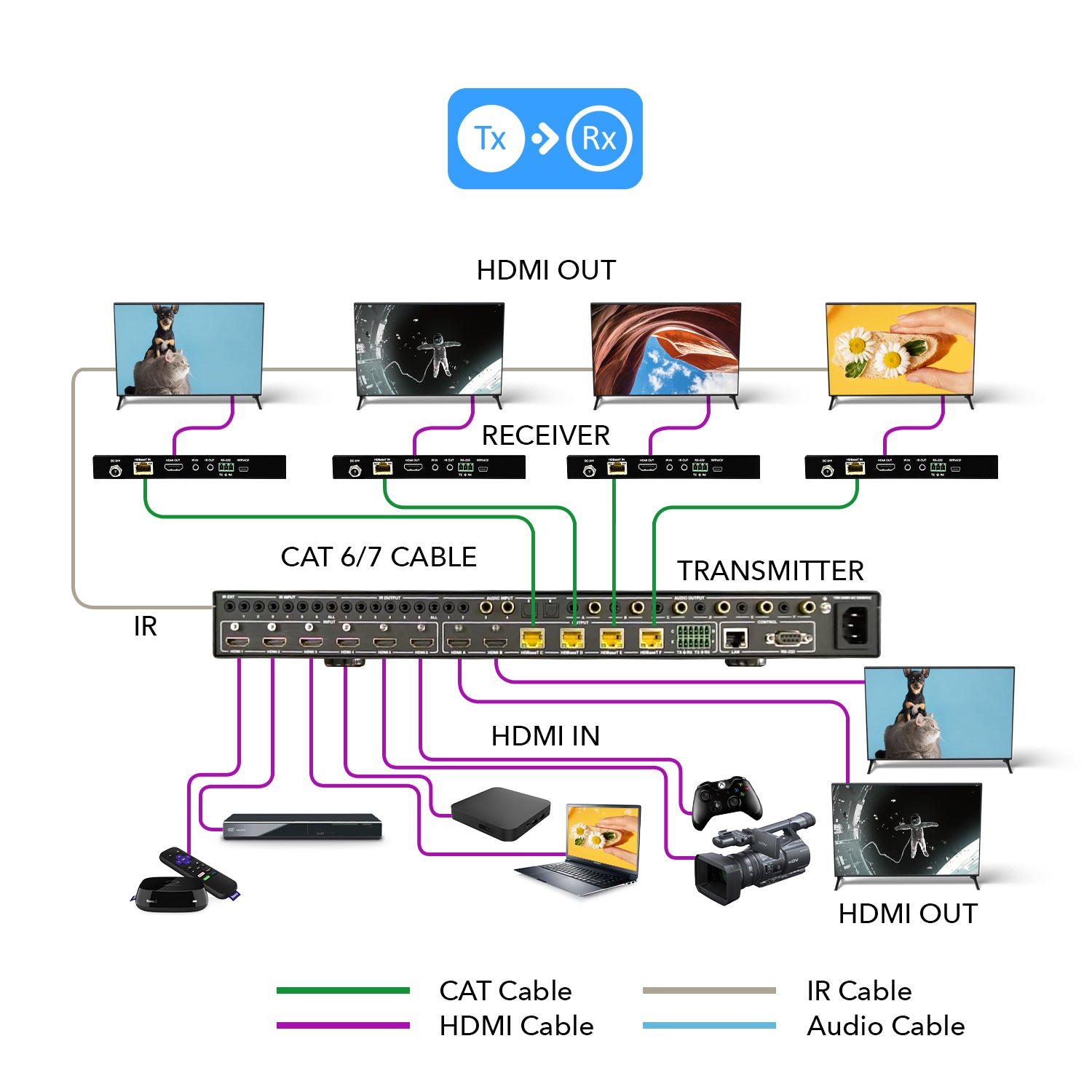

The UHD66-EXB132-K is a Matrix extender with 6 HDMI inputs, 2 HDMI outputs, and 4 HDBaseT outputs extending HDMI signals up to 130 feet at 4K@60Hz 4:4:4, and 230 feet at 1080p@60Hz. Compliant with HDMI 2.0b and HDCP 2.2, it offers a video bandwidth of up to 18Gbps and supports resolutions up to 4K@60Hz 4:4:4 with HDR10 & Dolby Vision pass-through. It features bi-directional IR for control from either location. Featuring audio matrixing with 2 L/R, 2 coaxial, 2 optical inputs, and 6 L/R & 6 coaxial outputs. Control options include RS-232, TCP/IP (RJ-45), IR remote and front panel buttons. It supports 24V power over cable for all HDBaseT ports. Robust build with easy installation, ideal for commercial and personal setups.
[tab]
CONNECTIVITY
Transmitter:
INPUT:
6 × HDMI [Type A, 19-pin female]
OUTPUT:
2 x S/PDIF (Optical)
2 × Coaxial [3.5mm Stereo Mini-jack]
CONTROL:
2 × L/R [3.5mm Stereo Mini-jack]
2 × HDMI [Type A, 19-pin female]
4 × HDBaseT [RJ45, 8-pin female]
6 × Coaxial [3.5mm Stereo Mini-jack]
6 × L/R [3.5mm Stereo Mini-jack]
7 × IR IN [3.5mm Stereo Mini-jack]
7 × IR OUT [3.5mm Stereo Mini-jack]
1 × IR EXT [3.5mm Stereo Mini-jack]
1 × TCP/IP [RJ45]
1 × RS-232 [DB-9 Connector]
4 × RS-232 [3-Pin Phoenix Connector]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-Pin Phoenix Connector]
1 × SERVICE [USB-B Mini]
PACKAGE CONTENTS

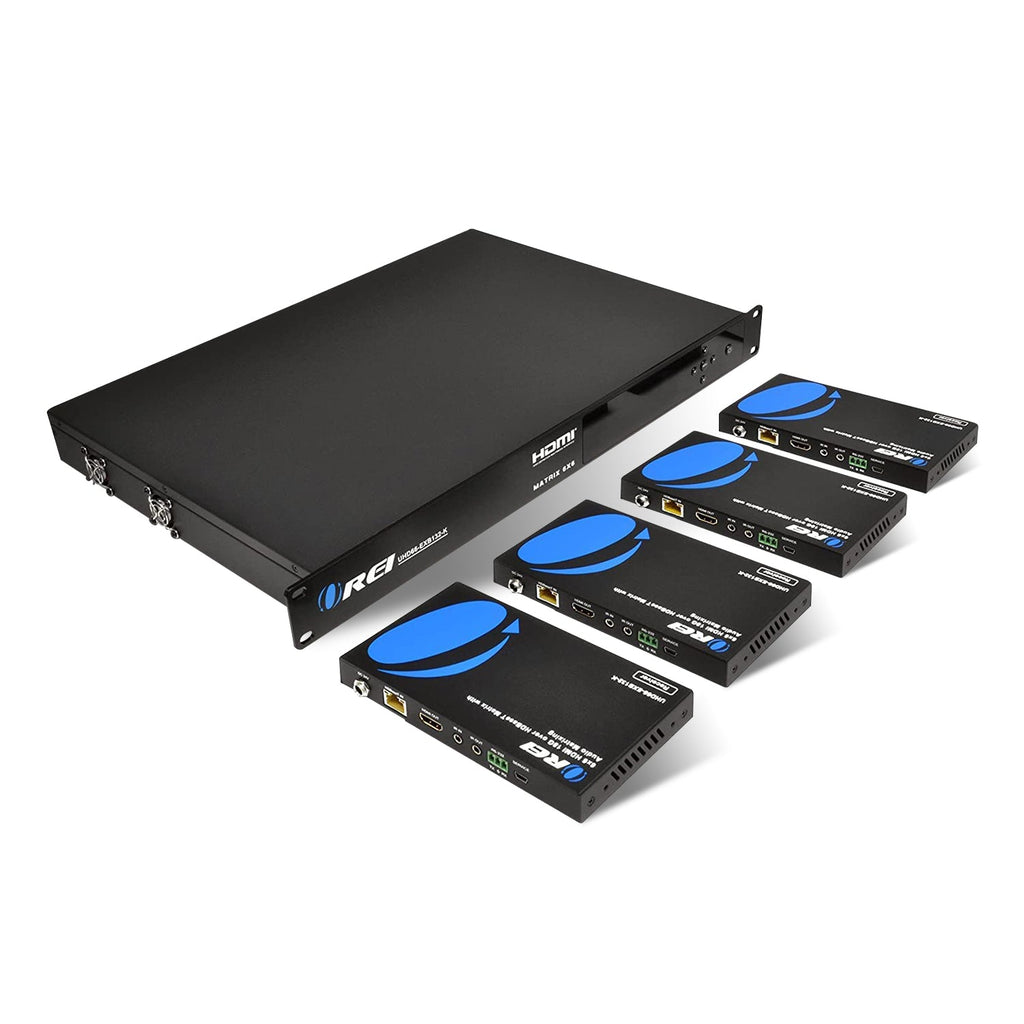

1x Transmitter
4x Receiver
1x IR Remote Control
1x RS-232 Serial Cable
4x 3-pin Phoenix Connectors
4x 5-pin Phoenix Connectors
7x IR Blaster cable
8x IR Receiver cable
8x Mounting Ears
6x RS-232 Blocks
1x Power Cable
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
132 Feet
1080P@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
Coaxial Audio Formats:
PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
L/R Audio Formats:
PCM 2.0CH
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
60W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz

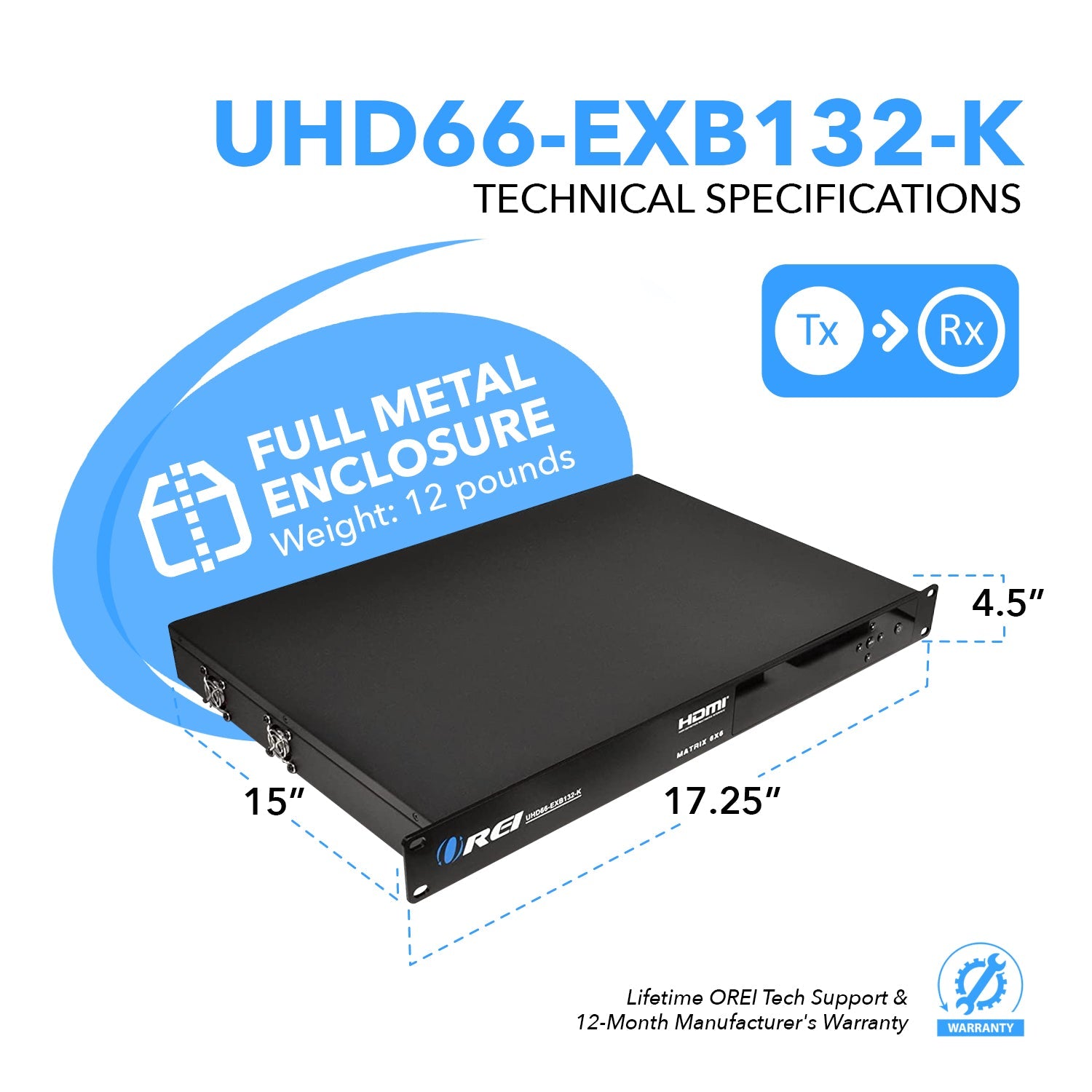

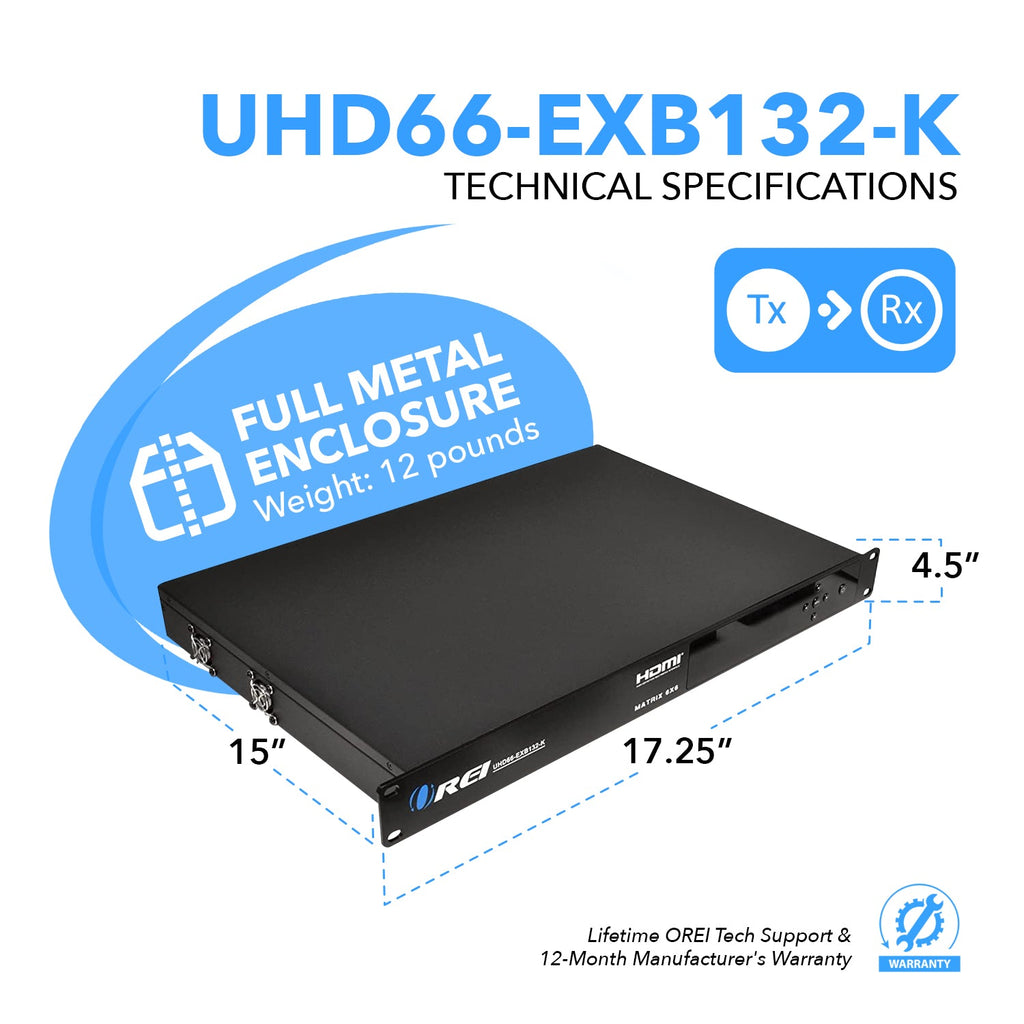

DIMENSIONS & WEIGHT
Transmitter:
Length:
483mm / 17.32in
Width:
303mm / 7.87in
Height:
44.5mm / 1.75in
Weight:
2.11kg / 6.83lb
Receiver:
Length:
157mm / 6.18in
Width:
90mm / 3.54in
Height:
20mm / 0.79in
Weight:
330g / 11.64oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 500 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.

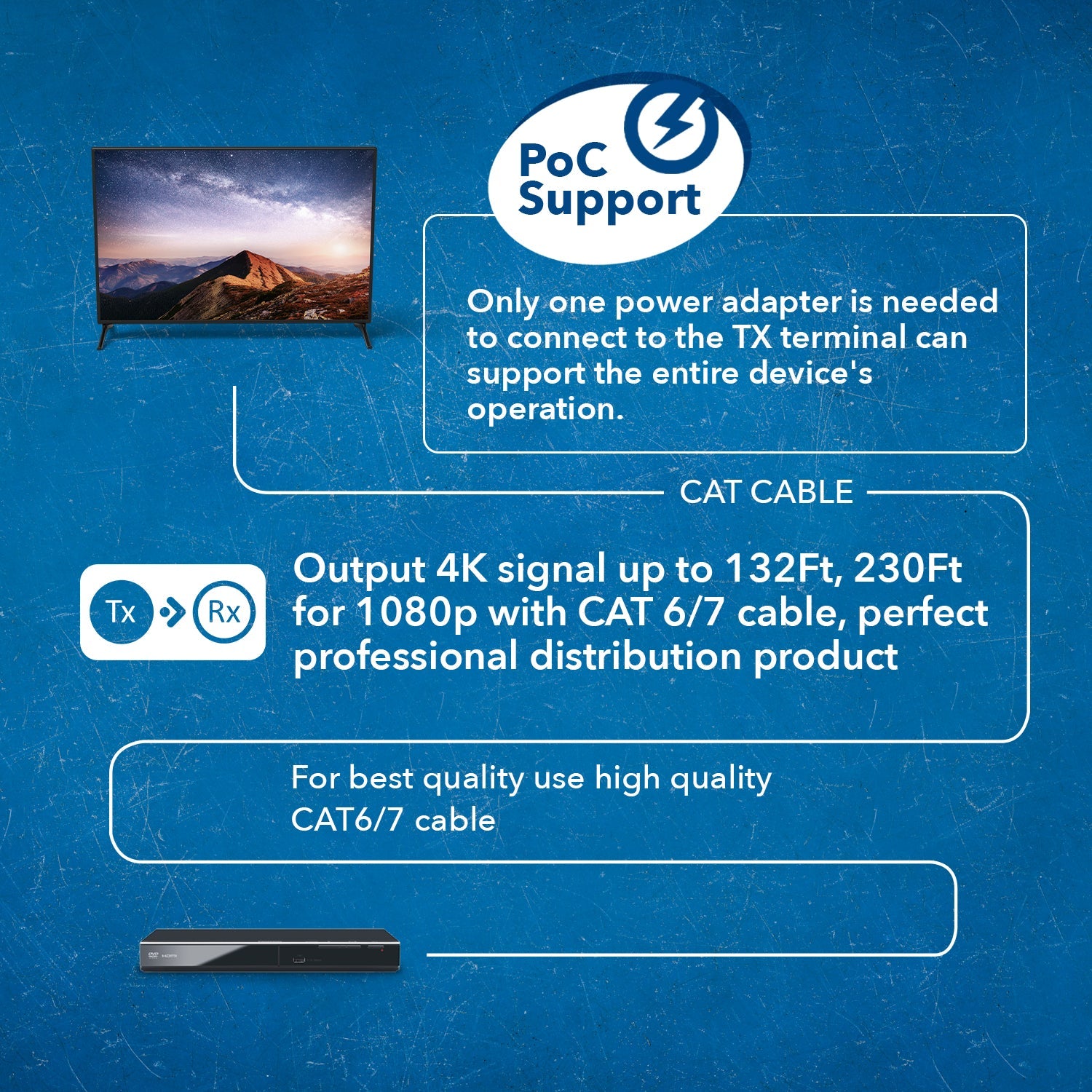

Yes, this product supports PoC/PoE function, you need only one power adapter at either transmitter side or the receiver side to power both units.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
