Description
OREI UHD12-EX100-K: Ultra HD 1x2 HDMI Extender Splitter 100 Feet
Key Features:

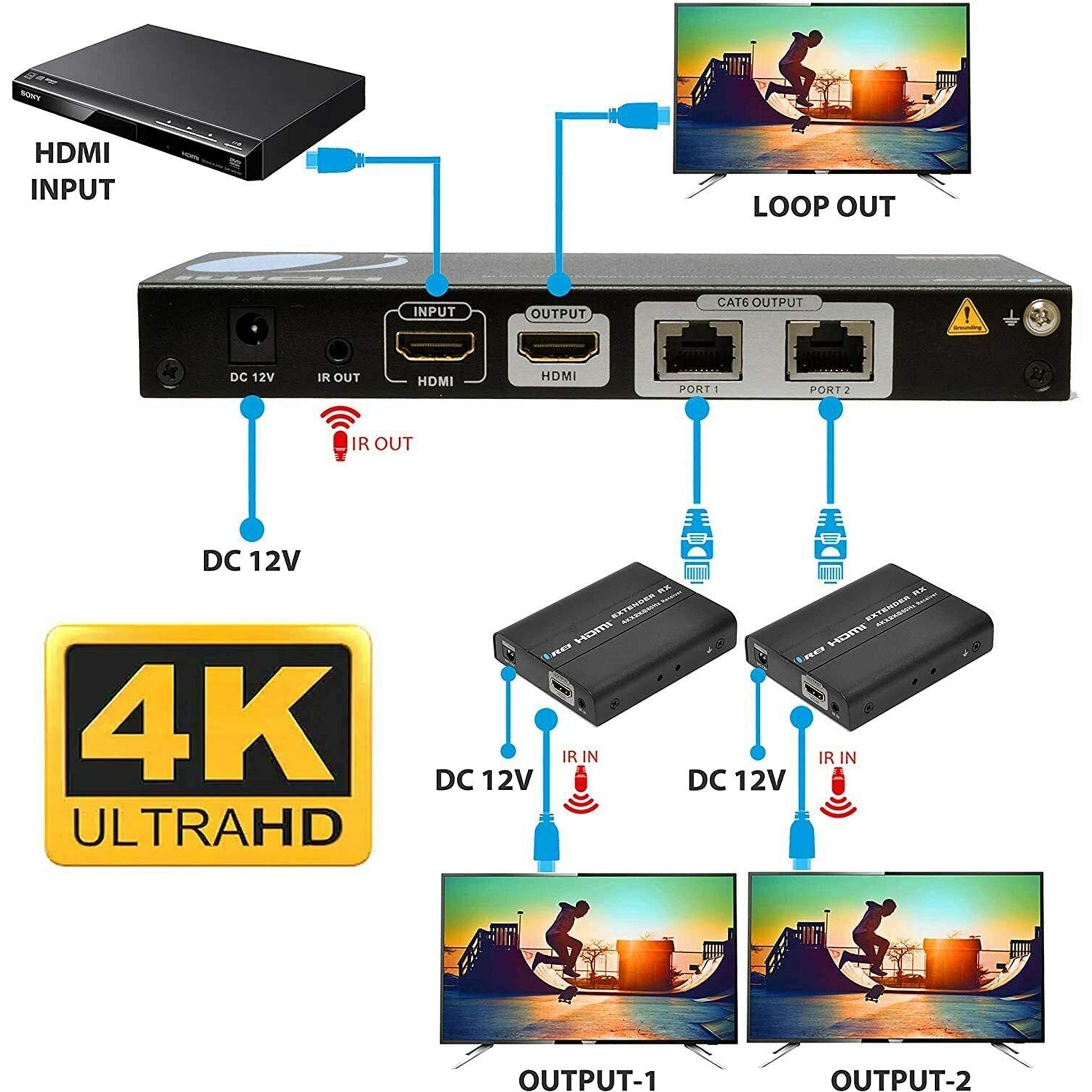

Distribute 1 HDMI source to 2 HDMI displays over LAN CAT6/7 network cable simultaneously
4K@60Hz Uncompressed Signal Over 30M (100 Feet)4K@60Hz Quality
Output 4K signal up to 100 Feet with Cat6/7 cable and 1080p signal up to 165 Feet

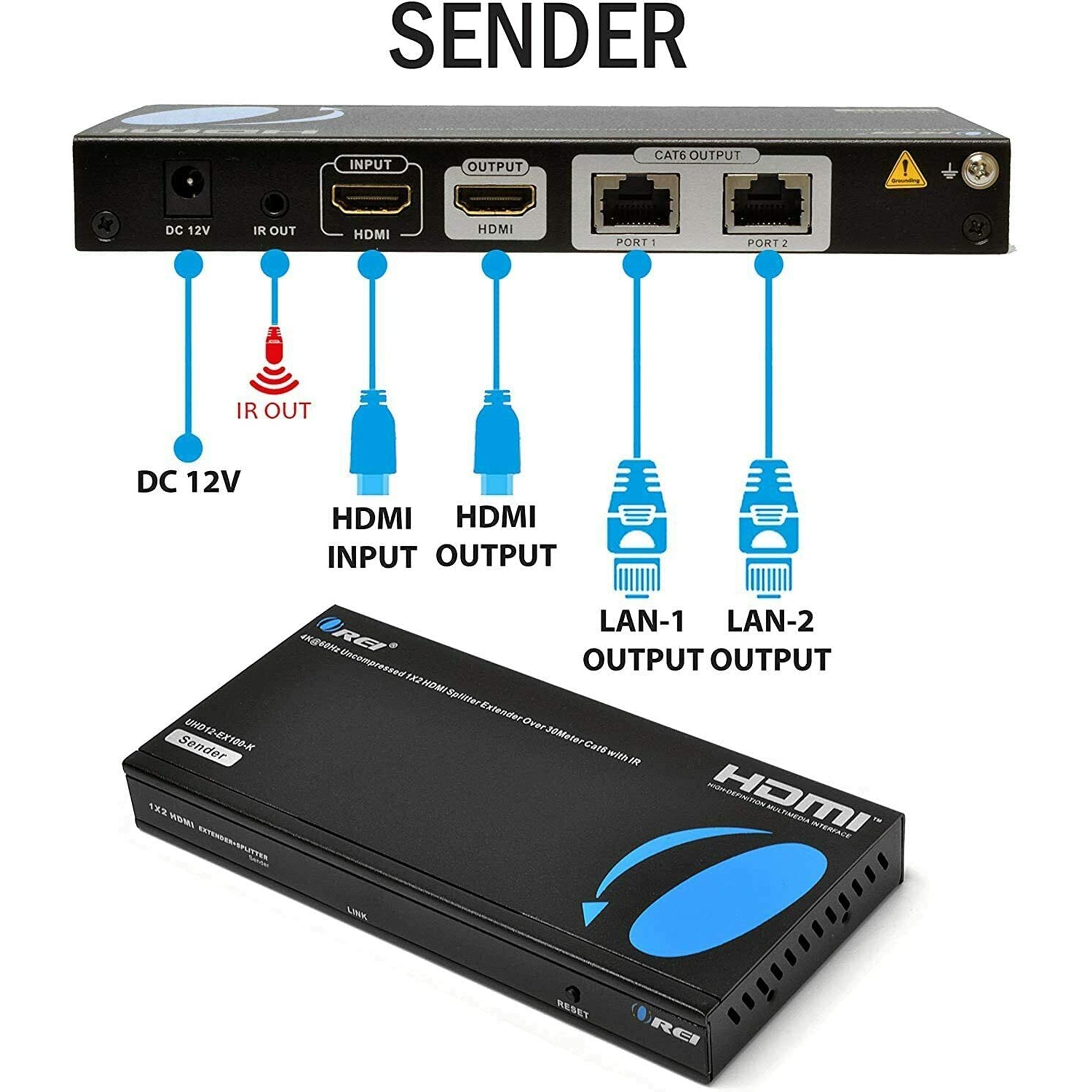

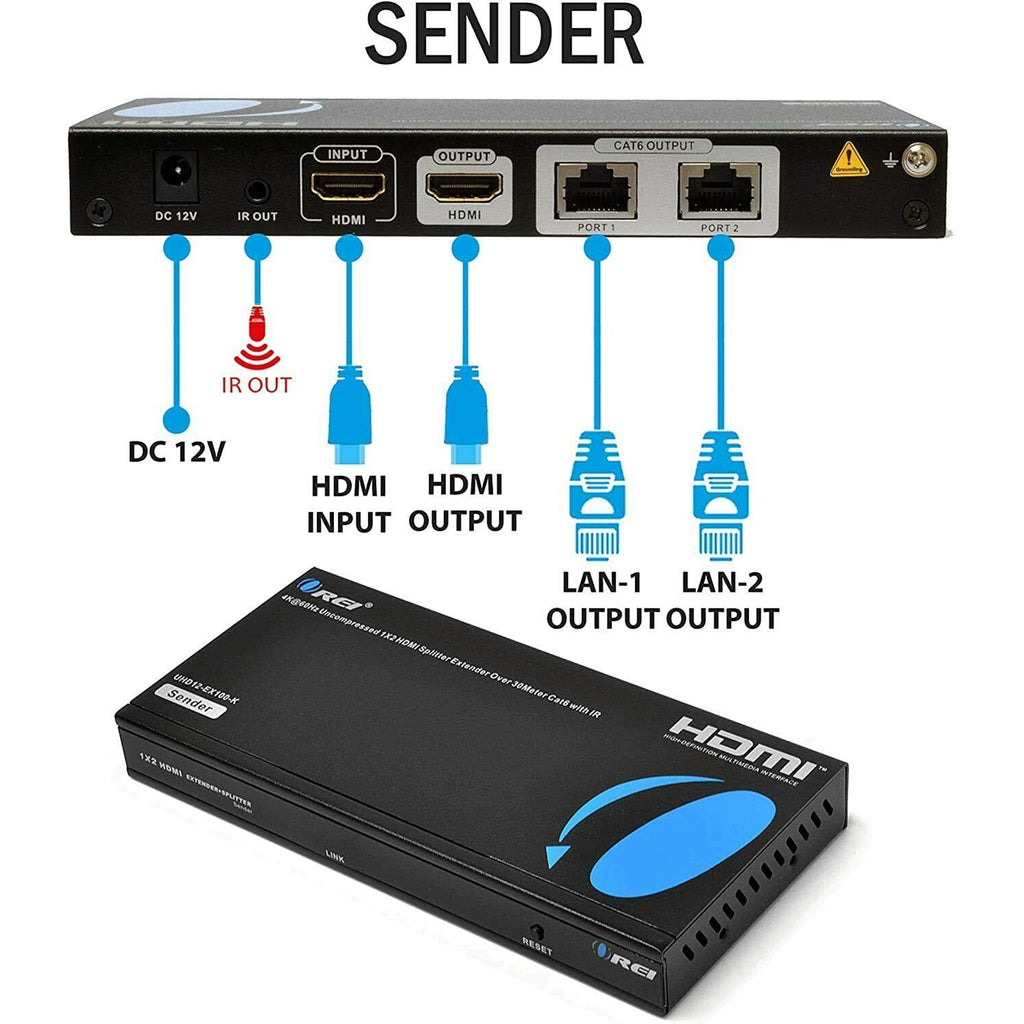

HDMI Transmitter is equipped with 2 Port CAT6 Output and 1 Additional HDMI Output to connect to a local display or monitor
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
Loop Out on Sender Unit
Full IR Remote Control Input
Supports 20~60Hz IR Pass Back
Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
Lossless Transmission with Minimal Latency
Compatible with CAT6/6a/7 Network Cables
The highest resolution supported is 3840x2140p@60Hz
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
Plug & Play Setup without any Software Installation

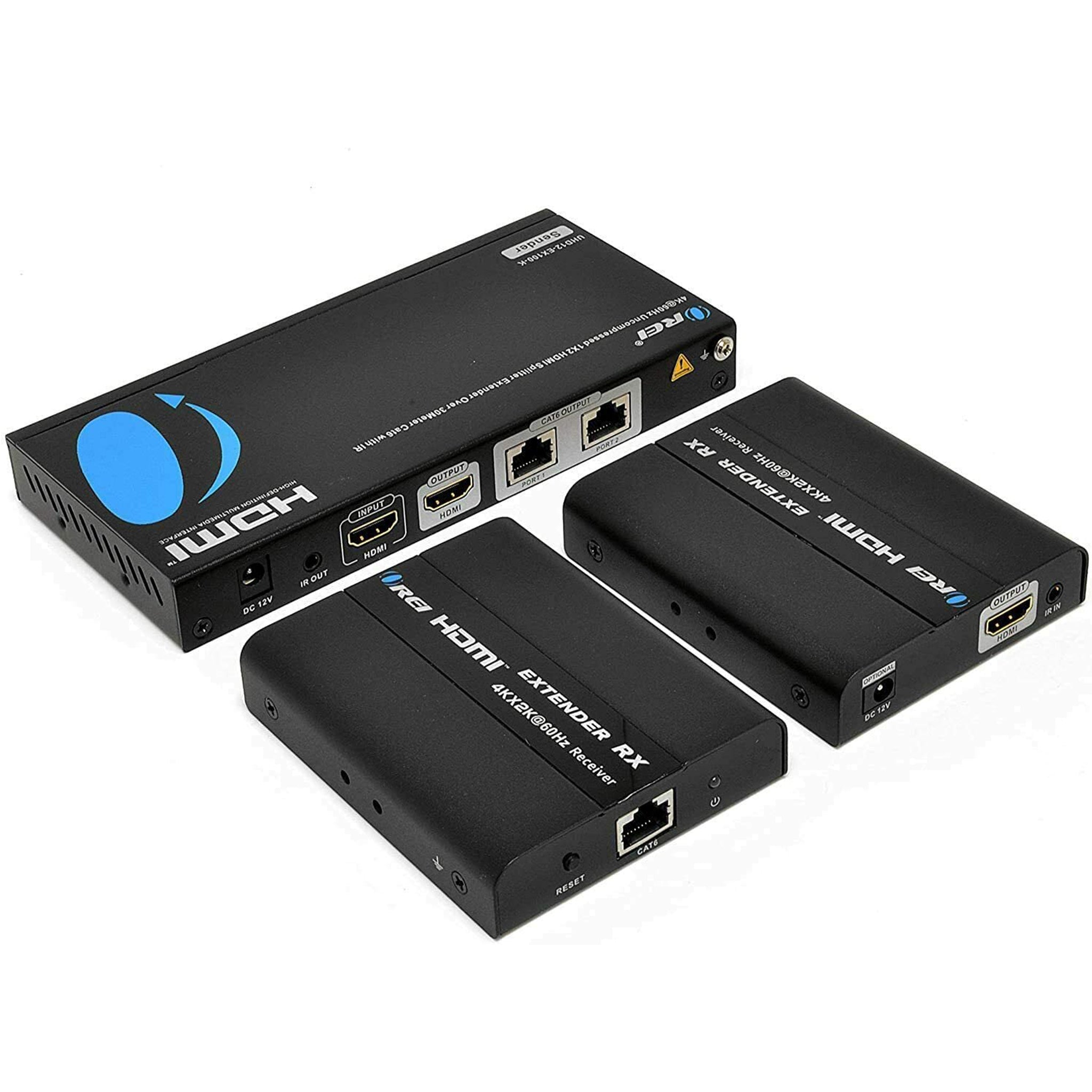

The OREI UHD12-EX100-K splitter includes one transmitter and two receivers, extend 1 HDMI source to 2 HDMI displays over a single CAT6/6a/7 cable up to 100 at 4K signal, or up to 165 Feet with 1080p. Perfect for Bars, Restaurants, in-home entertainment system.HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 Compliant. Supports 18 Gbps Video Bandwidth. Advanced EDID Management.
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
With one way IR pass back
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
No
EQ Dip Switches:
No
ARC:
No
AUDIO OUTPUT
HDMI Audio Formats:
-
SPDIF/Optical Audio Formats:
NO SPDIF/optical Audio output
L/R Audio Formats:
NO L/R audio output
SIGNALS
TMDS Signals:
3V
DDC Signals:
5V
DIMENSIONS & WEIGHT
Transmitter:
Height:
31mm
Width:
161.6mm
Depth:
85.31mm
Weight:
410g

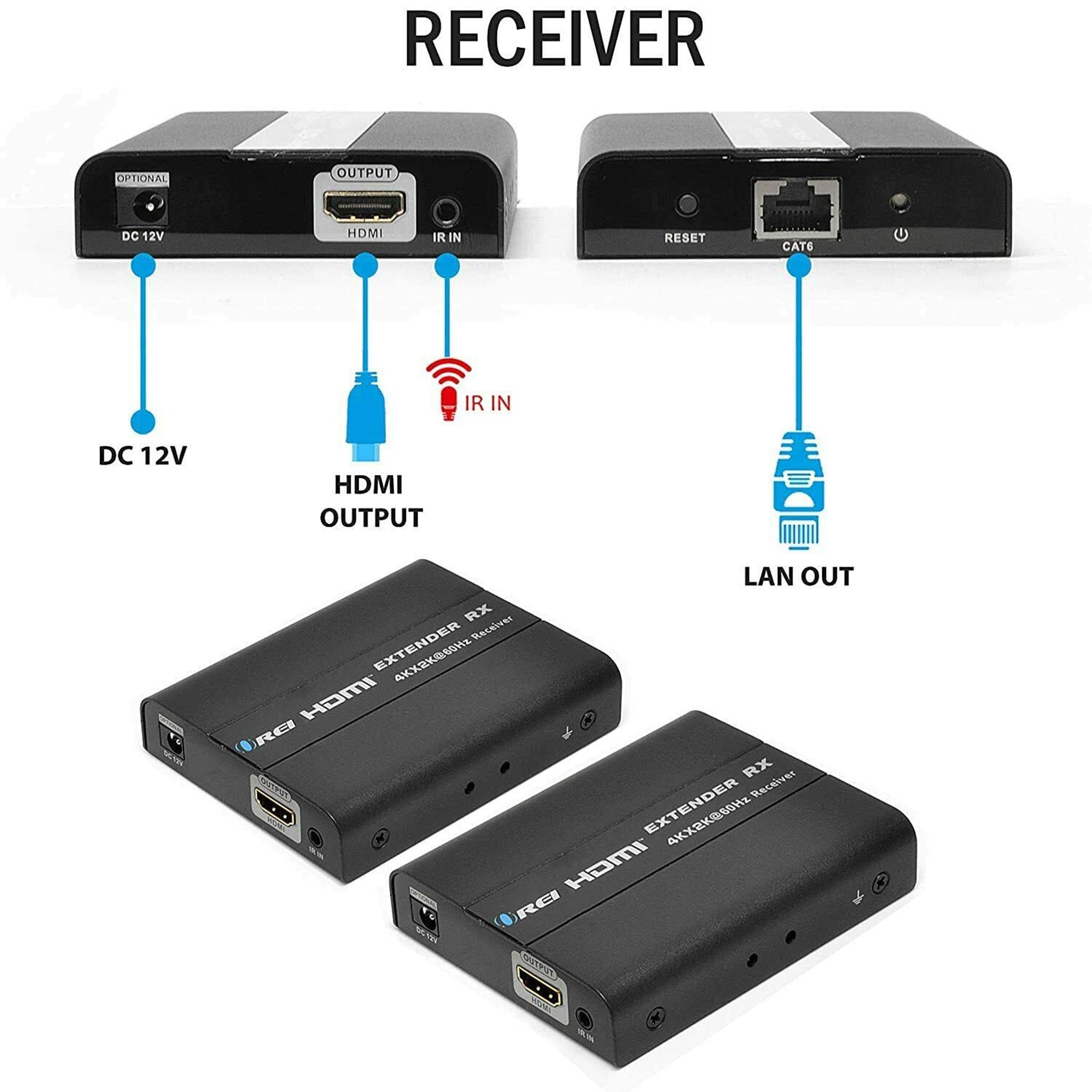

Receiver:
Height:
81.6mm
Width:
101.1mm
Depth:
20.6mm
Weight:
190g
PROTECTION
Operation Temperature:
0～50℃
Storage temperature:
-20°C ~70°C
Relative Humidity:
0～90%(no condensation)
ESD Protection:
Contact Discharge 4KV, Air Discharge 8KV
RJ-45 CONNECTOR Type
-
POWER
Power Consumption (Max):
Transmitter:
<12W
Receiver:
<6W
Power Supply:
DC12V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal
Processing Technology:
Uncompressed Transmission Technology
Finishing:
Grit blast
PACKAGE CONTENTS
1 x HDMI Transmitter
2 x HDMI Receiver
1 x DC12V/2A
1 x User Manual
1 x IR blaster extension cable
2 x IR receiver extension cable
Mounting Brackets
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 200 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
