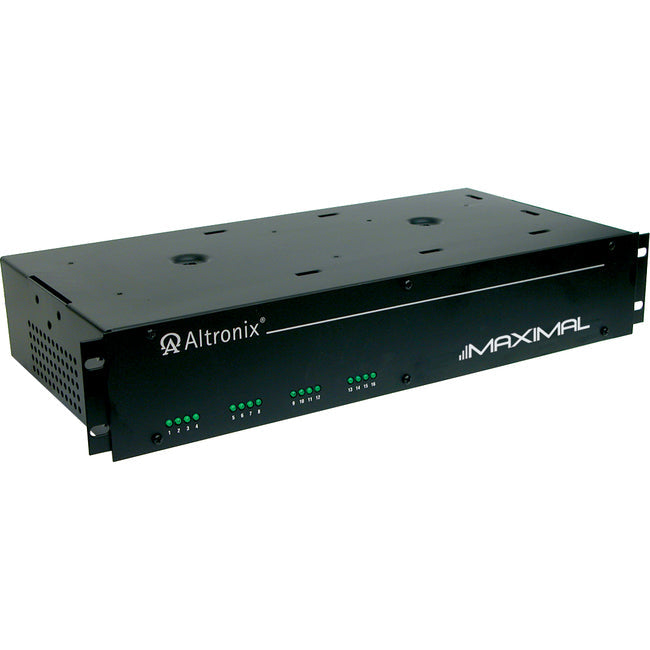

Altronix Maximal33R Rack Mount Access Power Controller
Maximal33R rack mount access power controller distributes and switches power to access control systems and accessories. It converts a 115VAC 50/60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.
- 2U EIA 19" Rack Chassis.
- Fire alarm disconnect selectable by out.
- 16 fused outputs, each 8 out are selectable for 12/24VDC @ 6A, individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts.
- Rack Mount Access Power Cont with 2 power supplies.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility: Access Control Hardware Devices:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Form Factor: Rack-mountable
Manufacturer: Altronix Corporation
Product Model: MAXIMAL33R
Product Name: Maximal33R Rack Mount Access Power Controller
Product Line: MAXIMAL
Manufacturer Part Number: MAXIMAL33R
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 12.40 lb
