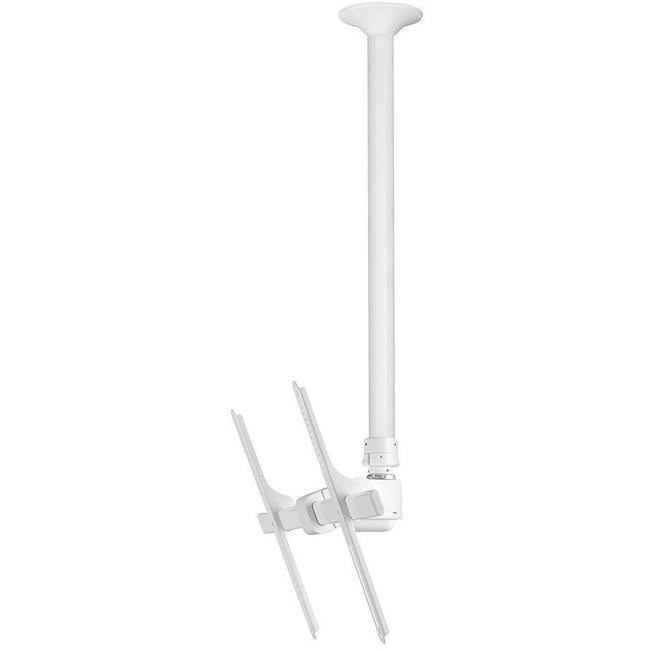

Atdec ceiling mount for large display, long pole - Loads up to 143lb - White - Universal VESA up to 800x500
The TH-3070-CT is a medium-to-heavy weight TV ceiling mount designed to offer the ultimate in versatility and universal compatibility. It is specifically designed for retail and commercial environments, offering 360° rotation around the pole, adjustable drop length, and 30° adjustable tilt. Displays can be installed in either portrait or landscape orientation, making it the perfect solution for digital signage applications. It combines advanced cable management features and ceiling mount covers to ensure an elegant, professional look. All mounting hardware included. Two options are available:
- TH-3070-CTS - pole adjustment length from 21.65in to 35.43in
- TH-3070-CTL - pole adjustment length from 41.34in to 74.8in
More from the Manufacturer
- 10 years warranty
- All mounting hardware included
- Additional false ceiling cover included
- Advanced cable management
- Versatile display position adjustments
- 360° display rotation around the pole (can be optionally locked)
- Can be upgraded to a dual display back-to-back configuration
- Flat screen monitors: maximum load up to 143lb
Product Type: Ceiling Mount
Vesa Mount Compatible: Yes
Vesa Mount Standard: 800 x 500
Product Color: White
Product Material: Plastic
Country Of Origin: Taiwan
Brand Name: Atdec
Length: 41.7"
Manufacturer: Atdec Pty Ltd
Product Model: TH-3070-CTLW
Product Name: Telehook TH-3070-CTLW Ceiling Mount
Product Line: Telehook
Manufacturer Part Number: TH-3070-CTLW
Manufacturer Website Address: http://www.atdec.com
Package Contents:
- Telehook TH-3070-CTLW Ceiling Mount
- 2 x Mounting Bracket
- Horizontal Rail
- 2 x M4x12mm Screw
- Ceiling Cover
- 2 x Bracket Locking Plate
- Clamp Cover Middle
- M10 Washer
- 2 x Cable Clip
- Mounting Cover
- 2 x M8x15mm Screw
- Clamp Cover Bottom
- M10x0 Screw
- Mounting Plate
- Head Clamp Assembly
- 2 x Clamp Cover Side
- Tightening Tool
- 4 x M10 Coach Bolt
- 4 x M6/M8/M10 Washer
- 4 x Nylon Anchor
- 4 x M6/M8 Spacer
- 2mm/2.5mm/3mm/5mm/8mm Allen Key
- 4 x M6 x 16 mm/30mm/45mm
- 4 x M8x16mm/30mm/50mm
Limited Warranty: 10 Year
Weight (Approximate): 33 lb
