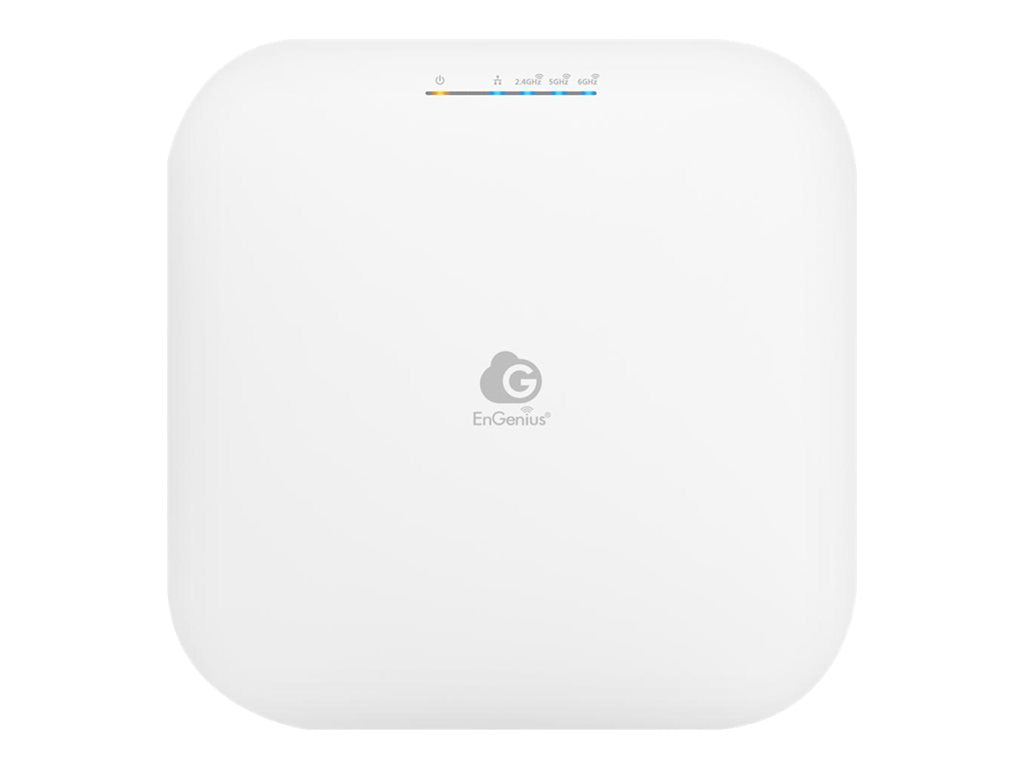

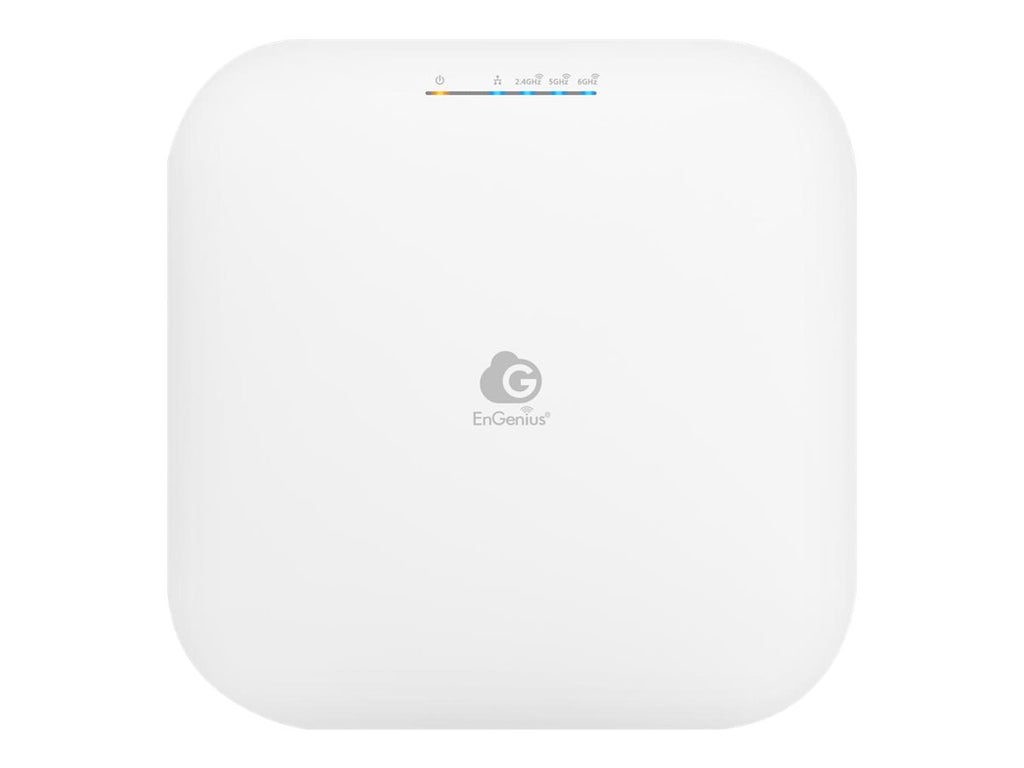

EnGenius Cloud Managed ECW336 - Wireless access point - 4x4, tri-band - 1GbE, 5GbE, 2.5GbE - Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed - wall / ceiling mountable
-
Robust connectivity options
The EnGenius ECW336 supports multiple wireless protocols, including IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E), ensuring compatibility with a wide range of devices while delivering exceptional performance.
-
Secure data transmissions
Equipped with multiple encryption algorithms such as WPA2-PSK, WPA3-Enterprise, and AES, this access point ensures that all data transferred across the network remains private and secure.
-
Optimized network management
Featuring cloud management capabilities and remote management protocols like SNMP, the ECW336 allows for efficient monitoring and configuration from anywhere, simplifying network administration.
-
High-performance design
With a maximum throughput of 1148 Mbps on the 2.4 GHz band, 2400 Mbps on the 5 GHz band, and 4800 Mbps on the 6 GHz band, this device is designed to handle heavy traffic and multiple connections simultaneously.
-
Versatile installation options
Designed for wall or ceiling mounting, the ECW336 can be strategically placed to maximize coverage and maintain a clean environment, catering to different architectural settings.
The EnGenius Cloud Managed ECW336 6 GHz tri-band 4 x 4 Wi-Fi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly-released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6 GHz spectrum is occupied only by efficient Wi-Fi 6 client devices, removing frustrations currently caused by overcrowding of legacy devices on multiple Wi-Fi networks. There are twice as many channels on the newly opened 6 GHz band that do not overlap with each other greatly reducing network bottlenecks and enabling Gigabit Wi-Fi. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and "enhanced open" for stronger encryption and authentication.
- 4 x 4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
- 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
- 5 GbE PoE+ port to maximize the connection speed and AP placement
- Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
- The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
- The 6 GHz interference-free band allows ultra-fast Gigabit Wi-Fi speeds
- Integrated enterprise security and guest access
- Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
- OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
- Access point diagnostic tools for real time channel utilization
