Gigabyte G482-Z54 Barebone System - 4U Rack-mountable - Socket SP3 - 2 x Processor Support
AMD EPYC™ 7002 Series Processor (Rome)
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
- Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
- Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
- Supporting PCIe® 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
-
Embedded security protection to help defend your CPU, applications, and data
High Density HPC
Supports 8 x PCIe® 4.0 Computing Cards
The G482-Z54 is one of the world's first PCIe® 4.0 GPU server systems to be released to the market, featuring support for up to eight dual-width PCIe 4.0 GPU cards (with each GPU connected directly to the processor via PCIe root). It is ideal to integrate an "AMD on AMD" solution using 2nd Gen AMD EPYC™ processors together with the newly unveiled AMD Instinct™ MI100 GPU accelerators that are tailored to deliver optimal system level performance in HPC and Machine Learning workloads supported by use of the AMD Infinity Fabric™ technologiesy.
PCIe® 4.0 Ready
AMD EPYC Rome is ready to support PCIe® 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMD's Radeon MI50 GPGPU.
Higher Memory Speed
AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
Get the Memory Performance Edge
3200Mhz Even at 2 DIMMS Per Channel
On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel. GIGABYTE's server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!
Max TDP Support
GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP)
Data Security
TPM 2.0 Module
GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Carefully Selected Components
GIGABYTE's passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with long lasting components for a high degree of reliability and durability.
Design Features for Easy Maintenance
GIGABYTE's AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal - never worry about forgetting your toolbox or losing a screw again!
Tool-less Rail Kits
Rail kits attach to the side of the server chassis via clipping mechanism.
- Up to 8 x PCIe Gen4 GPGPU cards

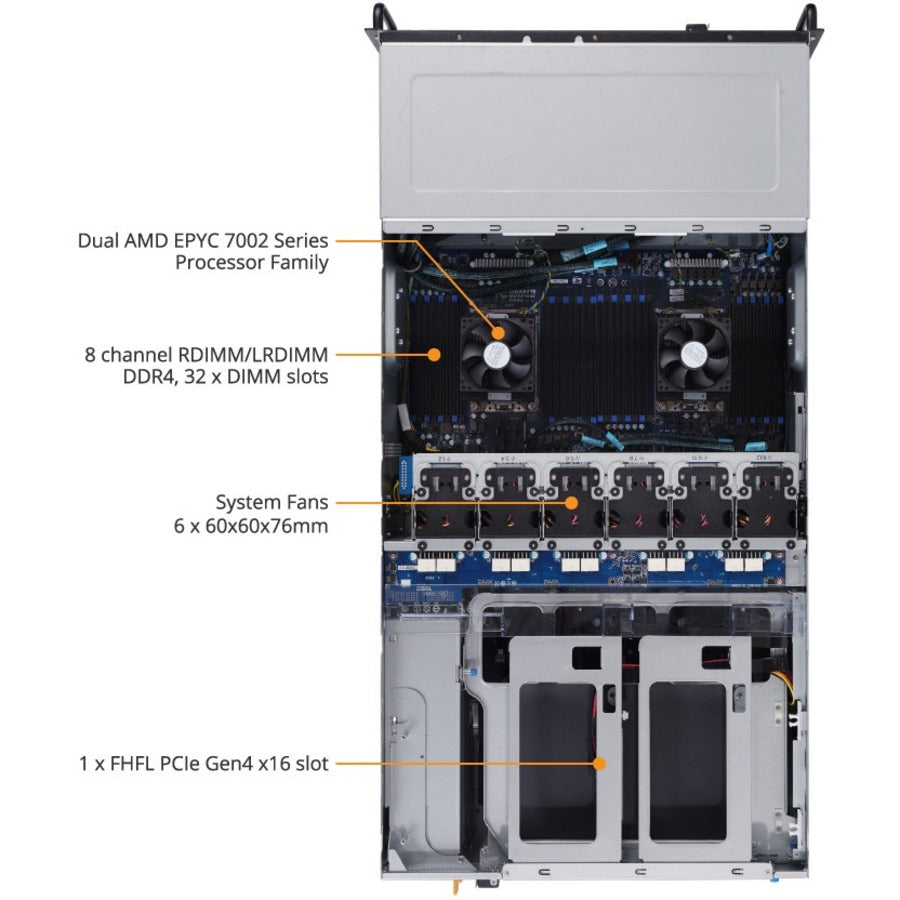

- Dual AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
- 1 x dedicated management port

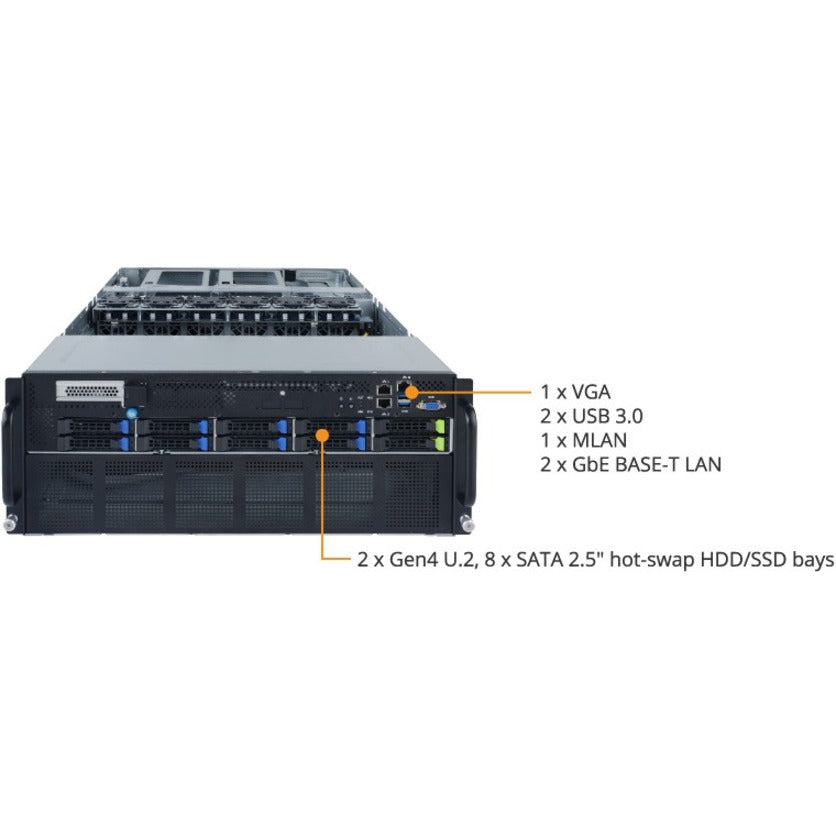

- 2 x 2.5" NVMe, 8 x 2.5" SATA hot-swappable HDD/SSD bays
- 8 x FHFL Gen4 expansion slots for GPU cards
- 1 x FHFL PCIe Gen4 x16 expansion slot

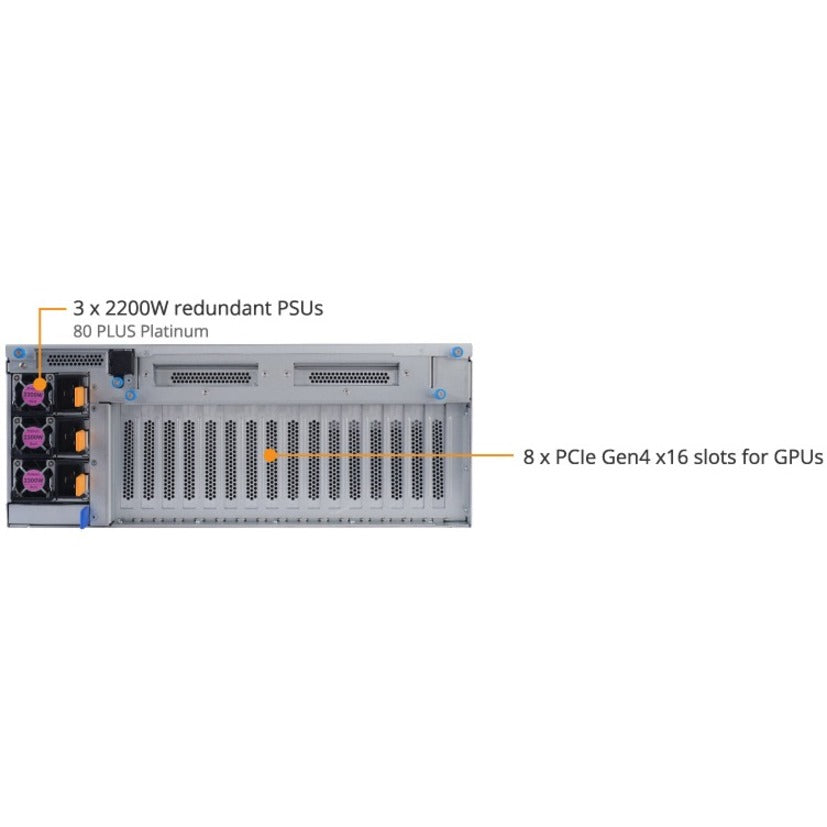

- 3 x 80 PLUS Platinum 2200W redundant PSU
Product Type: Barebone System
Rack Height: 4U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: G482-Z54
Product Name: G482-Z54 (rev. 100) HPC Server - 4U DP 8 x Gen4 GPU Server
Manufacturer Part Number: G482-Z54
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- G482-Z54 (rev. 100) HPC Server - 4U DP 8 x Gen4 GPU Server
- 2 x CPU Fan-Sinks
- 1 x Rail Kit
Limited Warranty: 1 Year
Weight (Approximate): 65.04 lb
