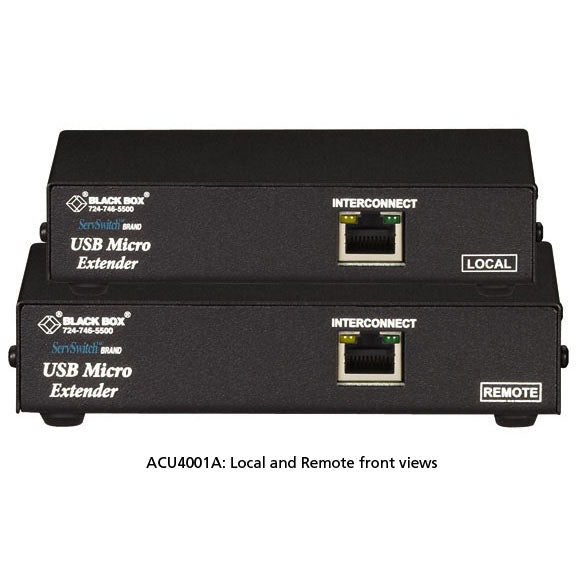

Black Box Micro KVM Extender - VGA, USB, Single-Access, CATx
The ServSwitch USB Micro Extender Kit, Single-VGA, enables you to place your workstation up to 164 feet (50 m) away from a server with a USB keyboard and mouse console. The extenders transparently send VGA and USB 1.1 signals over CAT5/5e/6 cable. And with up to 1600 x 1200 resolution, you get sharp, clear video, even on large monitors.
A 4-port USB hub built into the USB remote unit enables you to connect USB 1.1 devices such as memory sticks and PDAs in addition to the keyboard and mouse.
All-purpose
The extenders are flash upgradeable and provide a local passthrough for video signals so you can connect a local VGA monitor for administration.
- Easy plug-and-play installation
- USB-HID and CATx connectivity
- Transparent USB 1.1 extension
- Surge protection on RJ-45 ports
- Remote unit includes a built-in 4-port USB hub
- VGA Video resolution 1600x1200 at 75Hz
Product Type: KVM Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.10"
Transmitter Width: 4.70"
Transmitter Depth: 4.30"
Receiver Height: 1.10"
Receiver Width: 5.40"
Receiver Depth: 3.90"
Taa Compliant: Yes
Country Of Origin: United Kingdom
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Micro KVM Extender - VGA, USB, Single-Access, CATx
Product Line: ServSwitch
Manufacturer Part Number: ACU4001A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Local Unit
- Remote Unit
- 1 x 9-VDC 1-amp Power Supply Transformer and Output Cord
- 1 x Power Supply Input Cord Suitable
- 1 x 3-ft. (0.9-m) HD15 to HD video Cable
- 1 x 3-ft. (0.9-m) Micro Extender cable (EHN230-0003)
- 1 x 5-VDC power supply
- 1 x 3.3-ft. (1-m) USB/Video Cable with USB connector and VGA video (HD15 M-F)
- User's Guide
Limited Warranty: 1 Year
