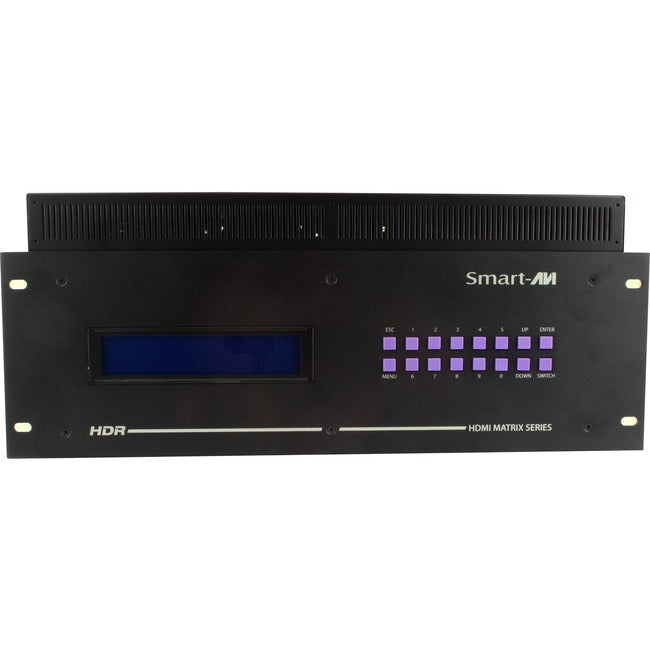

SmartAVI HDMI 16x16 Matrix Switcher
The HDR 16x16 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The HDR 16x16 provides HDMI output up to 40 feet with HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display.
Users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
- Rack mountable
- Outputs HDMI up to 40 feet
- Delivers uncompressed digital video with zero signal loss
- Supports EDID for total control of compliant displays
- HDCP and HDMI 1.3 compliant
- Supports 7.1 Digital Surround Sound Audio
- Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
- Switching controlled via the front panel, RS-232, IR, and TCP/IP
- Switches 16 HDMI inputs with 16 HDMI outputs
- Sources can be routed independently to displays
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: HDR16X16S
Product Name: HDMI 16x16 Matrix Switcher
Manufacturer Part Number: HDR16X16S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- HDMI 16x16 Matrix Switcher
- SM-CSW Software
- CCPWR06 Cable
Limited Warranty: 1 Year
Weight (Approximate): 15 lb
