QCT Next-Generation 100G ToR/Spine Switch for Data Center and Cloud Computing
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.
BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

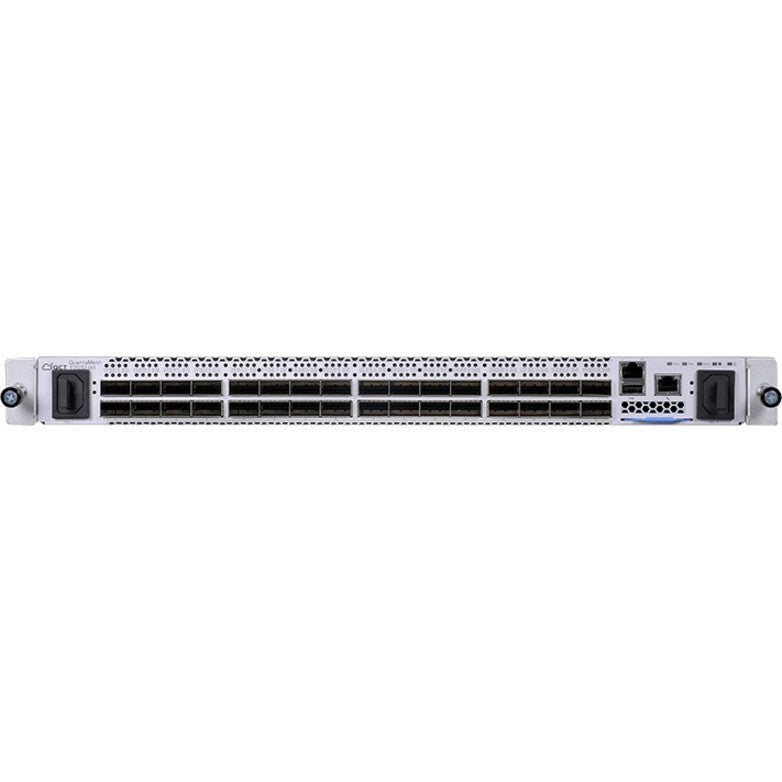

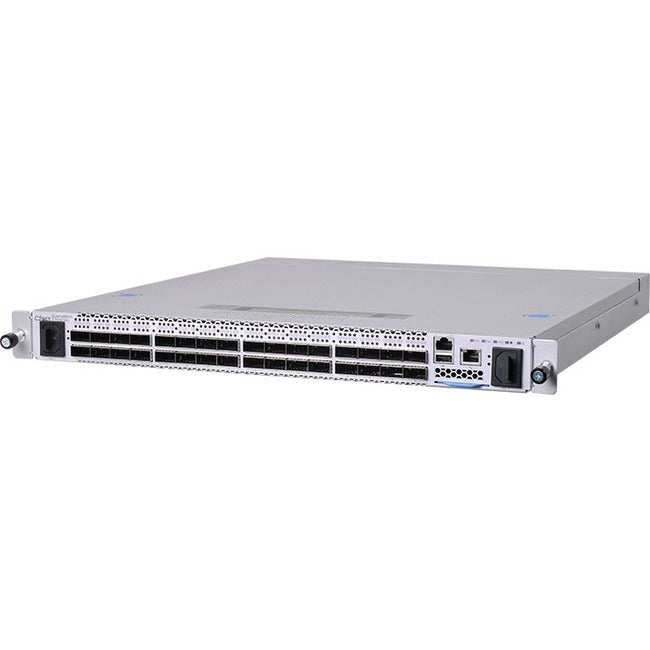

QuantaMesh T7032-IX1 supports 32 QSFP28 (10/25/40/50/100GbE speed) ports and QuantaMesh T7032-IX1B supports 32 QSFP28 (10/25/40/50/100GbE speed) ports and is equipped with BMC in a compact rack unit size. By leveraging merchant silicon chipsets, the T7032-IX1 and T7032-IX1B provides a high performance, high-density Ethernet switch at an affordable price. With ONIE (Open Network Installation Environment) pre-loade, the T7032-IX1 and T7032-IX1B can be used with multiple operating system that support ONIE installers to achieve agile installation and fast response as demands change.
- ONIE Pre-loaded
- x86 CPU Board Support
- ONL Ready
- OF-DPA Ready
- BMC Built-in
- Cumulus Linux Ready
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: QCT
Form Factor: Rail-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T7032-IX1B
Product Name: Next-Generation 100G ToR/Spine Switch for Data Center and Cloud Computing
Product Line: QuantaMesh
Manufacturer Part Number: 1IX1UZZ0STG
Manufacturer Website Address: http://www.quantatw.com
Package Contents:
- Next-Generation 100G ToR/Spine Switch for Data Center and Cloud Computing
- Rail Kit
Limited Warranty: 3 Year
Weight (Approximate): 20.75 lb
