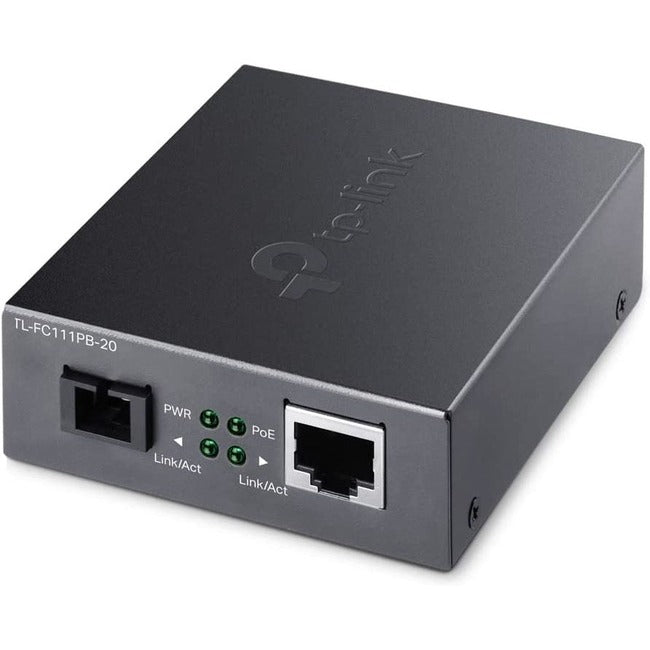

TP-Link TL-FC111PB-20 - 10/100 Mbps WDM SFP to RJ45 Fiber to Ethernet Media Converter with 1-Port PoE
What This Product Does
TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1 10/100 Mbps PoE RJ45 port and 1 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.
How This Product Works
TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1310 nm, Rx 1550nm; Compatible TP-Link model: TL-FC111A-20.
Product Type: Transceiver/Media Converter
Brand Name: TP-Link
Form Factor: Rack-mountable
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-FC111PB-20
Product Name: 10/100Mbps WDM Media Converter with 1-Port PoE
Manufacturer Part Number: TL-FC111PB-20
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:
- Media Converter TL-FC111PB-20
- Power Adapter
- Installation Guide
Limited Warranty: 2 Year
