Description

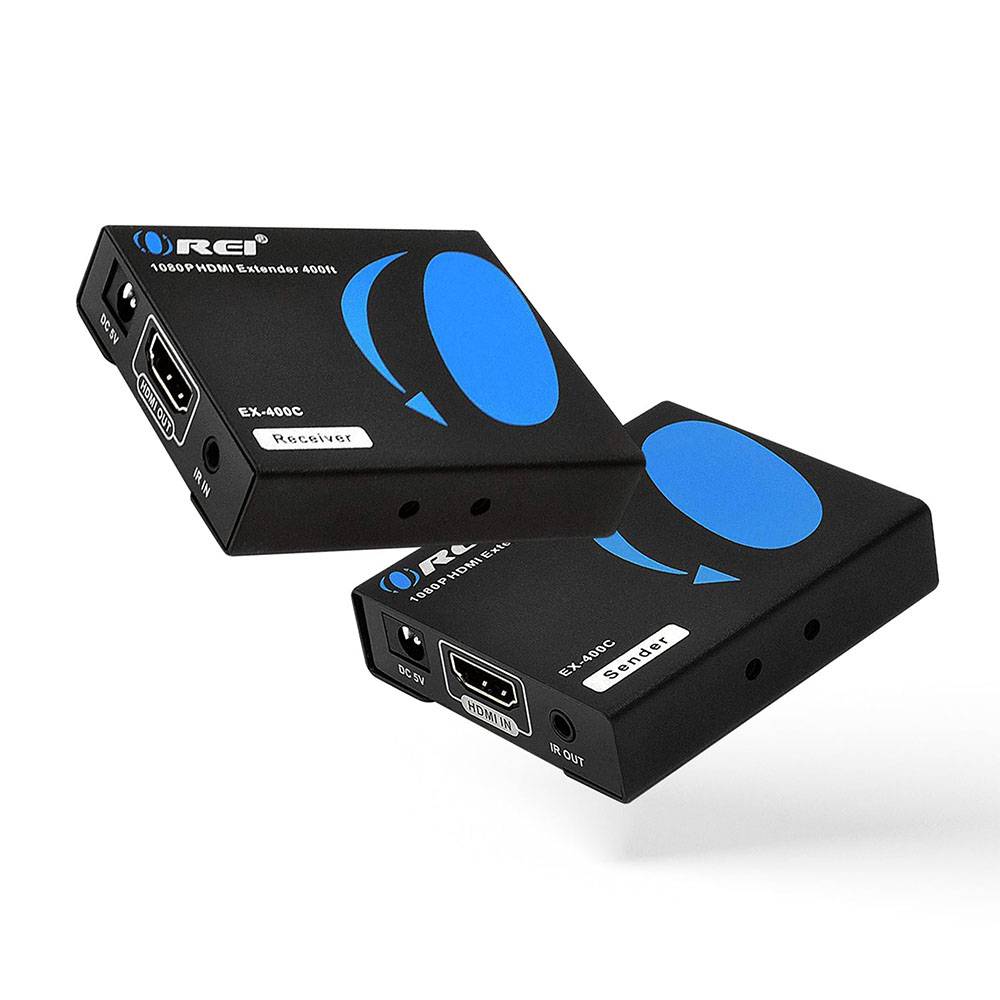

OREI EX-400C: HDMI Balun upto 400 ft
Key Features:

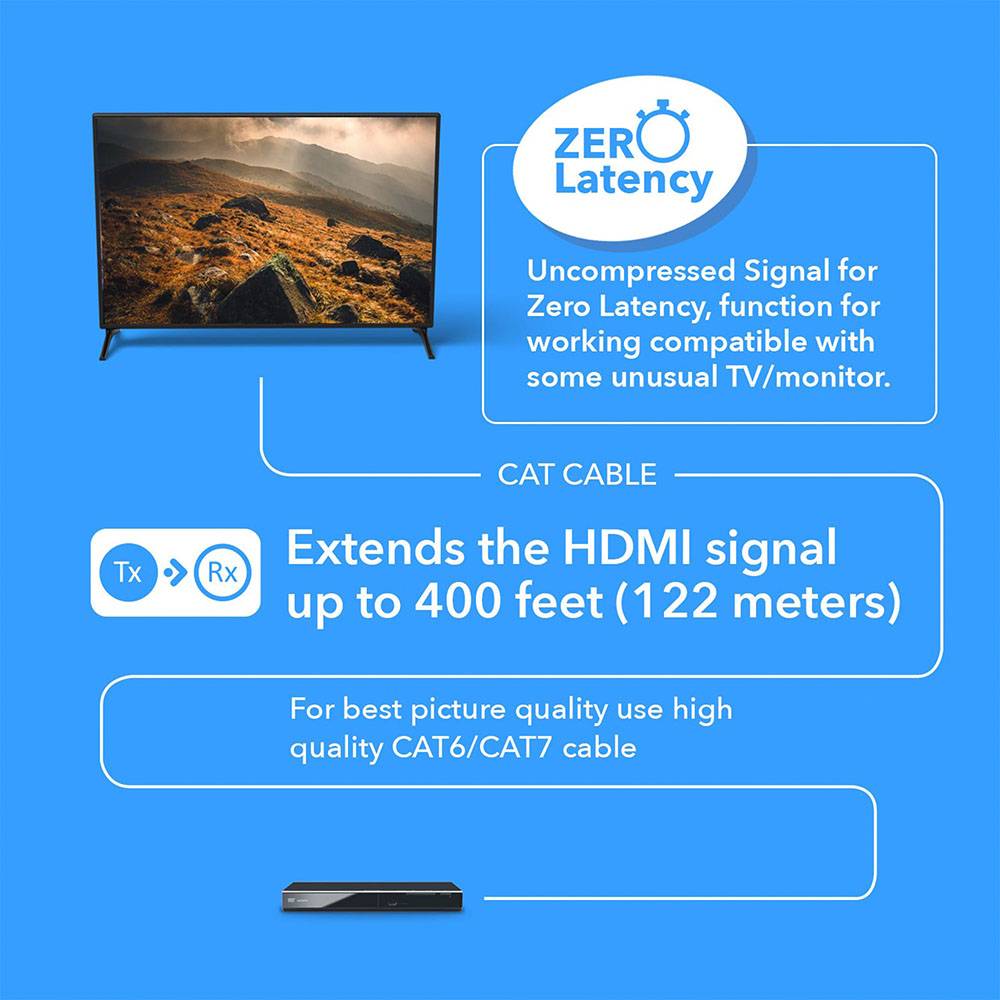

Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable
Supports HDMI 1.3/1.4, HDCP 1.4
Uncompressed Signal for Zero Latency
Function for working compatible with some unusual TV/monitor
Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more
Plug & Play Setup without any Software Installation
Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable, Supports HDMI 1.3b, HDCP 1.2, 3D Uncompressed Signal for Zero Latency,function for working compatible with some unusual TV/monitor. Works with all HDMI 1.3 and 1.4: Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported.
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more Plug & Play Setup without any Software Installation.
[shortdes]

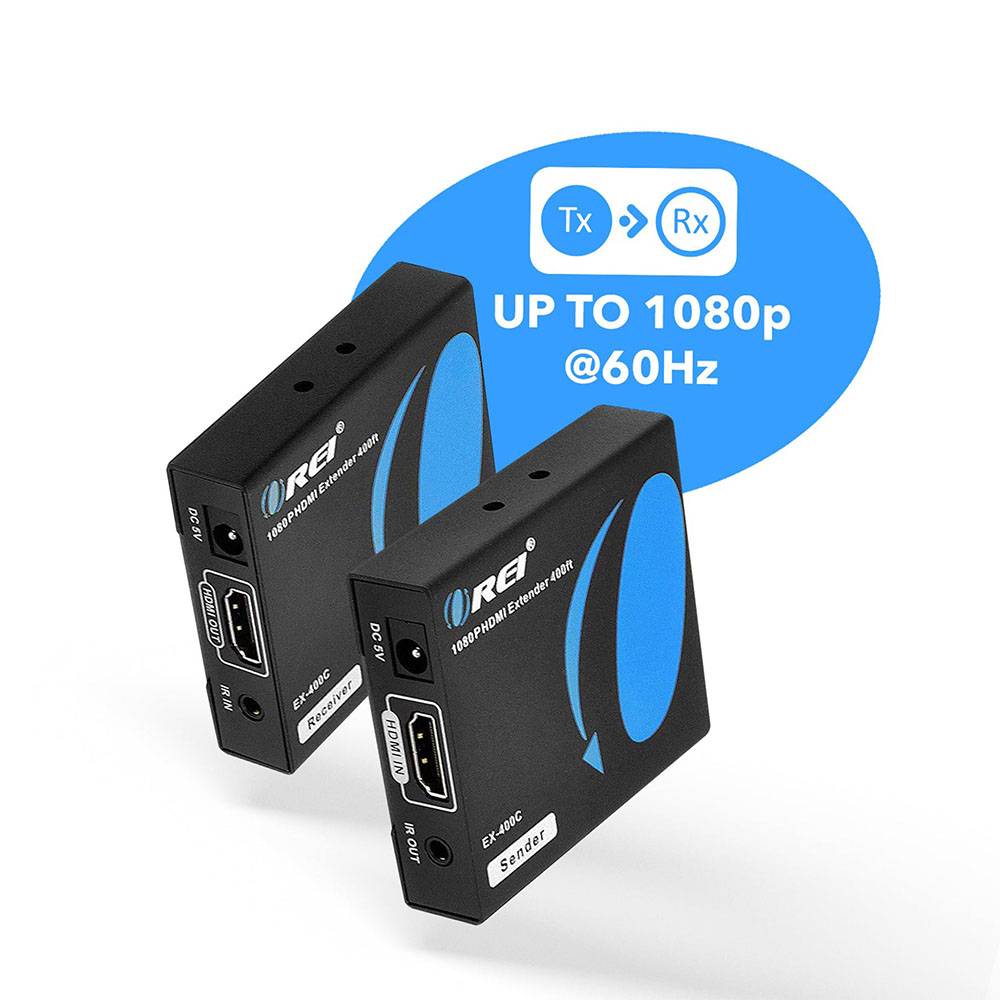

Supports 1080p@60Hz up to 400 feet
Uncompressed zero latency video signals

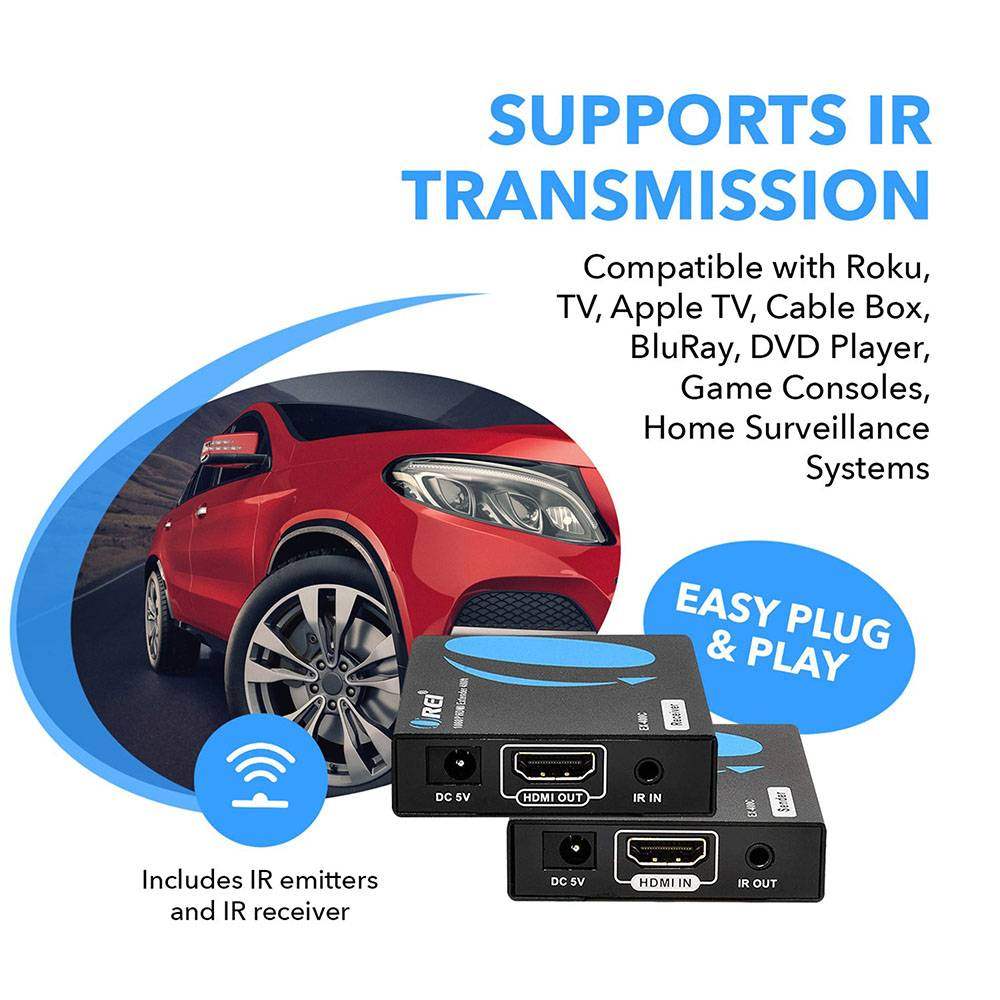

Supports IR Remote Control
[/shortdes] [tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI
OUTPUT PORTS:
1x RJ45
Receiver:
INPUT PORTS:
1x RJ45
OUTPUT PORTS:
1x HDMI
COMPLIANCES
HDMI Compliance:
HDMI 1.3
HDCP Compliance:
HDCP I.4
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
With One Way IR Pass Back
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
SWITCHES
EDID Management:
No
EQ Dip Switches:
No
ARC:
No
AUDIO OUTPUT
HDMI Audio Formats:
Stereo L/R Audio
SPDIF/Optical Audio Formats:
No SPDIF Audio
L/R Audio Formats:
No L/R Audio Port
SIGNALS
TMDS Signals:
0.5 ~ 1.5Vp-p(TMDS)
DDC Signals:
5Vp-p(TTL)
PERFORMANCE & INTERFACE
Transmission Type:
Over CAT5 cable
Transfer Method:
Uncompressed transmission Over CAT5e
Latency:
Zero Latency
Transmission Distance:
262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6

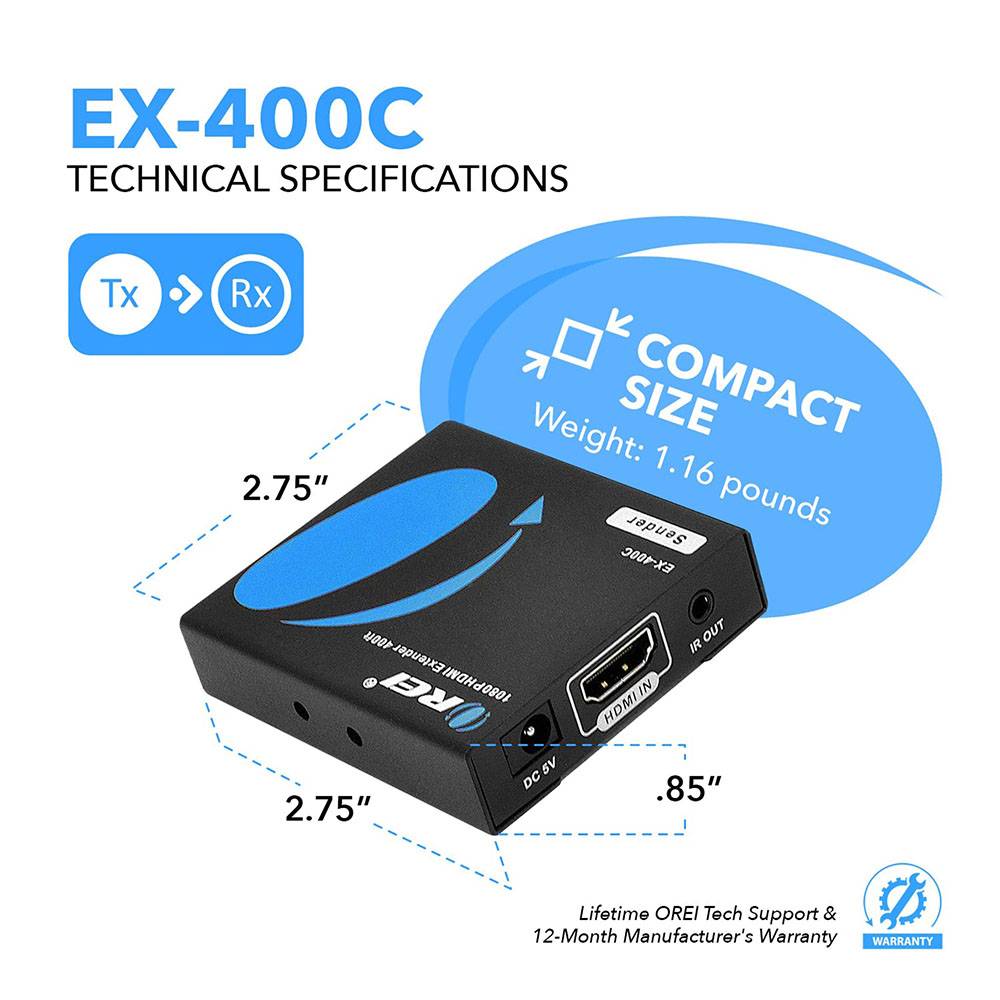

DIMENSIONS & WEIGHT
Transmitter:
Height:
16.10mm
Width:
58.8mm
Depth:
69.57mm
Weight:
70g
Receiver:
Height:
16.10mm
Width:
58.8mm
Depth:
69.57mm
Weight:
70g
PROTECTION
Operation Temperature:
0～50℃
Storage temperature:
-10 ~ 70°C
Relative Humidity:
0 ~ 90%
Electrostatic Protection of the whole Machine:
1a contact discharge level 3, 1b air discharge level 3, implementation of the standard: IEC61000-4-2
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
Transmitter:
2W
Receiver:
<2W
Power Supply
Input:
110-220V
Output:
DC5V 1A
PHYSICAL PROPERTIES
Color:
Black

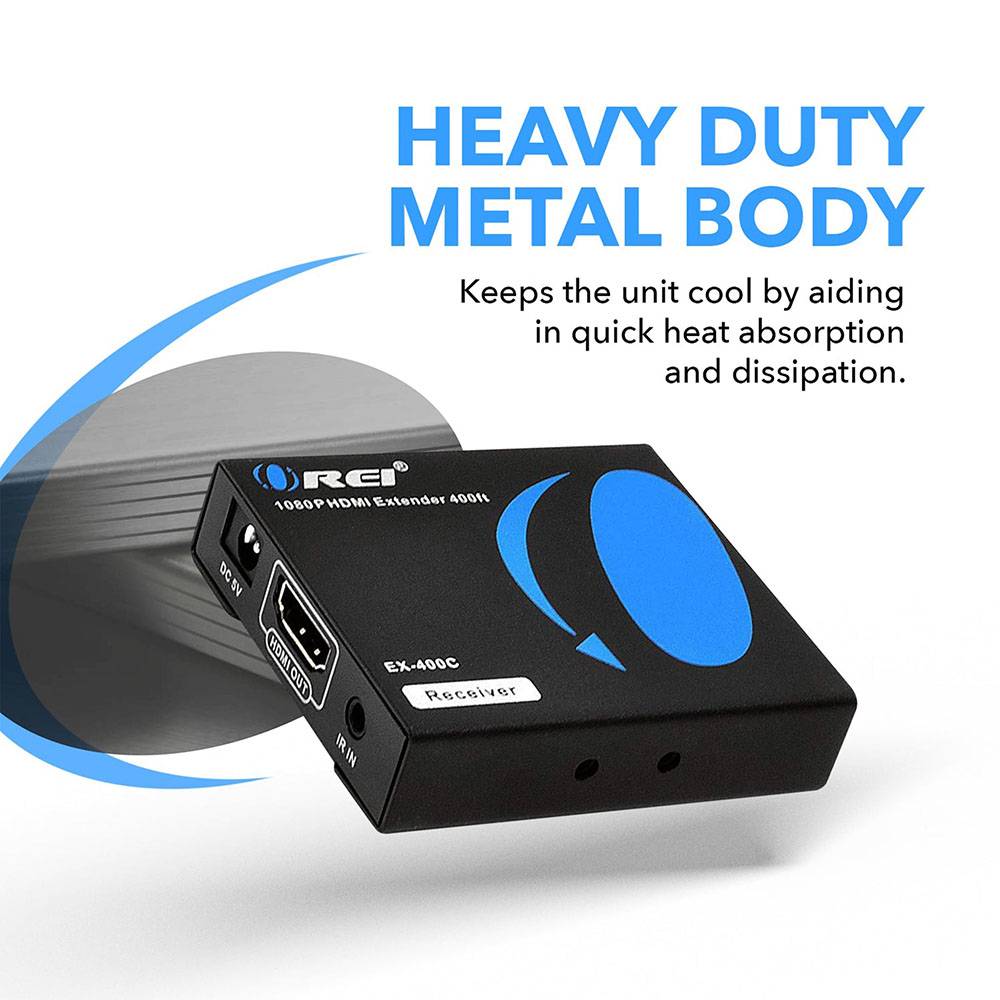

Processing Technology:
Aluminum
Finishing:
Grit blast
PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver

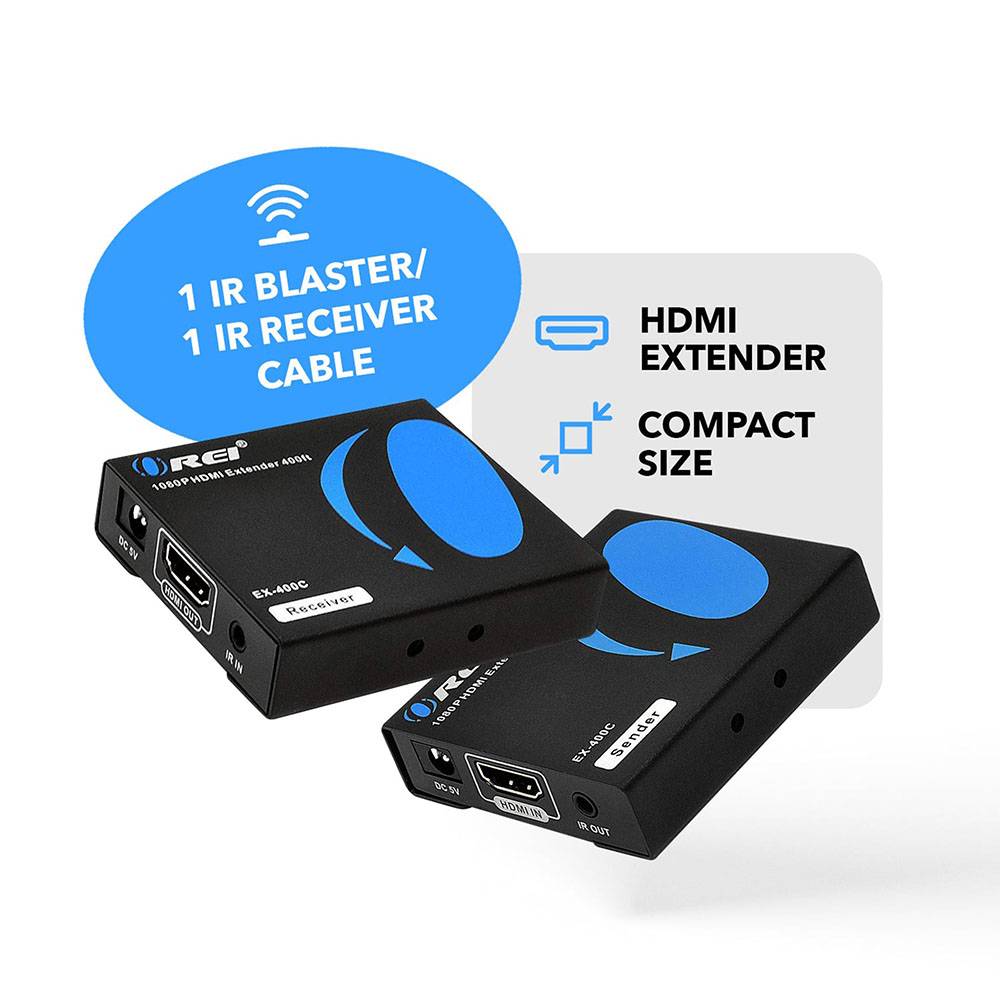

1x IR Blaster Extension Cable
1x IR Receiver Extension Cable
1x User Manual
2x Power Supply
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

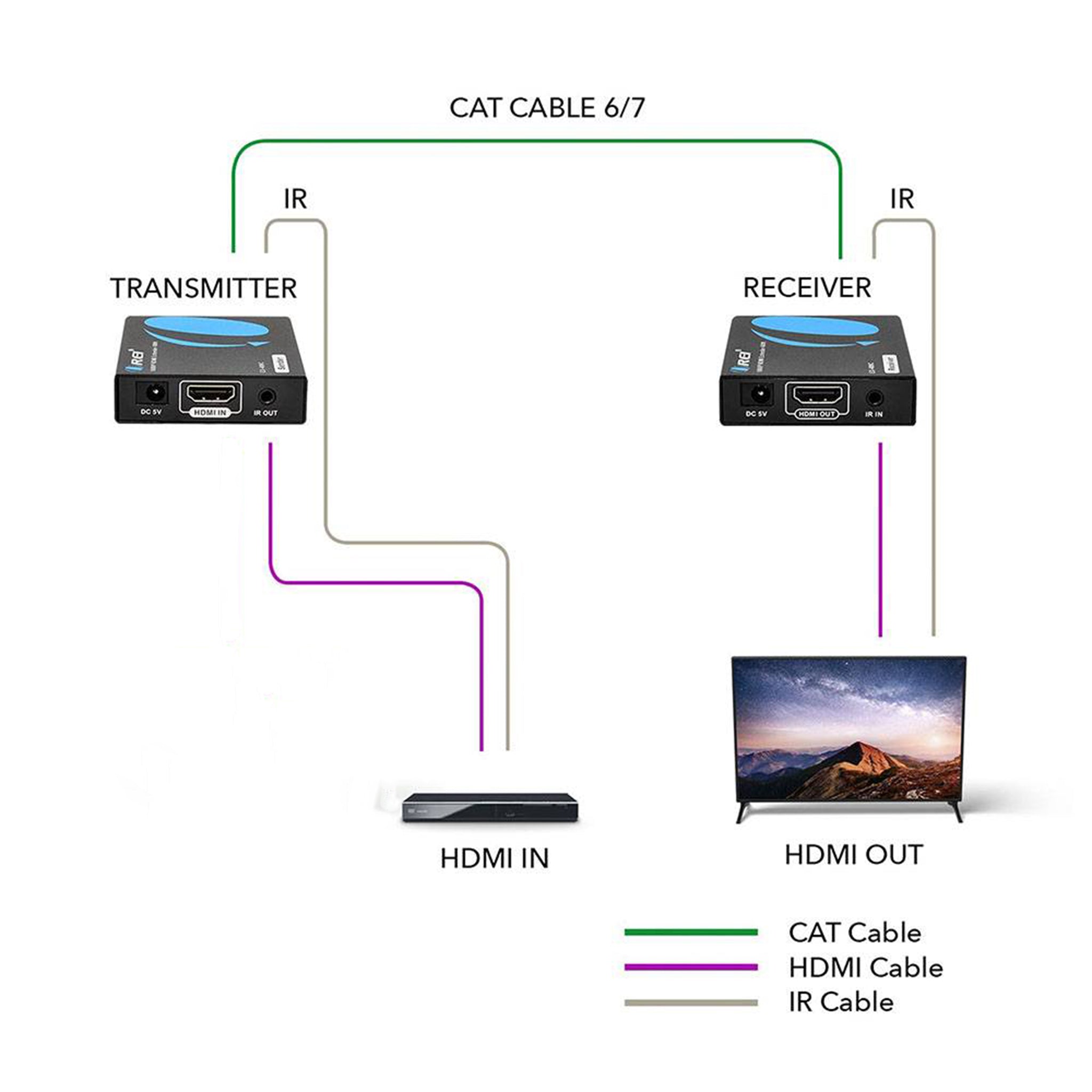

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
