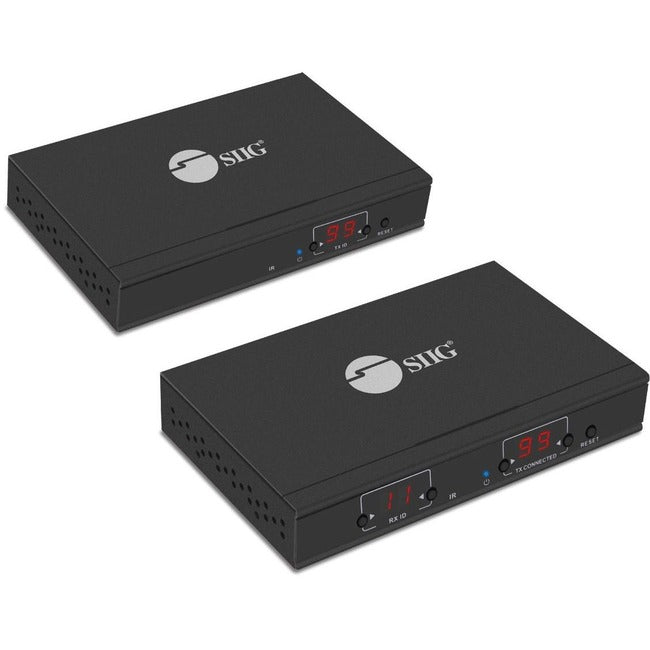

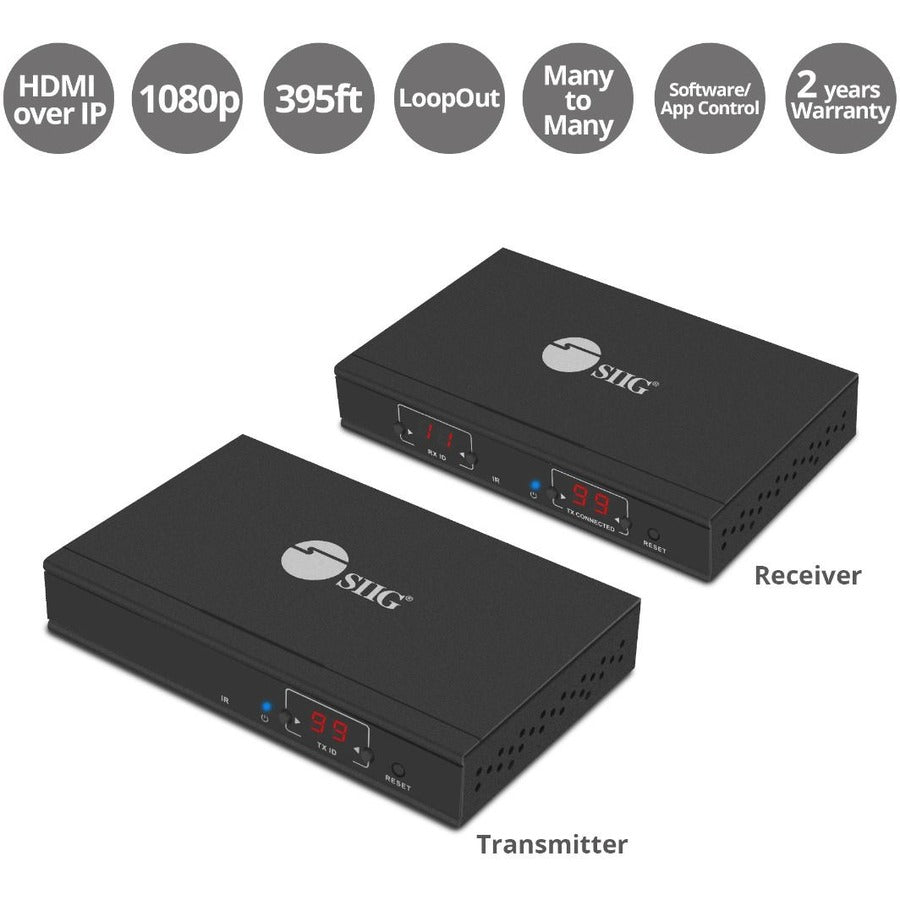

1080p HDMI Over IP Extender with IR - Kit
Features
- Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters
-

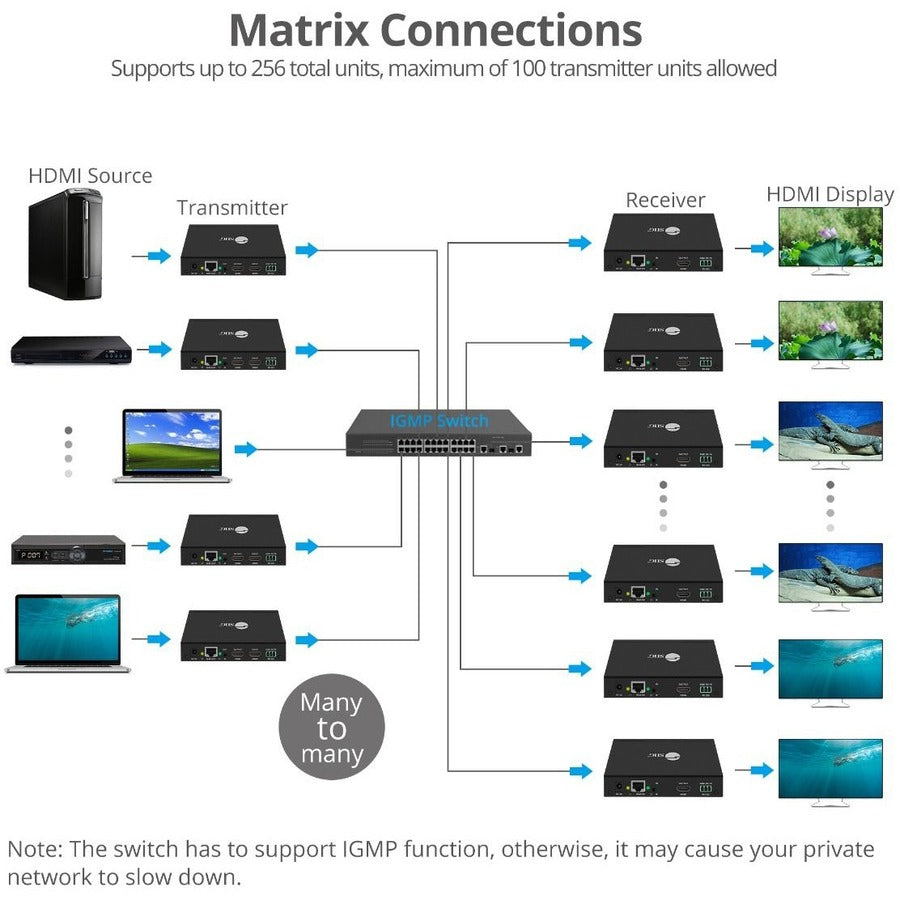

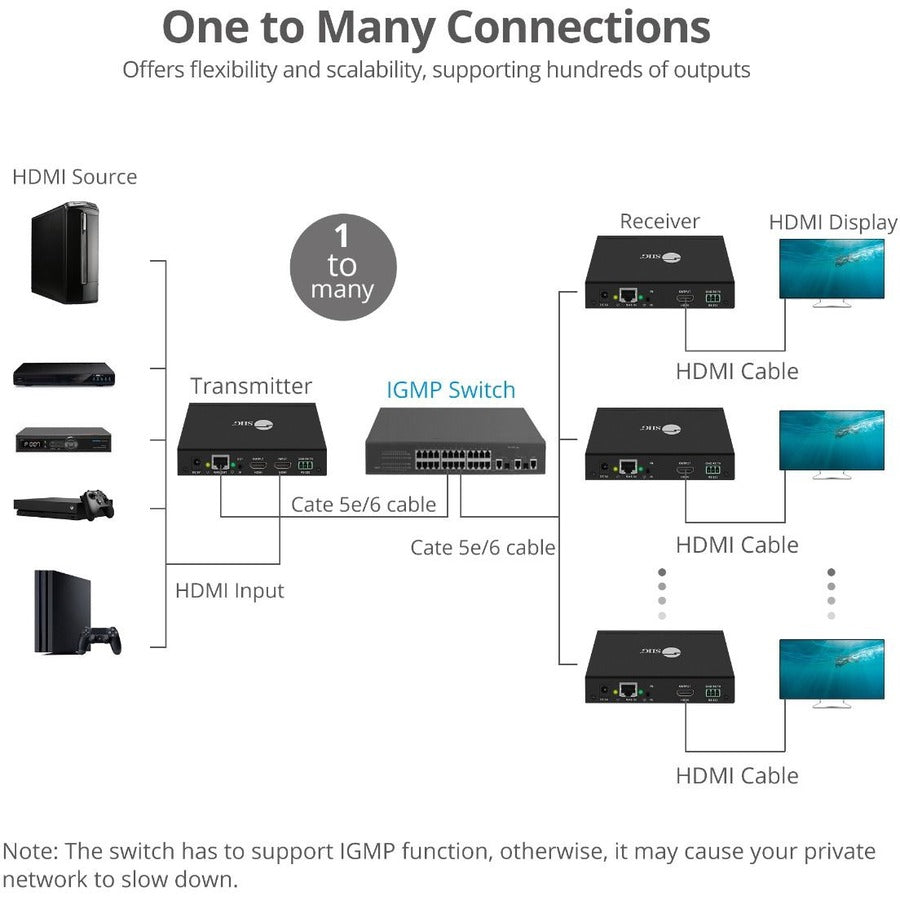

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately
-
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
-

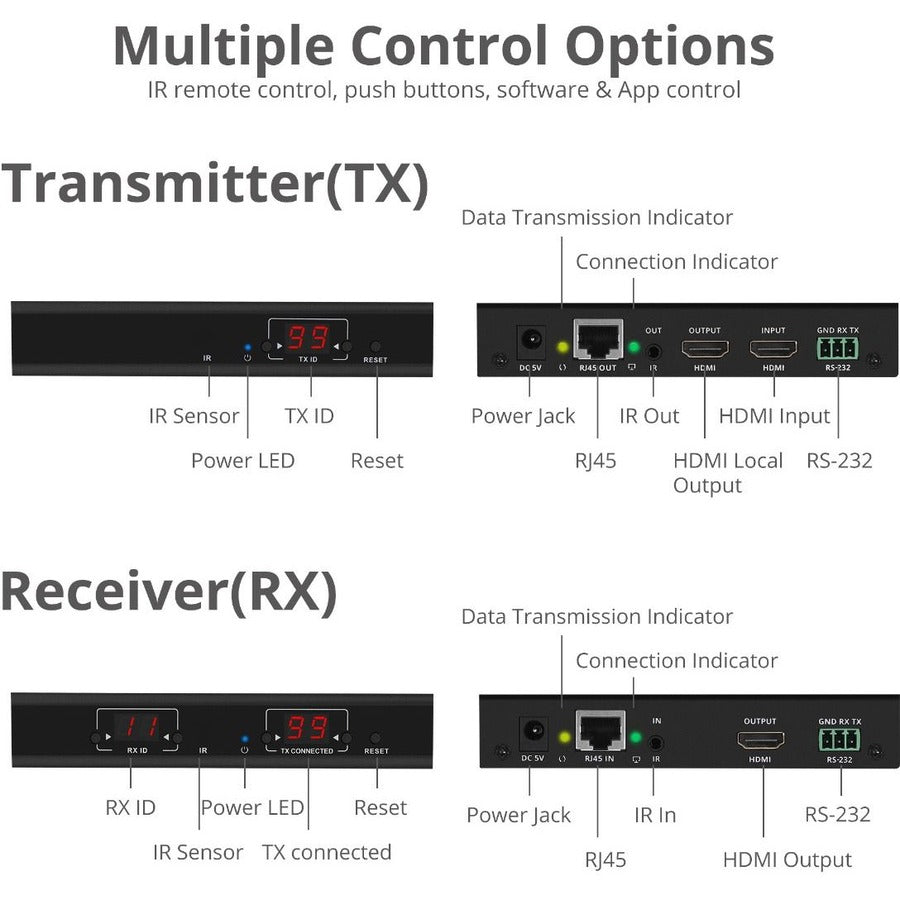

Supports IR pass back function to control the source device from RX location
-
Supports computer control software to select and switch between source devices (Matrix only)
-
Supports HDbit-T protocol with H.264 compression over IP
-
HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
-
RS-232 pass-through connection to control RS-232 enabled devices at either direction
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

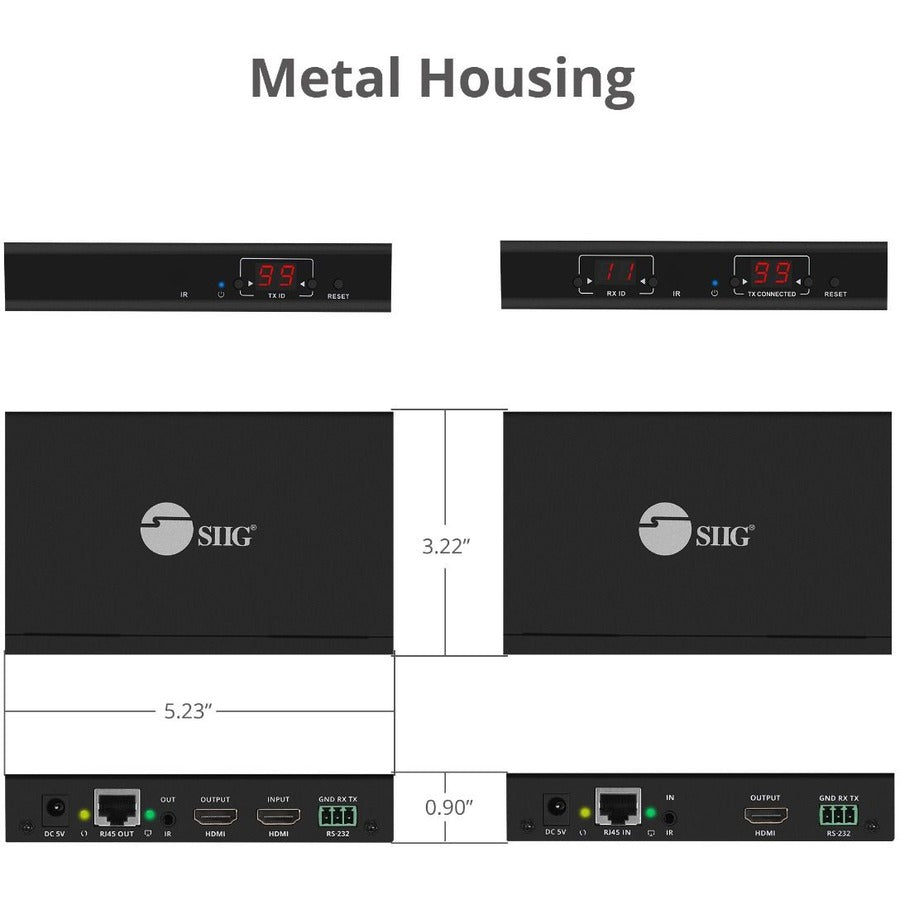

Transmitter Height: 0.94"
Transmitter Width: 3.27"
Transmitter Depth: 5.50"
Receiver Height: 0.94"
Receiver Width: 3.27"
Receiver Depth: 5.50"
Transmitter Weight (Approximate): 9.60 oz
Receiver Weight (Approximate): 9.60 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Model: CE-H23A11-S2
Product Name: HDMI Over IP Extender with IR - Kit
Application/Usage: Educational Facilities
Manufacturer Part Number: CE-H23A11-S2
Manufacturer Website Address: http://www.siig.com

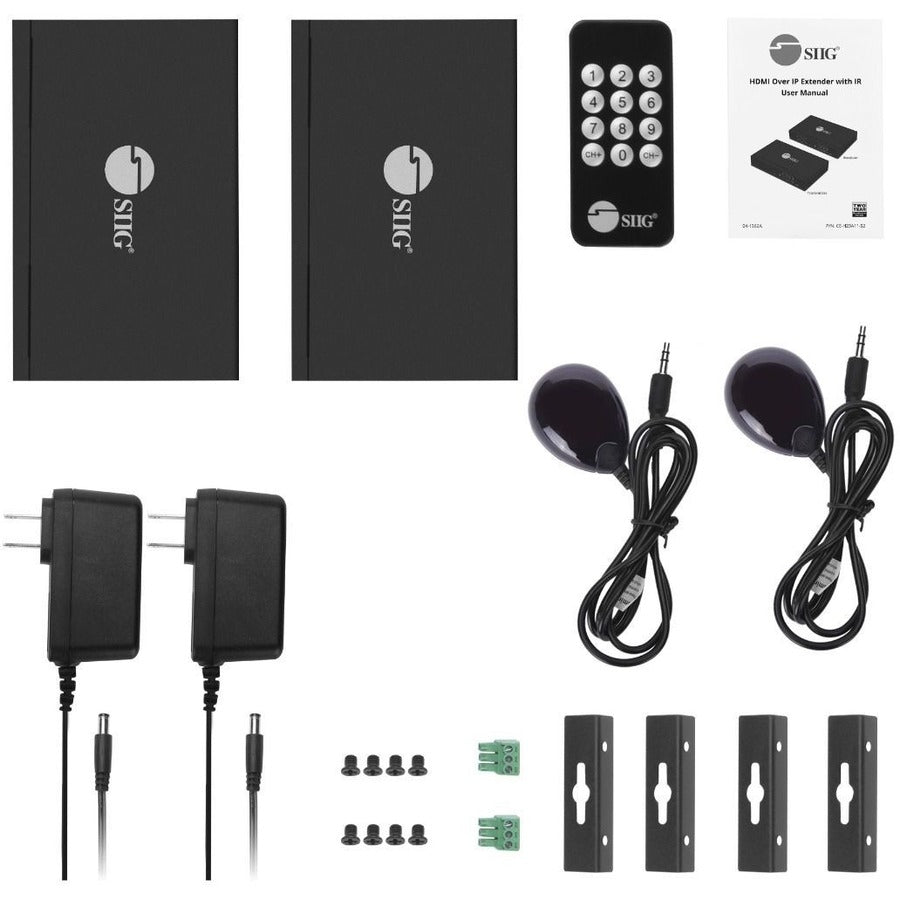

Package Contents:
- HDMI Over IP Extender with IR - Kit
- 2 x Power Adapters
- IR Blaster Extension Cable and IR Receiver Extension Cable
- 4 x Mounting Ears
- 8 x Screw Kit
- Remote Control
- 2 x 3 Pin Phoenix Connectors
- User Reference Guide
Limited Warranty: 2 Year
