1080p HDMI Over IP Extender with IR - Transmitter
Features
- Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S2) sold separately
-

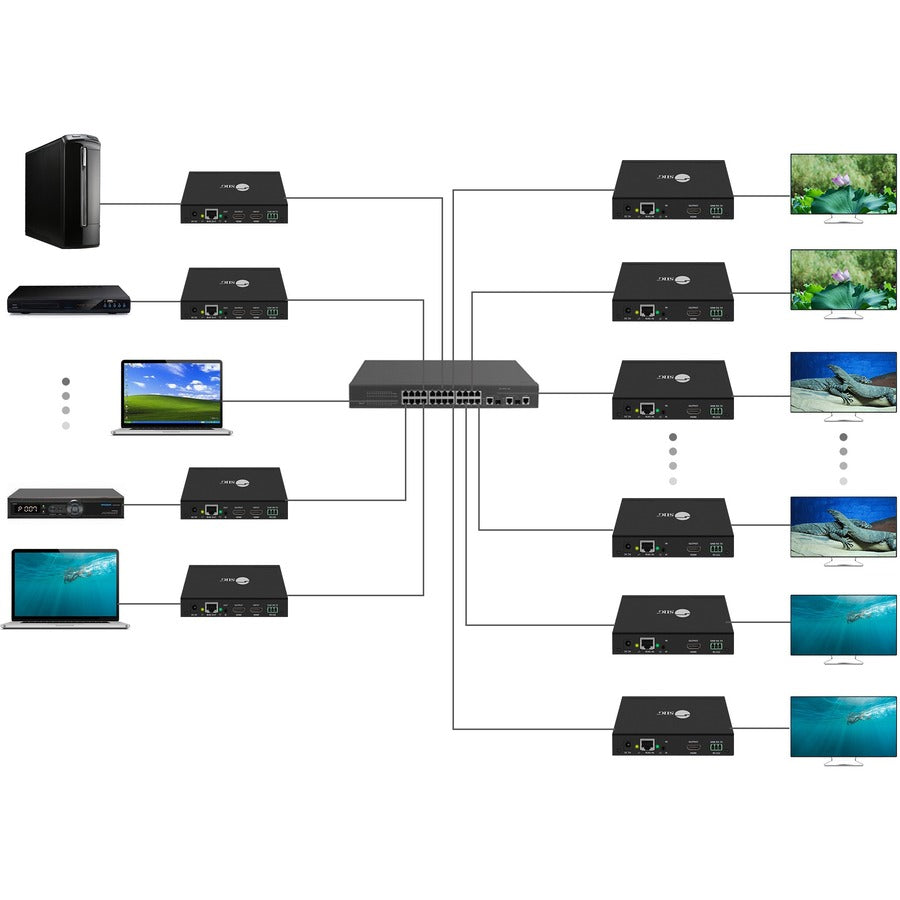

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately
-
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location
- Supports computer control software to select and switch between source devices (Matrix only)
- Supports HDbit-T protocol with H.264 compression over IP
- HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
- RS-232 pass-through connection to control RS-232 enabled devices at either direction
Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.94"
Transmitter Width: 5.50"
Transmitter Depth: 3.27"
Transmitter Weight (Approximate): 9.60 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Model: CE-H23B11-S2
Product Name: HDMI Over IP Extender with IR - Transmitter
Application/Usage: Shopping Center
Manufacturer Part Number: CE-H23B11-S2
Manufacturer Website Address: http://www.siig.com

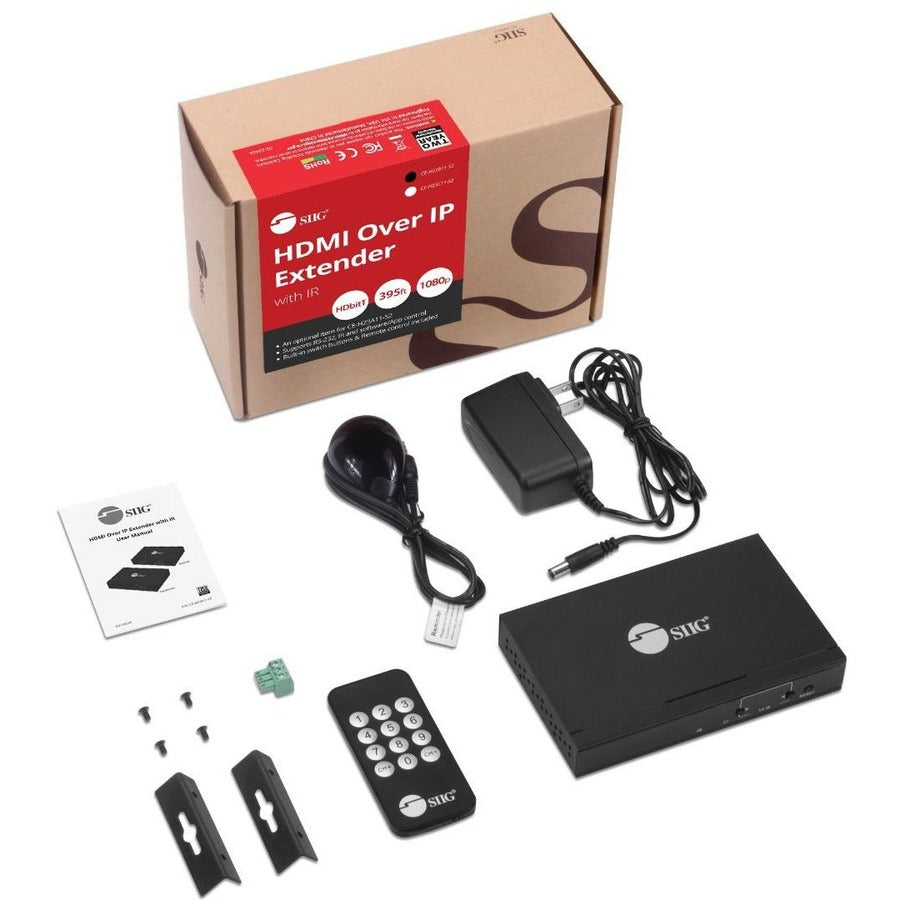

Package Contents:
- HDMI Over IP Extender with IR - Transmitter
- Power Adapter
- IR Blaster Extension Cable
- 2 x Mounting Ears
- 4 x Screw Kit
- Remote Control
- 3 Pin Phoenix Connector
- User Reference Guide
Limited Warranty: 2 Year
