12.1In Xga Openframe Mntr,600Nits W/Rests

Description :

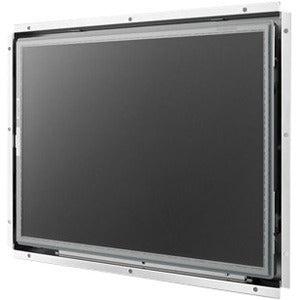

Advantech IDS-3112R-60XGA1E 12.1" Open-frame LCD Touchscreen Monitor - 16 ms
The Advantech IDS-3112 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets provide the benefits of easy installation, and flexibility for different applications.

• 12.1" 800 x 600 SVGA panel with LED backlight for 20% power saving and environmental protection


• -20°C~+60°C wide operating temperature support


• 5-wires resistive touchscreen solution


• Combo touch interface of RS-232 and USB


• Dual signal interface with VGA and DVI


• Integrated bracket for easy installation


• Versatile mounting methods for Rear mounting and VESA mounting

Product Type: Open-frame LCD Touchscreen Monitor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Vesa Mount Compatible: Yes
Product Series: IDS-3112
Brand Name: Advantech
Manufacturer: Advantech Co., Ltd
Product Model: IDS-3112R-60XGA1E
Product Name: 12.1" XGA 600nits Open Frame Monitor with 5-Wire Resistive Touch
Manufacturer Part Number: IDS-3112R-60XGA1E
Manufacturer Website Address: http://www.advantech.com

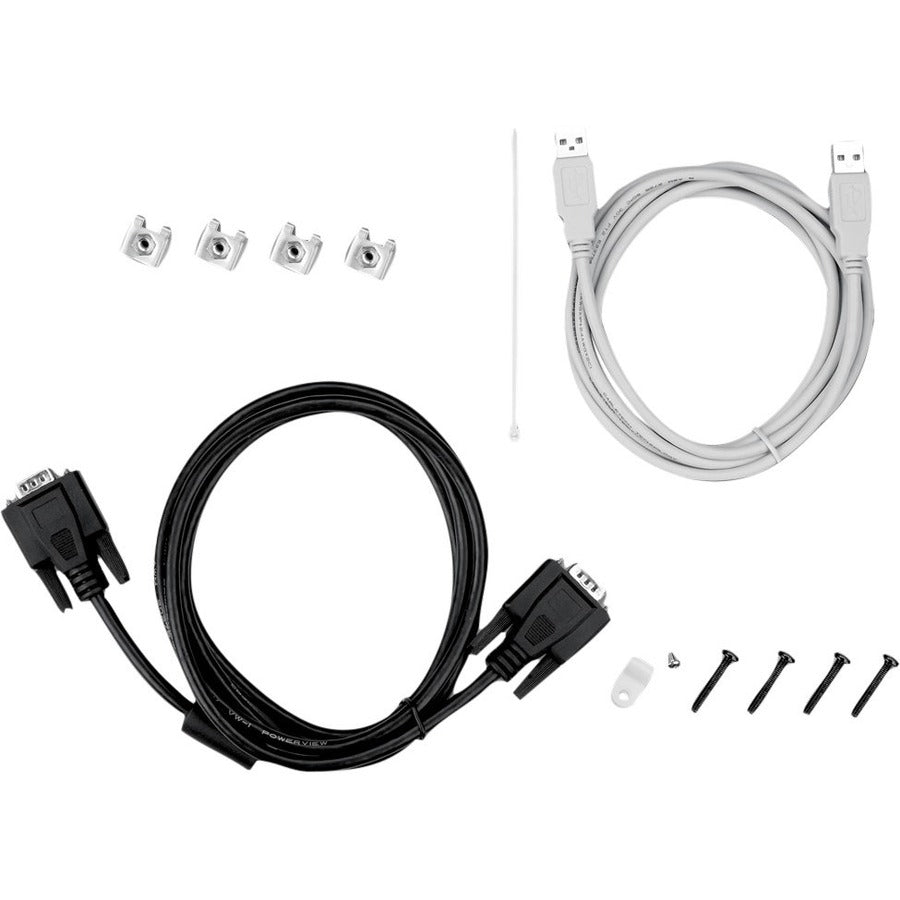

Package Contents:

• 12.1" XGA 600nits Open Frame Monitor with 5-Wire Resistive Touch
• 1 x M Cable USB-A(M)/USB-A(M) 180CM
• 1 x VGA cable 15P(M) 180 cm
• 4 x Clamper
• 4 x Screw of clamper M4_25L
• 1 x Cable clamp
• 1 x Screw of cable clamp
• 1 x Cable tie
