          Description :

          12″ X 12″ X 11″ NEMA 3 ENCLOSURE WITH FAN AL121211N3-FT

          • Constructed For Indoor & Outdoor Application
          • Durable 1/8” 5052 Aluminum Construction
          • Weathertight 1/4″ Rubber Door Seals
          • Screened Vents On Sides & Door
          • Adjustable / Removable Equipment Mounting Plate
          • Security Lock with Key
          • A pair of Wall / Pole Enclosure Mount Plates are included

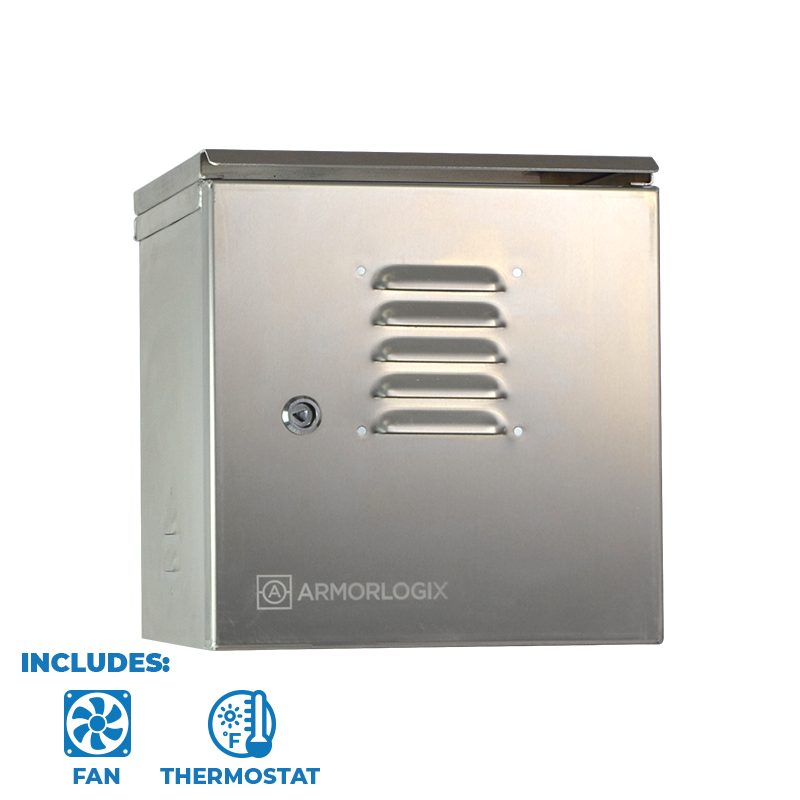

          • Includes installed thermostatic fan



          OVERVIEW

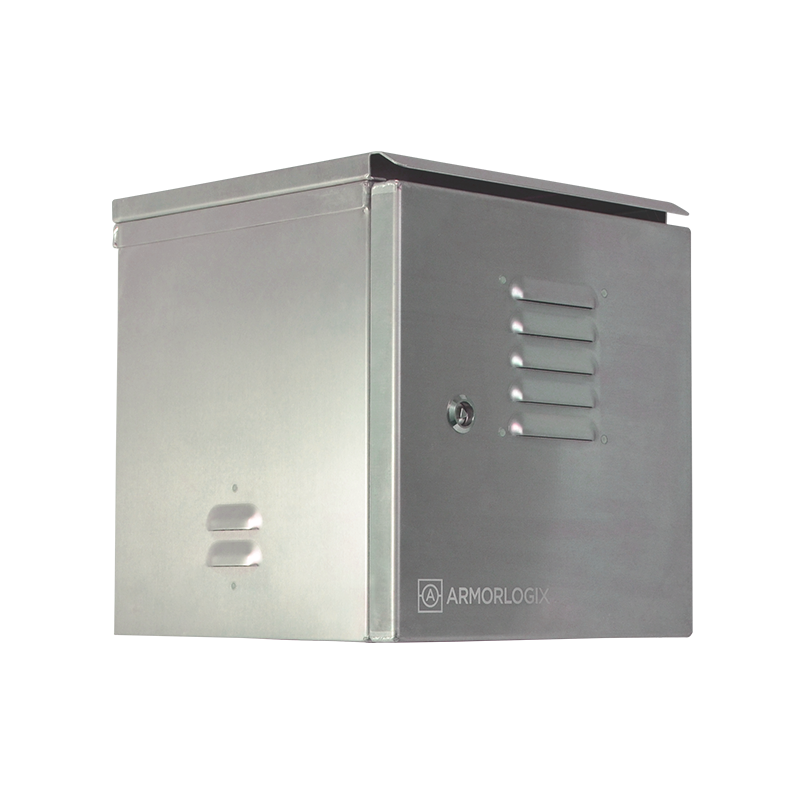

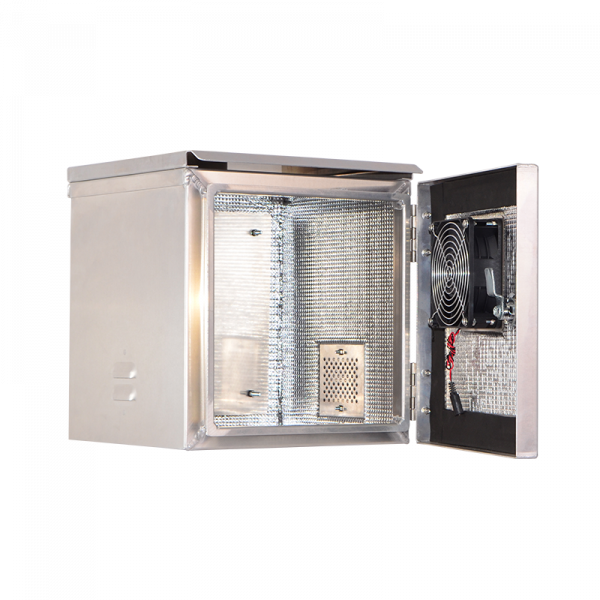

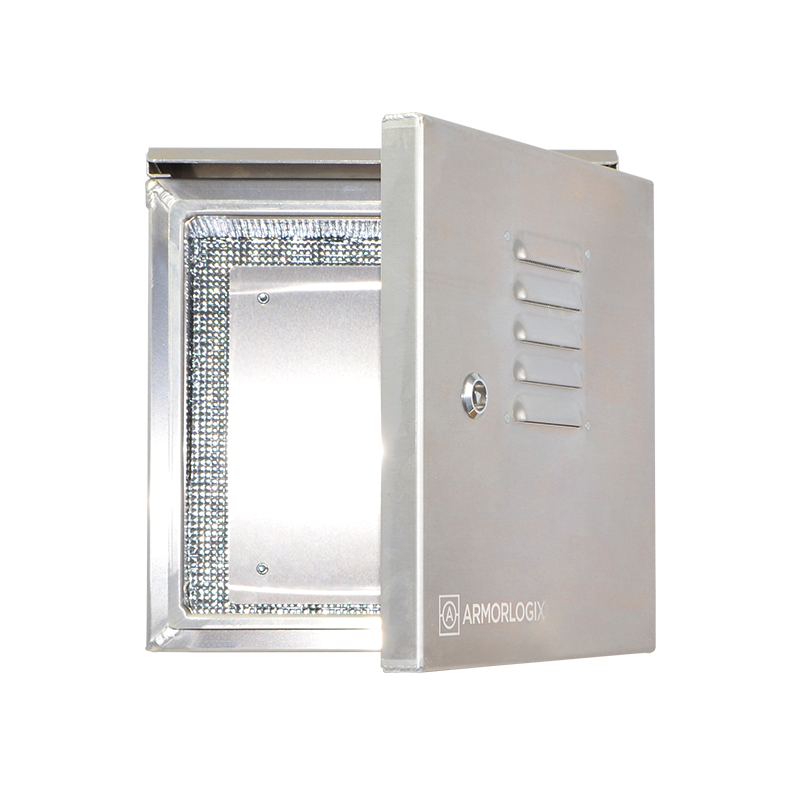

          12″ x 12″ x 11″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

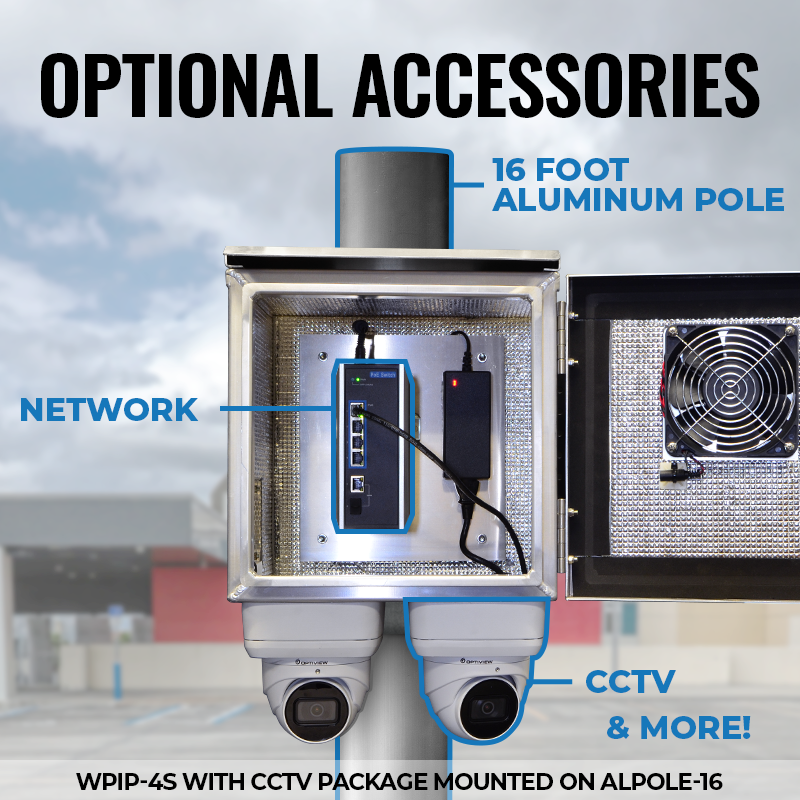

          Applications: Many of our customers have used the AL121211N3-FT’s for housing excess cabling or wiring, fiber, infrastructure, wireless access points, PoE injectors, small PoE ports, and other electrical accessories.

          SPECIFICATIONS

          Material   1/8" 5052 Aluminum
          NEMA Rating   3
          Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
          Door Seals   1/4" Weather Tight Neoprene
          Equipment Mounting Plate   1x (9" x 10")
          Security Lock   Yes (2x keys included)
          Dimensions: External   12” W x 12.875” H x 12.125” D
          Dimensions: Internal Max   11.625” W x 11.625” H x 11.5” D
          Dimensions: Internal Min   11.625” W x 11.625” H x 8.125” D
          Weight   15 lbs.

          RESOURCES

          PDF Spec Sheet – Download
