Description

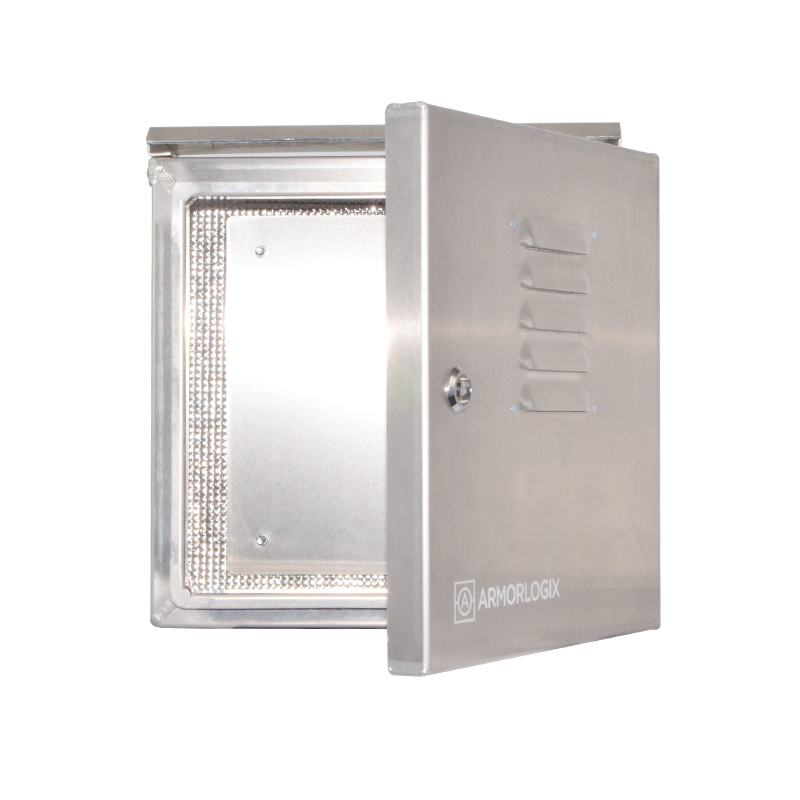

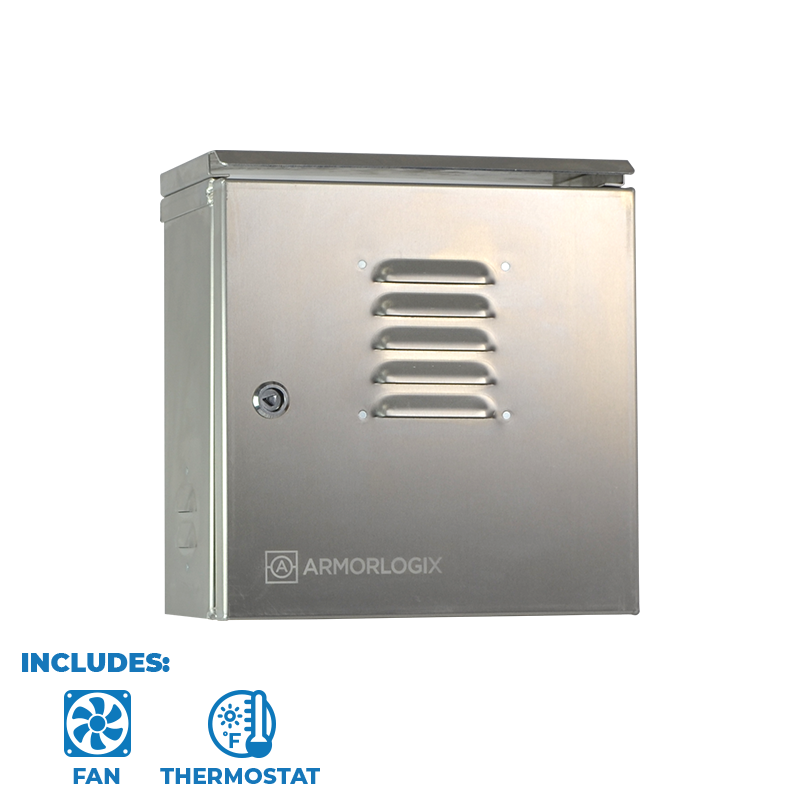

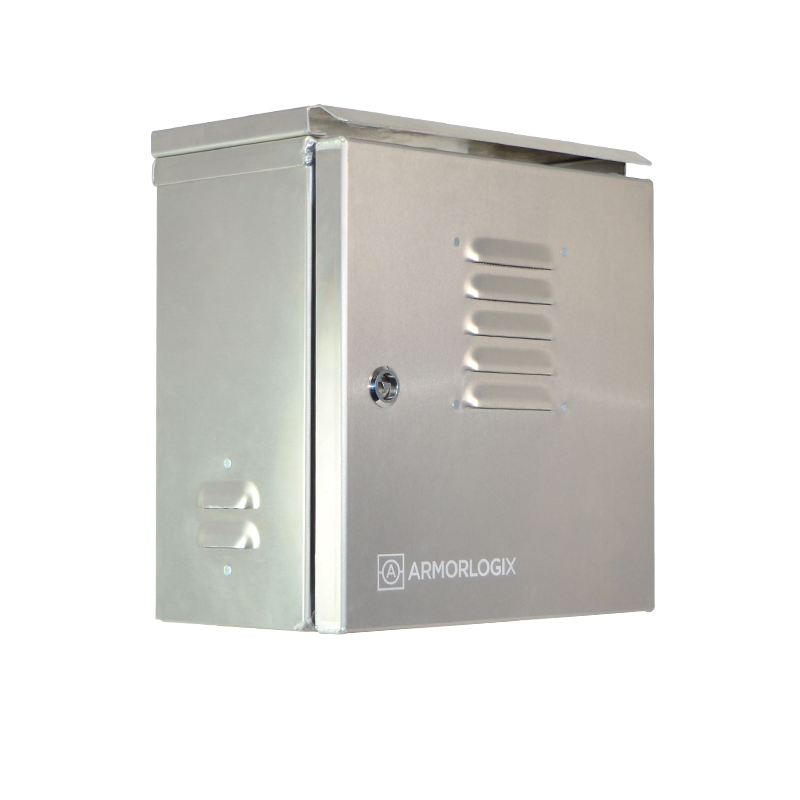

12″ X 12″ X 6″ NEMA 3 ENCLOSURE WITH FAN AL121206N3-FT
Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Screened Vents On Sides & Door
Adjustable / Removable Equipment Mounting Plate
Security Lock with Key
A pair of Wall / Pole Enclosure Mount Plates are included
Includes installed thermostatic fan
Picture not to scale.
OVERVIEW

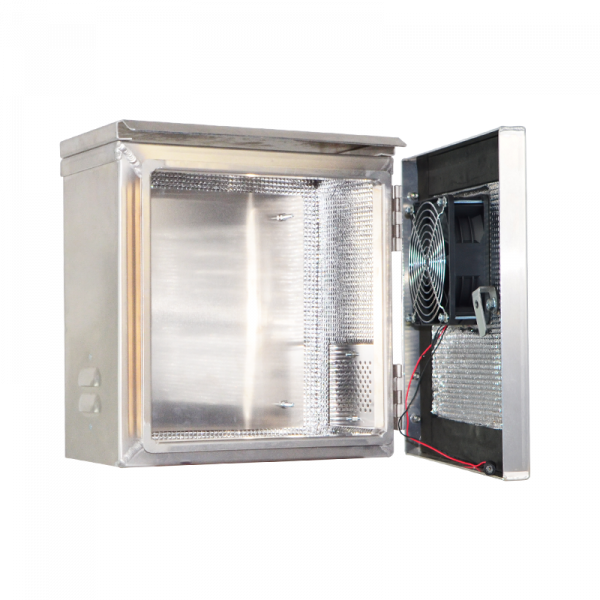

12″ x 12″ x 6″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

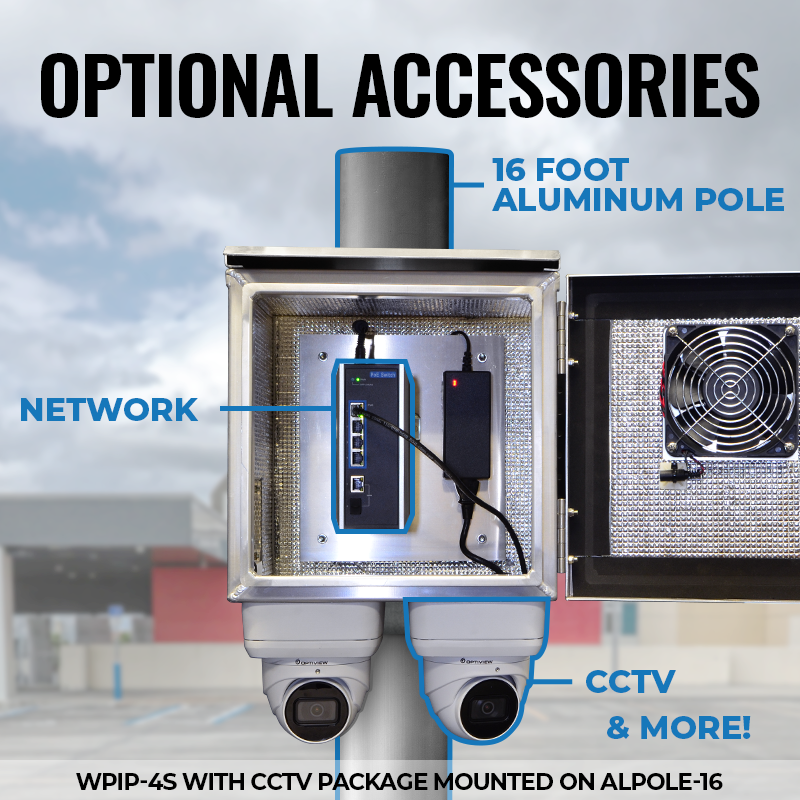

Applications: Many of our customers have used the AL121206N3-FT’s for housing excess cabling or wiring, fiber, infrastructure, wireless access points, PoE injectors, small PoE ports, and other electrical accessories.
SPECIFICATIONS
Material
1/8" 5052 Aluminum
NEMA Rating
3
Mounting Brackets
Universal Wall / Pole Brackets - Bands not included (x2)
