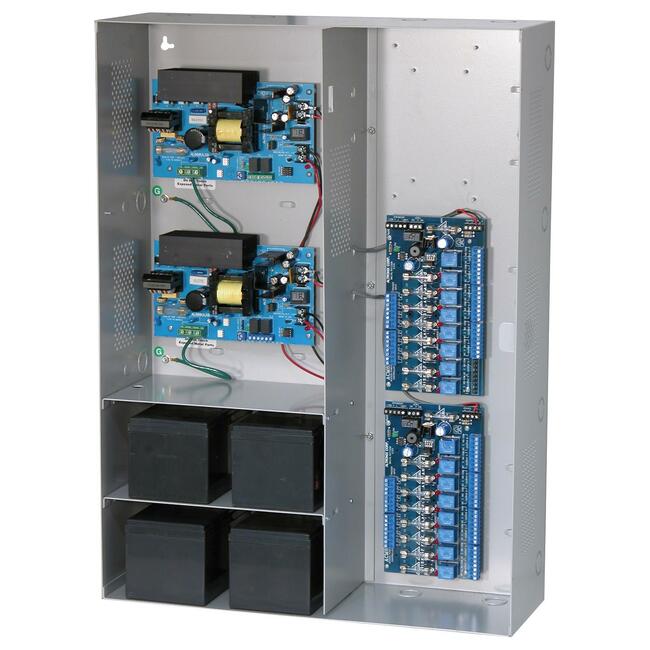

Altronix MAXIMAL33 Proprietary Power Supply
This unit distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility:
Access Control Systems:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Form Factor: Enclosure
Manufacturer: Altronix Corporation
Product Model: MAXIMAL33
Product Name: MAXIMAL33 Proprietary Power Supply
Product Line: MAXIMAL
Manufacturer Part Number: MAXIMAL33
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Weight (Approximate): 40.10 lb
