Description

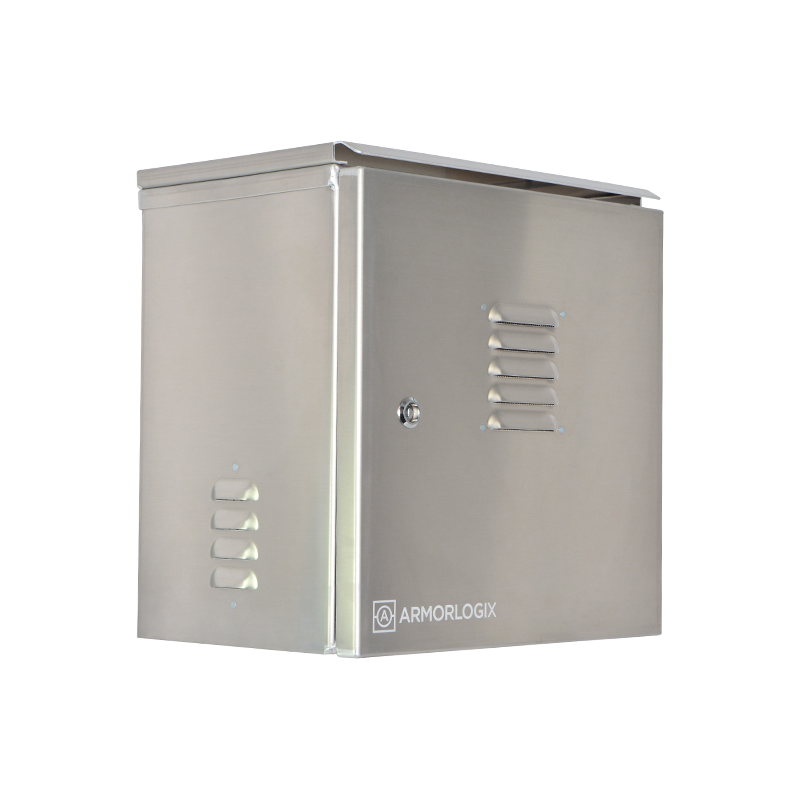

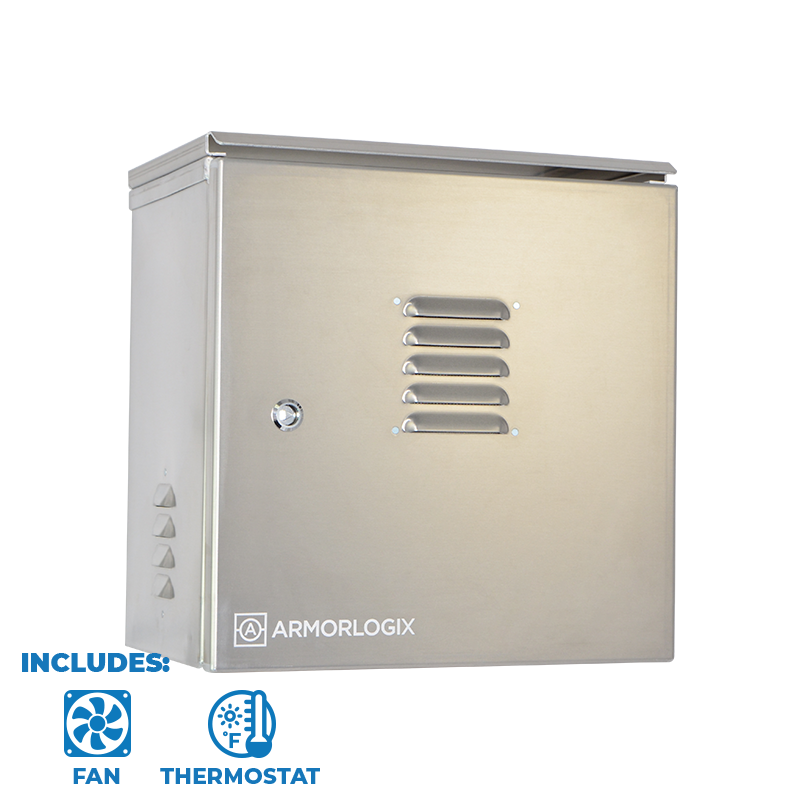

16″ X 16″ X 10″ NEMA 3 ENCLOSURE WITH FAN AL161610N3-FT
Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Screened Vents On Sides & Door

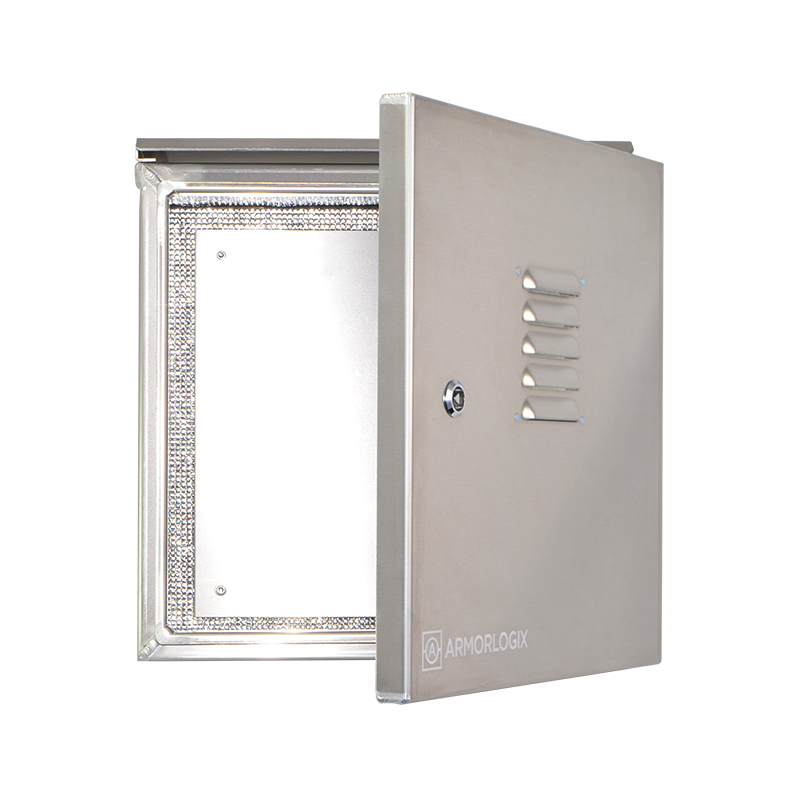

Adjustable / Removable Equipment Mounting Plate
Security Lock with Key
A pair of Wall / Pole Enclosure Mount Plates are included

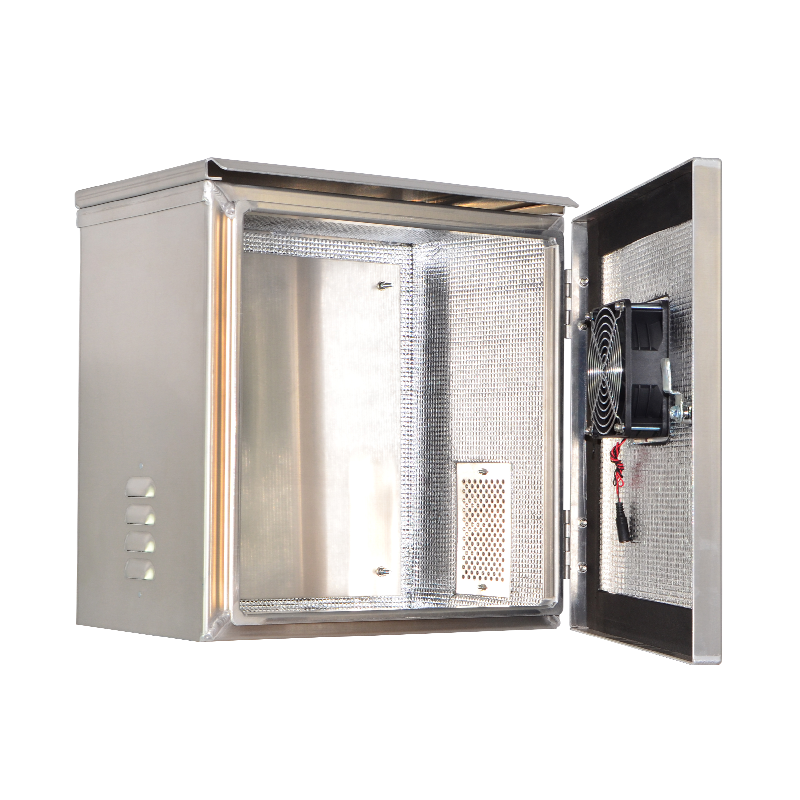

Includes installed thermostatic fan
OVERVIEW
16″ x 16″ x 10″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.
Applications: The AL161610N3-FT enclosure is commonly installed at gate entries, in manufacturing facilities, data centers, airports, municipal areas, and more.
SPECIFICATIONS
Material
1/8" 5052 Aluminum
NEMA Rating
3
Mounting Brackets
Universal Wall / Pole Brackets - Bands not included (x2)
