16" X 16" X 6" Nema 3 Enclosure With Fan Al161606N3-Ft

16" X 16" X 6" Nema 3 Enclosure With Fan Al161606N3-Ft

SKU:AL161606N3-FT

$1,069.60
$1,069.60
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          16″ X 16″ X 6″ NEMA 3 ENCLOSURE WITH FAN AL161606N3-FT



          • Constructed For Indoor & Outdoor Application
          • Durable 1/8” 5052 Aluminum Construction
          • Weathertight 1/4″ Rubber Door Seals
          • Built-in Sunshade
          • Screened Vents On Sides & Door
          • Adjustable / Removable Equipment Mounting Plate
          • Security Lock with Key

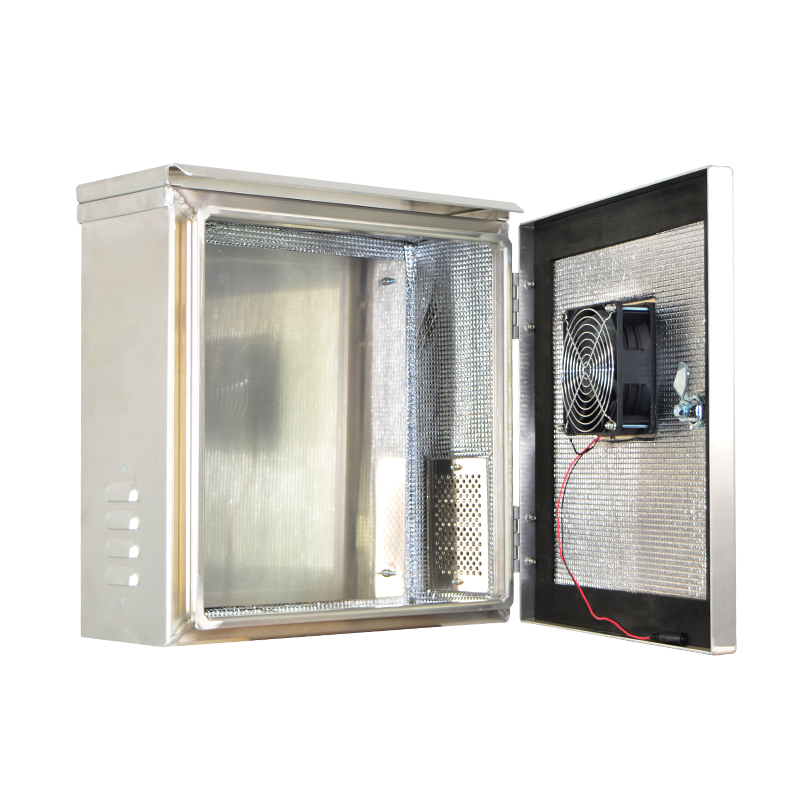

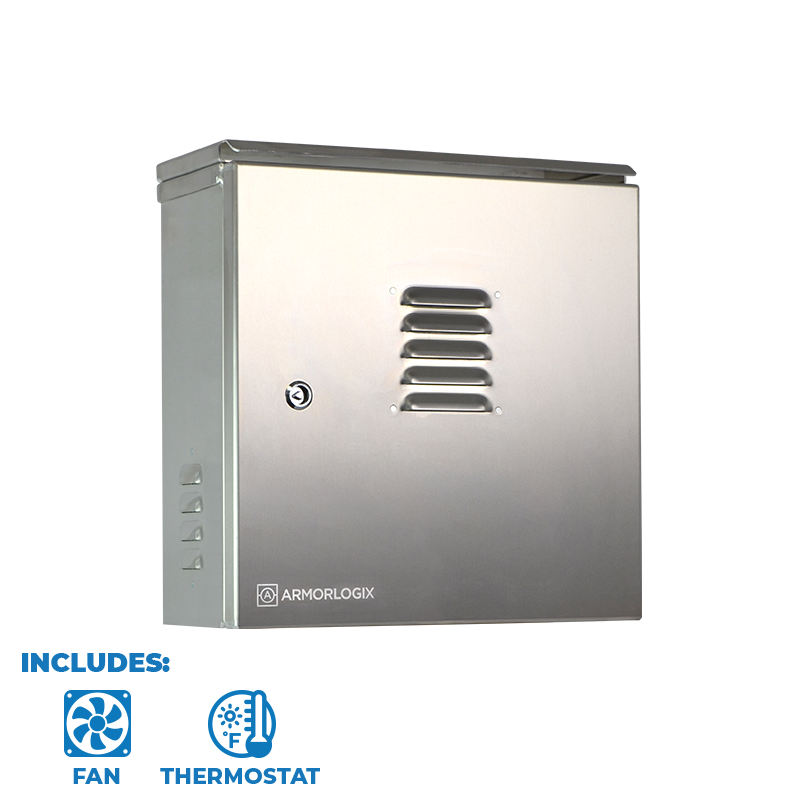

          • Includes installed thermostatic fan
          • A pair of Wall / Pole Enclosure Mount Plates are included

          OVERVIEW

          16″ x 16″ x 6″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

          Applications: The AL161606N3-FT enclosure is commonly installed at gate entries, in manufacturing facilities, data centers, airports, municipal areas, and more.

          SPECIFICATIONS

          Material   1/8" 5052 Aluminum
          NEMA Rating   3
          Mounting Brackets   Universal Wall / Pole Brackets - Bands not included (x2)
          Door Seals   1/4" Weather Tight Neoprene
          Equipment Mounting Plate   1x (13" x 14")
          Security Lock   Yes (2x keys included)
          Dimensions: External   16” W x 16.875” H x 7.5” D
          Dimensions: Internal Max   15.625” W x 15.625” H x 6.875” D
          Dimensions: Internal Min   15.625” W x 15.625” H x 3.5” D
          Weight   21 lbs.

          RESOURCES

          PDF Spec Sheet – Download
