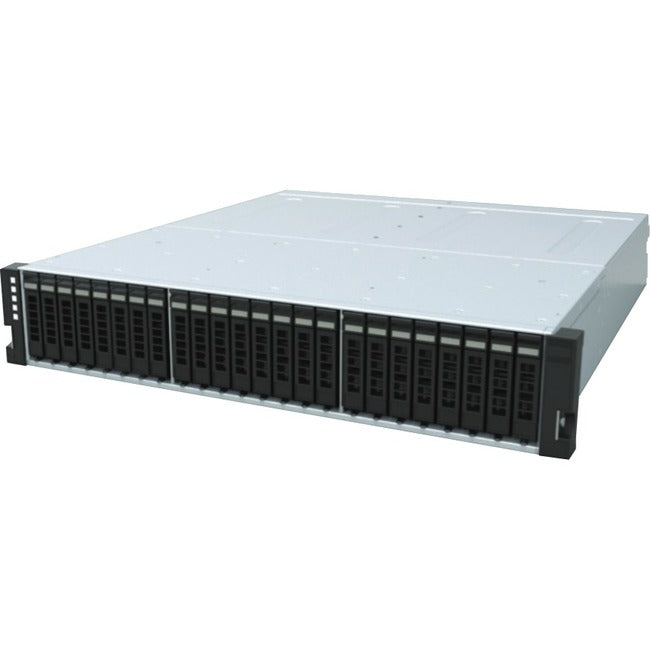

HGST Ultrastar 1ES1616 Drive Enclosure 12Gb/s SAS - 12Gb/s SAS Host Interface - 2U Rack-mountable
Flash Storage Platform for Software-Defined Storage
The Ultrastar 2U24 Flash Storage Platform is a key element of next generation softwaredefined storage (SDS) systems. This powerful system balances performance with capacity, delivering high IOPS, low latency at up to 368TB1 capacity. It also offers flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Designed for Enterprise and the Cloud
Ultrastar 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers who require dense, shared flash storage. The Platform offers distinct features designed for today's data centers, such as:
- Enterprise-class high availability: hot swappable components including SSDs, I/O Modules, PSUs (integrated fans)
- Fully upgradeable: upgradeable firmware enables drive technology and capacity updates without impacting applications
- Supports enterprise workloads including database, virtualization and scale-out configurations
- A 2U flash storage platform with up to 24 Ultrastar® 2.5" SAS SSD modules
- Available SSD capacities include 1.6TB, 1.92TB, 3.2TB, 3.84TB, 6.4TB, 7.68TB and 15.36TB
- Start with as little as 12 SSDs and add additional SSDs as needed to meet changing needs
- Up to six 12Gb/s SAS3 connections to host
- Up to 4.7M IOPS, 23 GB/s; <1ms latency

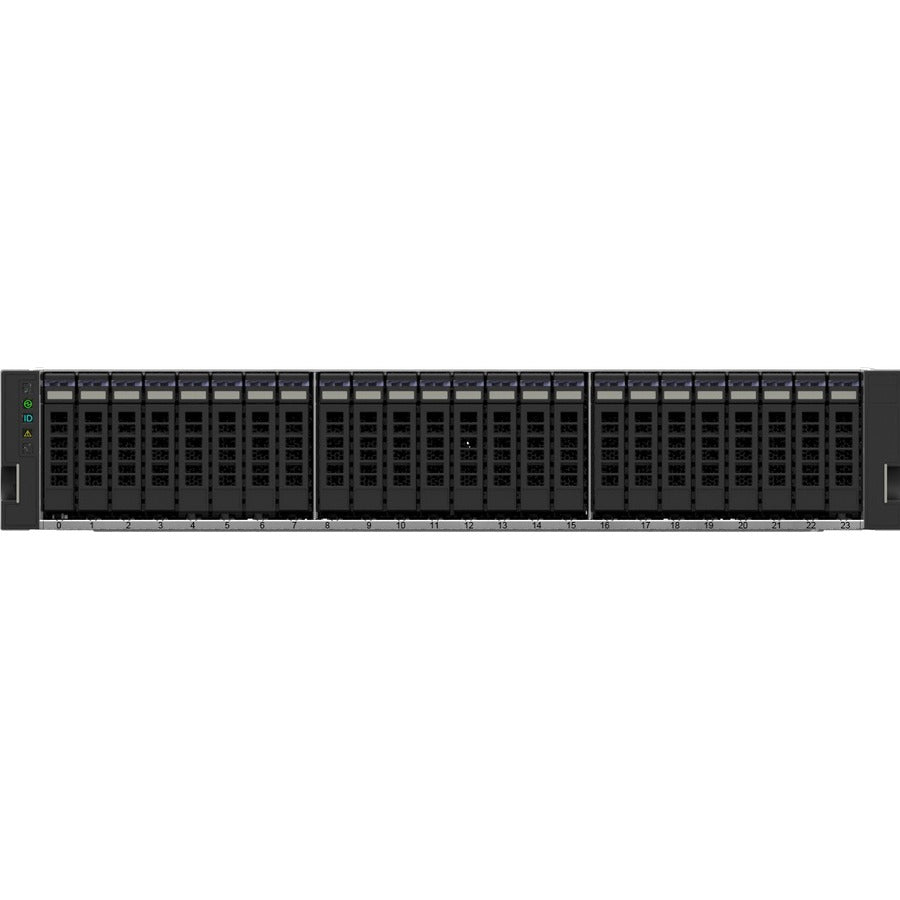

- Easy maintenance of SSD modules. Front accessible and hot swappable.
- 5-year limited warranty
Product Type: Drive Enclosure
Cooling Fan: Yes
Taa Compliant: No
Rack Height: 2U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Model: 1ES1616
Product Name: Ultrastar 2U24 Flash Storage Platform
Product Line: Ultrastar
Manufacturer Part Number: 1ES1616
Manufacturer Website Address: http://www.wdc.com
Limited Warranty: 5 Year
Weight (Approximate): 52.25 lb
