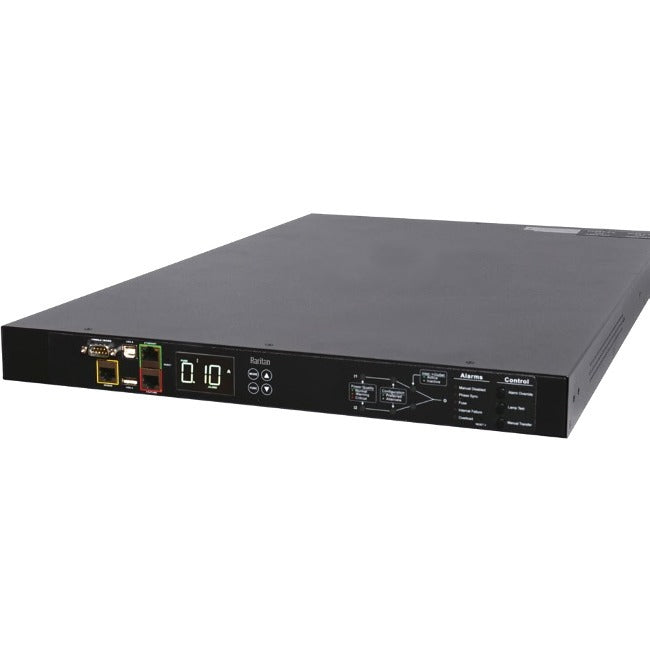

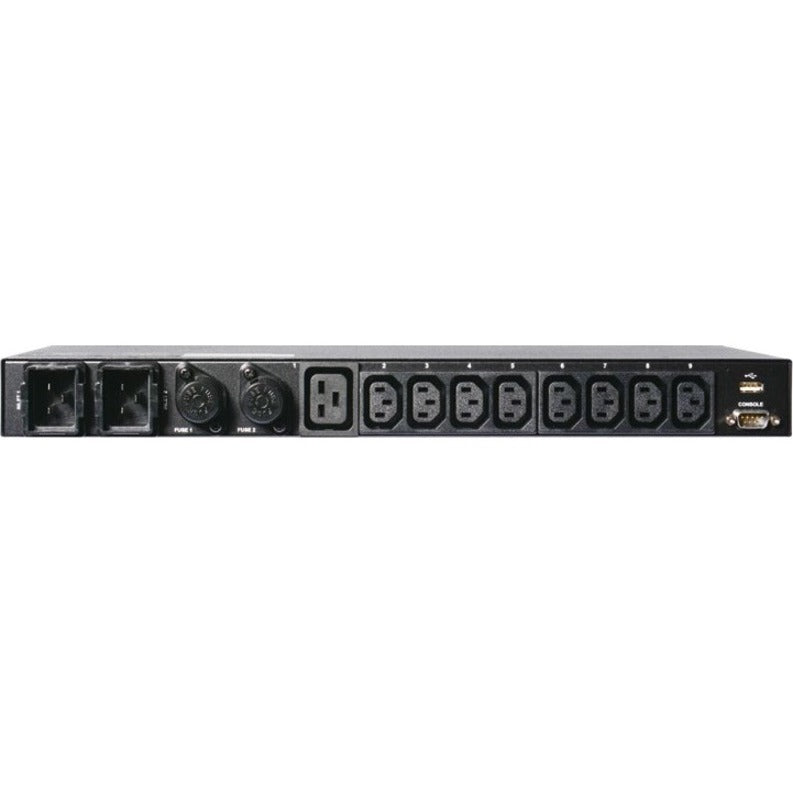

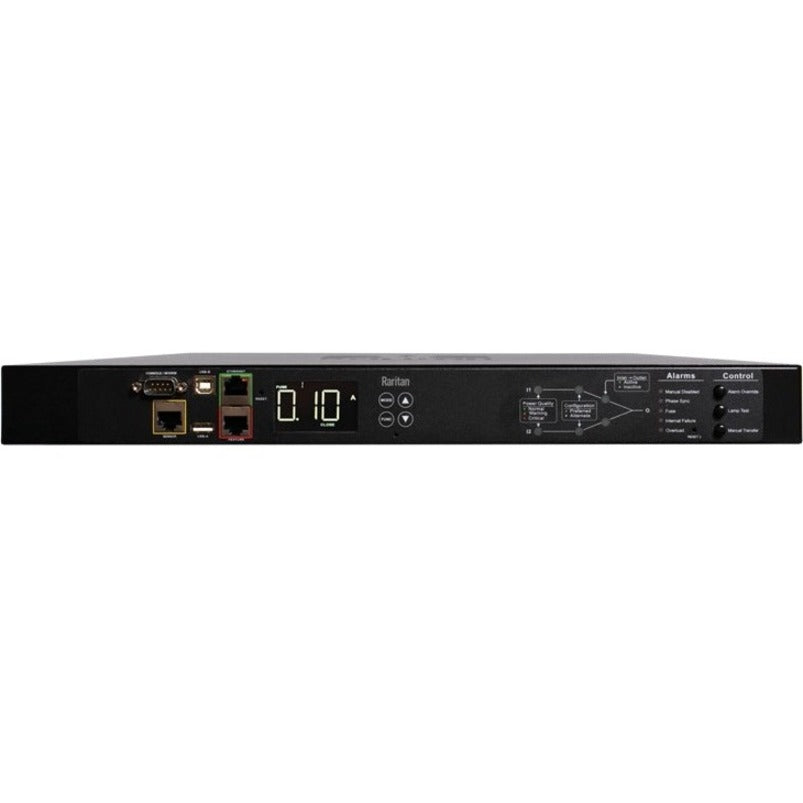

Raritan Intelligent Hybrid Rack Transfer Switch
Rack Transfer Switches Engineered for True Reliability
Raritan's hybrid rack transfer switch system is the first in the world to offer both electromechanical relays and silicon-controlled rectifiers (SCRs) to overcome the limitations of a traditional automatic transfer switch (ATS). It provides load transfer times that are comparable to that of a static transfer switch (STS), more energy efficiently, and at a far more accessible price point. It is also the first in the world to offer inlet, outlet, and branch circuit level power metering; and outlet-level switching for better remote power control.
Raritan's rack transfer switch offers:
- Current sampling at 4,800 times per second for load transfers within 4 to 8ms.
- Oversized relays, rated at 48A, and SCRs, rated at 70A, even though the transfer switches are intended for 16A and 32A loads.
- Relay contact air gap of 3.3mm vs. the 0.6mm gap used in most transfer switch relays on the market to prevent electric arcing.
- Two single throw relays instead of one double throw relay (a single point of failure) to support reliable out-of-phase transfers.
- Inlet, outlet, and branch circuit level metering.
- Remote outlet switching.
Features
Patent-Pending Hybrid Design
Raritan offers the first hybrid rack transfer switch combining electromechanical relays and silicon-controlled rectifiers (SCRs) for exceptional performance and reliability.
Blazing-Fast Transfer Times
SCRs provide fast power transfer times at 4 to 8ms, ensuring that your equipment continues to operate when power fails or fluctuates.
Designed for Reliability
This pioneering rack transfer switch offers inlet surge protection, field replaceable output short protection and redundant internal power supplies.
Web-based Remote Power Monitoring
Real-time remote power quality monitoring with user define-able thresholds and alerts for voltage and frequency. Includes AC waveform of last transfer and metering of power loads.
Real-Time Power Metering
Monitor power utilization at the inlet, outlet, or branch circuit level to prevent tripped breakers, uncover hidden capacity, and use resources efficiently.
Remote Power Control
Reboot hung servers or keep outlets off to prevent unauthorized access, ensure proper provisioning, and avoid tripped breakers.
Additional Features
Break-Before-Make
Built-in sensors detect failed power feeds and ensure break-before-make power transfer from one power source to another within 4 to 8ms.
Out-of-Phase Transfers
Uses two single throw relays instead of one double throw relay (a single point of failure) to support reliable transfers regardless of power phase.
Eliminates Relay Welding
Uses SCRs and oversized relays, with an air gap of 3.3mm vs. the 0.6mm gap as used in most transfer switch relays, to prevent arcing due to power surges.
Monitor and Optimize Your Environment
Optional ports for plug-and-play environmental sensors that allow you to monitor critical environmental conditions.
Industry's Most Flexible USB Port
The transfer switch comes equipped with front and back USB ports to support Wi-Fi networking, cascading, webcams, quick setup, and tablet access and control.
Remote Management Capabilities
Threshold alerting and status updates via GSM text, email, and syslog. An intuitive GUI, SNMP, Modbus, TCP/IP, JSON-RPC for scripting, IPv4/IPv6.
Product Type: Hybrid Transfer Switch
Country Of Origin: Taiwan
Product Series: PX3TS-5000
Rack Height: 1U
Brand Name: Raritan
Form Factor: Rack-mountable
Manufacturer: Legrand Group
Product Model: PX3TS-5191CR
Product Name: Intelligent Hybrid Rack Transfer Switch
Product Line: Intelligent
Manufacturer Website Address: http://www.legrand.us
