Description

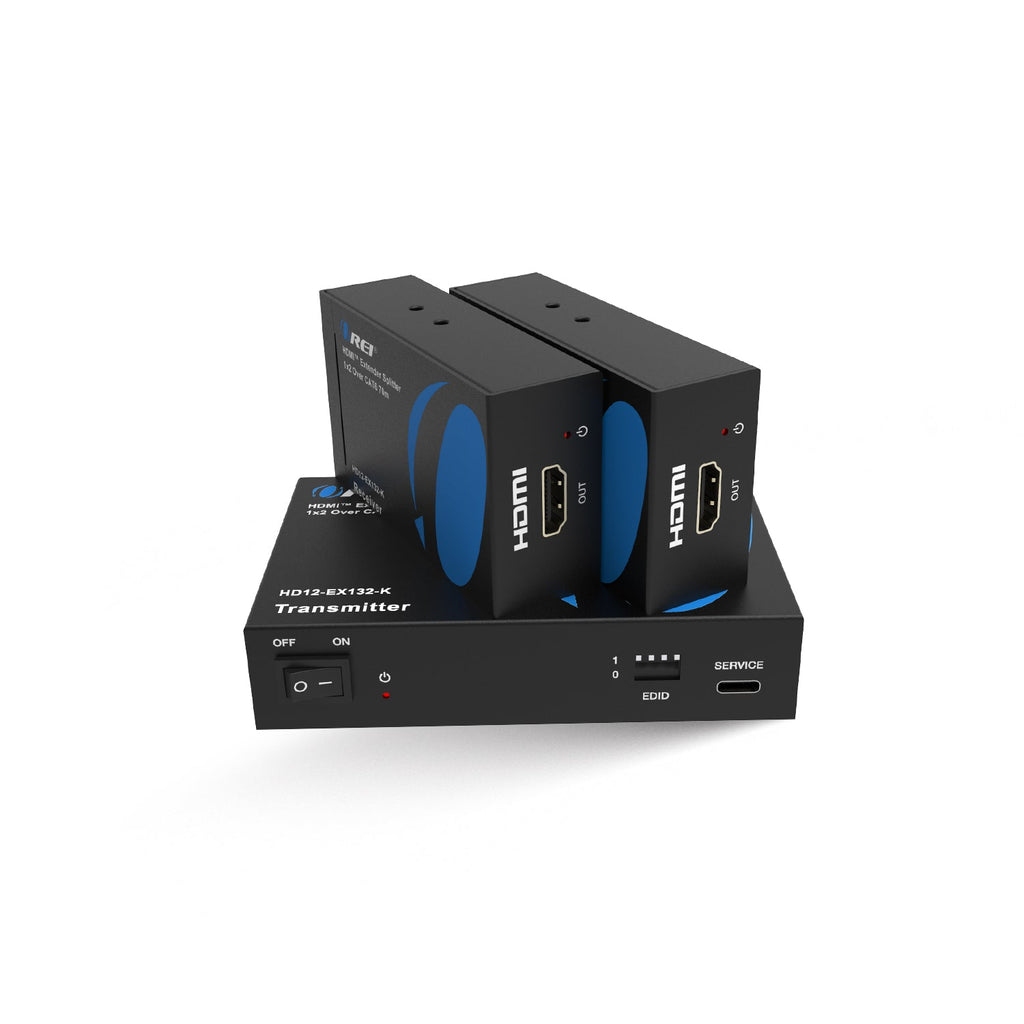

HD12-EX132-K: 1x 2 HD Extender Splitter Up To 132 Feet
Key Features:
HDMI 1.3 and HDCP 1.2 compliant
Video resolution up to 1080P@60Hz
Extending distances up to 130 feet at the resolution of 1080P@60Hz
Connectivity; o Transmitter: 1 HDMI IN, 1 HDMI OUT, 1 IR out & 2 CAT OUT ports o Receiver: 1 CAT IN, 1 IR IN & 1 HDMI OUT
Advanced EDID management
Compact design for easy and flexible installation

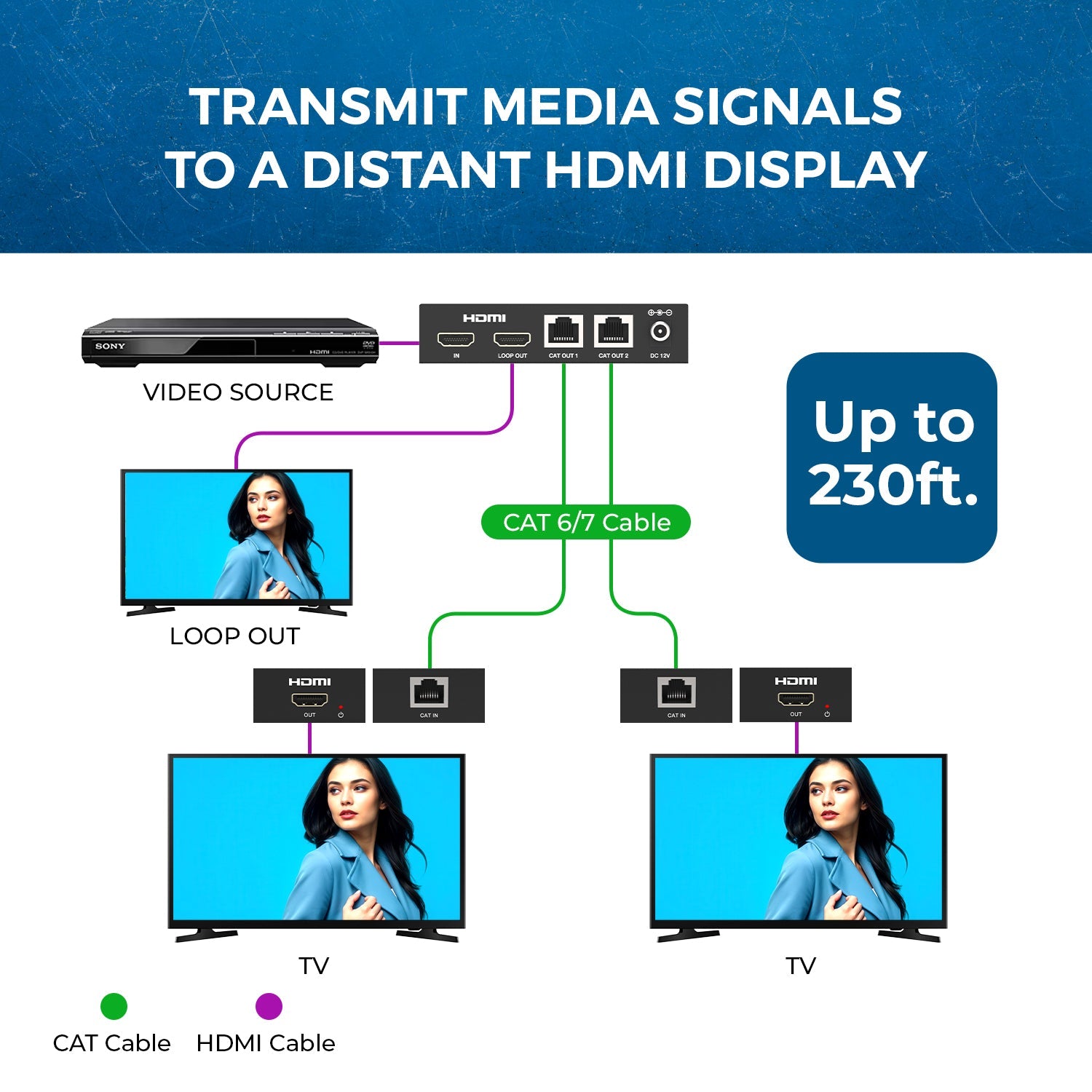

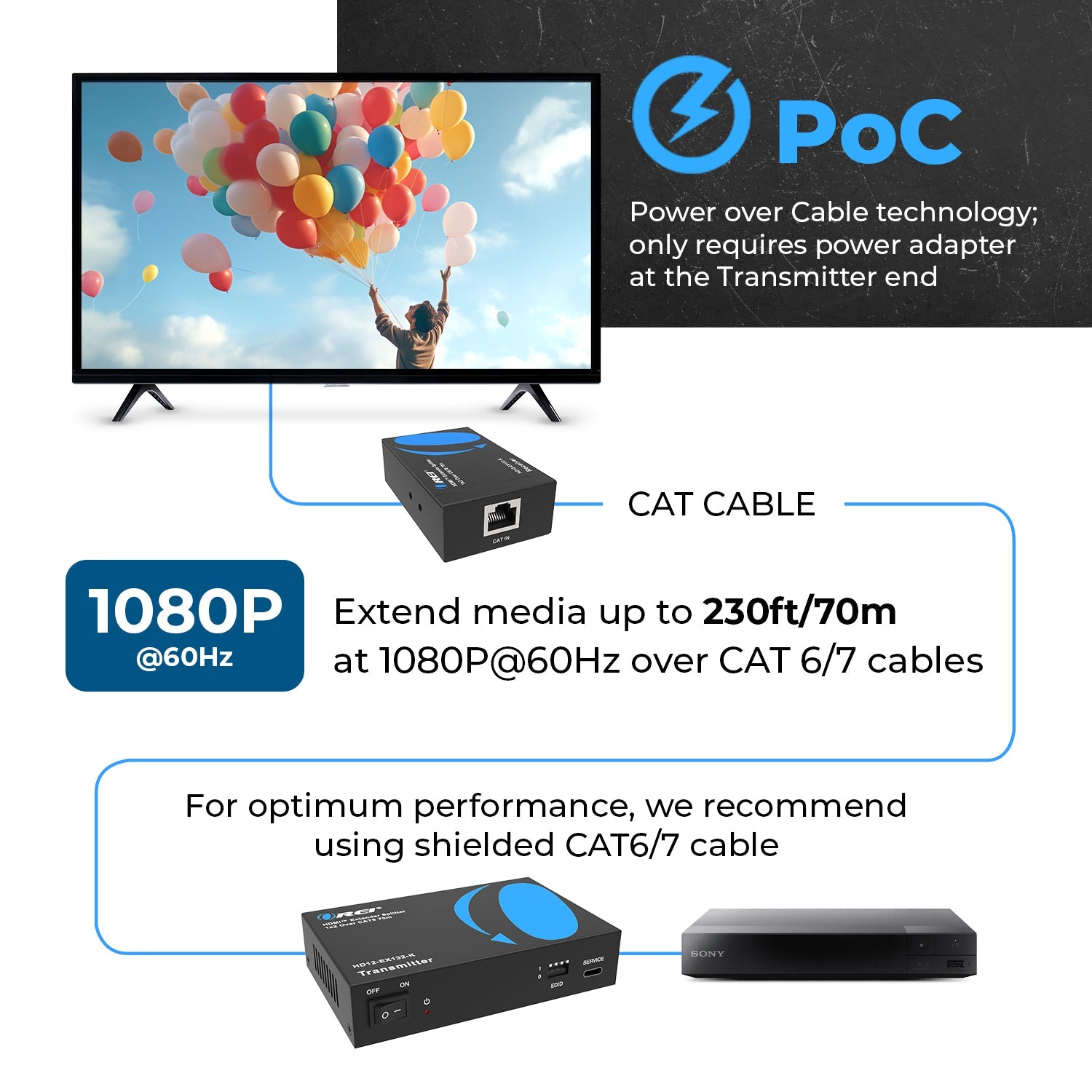

The HD12-EX132-K efficiently distributes one HDMI source signal to any two display devices placed far away. It supports video resolutions up to 1080p@60hz up to 132 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides a video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD, and DTS-HD Master Audio. The Transmitter features an HDMI loop out to connect a display near the source. The device also comes with unidirectional IR control from the Receiver to the Transmitter and also supports PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 2 displays placed far away in any residential or commercial setups given its robust metal build and plug-and-play setup.
[shortdes]
1080P 1 to 2 extender splitter
Extending distance o up to 131ft at 1080P@60Hz via a CAT6 / CAT7 cable
Advanced EDID management
[/shortdes]
[tab]
CONNECTIVITY

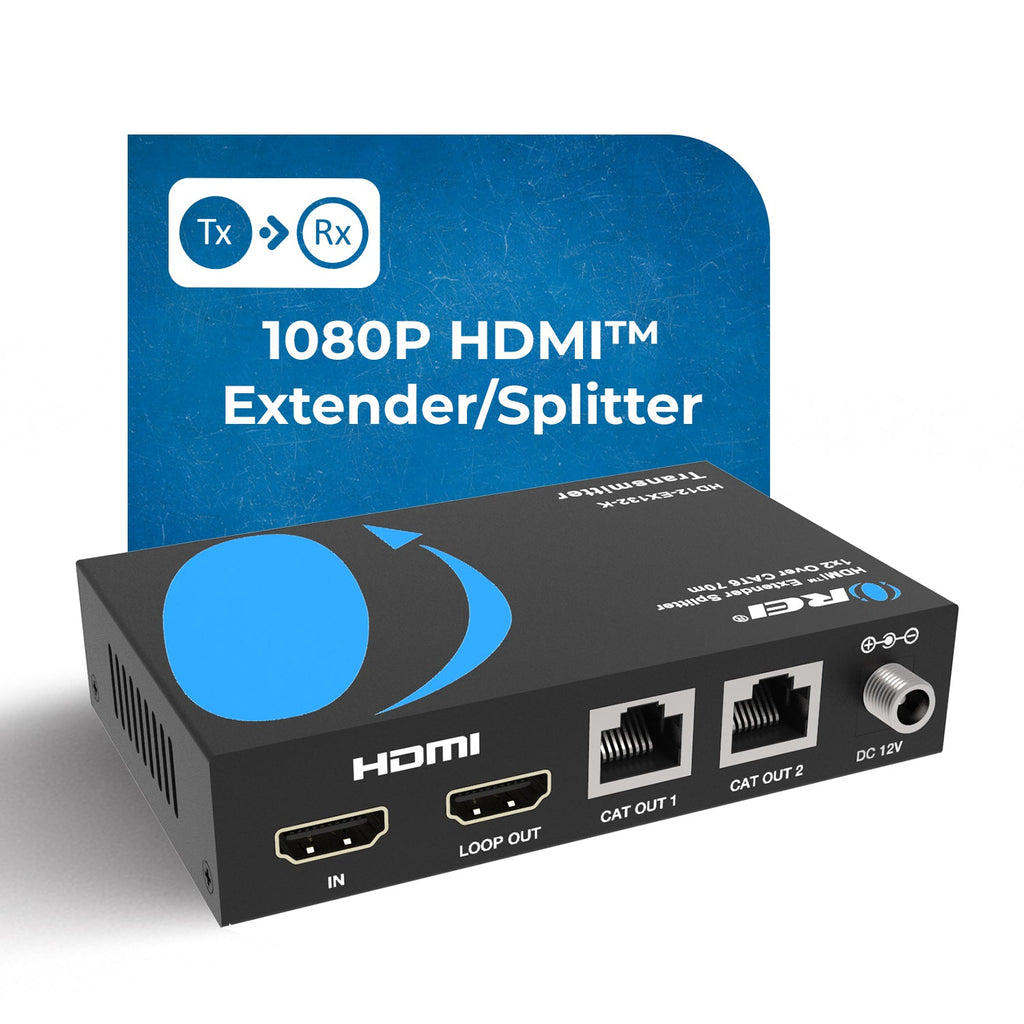

Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
2 x CAT [RJ45, 8-pin female]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
1 x EDID DIP switch [3-pin]

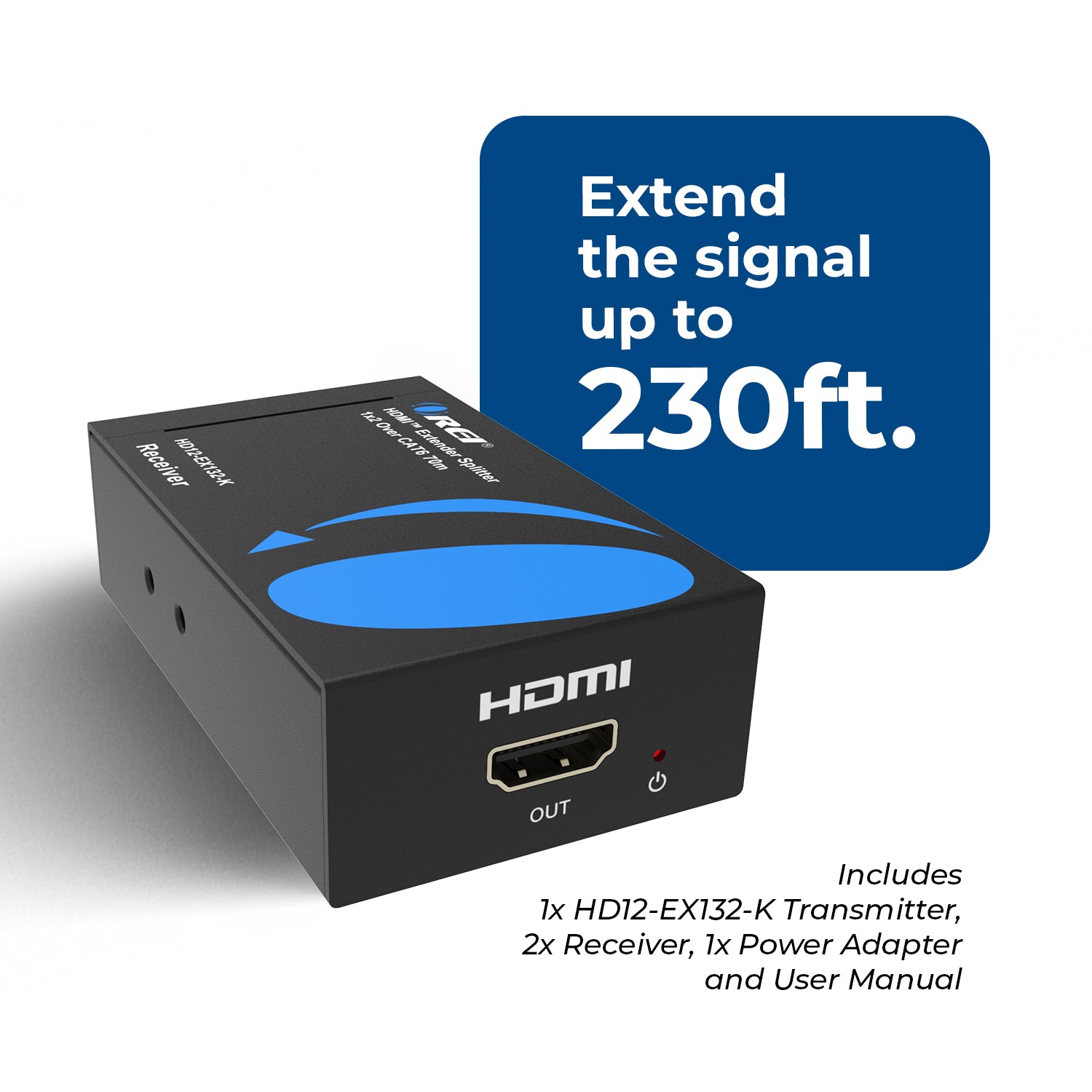

Receiver:
INPUT:
1 x CAT IN [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 x IR IN [3.5mm Stereo Mini-jack]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
2x IR Receiver cable
2x DC5V / 1A Power Adapter
1x DC5V / 2A Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080P@60Hz:
132 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 4K@30Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS -HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.2
POWER
Power Consumption:
10W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/2A
DIMENSIONS & WEIGHT
Transmitter:
Length:
157.8mm / 6.21in
Width:
62mm / 2.244in
Height:
21.6mm / 0.85in
Weight:
380g / 13.40oz
Receiver:
Length:
71.6mm / 2.82in
Width:
66.6mm / 2.62in
Height:
22.6mm / 0.87in
Weight:
80g / 2.82oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
