Description

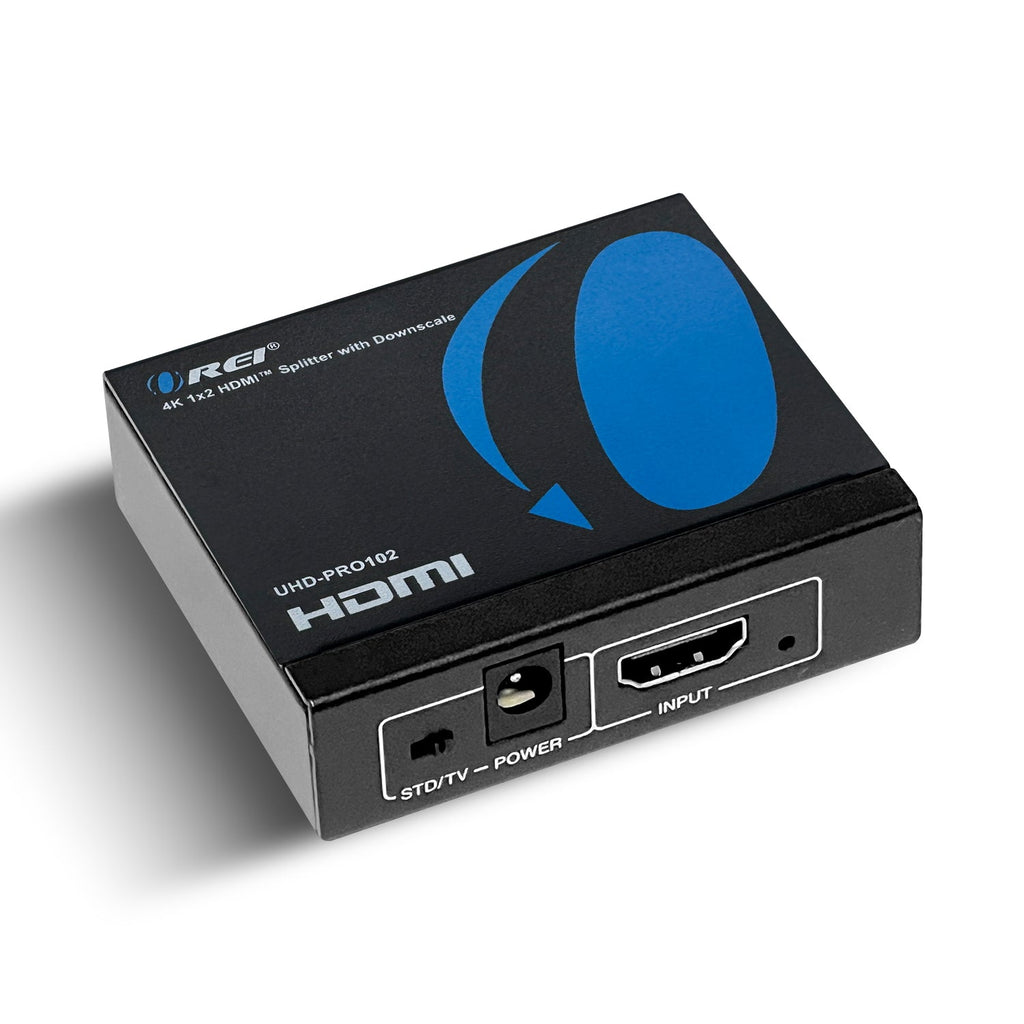

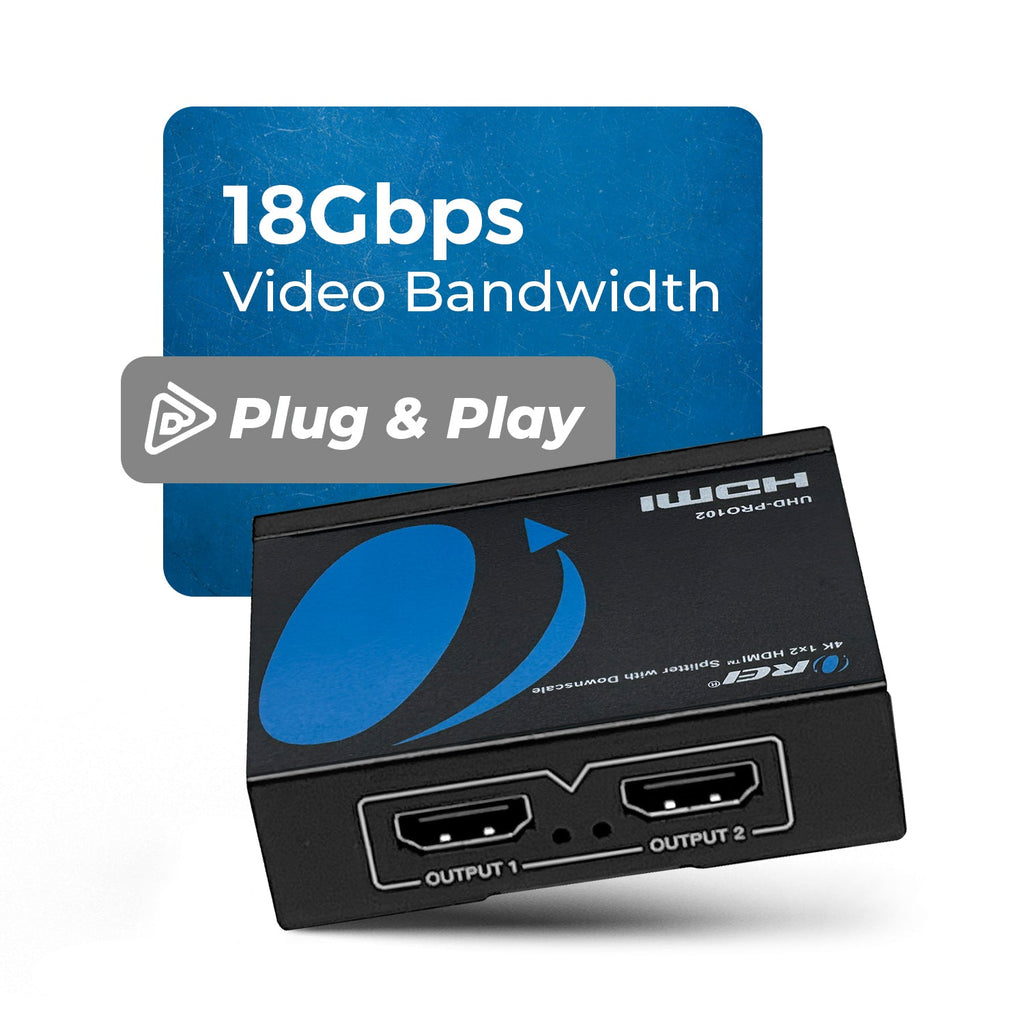

OREI UHD PRO -102: 4K 1x2 HDMI Splitter with Auto Downscale & EDID management
Key Features:
HDMI 2.0 & HDCP 2.2 Compliant
Video resolutions up to 4K@60Hz & 3D support
18Gbps video bandwidth
Automatic Downscale feature to downscale 4K content to 1080p.
Convenient & Easy EDID management through a switch
DTS HD, Dolby TrueHD lossless digital audio compliant
Duplicate content from a single media source to 2 displays
On/Off Switch for easy control
Compact & Lightweight Design

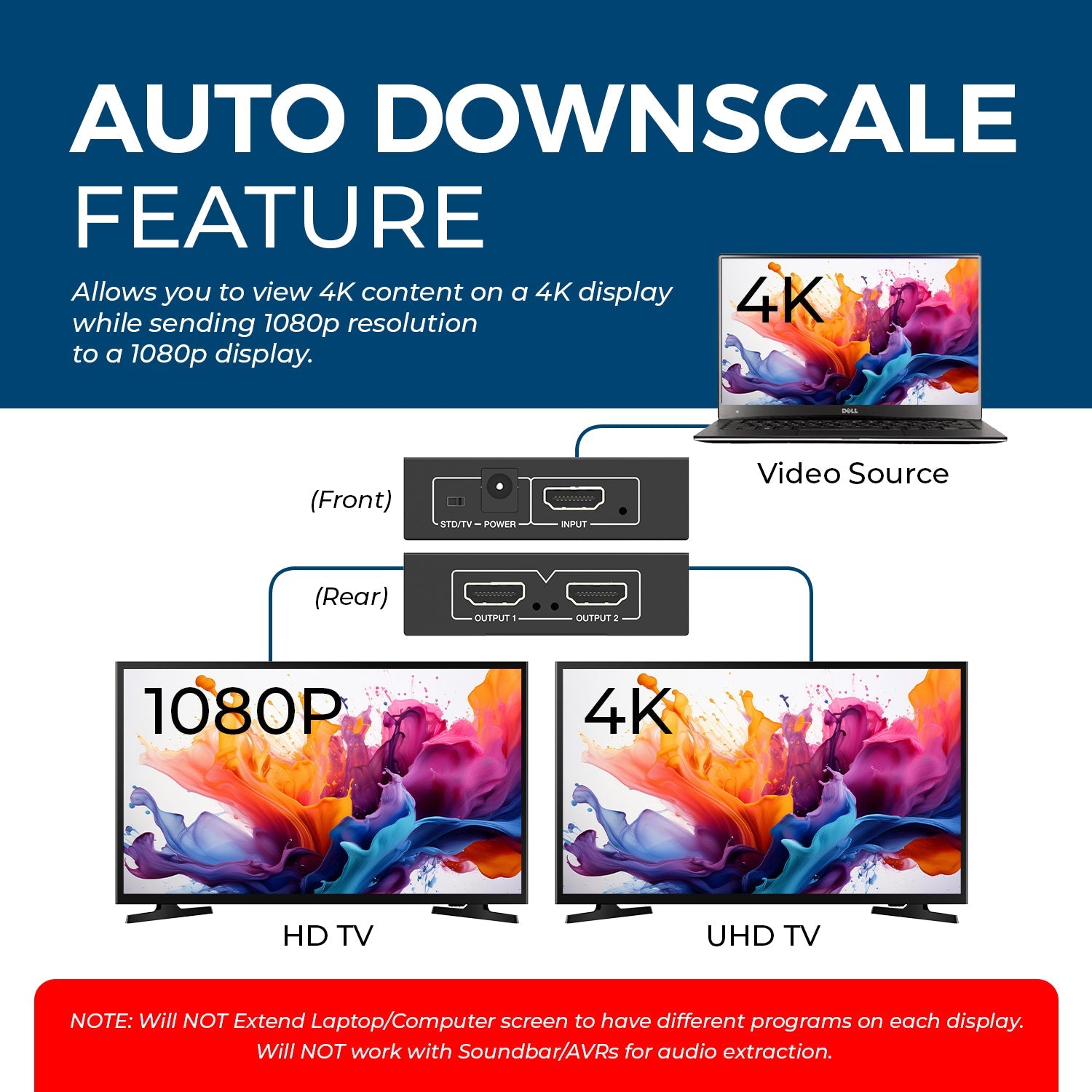

The UHD-PRO102 is a 1 Input 2 Output HDMI Splitter that allows you to connect a single media source to 2 displays, duplicating the content on both screens. The device supports resolutions up to 4K@60Hz and is HDMI 2.0 & HDCP 2.2 compliant. This device is the perfect solution to watch content from a single media source on 2 displays at the same time. Moreover, the device also supports an auto-downscaling function. This allows you to connect a 4K display and a 1080p display at the same time, maintaining the 4K resolution on the 4K display and downscaling the media to 1080p to show on the 1080p display.
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]

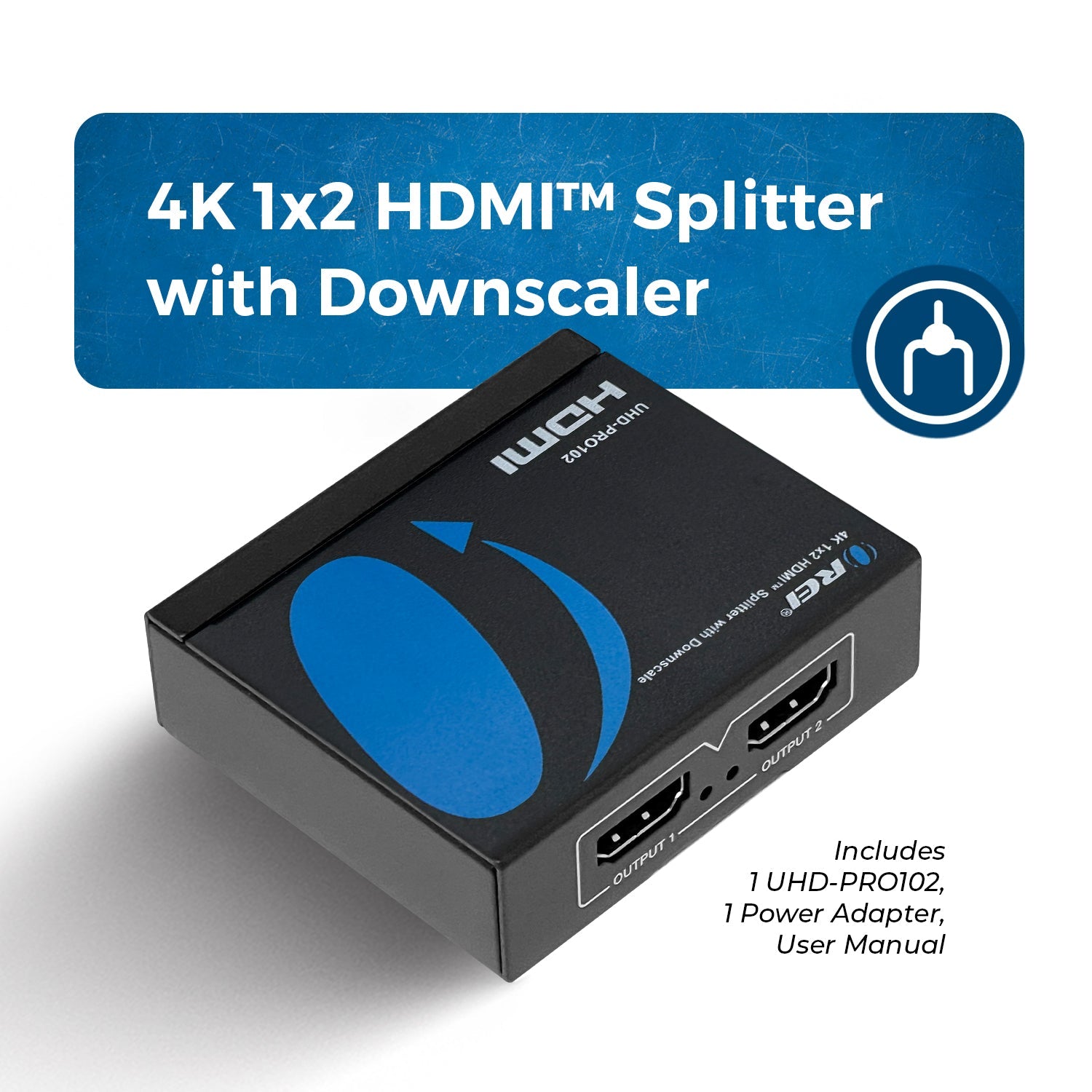

PACKAGE CONTENTS
1x UHD-PRO102 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
Yes
Over IP:
No
HDBaseT:
No
RS-232:
No
AUDIO SUPPORT
HDMI Audio Formats:
PCM 2, 5.1, & 7.1CH, Dolby TrueHD, DTS-HD, DTS
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
2W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/0.6A
DIMENSIONS & WEIGHT
Length:
100mm / 3.94in
Width:
63mm / 2.48in
Height:
20mm / 0.79in
Weight:
66g / 2.33oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output

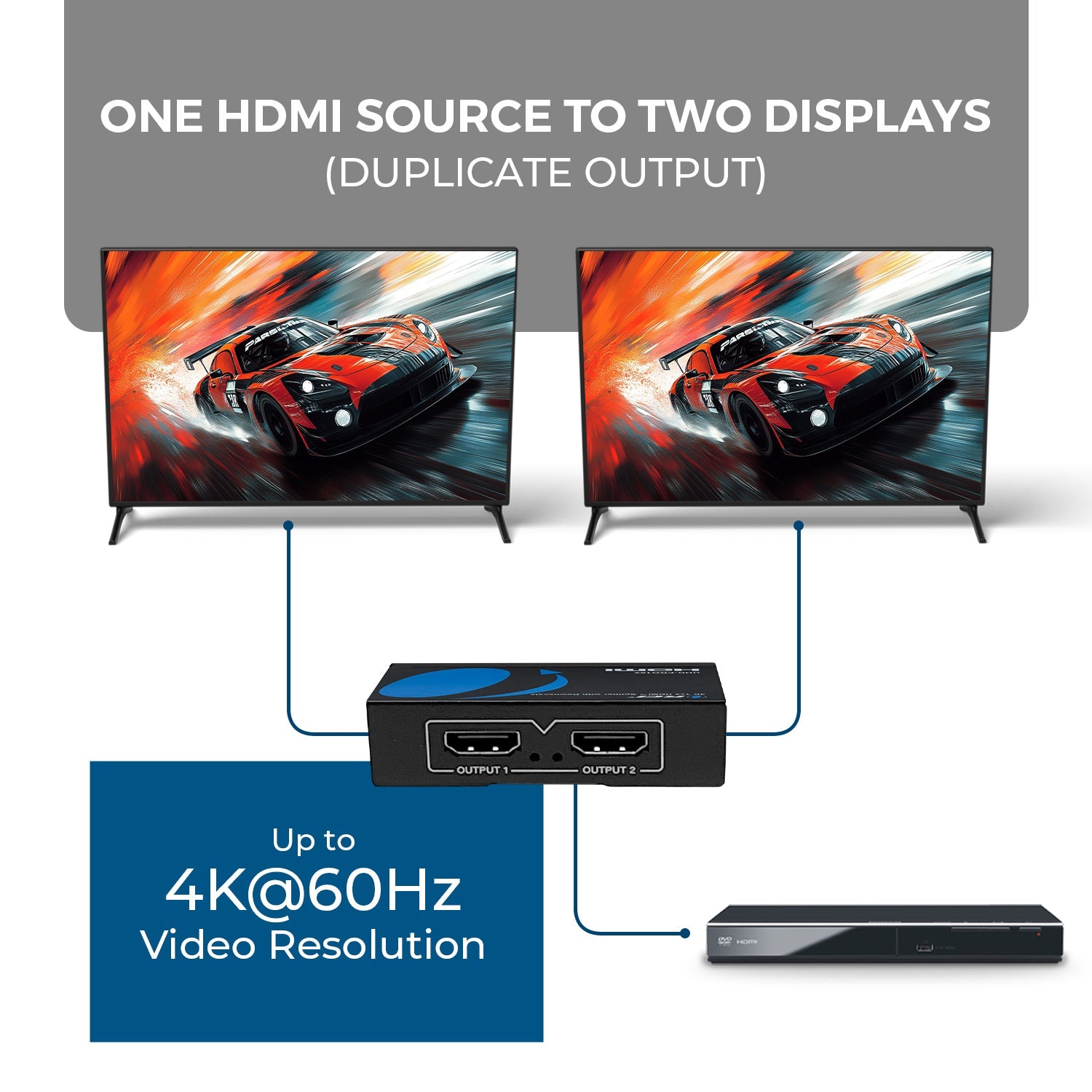

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
