Description

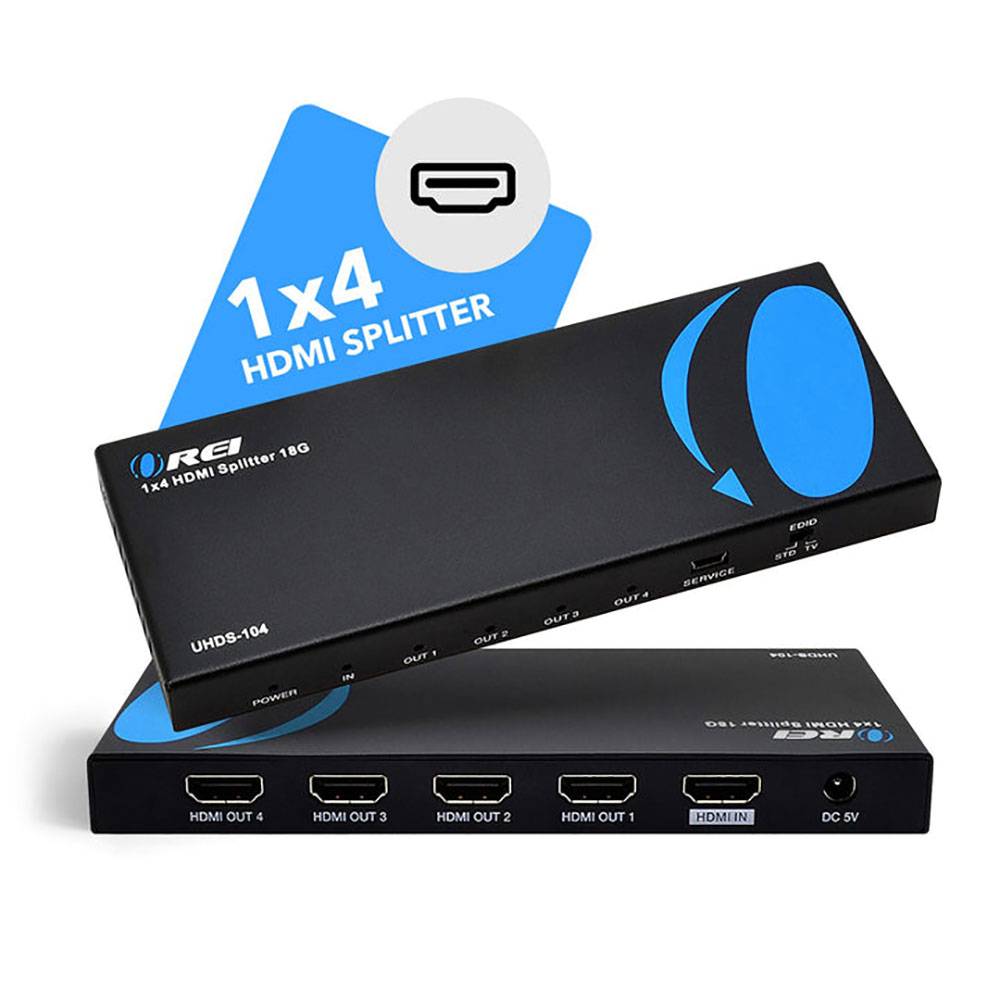

OREI UHDS-104: 1x4 18Gbps 4K HDMI Splitter
Key Features:
HDMI 2.0b and HDCP 2.2 compliant
18Gbps video bandwidth
Video resolutions up to 4K@60Hz YCbCr 4:4:4
LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio support
EDID dip switch to toggle between 2 presets:
STD: Set the output to 1080p@60HZ
TV: Copy the EDID of the display connected to OUT 1
Compact design and plug-and-play setup

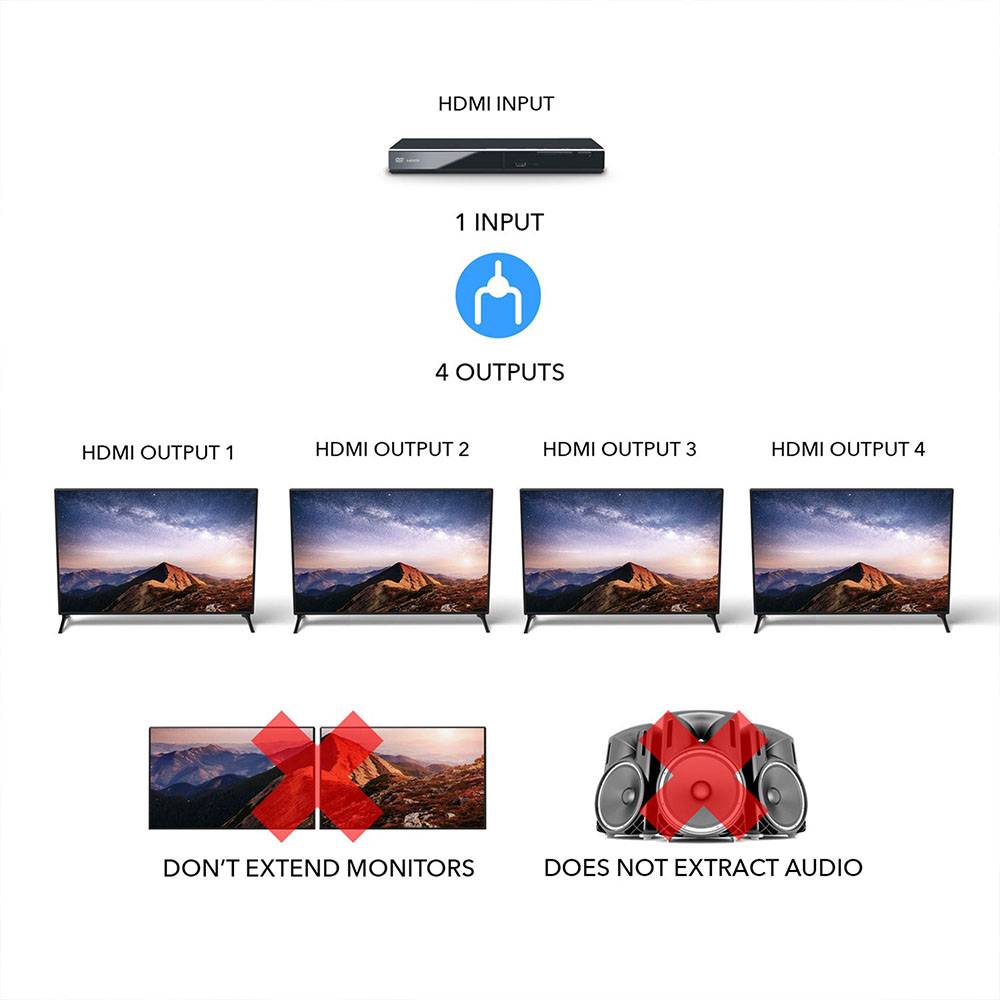

The UHDS-104 HDMI splitter can be used to display media content across 4 displays simultaneously. This splitter is HDMI 2.0b and HDCP 2.2 compliant with a video bandwidth of 18Gbps, and resolutions up to 4K@60Hz YCbCr 4:4:4. Digital audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are supported. It features a toggle switch for EDID management. This HDMI Splitter makes it easy to mirror audio/video content from any media source to 4 displays simultaneously making it the best choice for any commercial or residential setups.
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
CONTROL:
1× SERVICE [Mini-USB B, Update port]
PACKAGE CONTENTS
1x UHDS-104 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@30Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No

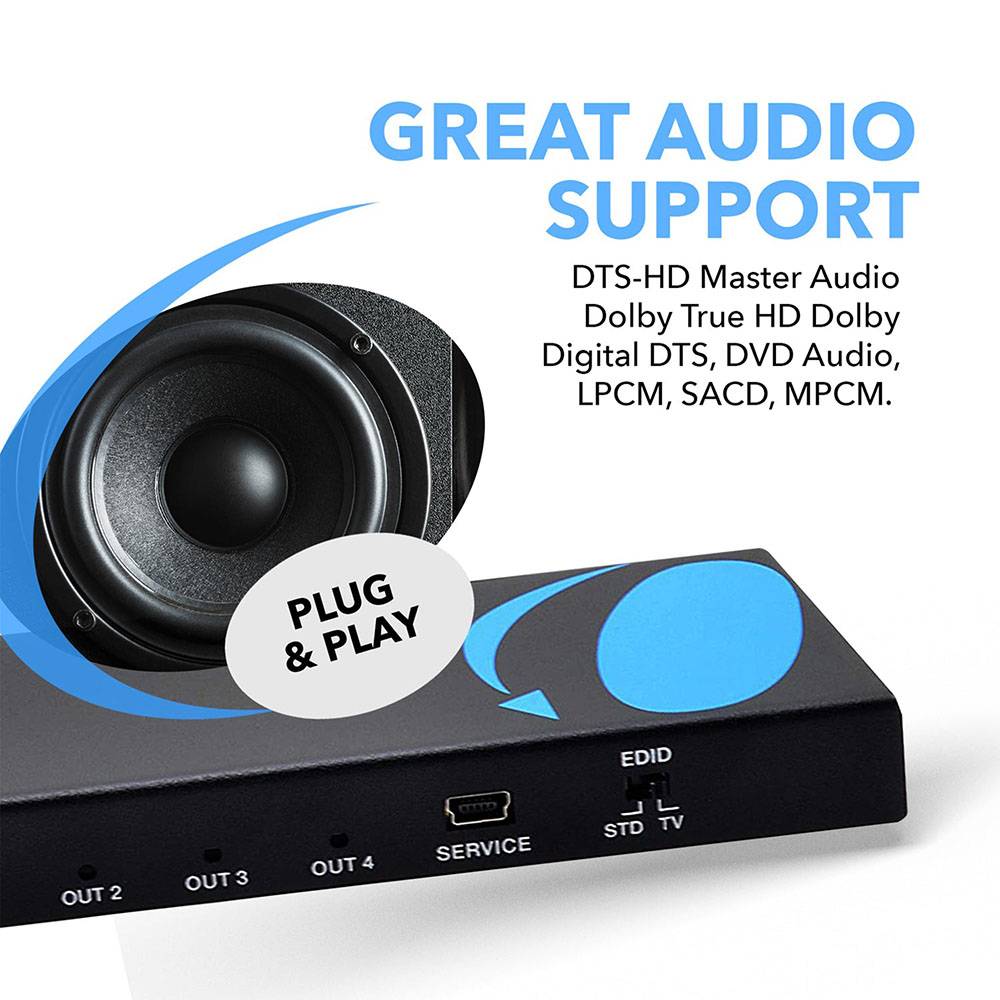

AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
2W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

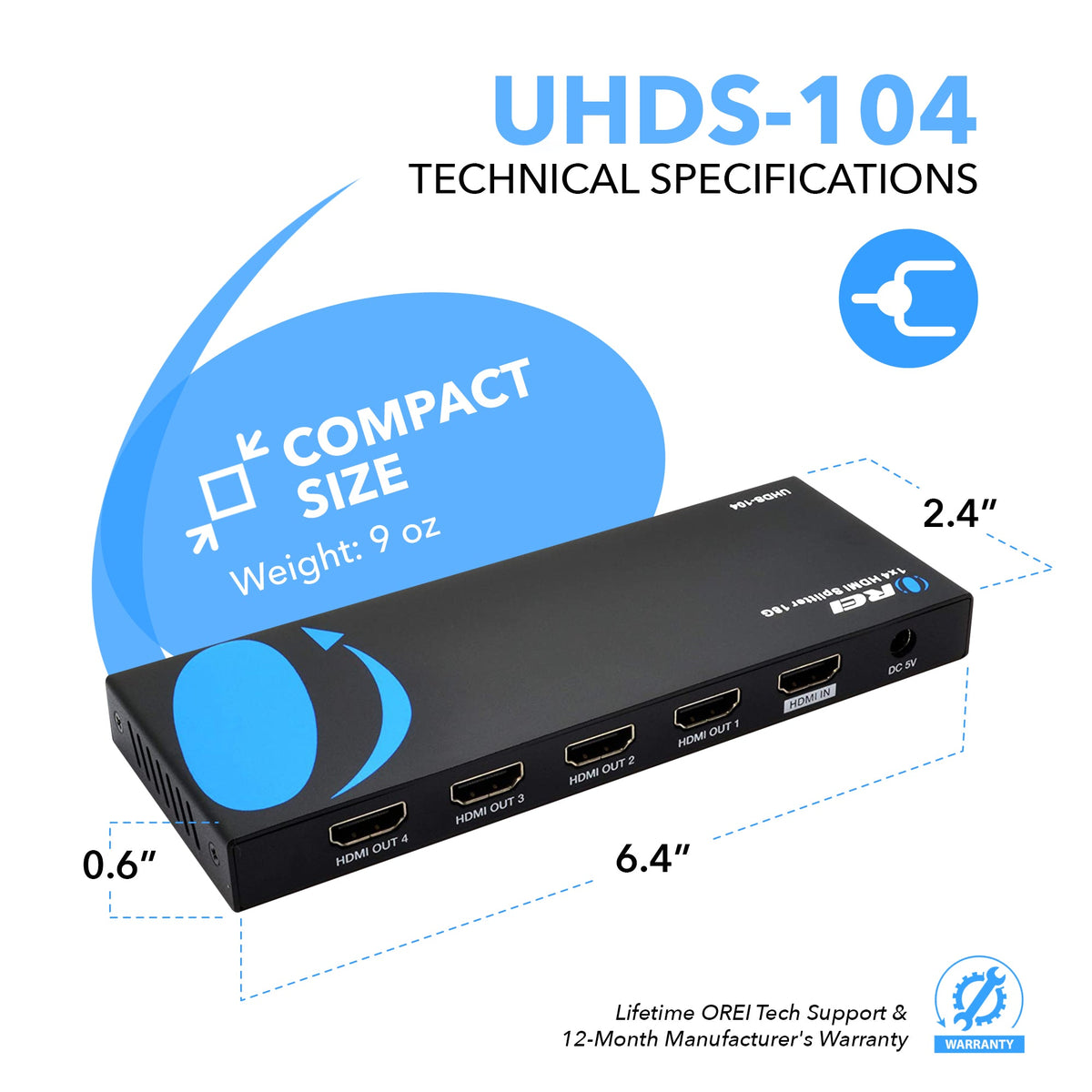

DIMENSIONS & WEIGHT
Length:
163mm / 6.12in
Width:
63mm / 2.48in
Height:
16mm / 0.63in
Weight:
260g / 9.17oz
PROPERTIES
Color:
Black

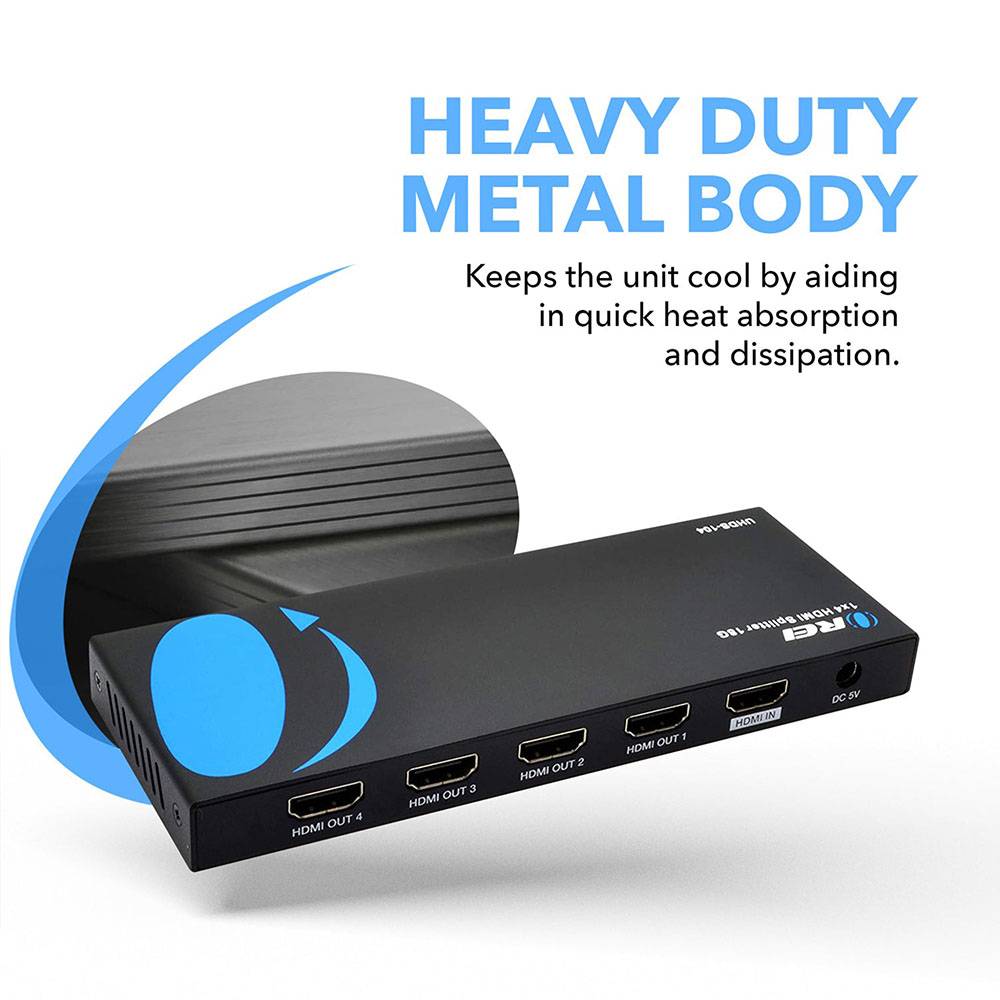

Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

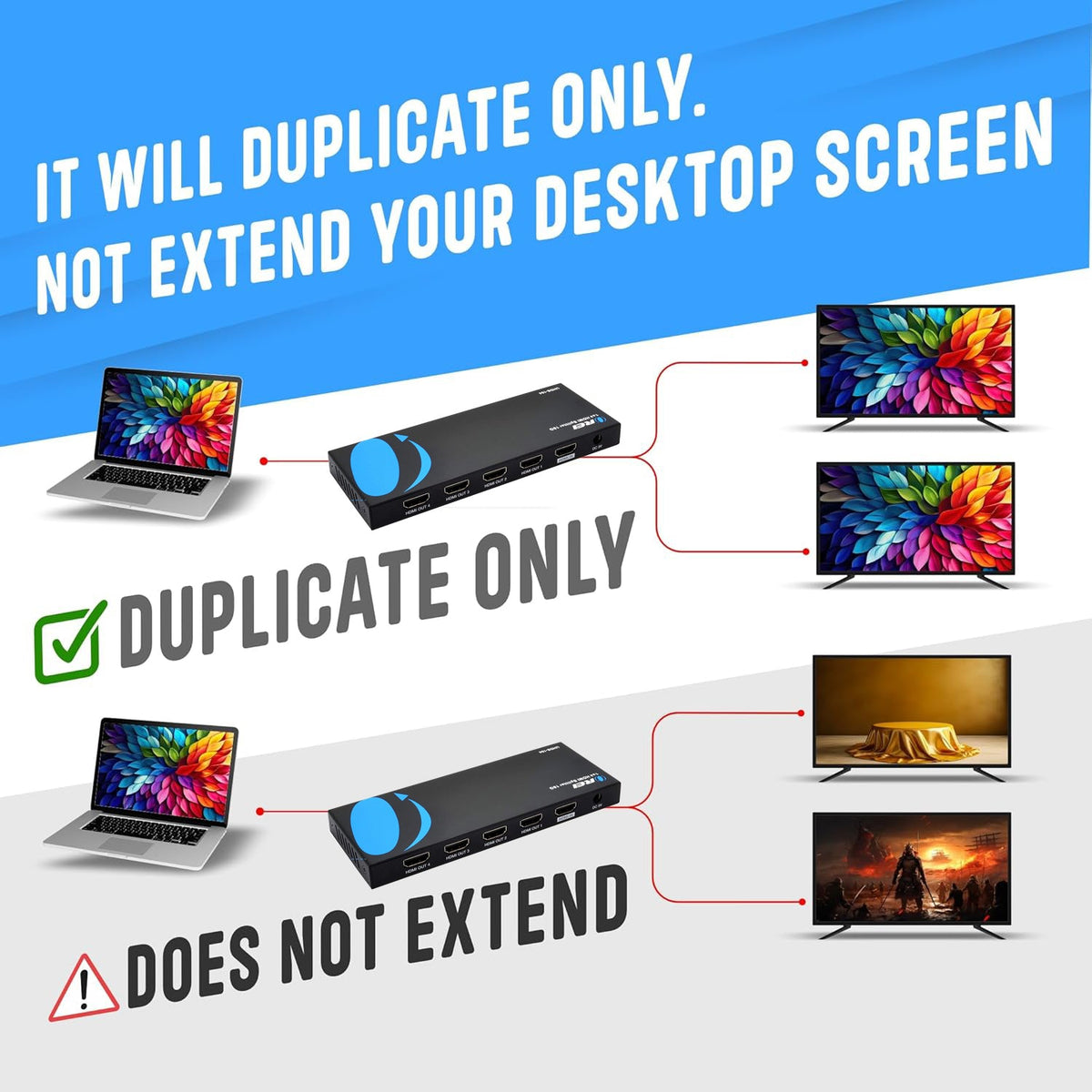

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
