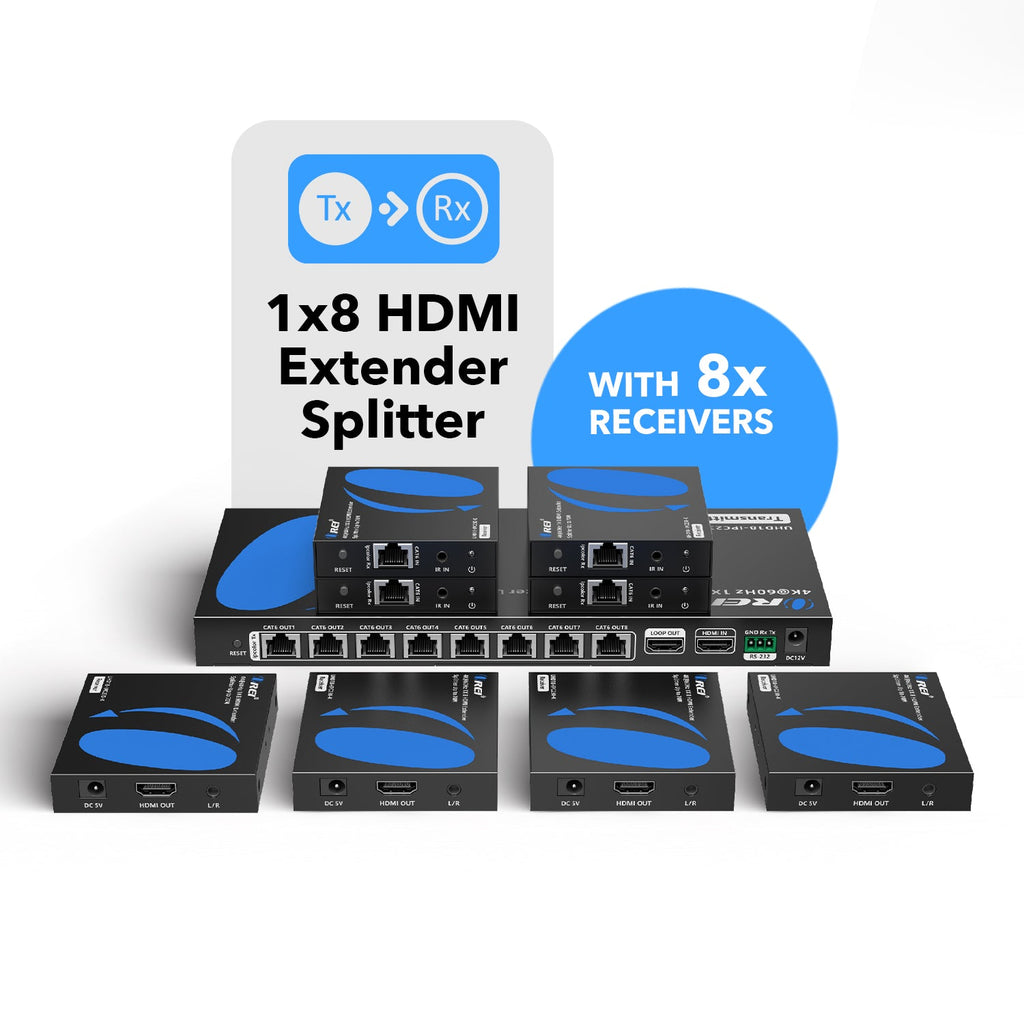

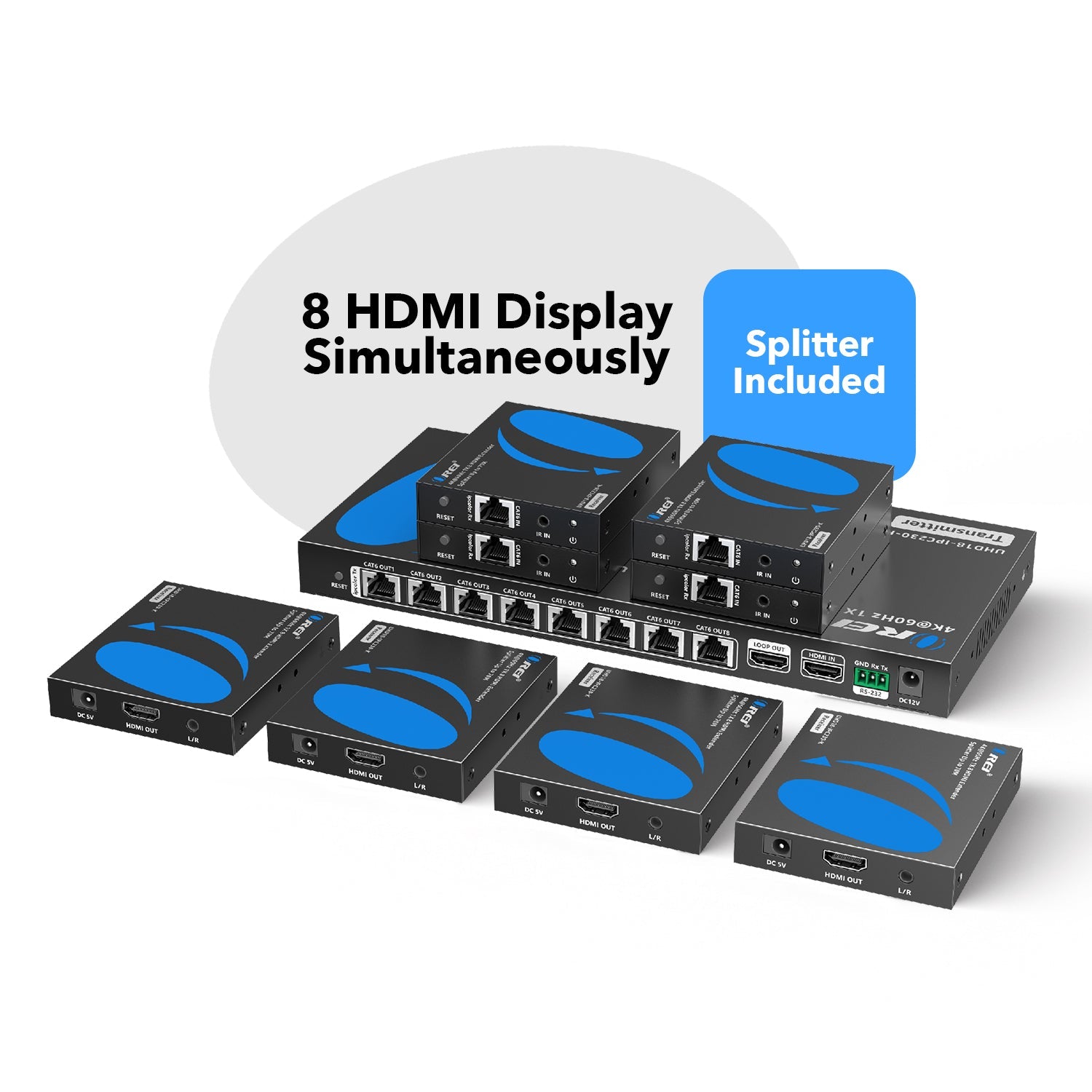

UHD18-IPC230-K is 1 Input 8 Outputs Extender Splitter Kit, which integrates the functions of distribution and extension. You can enjoy seamless videos with zero latency.

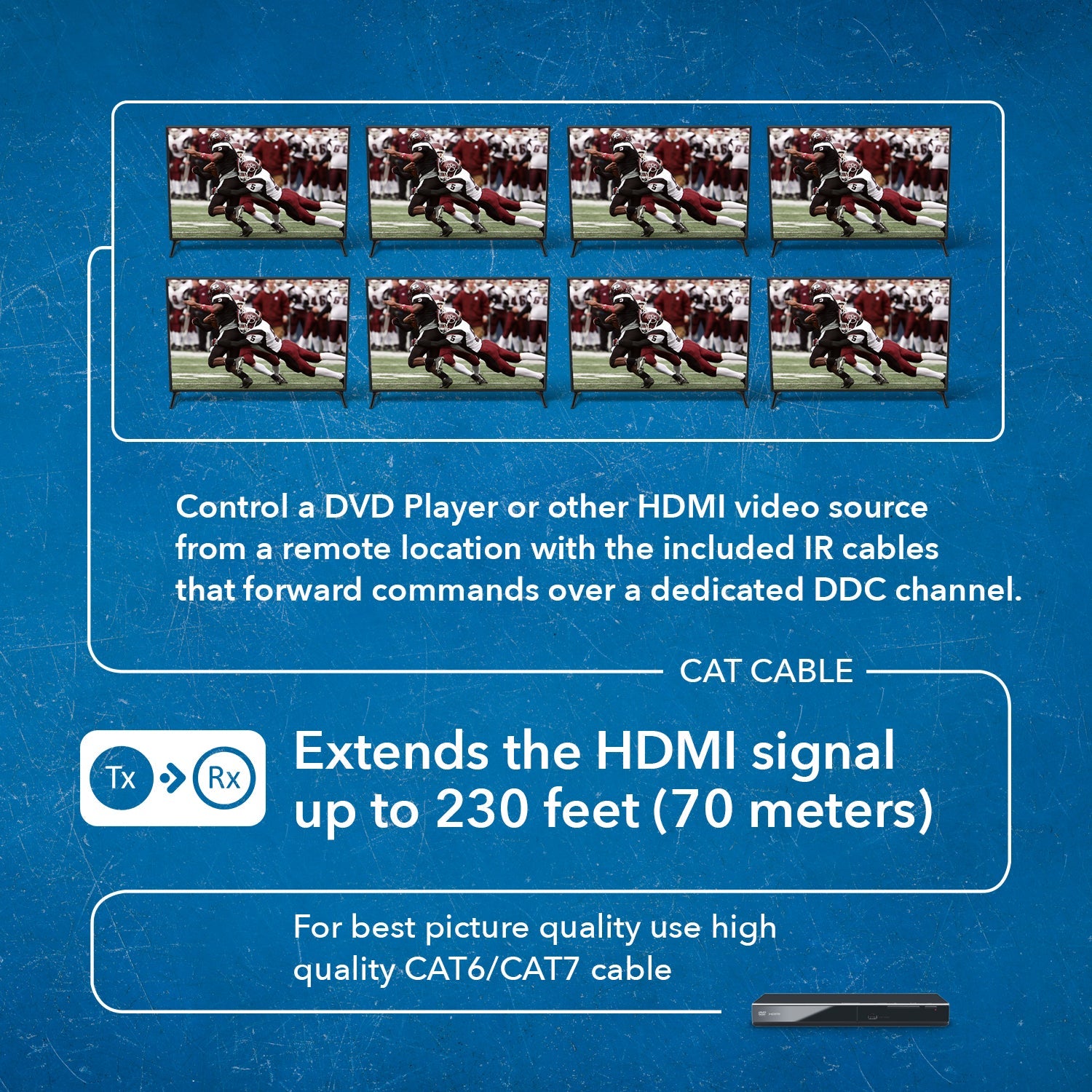

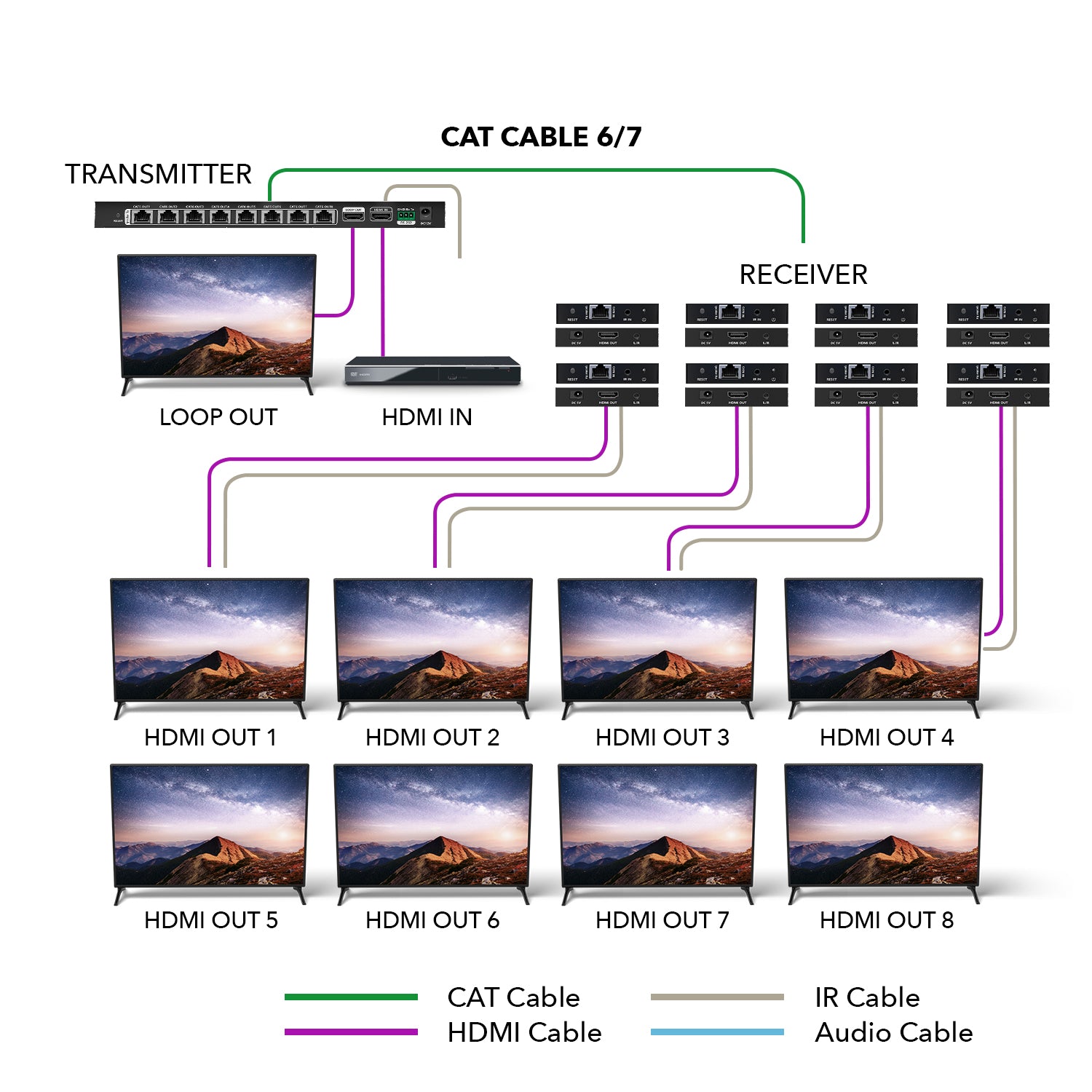

It distributes 1 HDMI input signal to 8 identical signal outputs, extends these signals up to 230 feet, and supports 18 Gbps video bandwidth 4K@60Hz resolution with ipcolor technology.

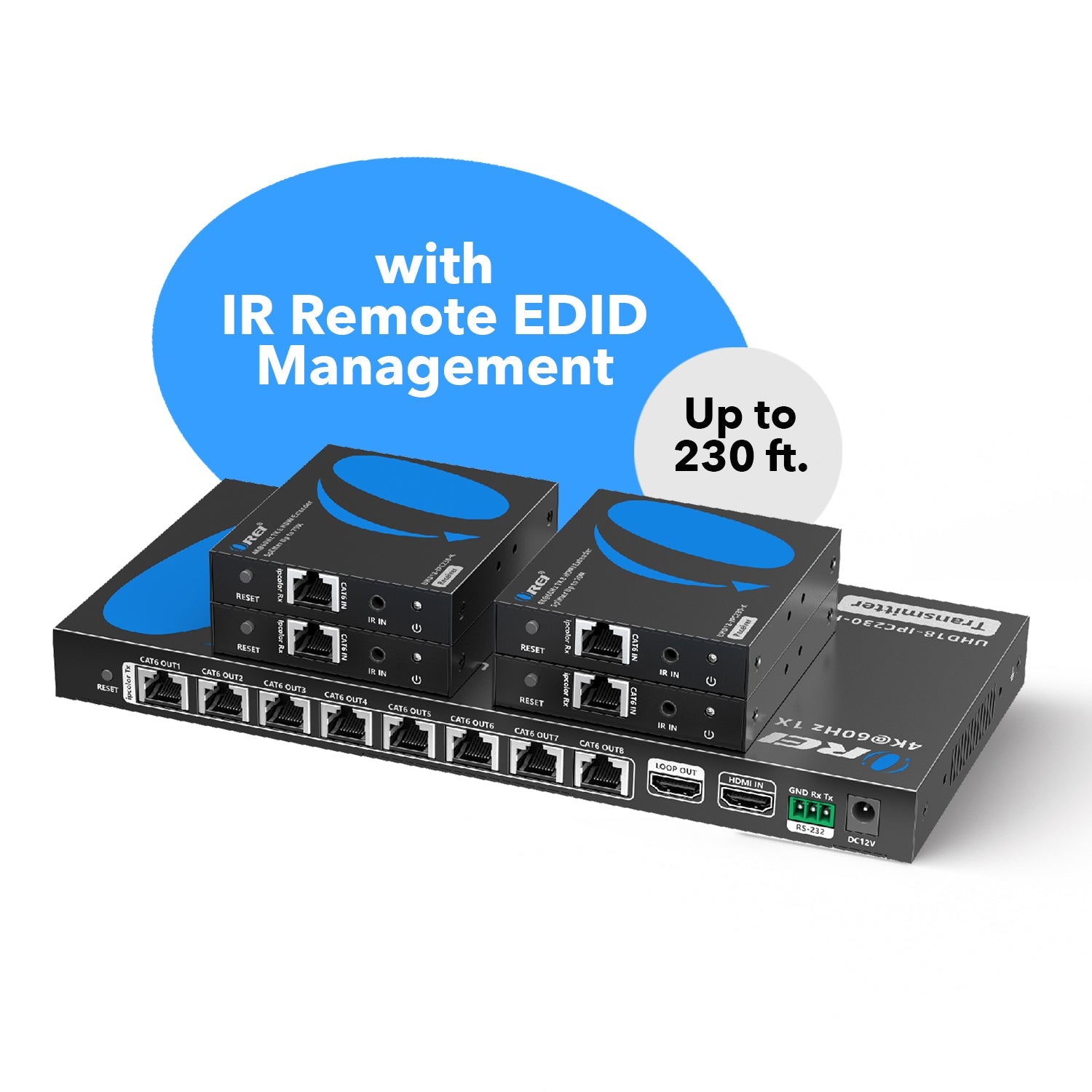

It also supports bi-directional IR pass back, RS-232 control and advance EDID control settings
This product has an HDMI loop out port so that you can connect a local display to the transmitter & enjoy the video.
It is suitable for studios, multimedia classrooms, rail transit, etc.
We recommend you using shielded CAT6 cables & high-quality HDMI cables for optimum performance.
[shortdes]
Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports Bi-directional IR, RS-232 Control & Advance EDID
[/shortdes]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI INPUT
OUTPUT PORTS:
8x RJ45 OUTPUT
1x HDMI OUTPUT
Receiver:
INPUT PORTS:
1x RJ45 INTPUT
OUTPUT PORTS:
1x HDMI OUTPUT
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
Transmission Protocol:
Ipcolor
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 230 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
Color Space:
RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:
8bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
Yes
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Bi-Directional IR
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
Supports Advance EDID Management Control
ARC:
Supports ARC from the TV (receiver end)
S/PDIF:
Supports from the source device
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:
Up to 5.1Ch
SIGNALS
TMDS Signals:
0.7~1.2Vp-p
DDC Signals:
5Vp-p

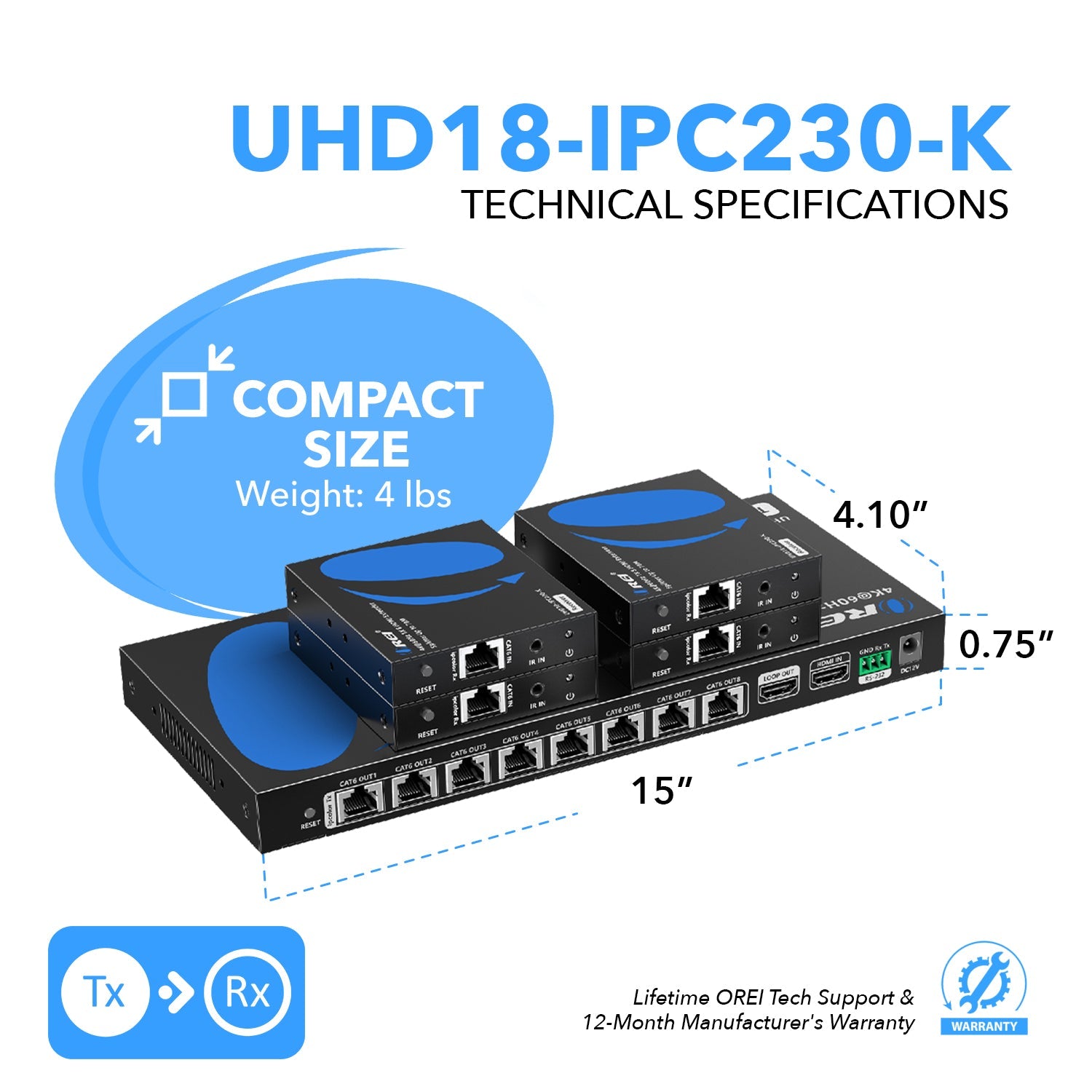

DIMENSIONS & WEIGHT
Transmitter:
Height:
23.5mm
Width:
120mm
Depth:
260mm
Weight:
724g
Receiver:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
PROTECTION
Operation Temperature:
-20 - 60°C
Storage temperature:
-30 - 70°C
Relative Humidity:
0 - 90% RH
ESD Protection:
1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:
IEC61000-4-2
Lightning Protection:
Yes
Surge Protection:
Yes
RJ-45 CONNECTOR Type
8P8C connector
POWER
Power Consumption (Max)
Transmitter:
24W
Receiver:
4W
Power Supply
Input:
DC 12V/2A
Output:
DC 5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminium Alloy Material + Crystal Panel
Processing Technology:
Ipcolor transmission technology
Finishing:
Grit blast
PACKAGE CONTENTS

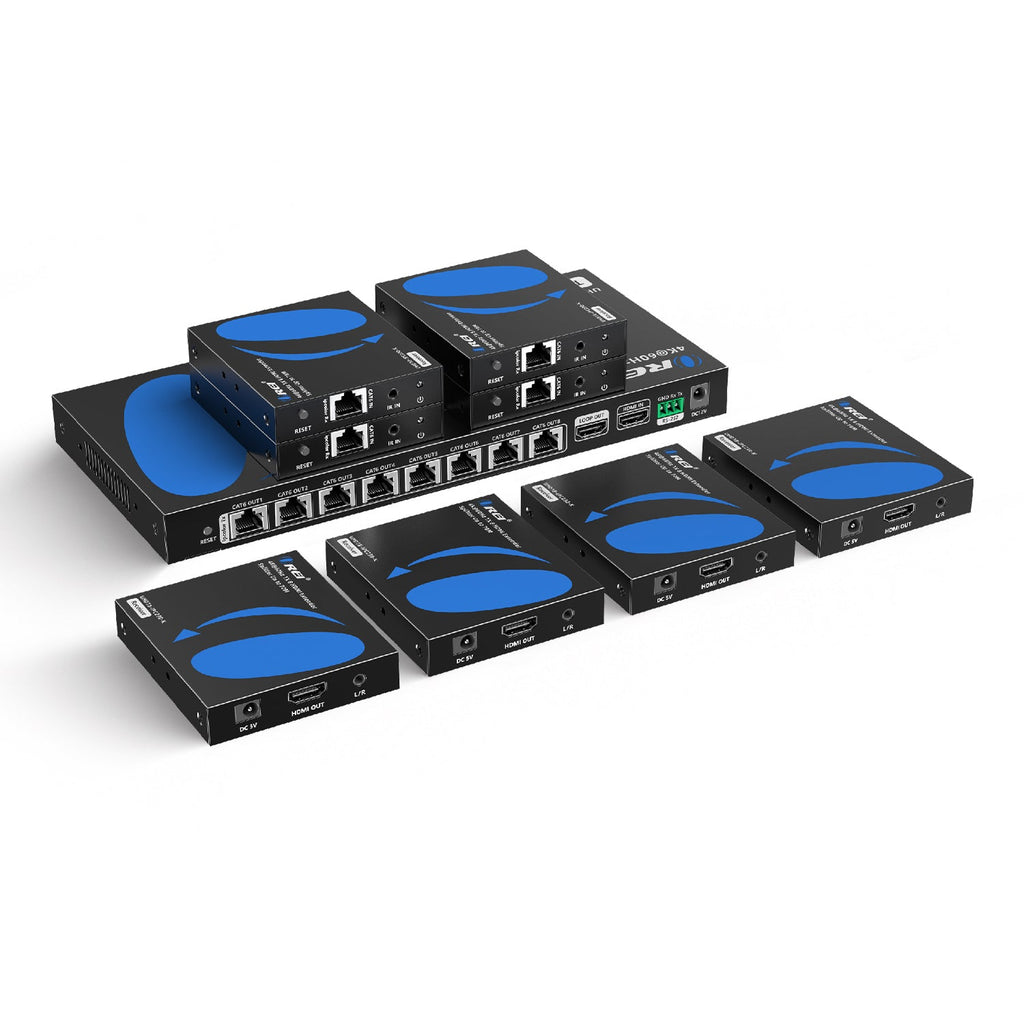

1x HDMI Transmitter
8x HDMI Receivers
1x DC 12V/3A Power Adapter
8x DC 5V/2A Power Adapter
1x Terminal Block (RS-232)
1x IR Blaster Extension Cable
8x IR Receiver Extension Cable
36x Mounting Brackets
72x Screw
WARRANTY
1 - Year Manufacturer's Warranty
