Distribute 1 HDMI source to 8 HDMI displays over a single CAT5e/6/7 network cable simultaneously
Full IR Remote Control Input
Supports 20~60Hz
IR Pass Back
Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
It extends HDMI audio/video signals to synchronous output video display is as fluent as a direct connection
Surround sound up to 7.1-channel or stereo digital audio
Compatible with CAT6/6a/7 Network Cables
Output 1080p signal up to long-distance 400 Feet with CAT5e/6/7 cable
Compatible with HDCP compliant devices & content
The highest Resolution Supported is 1920×1080@60Hz
Lossless Transmission with Minimal Latency
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
Plug & Play Setup without any Software Installation

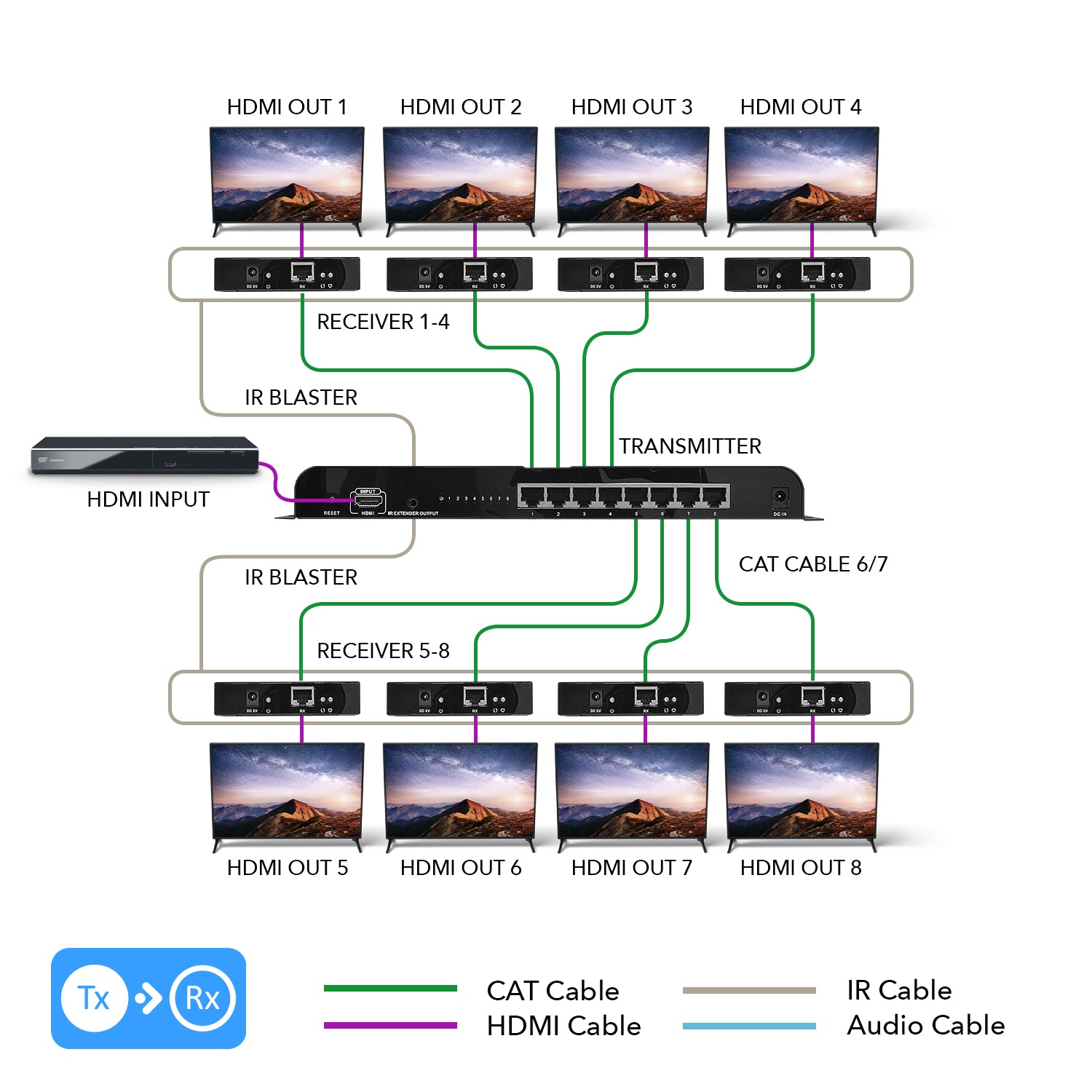

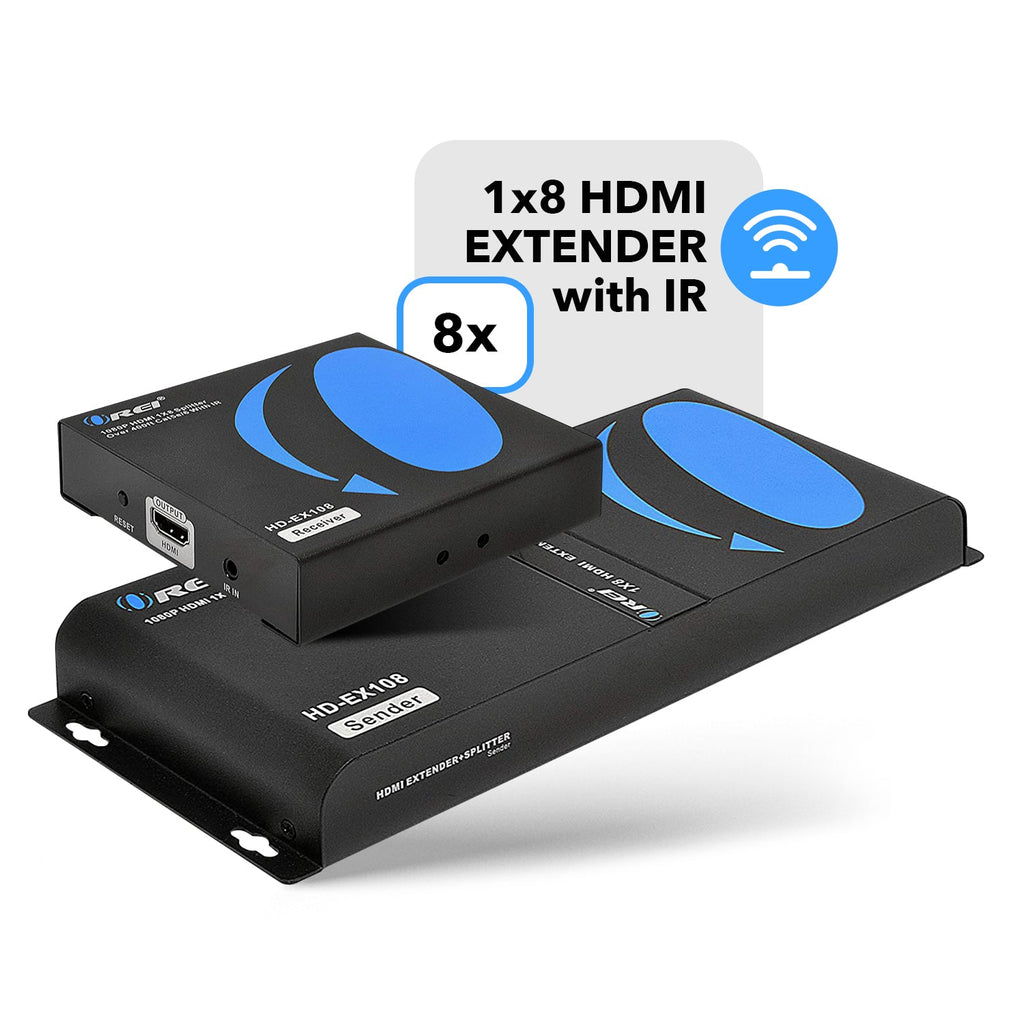

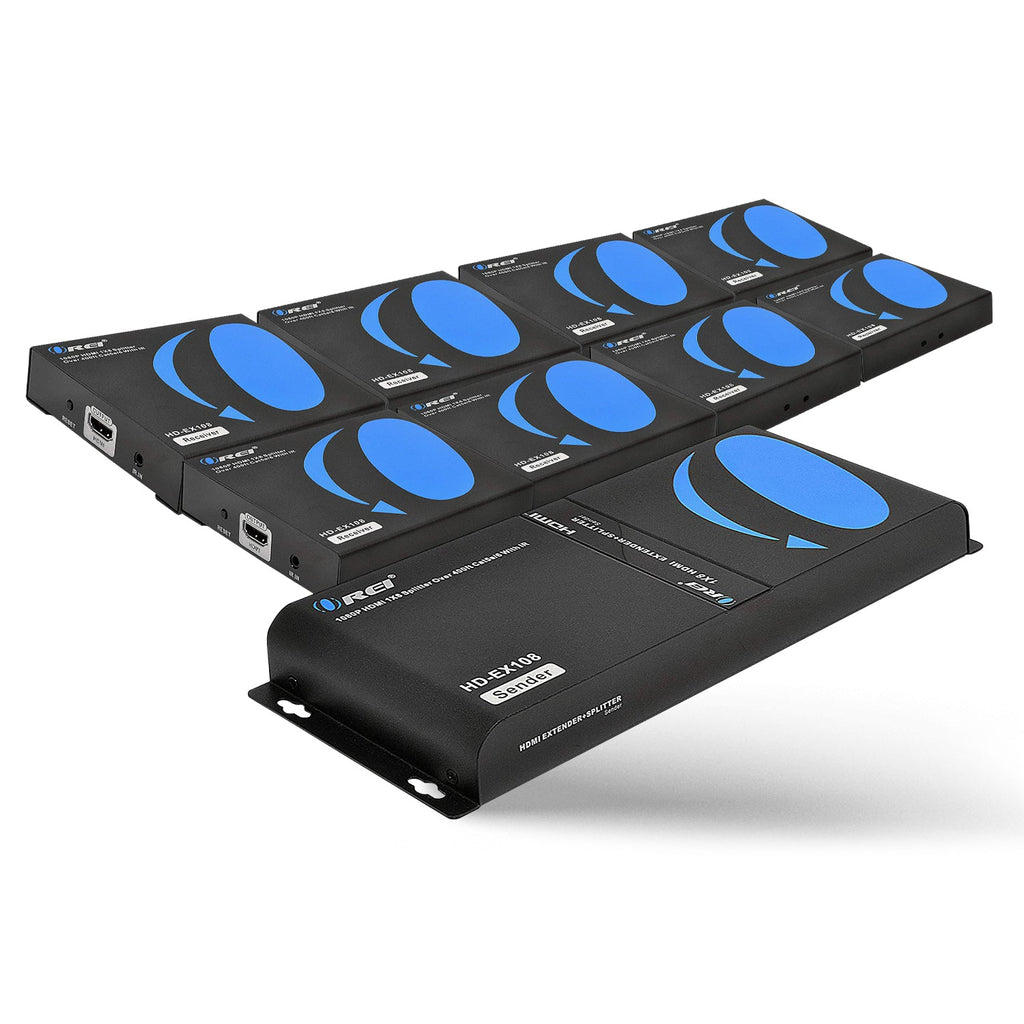

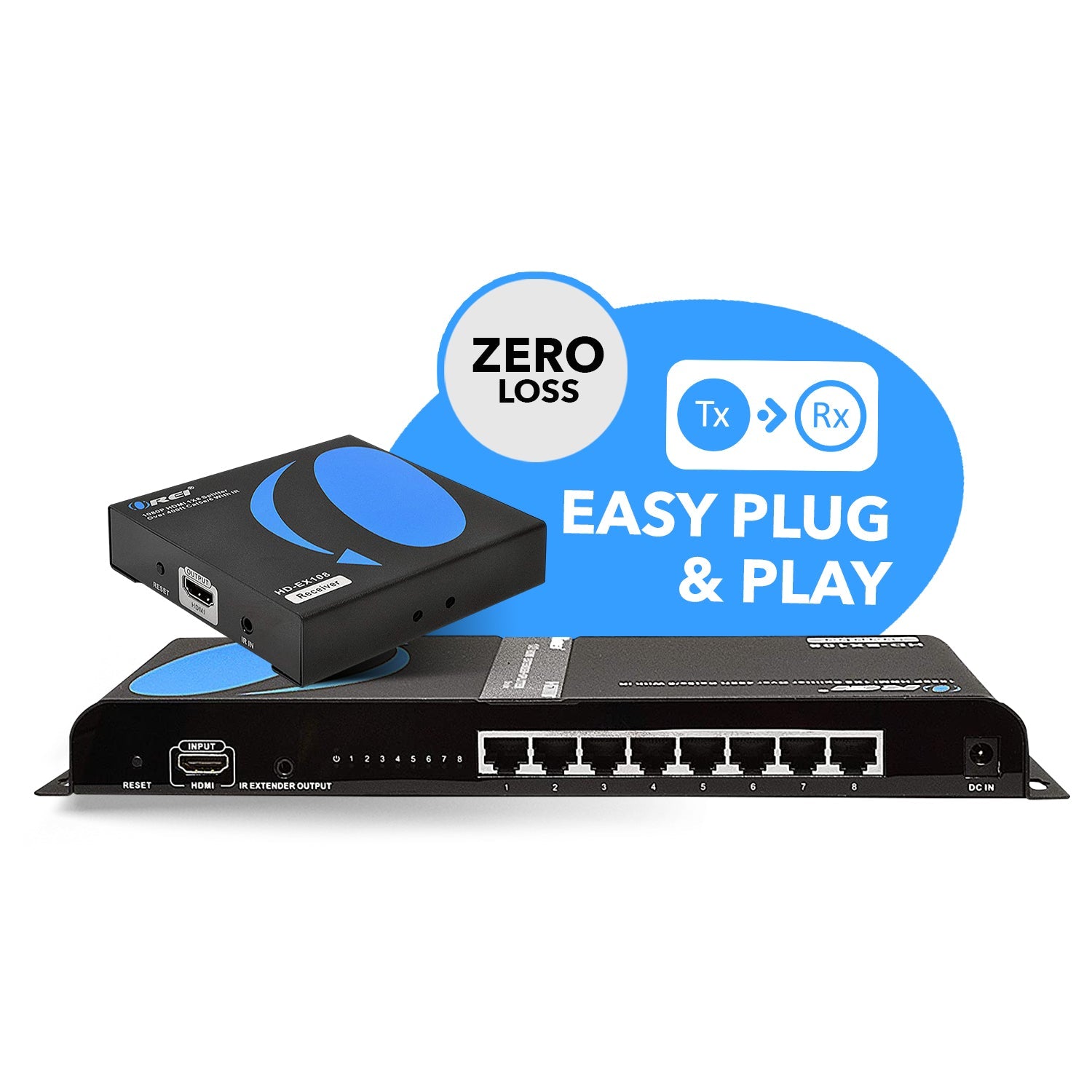

The OREI HD-EX108 1x8 HDMI Extender Splitter includes one transmitter and eight receivers, it extends 1 HDMI source to 8 HDMI displays over a single CAT5e/6/7 cable up to 400 Feet at 1080p. Perfect for Bars, Restaurants, In-Home entertainment system. Advanced EDID Management.
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
With one way IR pass back
Downscaler Function:
No
Over Network/IP Function:
Yes
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
SWITCHES
EDID Management:
No
EQ Dip Switches:
No
ARC:
No
AUDIO OUTPUT
HDMI Audio Formats:
Stereo L/R audio
SPDIF/Optical Audio Formats:
NO SPDIF/optical Audio output
L/R Audio Formats:
NO L/R audio output
SIGNALS
TMDS Signals:
3V
DDC Signals:
5V

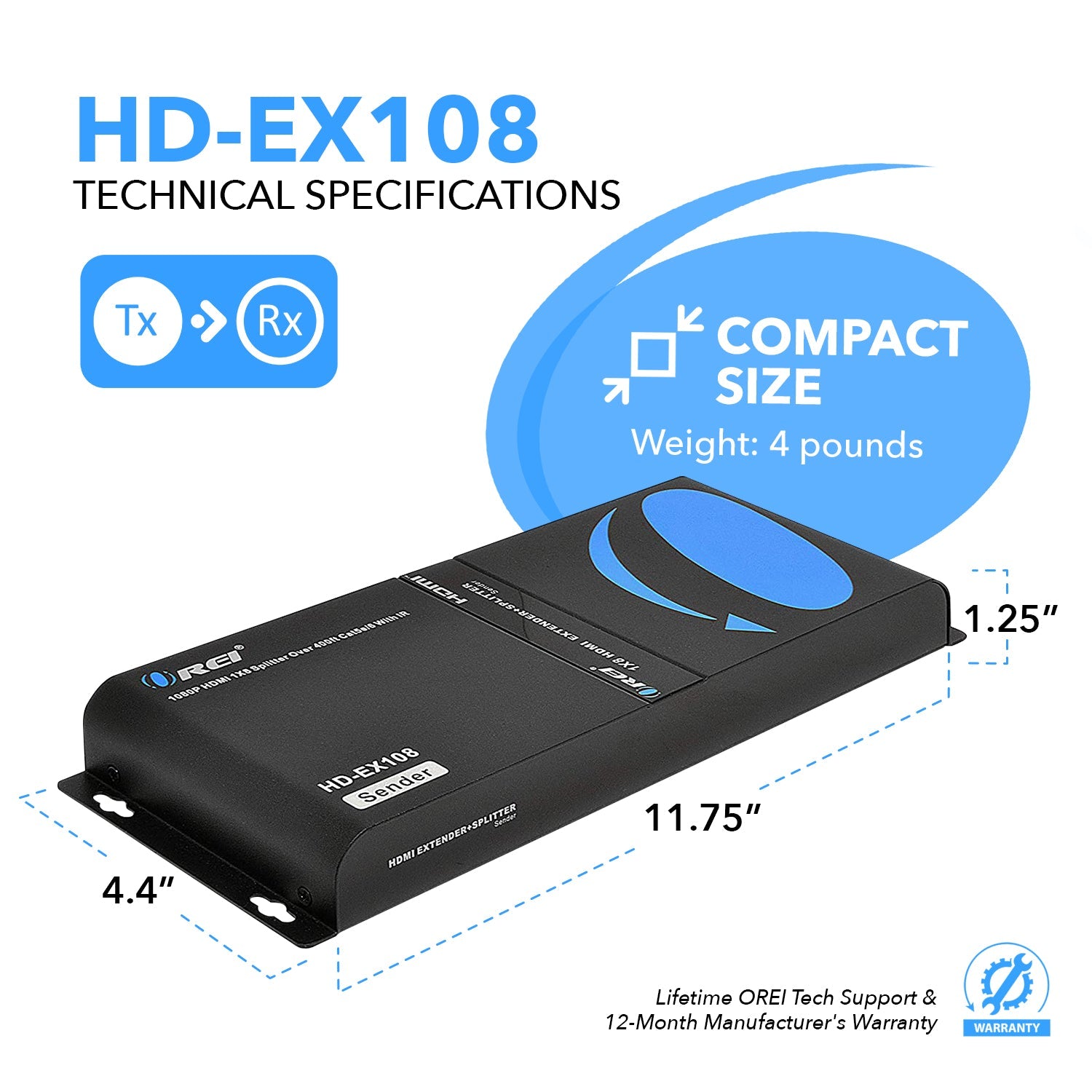

DIMENSIONS & WEIGHT
Transmitter:
Height:
29.6 mm
Width:
299mm
Depth:
110.7mm
Receiver:
Height:
23.2mm
Width:
130mm
Depth:
84mm
Weight:
430g
PROTECTION
Operation Temperature:
0℃～60℃
Storage temperature:
-30～70℃
Relative Humidity:
0～90%(no condensation)
ESD Protection:
Contact discharge 4KV, Air Discharge 8Kv
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
<24W
Power Supply:
DC12V/3A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal
Processing Technology:
HDbitT
Finishing:
Grit blast

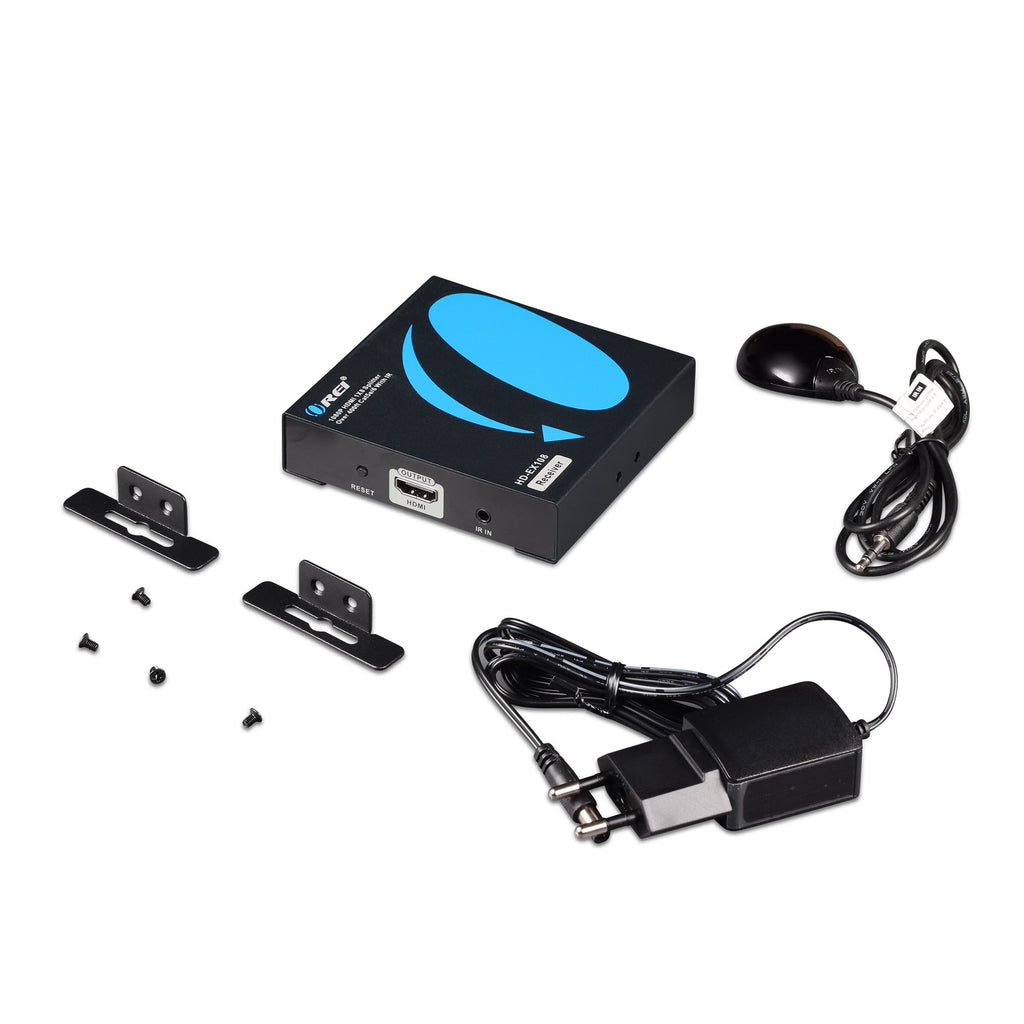

PACKAGE CONTENTS
1x HDMI extender TX
8x HDMI extender RX
1x DC12V/3A power adapter
1X IR blaster extension cable
1X User manual
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
