Description

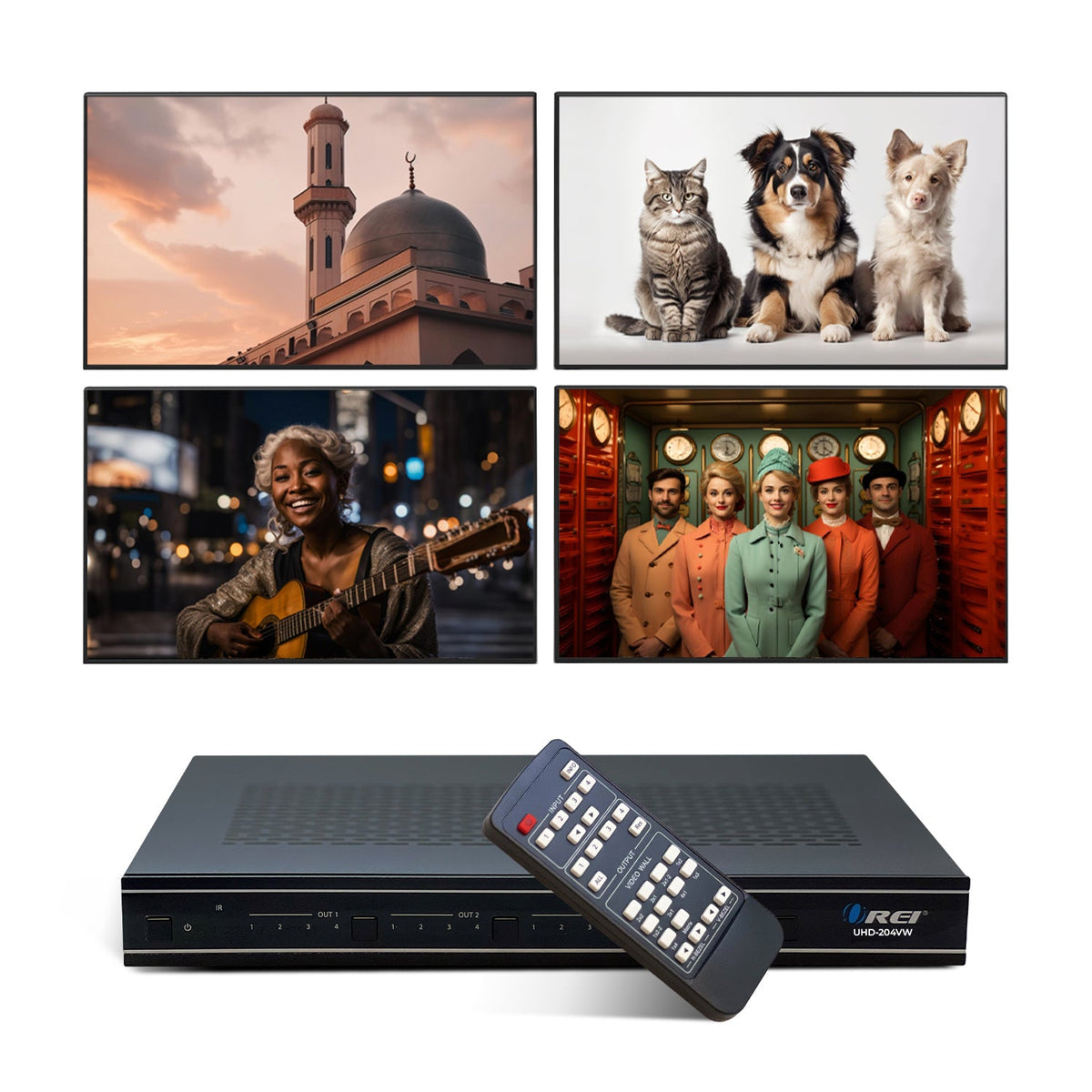

UHD-204VW: 2x4 Ultra HD Video Wall Processor
Key Features:
HDMI 2.0 and HDCP 2.2 compliant
2 Inputs and 4 Outputs with 2 HDMI Loop outputs
Video resolution up to 4K@60Hz

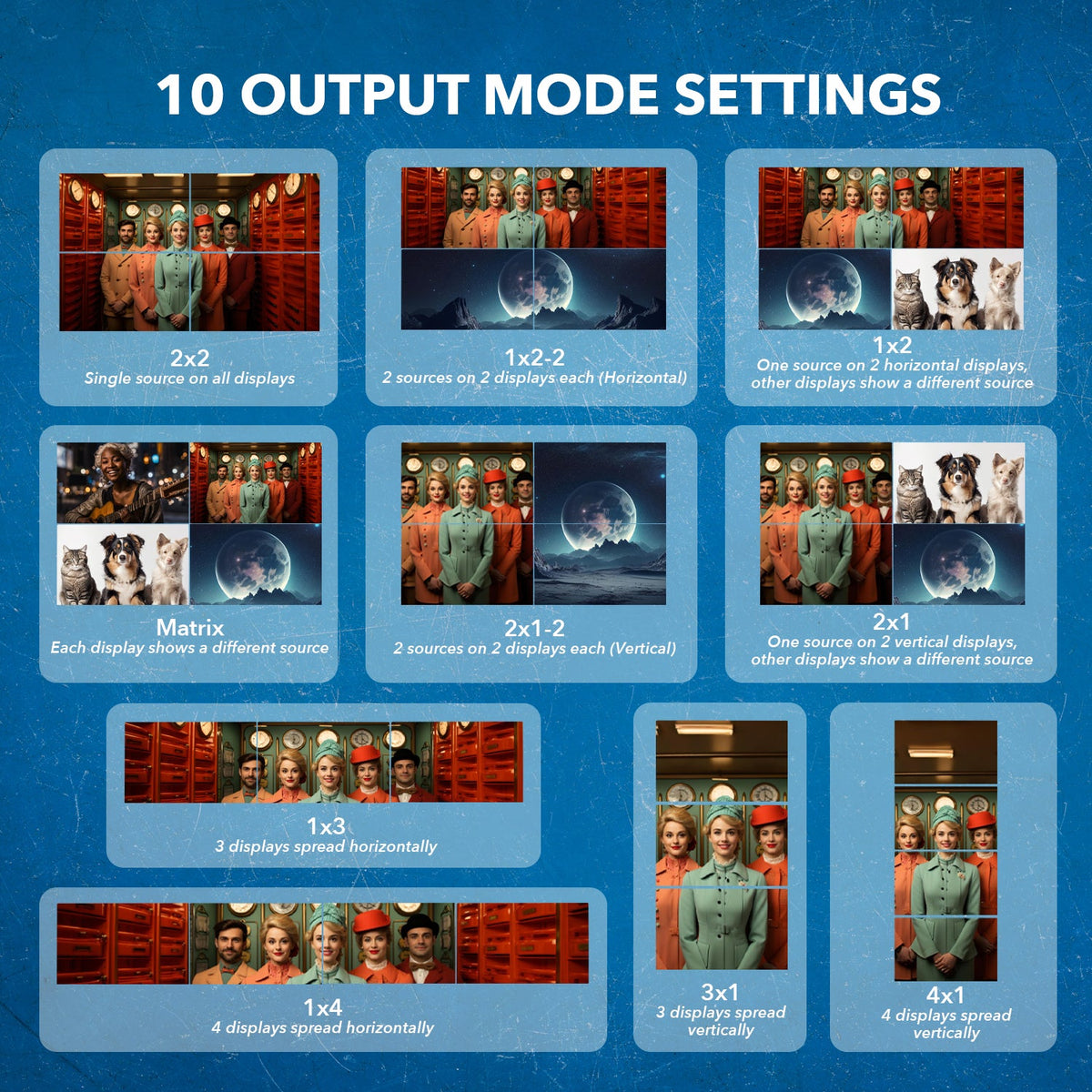

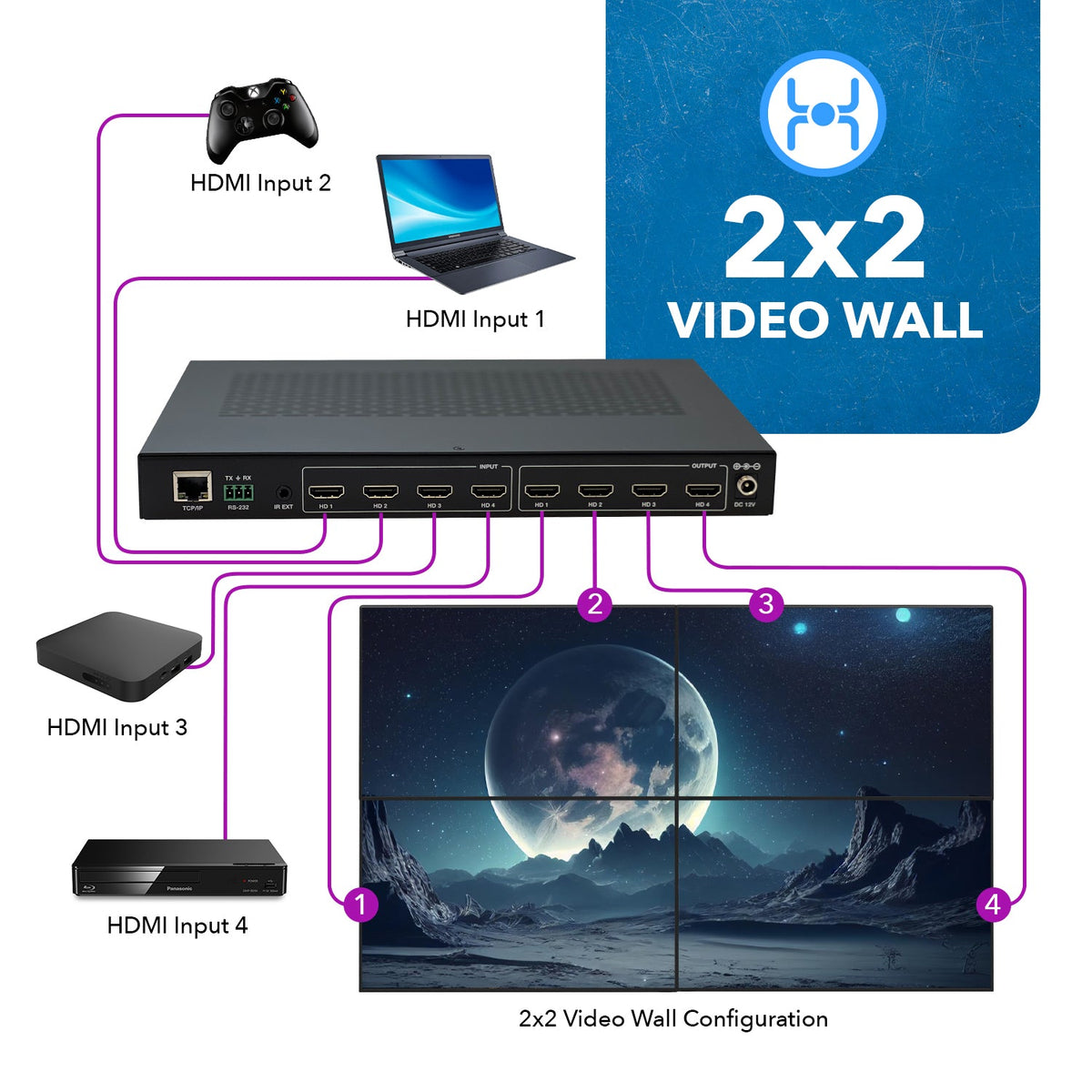

Various video wall modes including 2x2
Audio extraction through Analog outputs

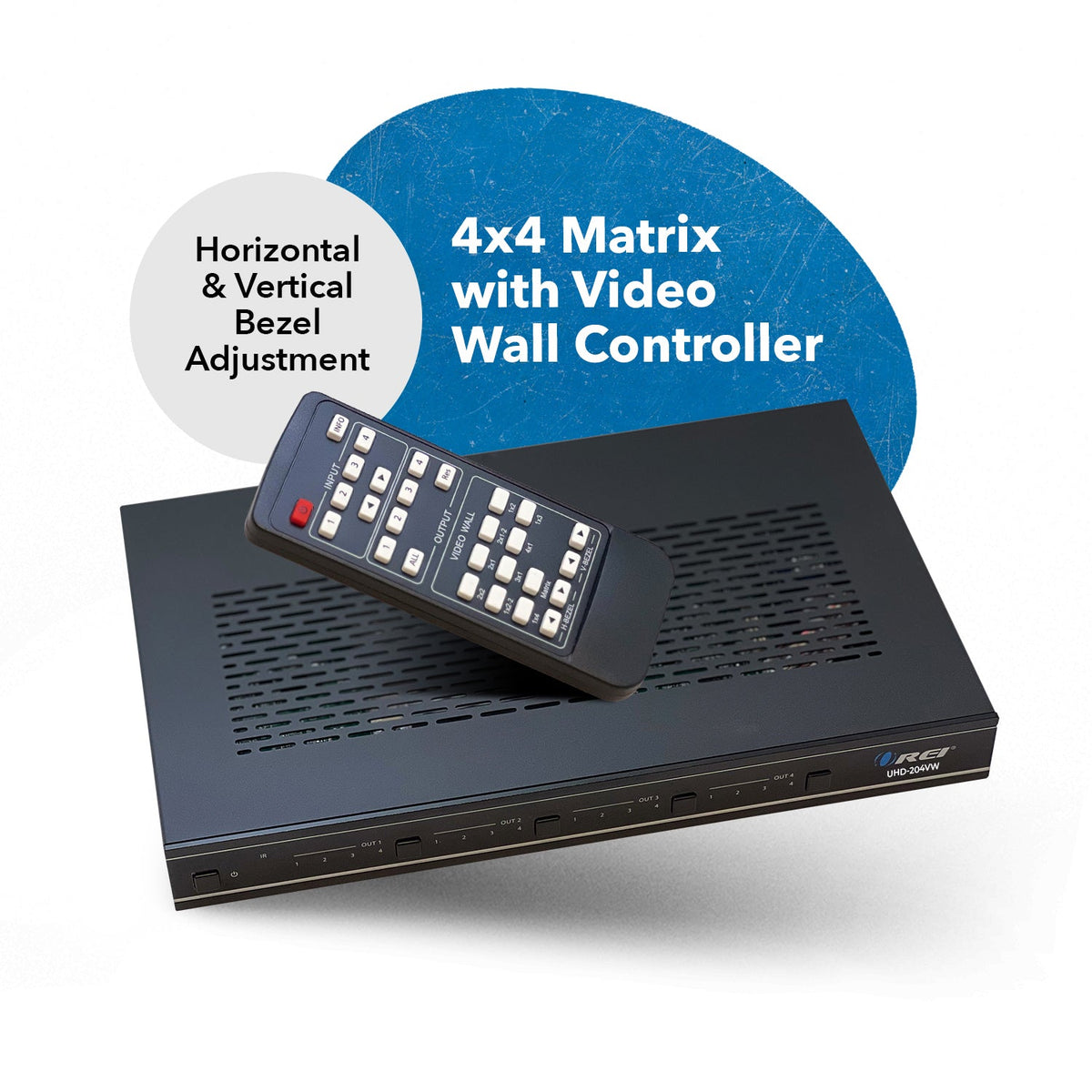

Bezel Compensation support
180-degree rotation for top 2 displays in 2x2 mode

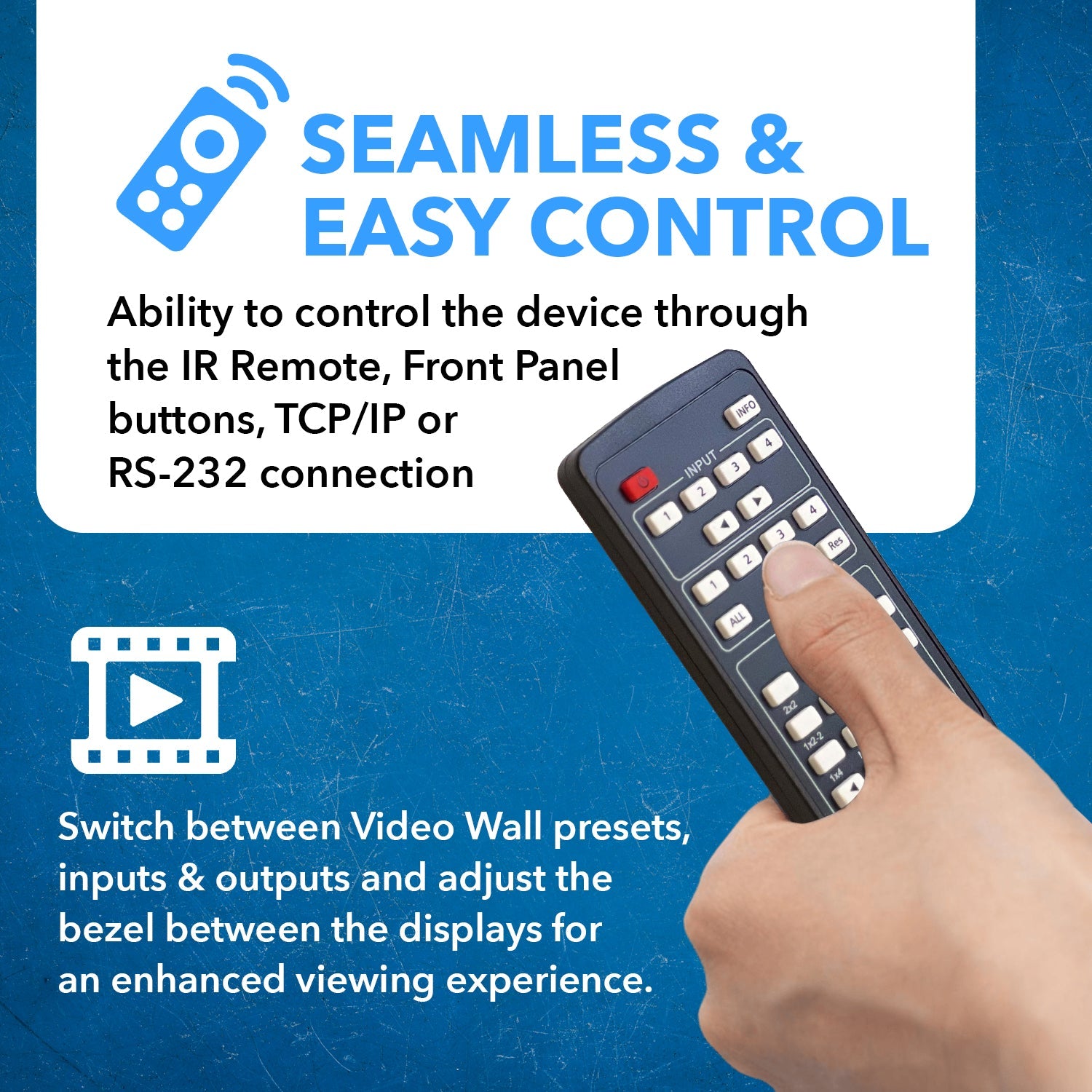

RS-232 and TCP/IP control
The UHD-204VW video wall controller is an awesome solution featuring 2 inputs, 4 outputs, and 2 loop outputs, catering to your media devices. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz. Offering diverse video wall modes, including the versatile 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. For audio extraction, it's equipped with a Mini Optical jack and a 5-pin L/R balanced output. Control options are extensive, with support for both RS-232 and TCP/IP connections, ensuring convenient management of your video wall setup.
[shortdes]
Features 180 degree rotation for top two displays
2x2 Video Wall
2 HDMI Loop outputs
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
2 × HDMI [Type A, 19-pin female]
OUTPUT:
6 × HDMI [Type A, 19-pin female]
1 × Mini Toslink [Optical Audio Jack]
1 × L/R BALANCED OUT [5-pin ]
CONTROL:
1 × RS-232 [3pin phoenix connector]
1 × RS232-CTL [3pin phoenix connector]
1x LAN [RJ45, 8 Pin female]
1x SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x UHD-204VW
2x RS-232 3-pin Phoenix connector
1x RS-232 5-pin Phoenix connector
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/ 2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
