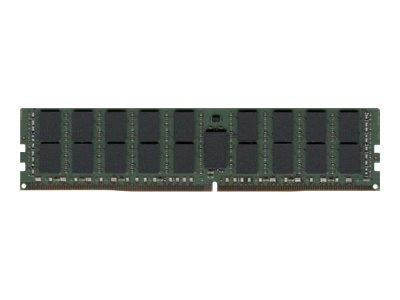

Dataram 32GB DDR4 SDRAM Memory Module
The DRL2400R upgrades are registered memory modules, which conform to JEDEC's DDR4, PC4-2400T standard. The DRL2400LR is a load-reduced memory module (LRDIMM). One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
- Thermal Sensor
- Fully RoHS Compliant
- Operating Voltage: 1.2V (1.14V~1.26V)
- Data Transfer Rate: 19.2 Gigabytes/sec
- 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
- 288-pin JEDEC-compliant DIMMs
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Compatibility: Dell PowerEdge/Precision Workstation
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 32GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DRL2400LR/32GB
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
