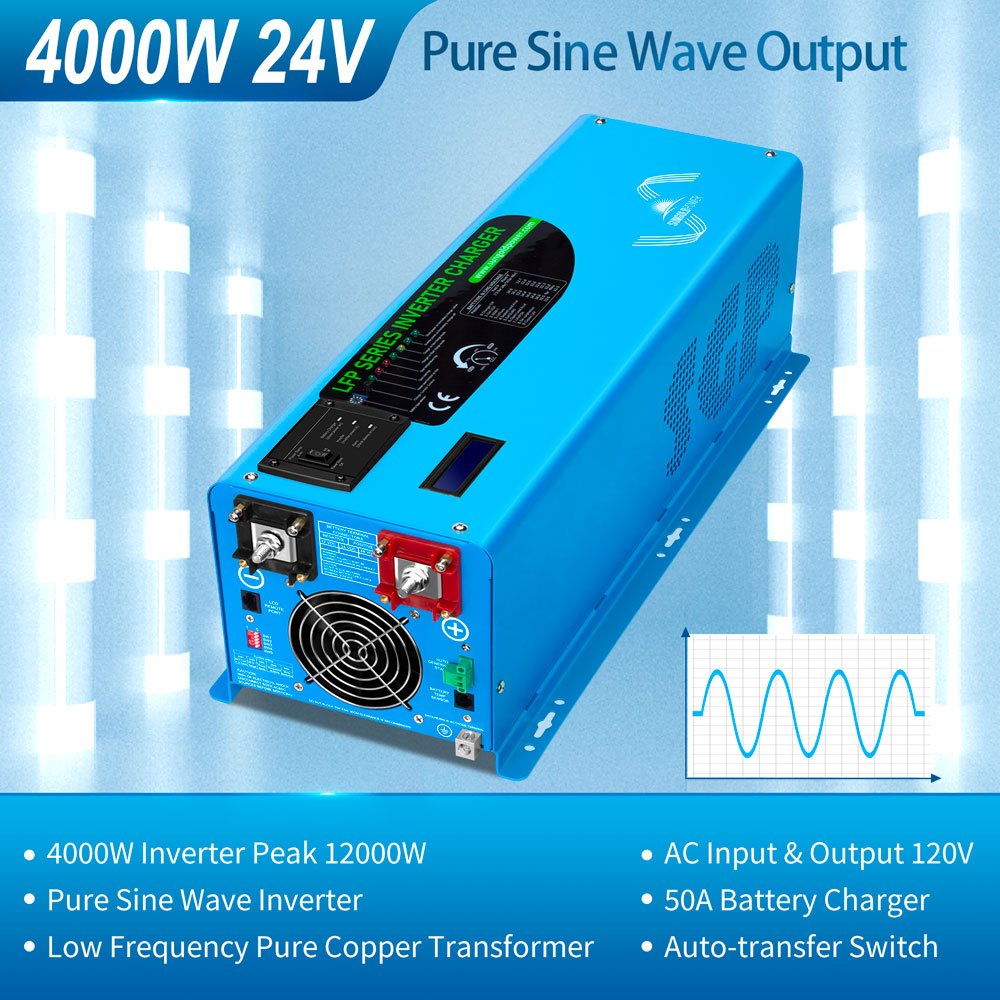

4000W DC 24V Pure Sine Wave Inverter With Charger

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

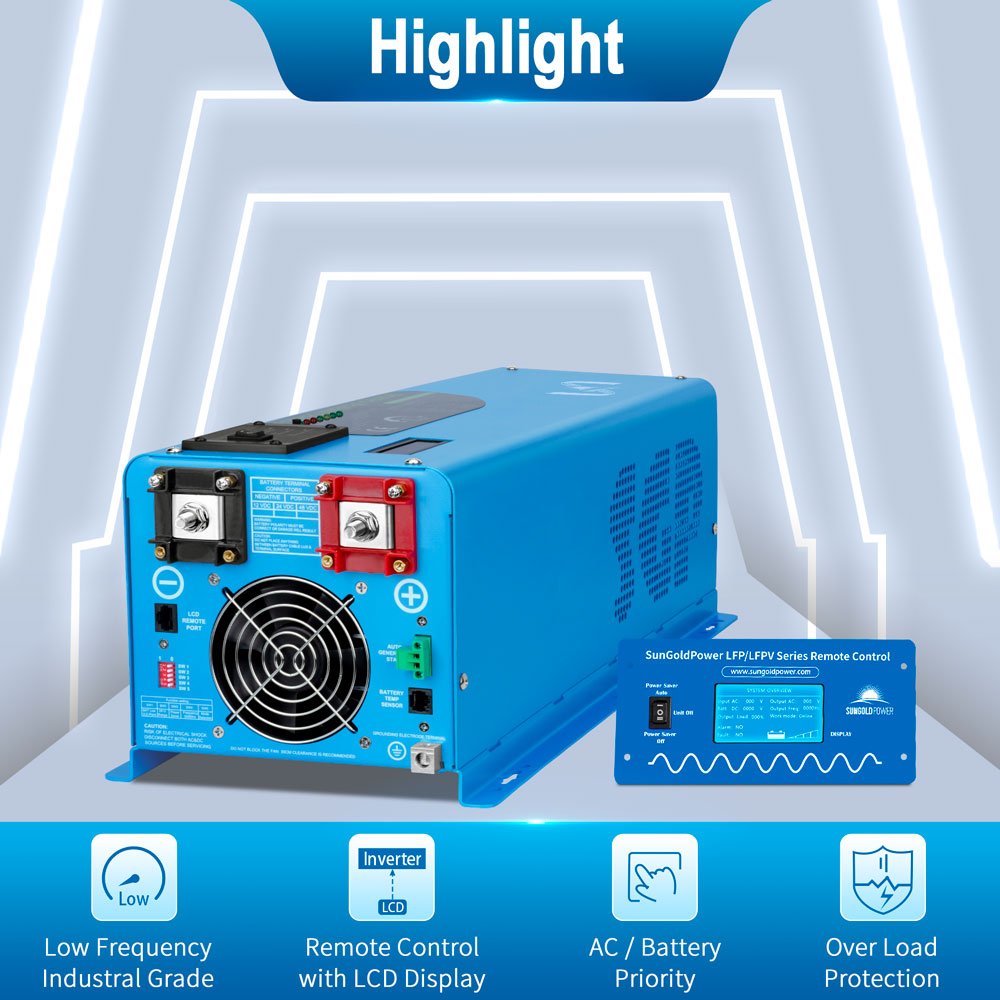

Highlight:

★ This LFP Series Pure Sine Wave Inverter 4000 watt is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.
★ This 4000-watt power inverter requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Features

Main Features:

4000W Low-Frequency Pure Sine Inverter With Charger.
AC/Battery Priority Selector.
Automatic Generator Start.
Safety and Convenient.
The low-frequency inverter can power all kinds of appliances.
LCD Display, Remote Control, BTS including.
Low Idle Consumption.

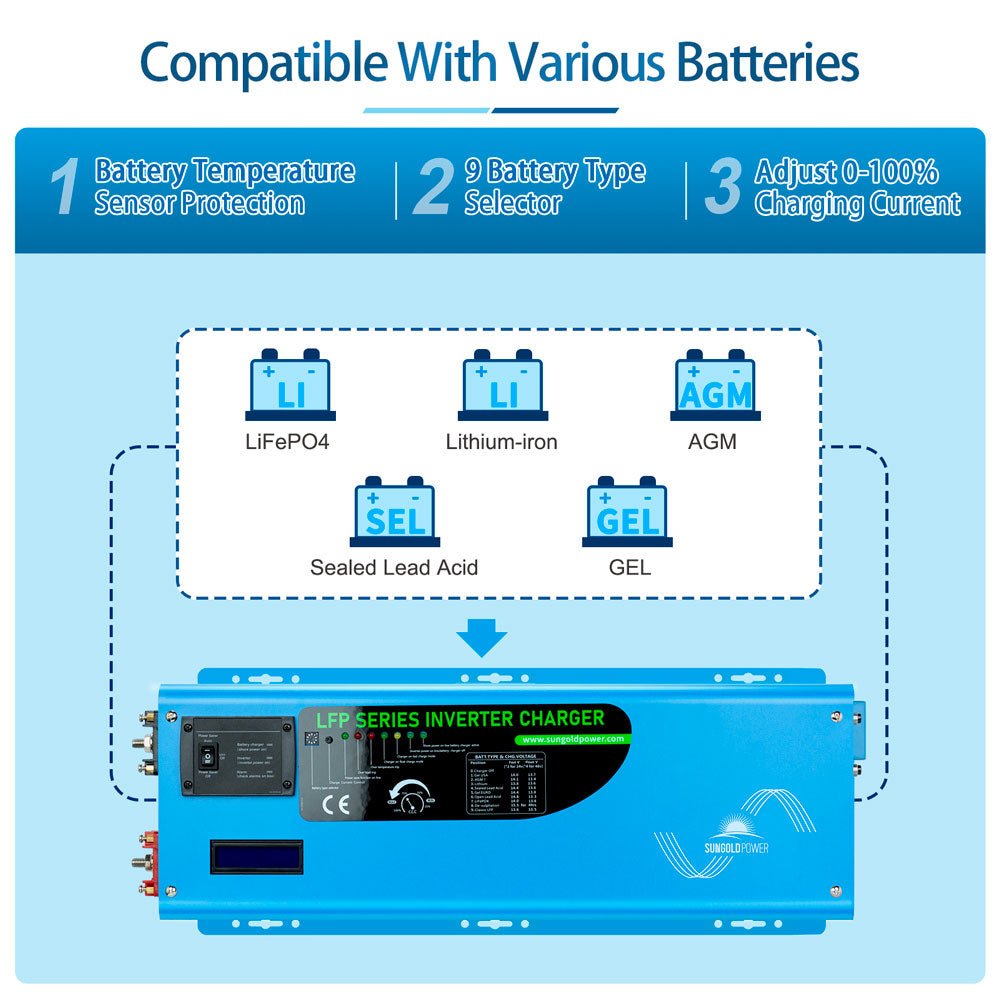

7 battery type settings for the charger.
Multi Stage Smart charger 65+/-5A, the charger can be disabled.
10msec typical transfer time.

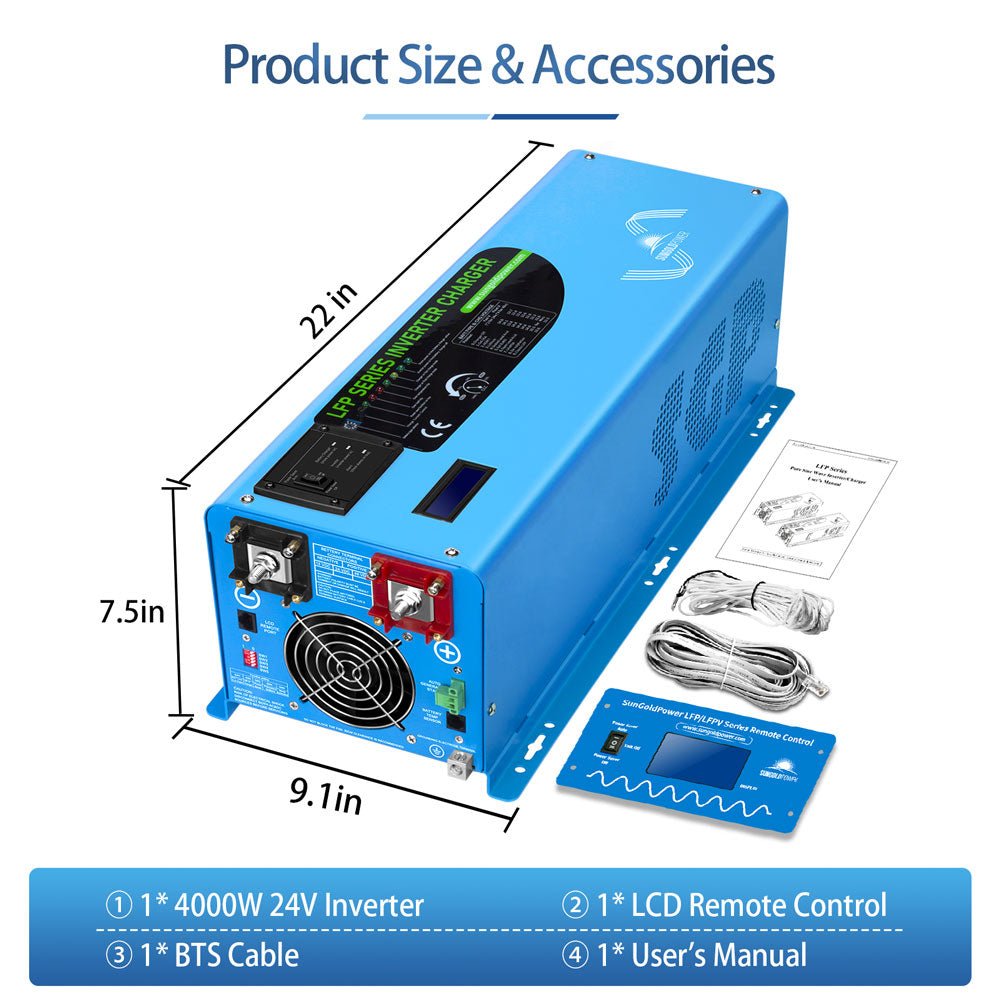

Packaging:

4000W 24V Low-Frequency Pure Sine Inverter
English Manual
Remote Control
BTS Cable
Unit Weight: 53LB
Unit Size: 17.4 x 9.5 x 7.8 inch
Shipping Weight: 57LB
Shipping Size: 26 x 12.6 x 12.0 inch

4000W 24V Pure Sine Wave Inverter With Charger

Specification

Main Specification：

Inverter Output:

Continuous Output Power: 4000W
Surge Rating: 12000W (20 Seconds)
Output: 120VAC, 60hz
Output Wave: Pure Sine Wave (bypass mode)
Typical Transfer Time: 10ms (MAX)
Nominal Efficiency: >88%

DC Input:

Nominal Input Voltage: 24.0Vdc
Minimum Start Voltage: 20.0Vdc
Low Battery Alarm: 21.0Vdc-22.0Vdc
Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
High Voltage Alarm: 32.0Vdc
Low battery Voltage Restart: 26.0Vdc
Idle Consumption: 48W
Power Saver Mode Idle Consumption: 19W

AC Charger :

Charger Rate: 65+/-5A
AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
Over Charge Protection Shutdown: 31.4V
Selectable Charge Setting based on battery type Adjustable charge current: off-20%-100%
4-step intelligent battery charger

User Manual

Download LFP Series Pure Sine Wave Inverter/Charger User's Manual

FAQ

Frequently Questions Answer

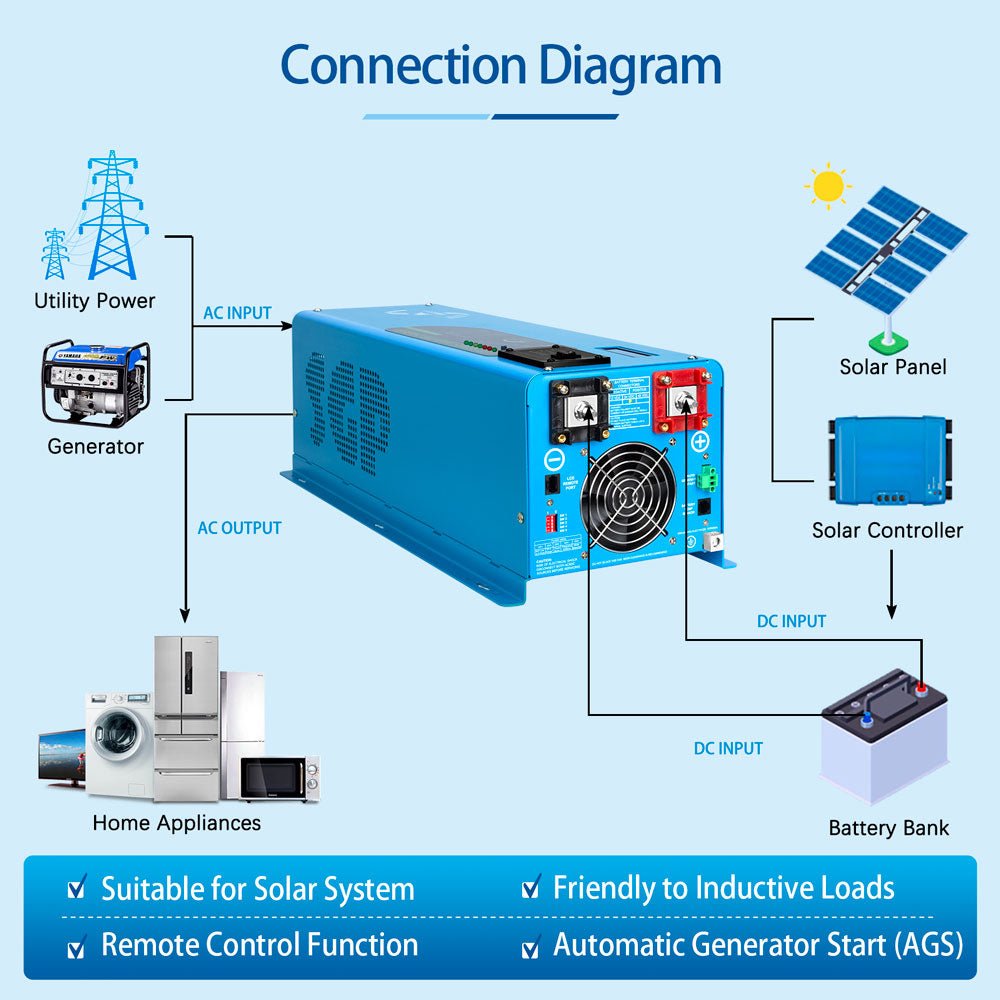

1. For charging with DC input, can I directly connect a 24v solar panel to this or do the solar panels have to go through a charge controller?

Dear Customer, this inverter doesn't have a built-in solar controller, you need to have an external solar controller if you want it to work with solar panels, hope for your kind understanding, thanks.

2. What is the idle wattage?

Dear Customer, the idle power is 19W if the saver-on mode and the idle power is 48W if the saver-off mode, thanks.
