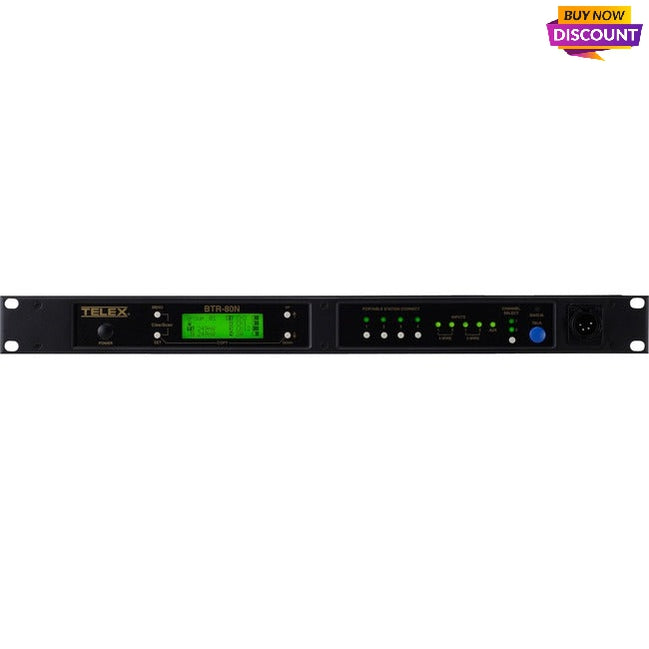

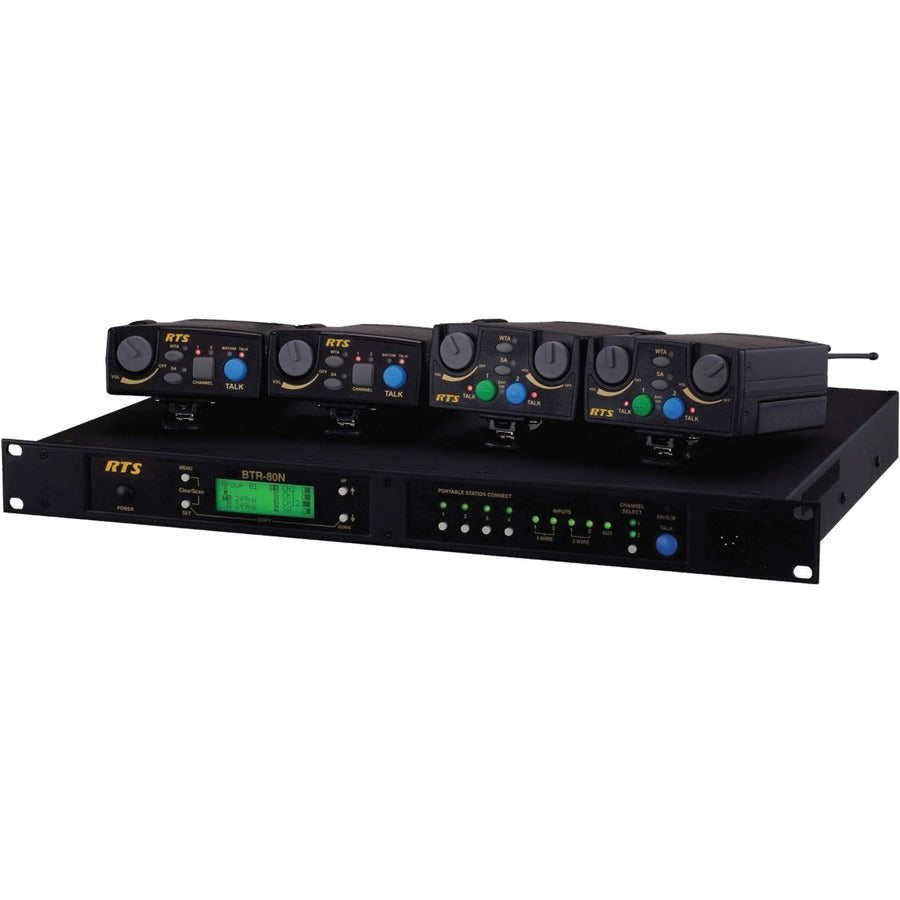

RTS Narrow Band UHF Two-Channel Wireless Synthesized Base Station

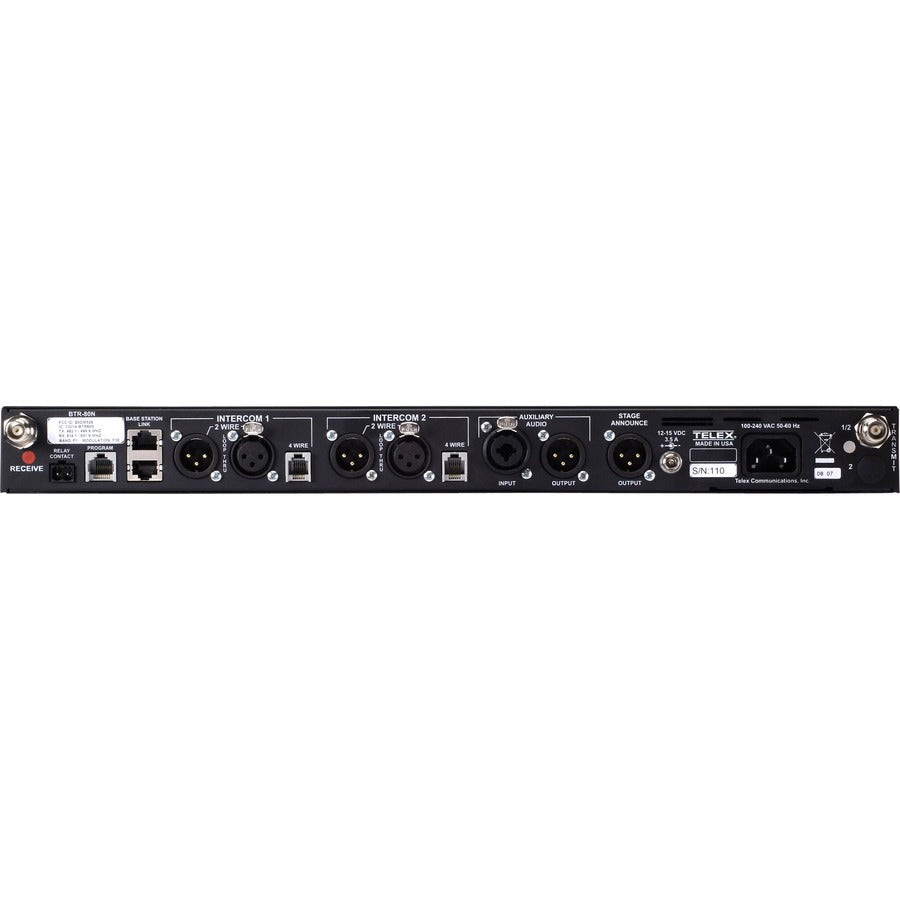

The RTS BTR-80N Narrow Band 2-Channel UHF Synthesized Wireless Intercom System is a revolutionary product offered in today's ever-changing and shrinking RF environment. Providing an unprecedented 25 kHz of modulated band width, the BTR-80N narrow band system will allow more users per channel in the cramped UHF spectrum. The BTR-80N provides excellent audio performance and provides all of the standard features of the award winning RTS BTR-800 system, such as DSP digital processing and Intelligent Power Control. Additional features include selectable transmitter power output, selectable receiver squelch control, RF meter display, remote battery indicators and the ability to expand the system to an unlimited number of users in half-duplex with the First-On-Latch-Out feature. The BTR-80N is perfectly suited for stand-alone operation and can interface with RTS Audiocom, RTS Two-Wire Intercom, Clear-Com as well as RTS Digital Matrix Intercom systems and other four-wire communications systems. In addition to the external intercom systems interfaces listed above, the system provides connections for auxiliary balanced audio input and output, as well as wireless talk-around (WTA) and stage announce (SA) features. The RTS BTR-80N system has been designed for reliable, efficient operation. Operating in the 482 to 698 MHz range, the units operate reliably at line-of-sight distances of 1,000 feet.
- Flexible Number of Beltpack Users per Base Station
- RF meter on BTR-80N, TR-80N and TR-82N
- Selectable Output Power
- User-adjustable receiver squelch control
- Wireless talk-around (WTA) and Stage Announce (SA)
- 25 kHz RF Bandwidth
Product Type: Intercom Master Station
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: BTR
Brand Name: RTS
Form Factor: Rack-mountable
Manufacturer: The Bosch Group
Product Model: BTR-80N
Product Name: Narrow Band UHF Two-Channel Wireless Synthesized Base Station
Manufacturer Part Number: BTR-80N-FDR
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 7.28 lb
