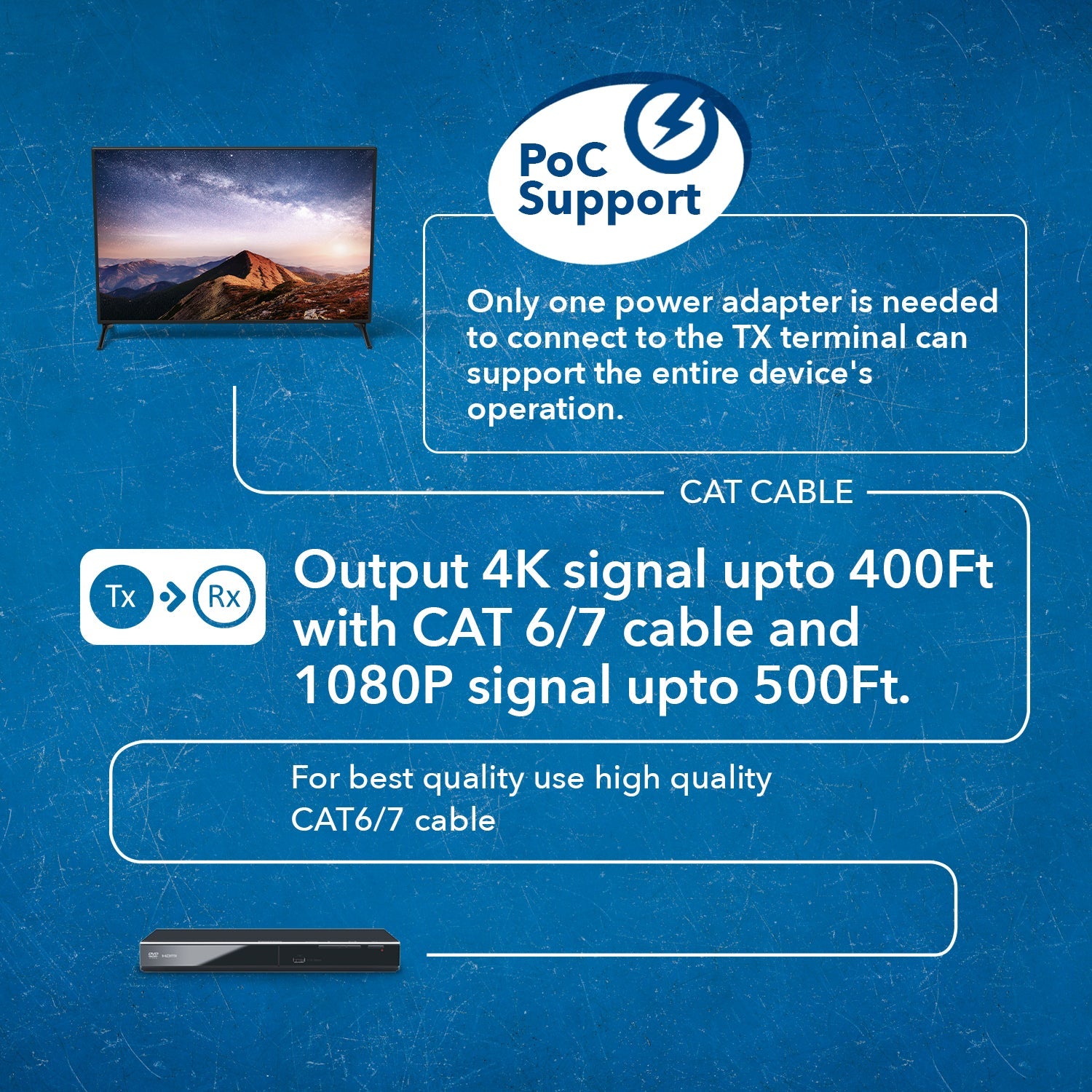

Signal transmission up to 394 feet at 4K@60Hz and 2K@60Hz, and 492 feet at 1080P@60Hz via a CAT6/6a/7 cable.
HDR10+ and Dolby Vision support
Audio extraction through Coaxial and balanced analog outputs
Features HDBaseT technology
Bi-directional IR control
Power over Cable technology, only requires a power adapter at the Transmitter end
RS-232 control
Easy installation and strong build

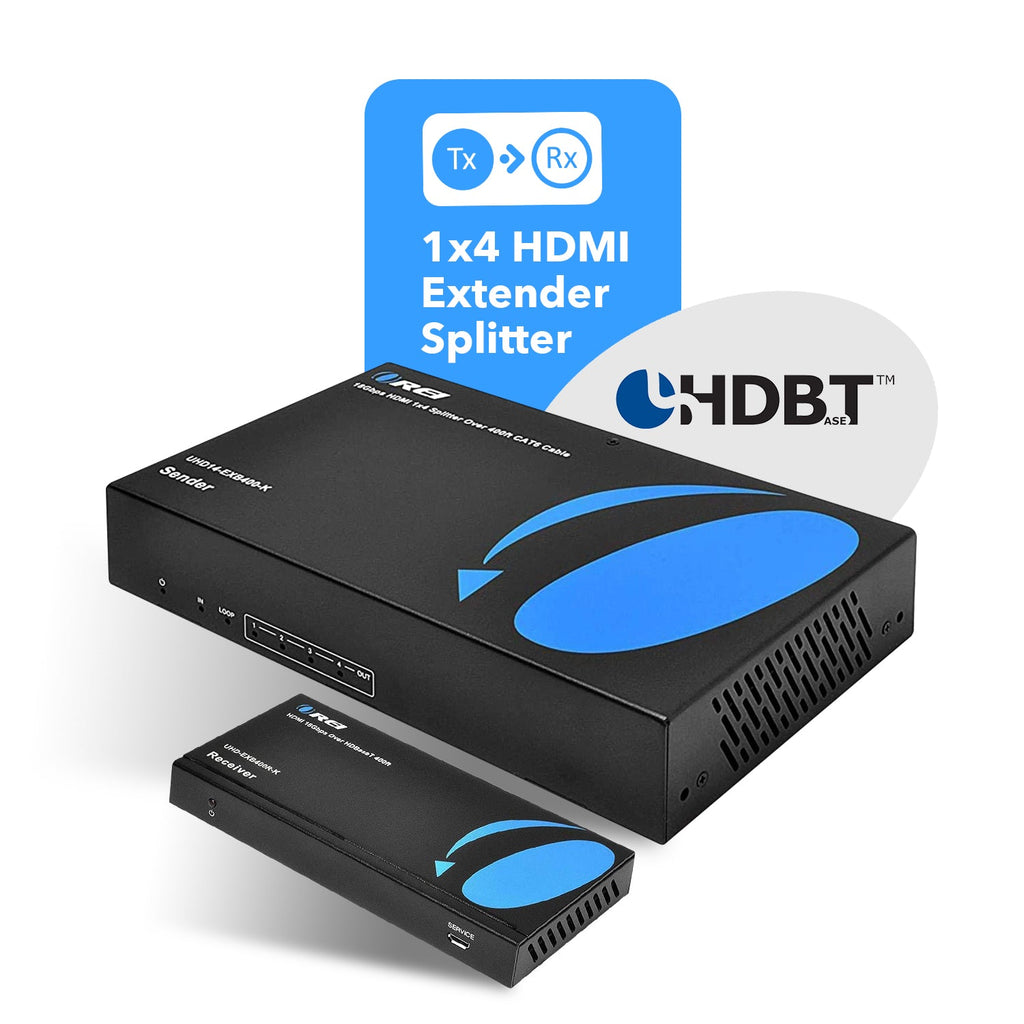

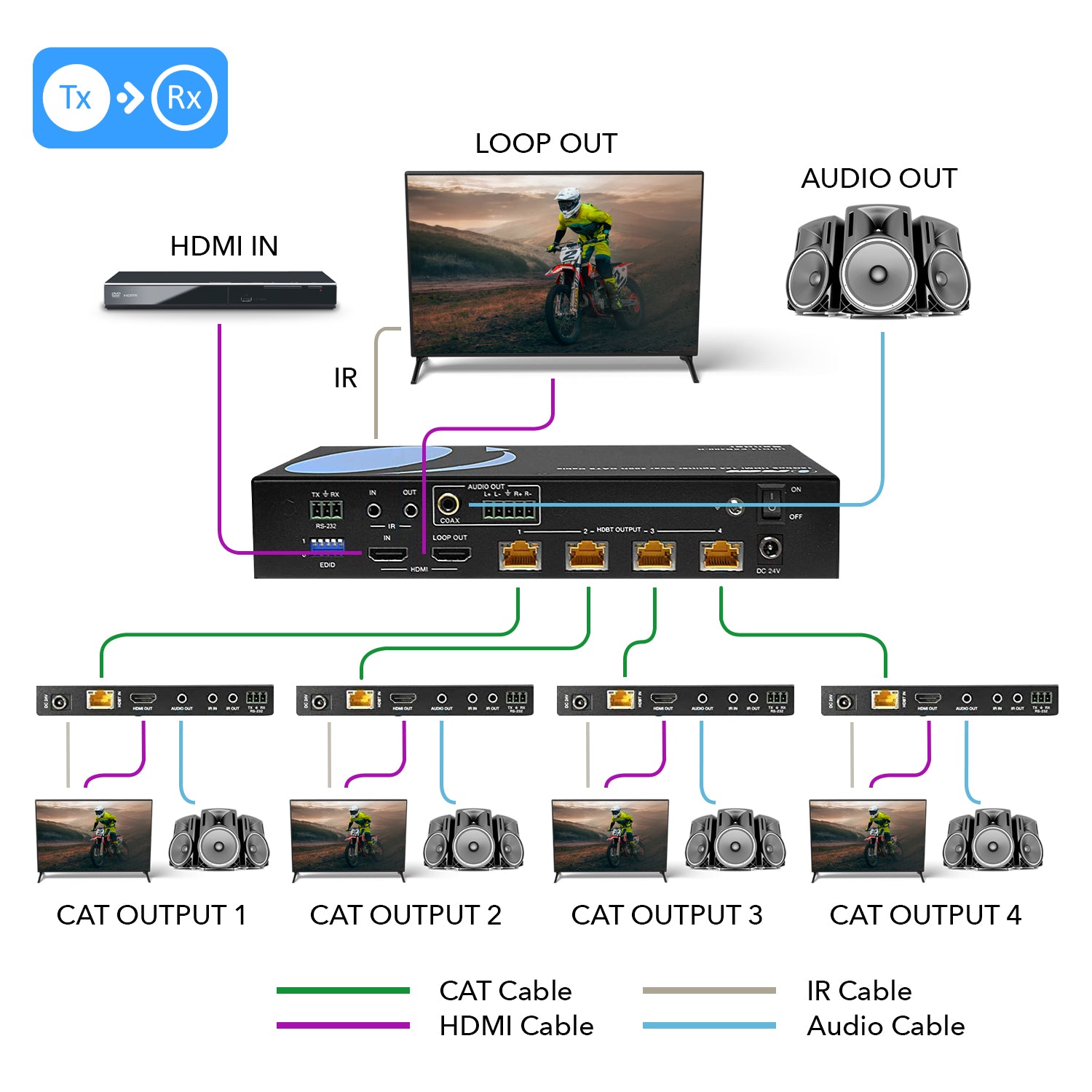

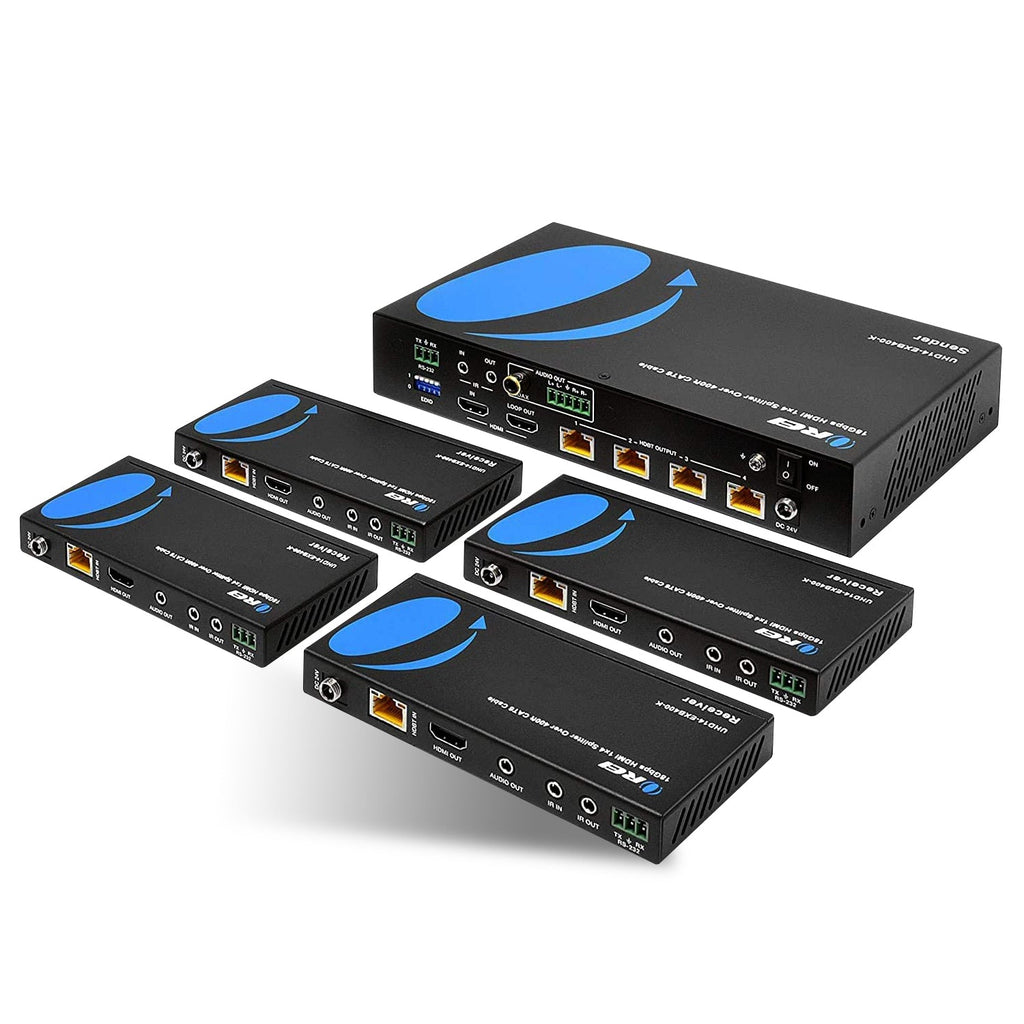

The UHD14-EXB400-K is an HDMI extender splitter created to distribute a media signal to four distant displays. It supports video resolutions up to 4K@60Hz and complies with HDMI 2.0b and HDCP 2.2 standards. With an 18Gbps video bandwidth, it also supports HDR10+ and Dolby Vision. This extender can transmit media up to 400 feet away over CAT 6/7 cables. The Transmitter includes an HDMI loop output for connecting a display near the source. Additionally, the device features advanced EDID management and two-way IR control, allowing control of the source from the receiver location and vice versa. It supports Power over Cable technology, requiring only one power adapter at the Transmitter end to power the Receivers. This HDMI extender splitter is perfect for residential and commercial setups, offering a powerful solution for extending media signals over long distances.
[shortdes]
HDR10+ and Dolby Vision support
Audio extraction through Coax and balanced Analog
Bi-directional IR control
[/shortdes]
[tab]

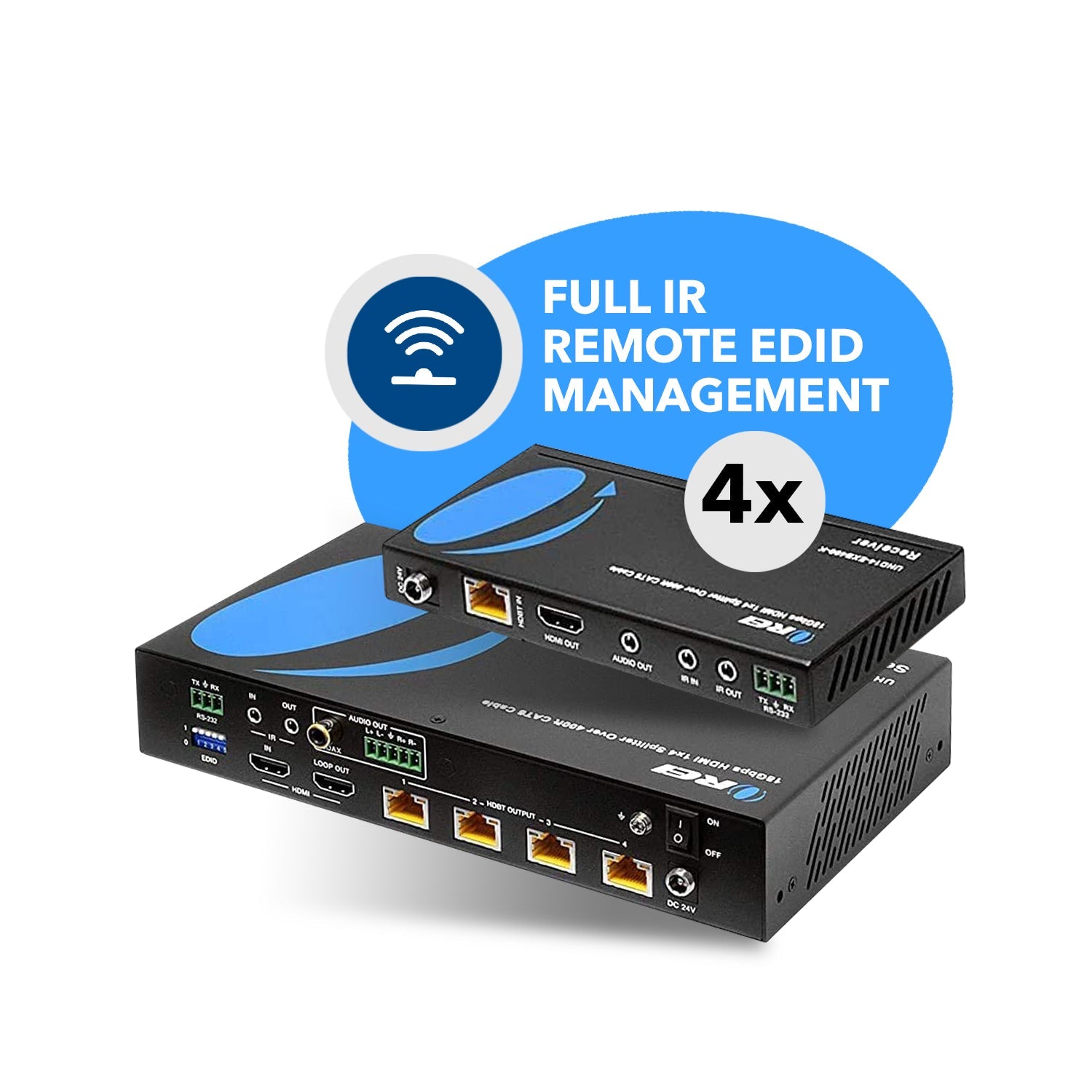

CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
4 × HDBaseT [RJ45, 8-pin female]
1 × Coaxial [RCA]
1 × L/R [5-pin, phoenix]
CONTROL:
1×RS-232 [3-pin Phoenix connector]
1 × EDID [DIP SWITCH, 5-pin]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:
1 × RS-232 [3-pin phoenix connector]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
4x Receiver
5x IR Blaster cable
5x IR Receiver cable
5x 3-Pin Phoenix Connector
1x 5-Pin Phoenix Connector
10x Mounting ear
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30HZ:
393 Feet
1080P@60Hz:
492 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz, 2K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats:
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
L/R Audio Formats:
PCM 2.0CH
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
35W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 24V/2.7A

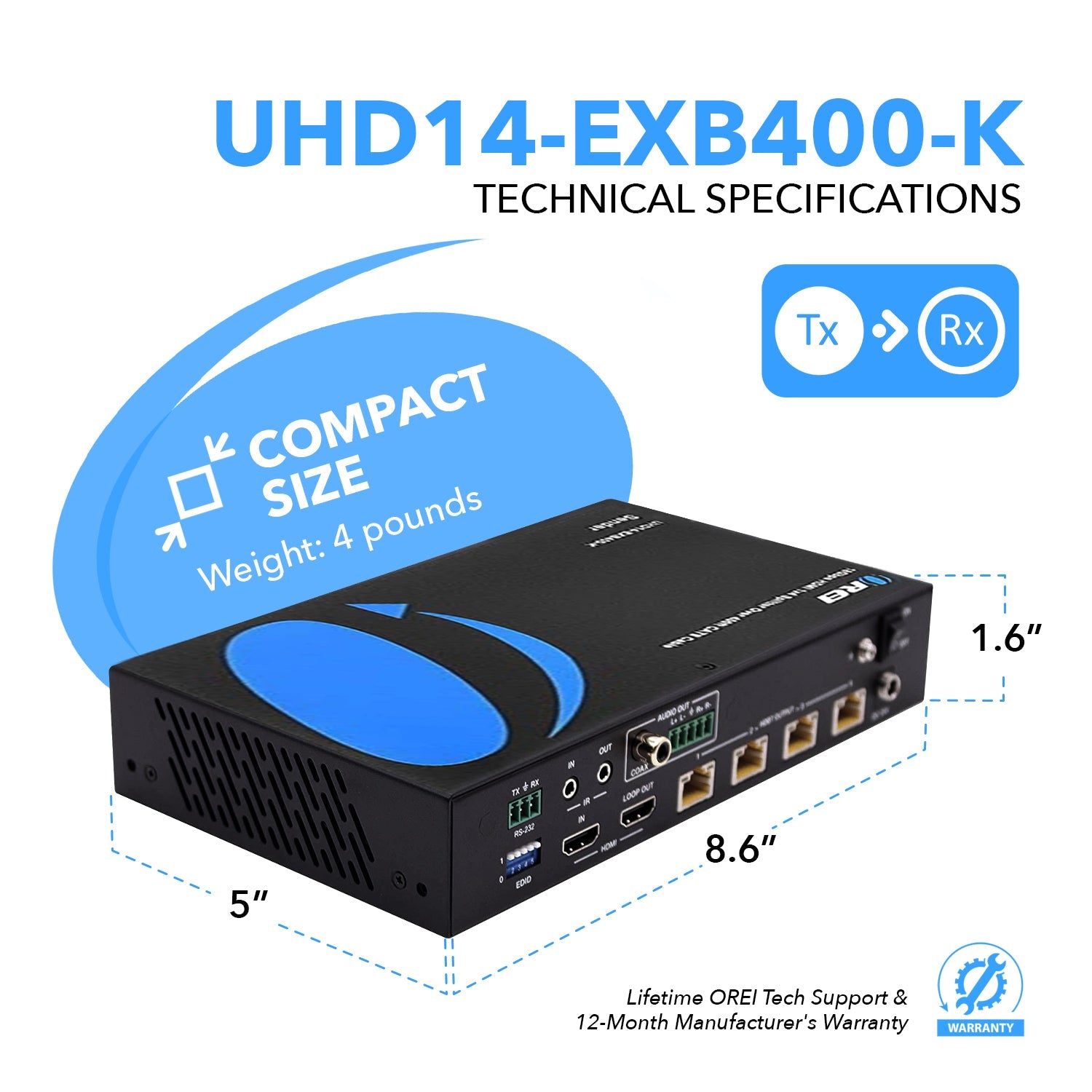

DIMENSIONS & WEIGHT
Transmitter:
Length:
220mm / 8.66in
Width:
130mm / 5.12in
Height:
40mm / 1.58in
Weight:
853g / 1.88lbs
Receiver:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
246g / 8.68oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
