Supports DTS-HD or Dolby True-HD (Your sound system should have an HDMI input port)

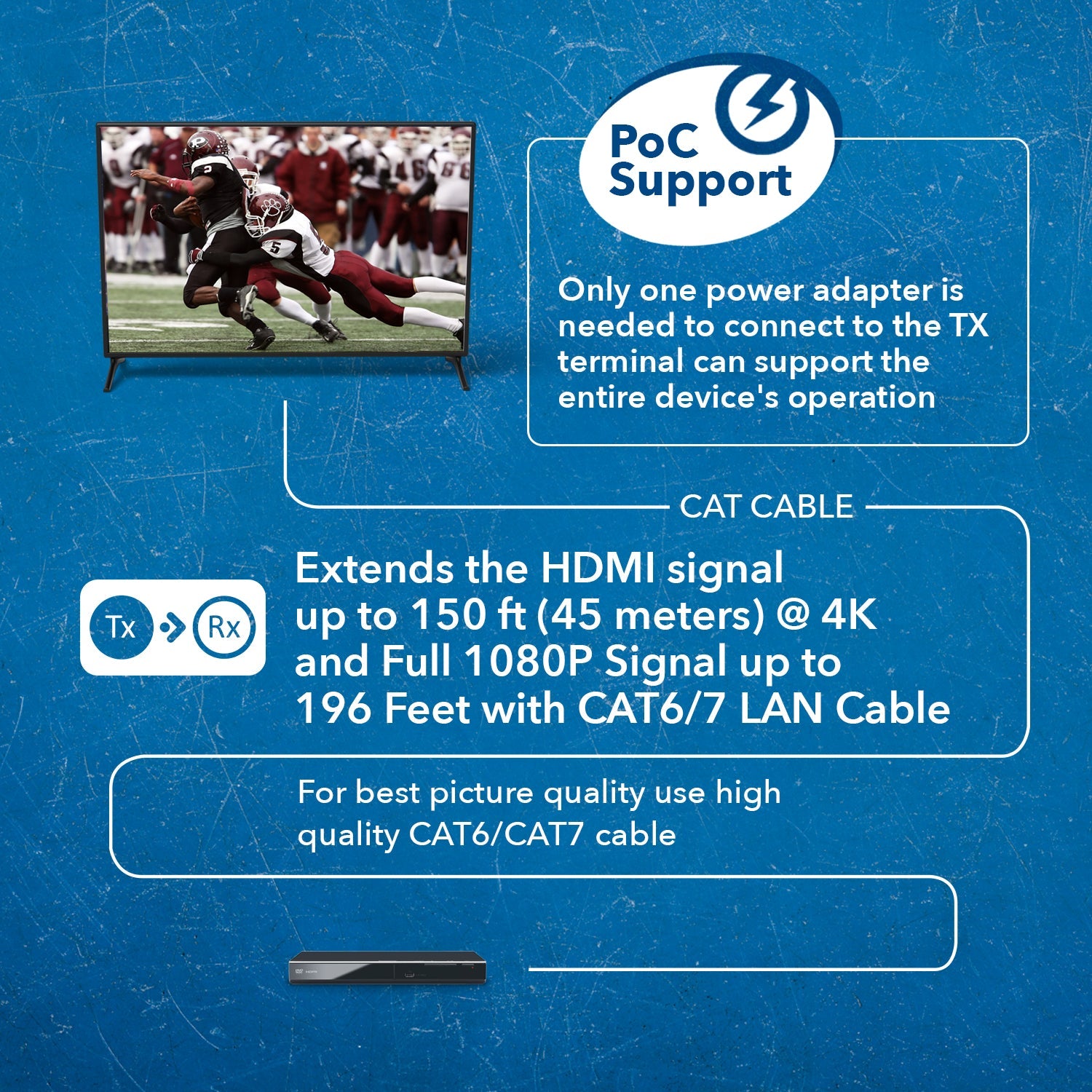

Supports Power Over Cable function
Compact design for an easy & flexible installation
This unit requires only one power adapter to work

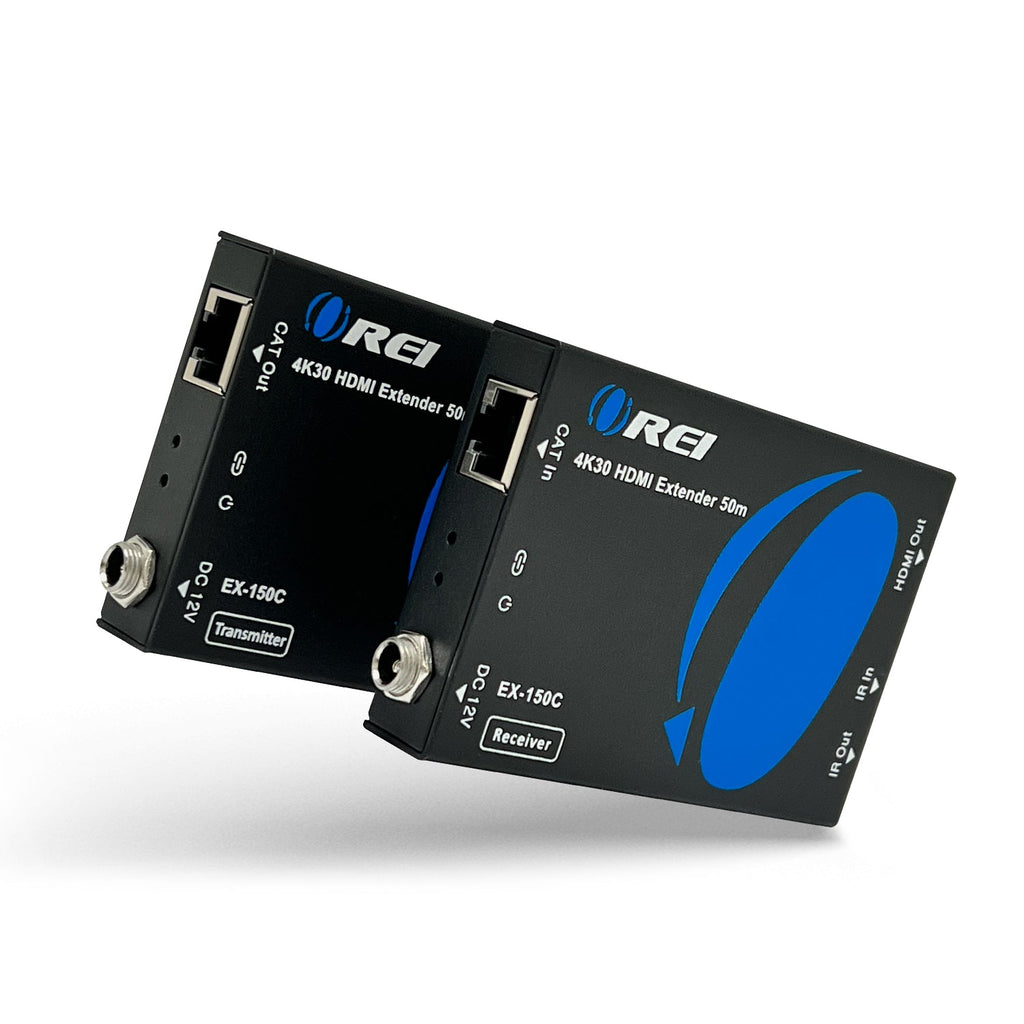

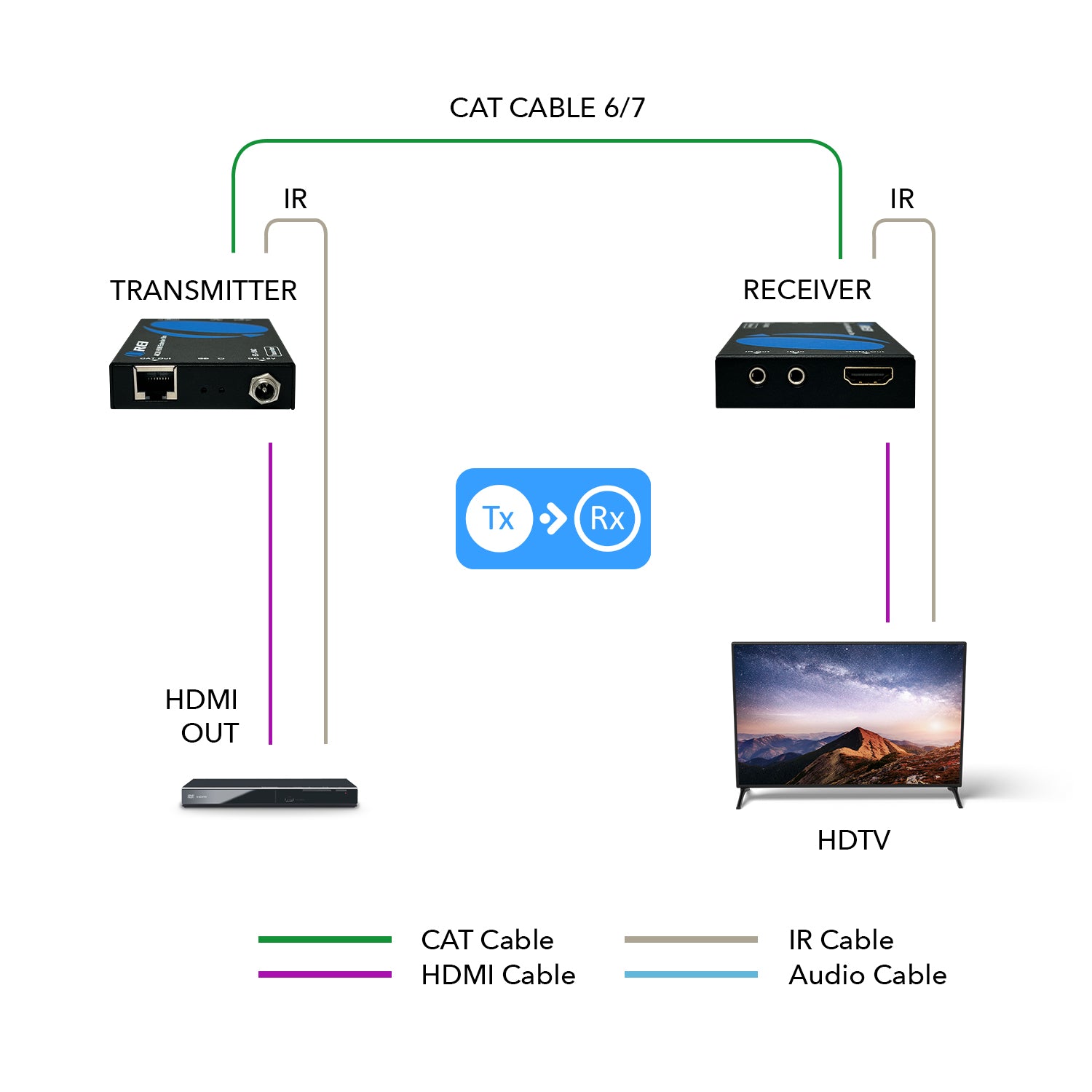

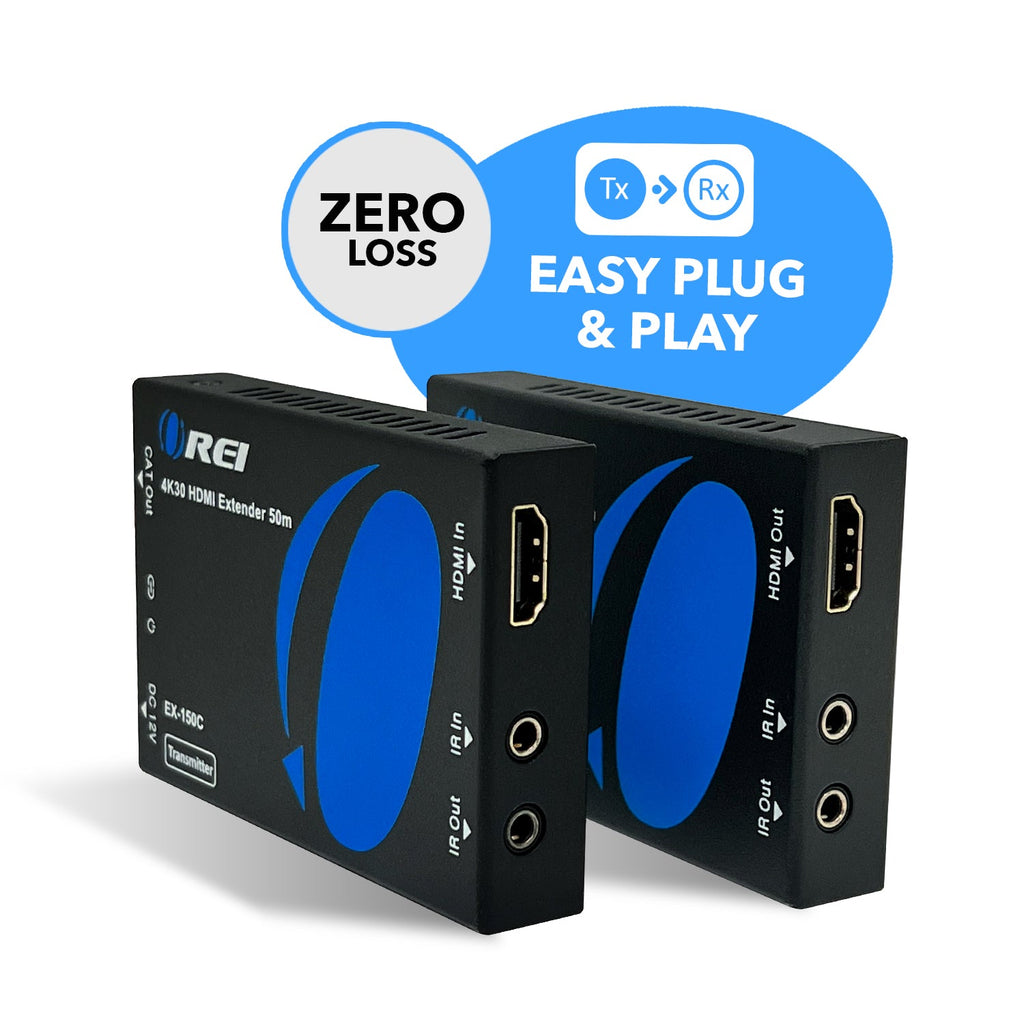

EX-150C is HDMI Extender over single CAT6 with bi-directional IR extends high-definition audio, video and IR up to 164 feet over single CAT6 cable. This HDMI extender supports DTS-HD & Dolby True-HD audio.
EX-150C offers the most convenient solution for HDMI extension over single CAT6 with long distance capability and is the perfect solution for any application. EX-150C has compact design for an easy & flexible installation
[shortdes]

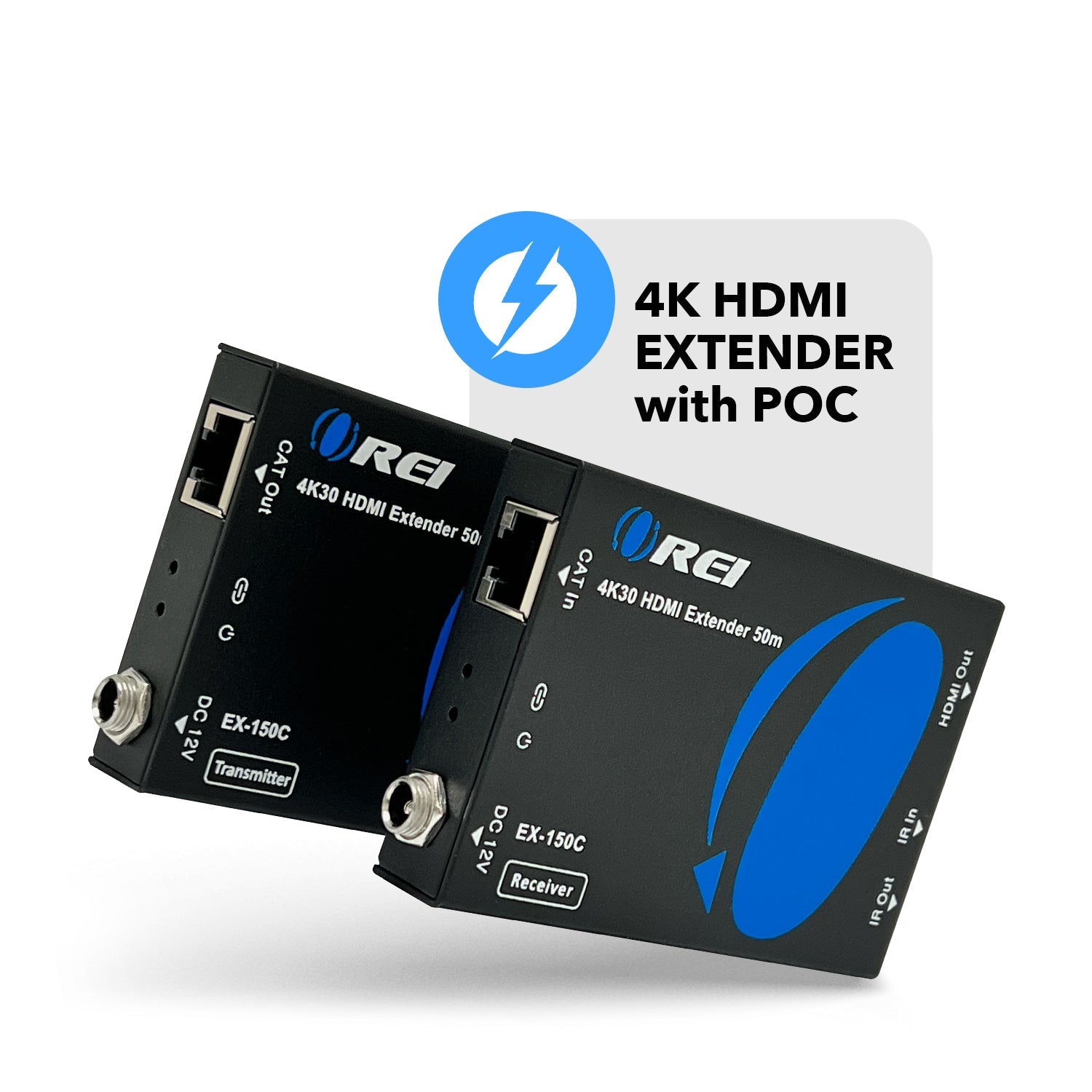

Supports bi-directional IR & PoC
Extends 4K@30Hz up to 165 ft over CAT6 cable

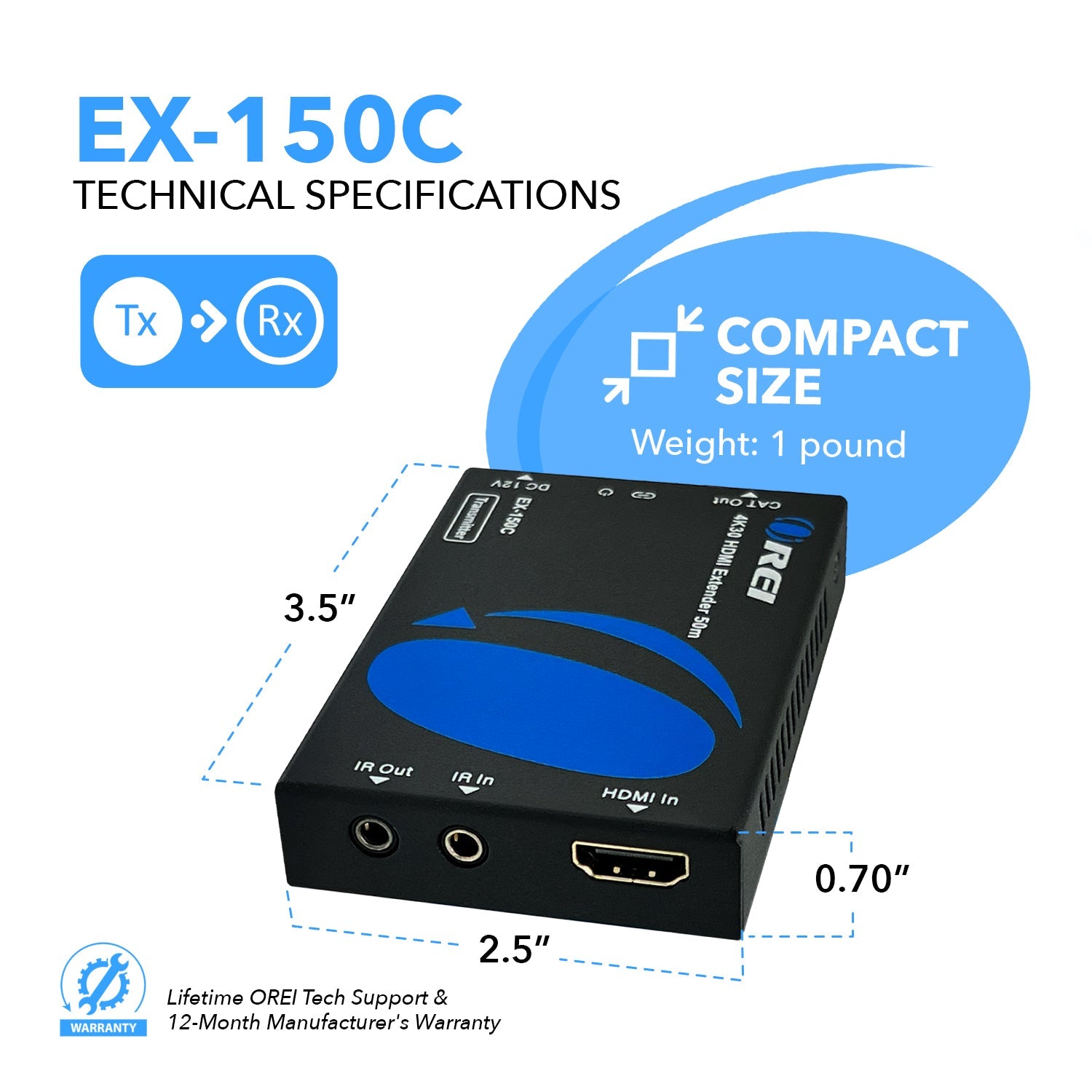

Compact design for an easy & flexible installation
[/shortdes] [tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI Type A [19-pin female]
OUTPUT PORTS:
1x RJ45
2x 3.5mm mini jack
Receiver:
INPUT PORTS:
1x RJ45
2x 3.5mm mini jack
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
COMPLIANCES
HDMI Compliance:
HDMI 1.4
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30Hz:
164 Feet
1080p@60Hz:
196 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2 Gbps
Video Resolutions:
Up to 4K@30Hz
Color Space:
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:
8-bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max)
Transmitter:
1W
Receiver:
1.5W
Power Supply
DC 12V/1A Adaptor (US/EU standards, CE/FCC/UL certified)
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal
PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver
2x Windband IR TX cable
2x Windband IR RX cable
1x 12V/1A DC Power Supply Adaptor
1x User Manual
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 165 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
