Description

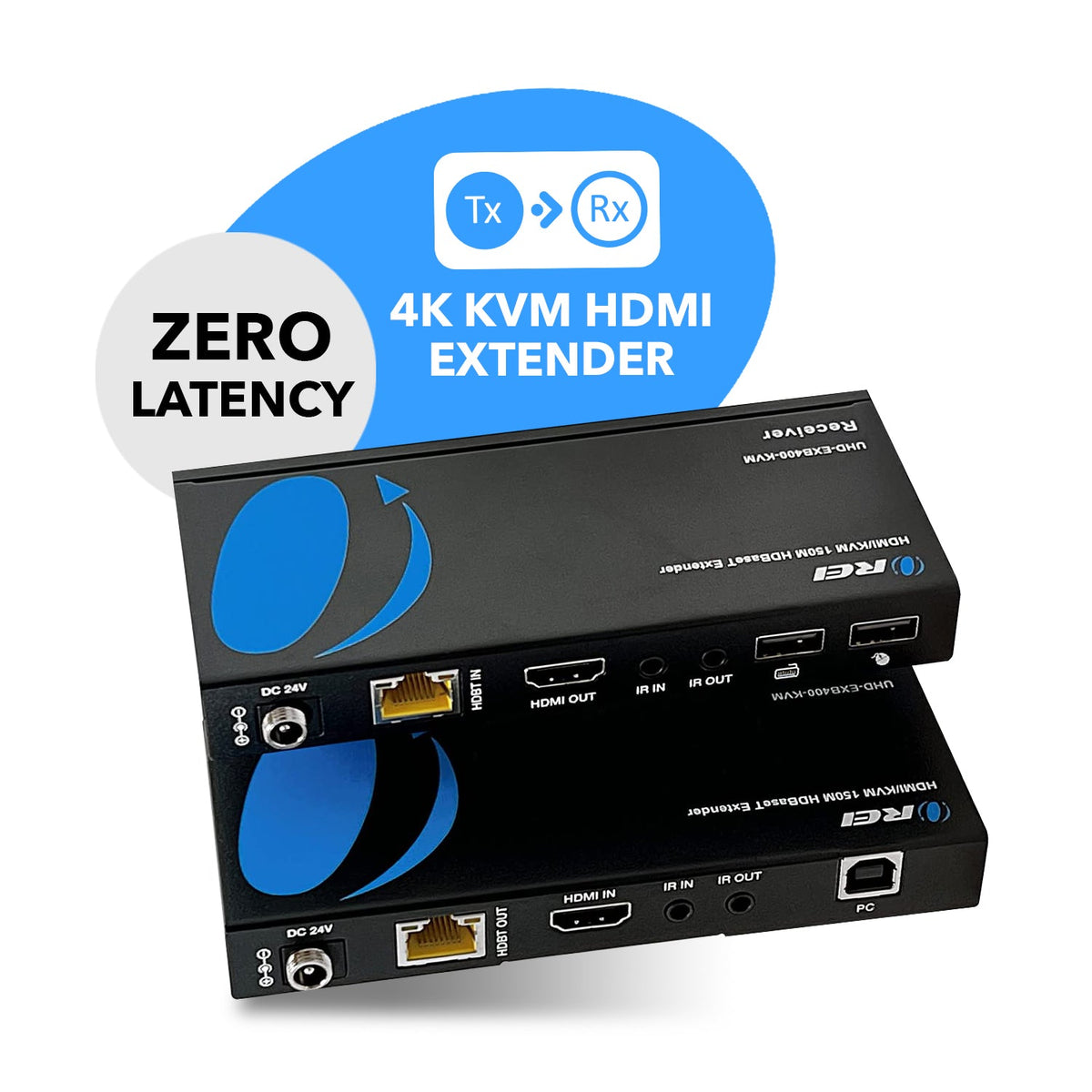

OREI 4K KVM Extender over Ethernet up to 394 feet - With Bi-directional IR, USB KVM passthrough & Power over Cable (UHD-EXB400-KVM)
Key Features:
HDMI 2.0b and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz 4:4:4
18 Gbps Video Bandwidth
HDR10+, Dolby Vision, and HLG pass-through
It extends HDMI & USB KVM signals to up to 394 Feet or 120 meters at 4K@60Hz and up to 492 Feet or 150 meters at 1080P@60Hz
Supports USB KVM functionality
2 USB A ports on the receiver and 1 USB B port on the transmitter.
Bi-directional IR & Power Over Cable pass-through
Compact design for easy and flexible installation

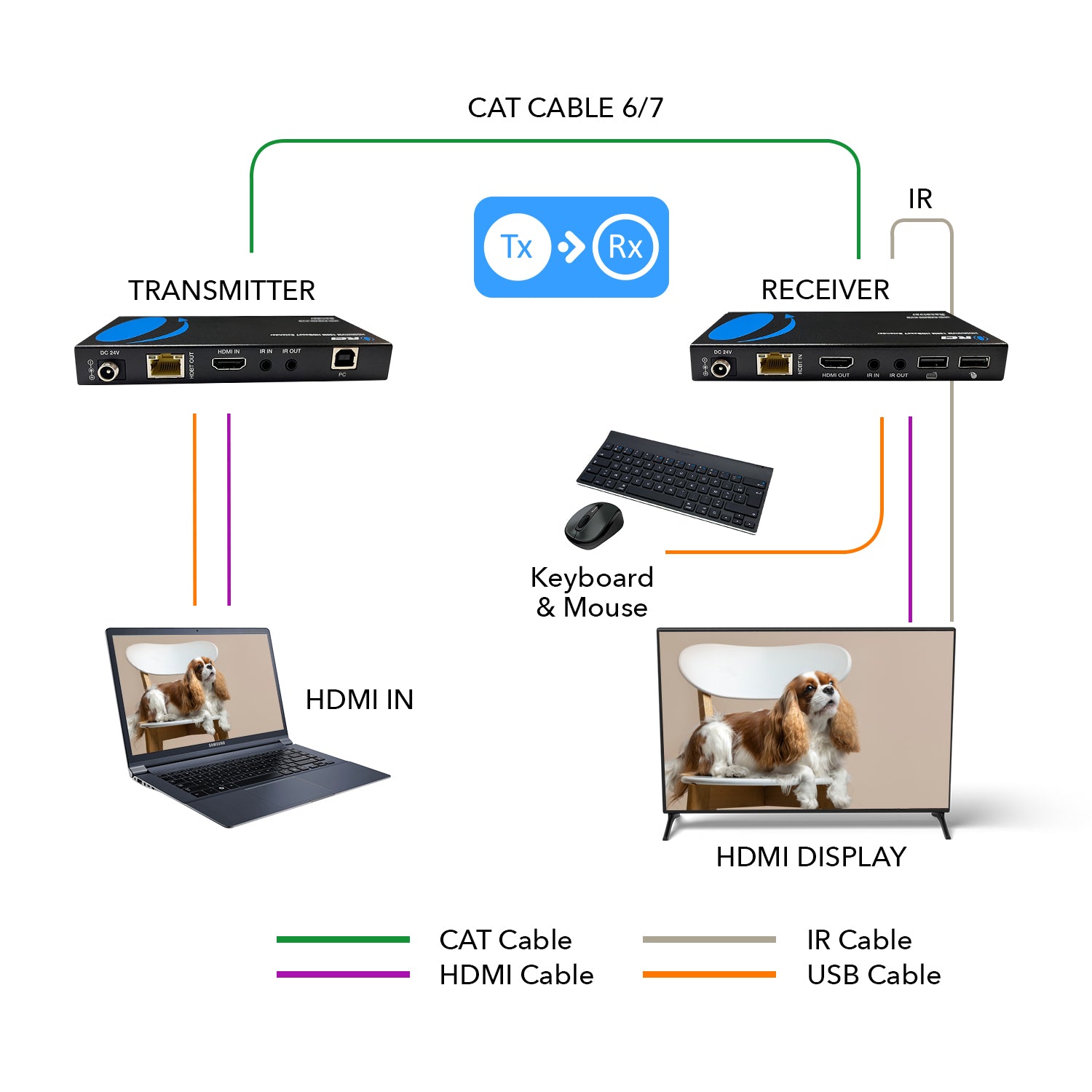

The UHD-EXB400-KVM is a KVM extender that can extend USB and HDMI signals up to 394 feet at 4K@60Hz and 492 Feet at 1080P@60Hz. It is HDMI 2.0b and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz 4:4:4, with an 18Gbps video bandwidth, and HDR and Dolby Vision pass-through. The transmitter features a USB-B port to connect the host, while the receiver has 2 USB ports for USB devices. This device features bi-directional IR, Power over Cable (PoC), and USB KVM signal pass-through, providing control convenience and simplifying setup. Compact design and easy installation requiring no additional drivers. Ideal for both personal and commercial use, this extender can be used for home theaters, office setups, remote workstation management, and much more.
[shortdes]
KVM and HDMI extender
Video resolutions up to 4K@60Hz 4:4:4
Bi-directional IR & Power over cable
[/shortdes]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDBaseT [RJ45, 8-pin female]
1 × IR IN [3.5mm Stereo Mini-jack]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × USB HOST [USB Type B]
1 × SERVICE [Micro USB, Update port]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × IR IN [3.5mm Stereo Mini-jack]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
2×USB 2.0 [USB Type A]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
1x USB Cable
4x Mounting Ears
8x Machine Screws
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
394 Feet
1080P@60Hz:
492 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
Yes
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
10W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 24V/1A

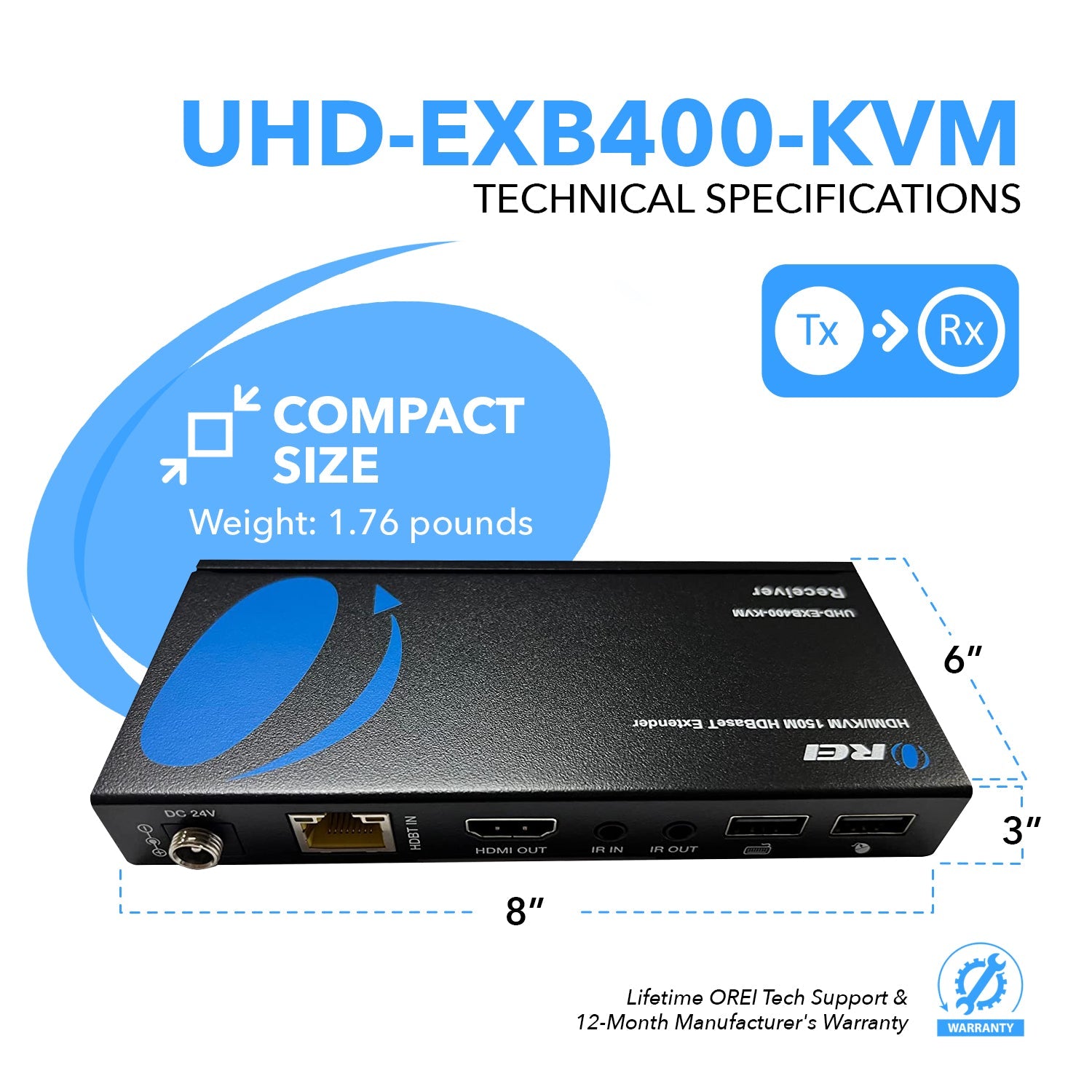

DIMENSIONS & WEIGHT
Transmitter:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
246g / 8.68oz
Receiver:
Length:
140mm / 5.51in
Width:
65mm / 2.55in
Height:
18mm / 0.71in
Weight:
246g / 8.68oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
