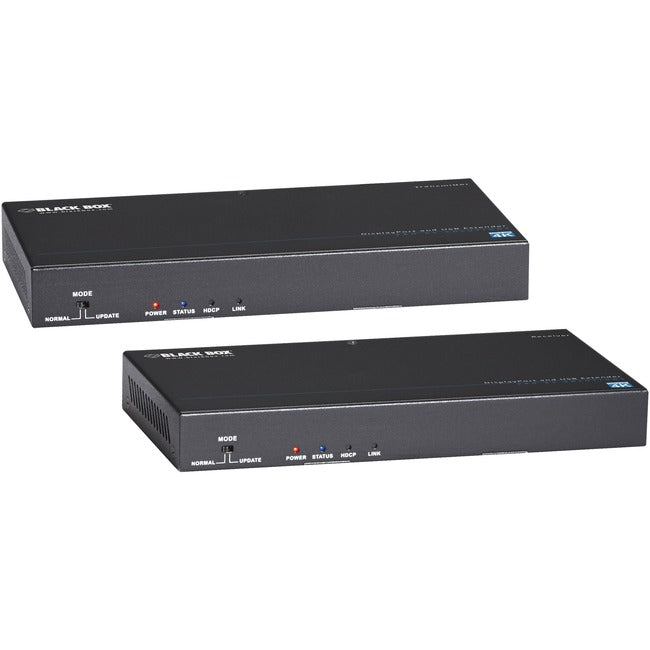

Black Box 4K USB 2.0 RS-232 Audio Video Extender DisplayPort
This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.
- USB 2.0 passthrough
- Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
- HDCP 2.2 compliant and supports EDID transmission
- Extend your signals as far as 100m over CAT6A/CAT7 cables
- Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
- Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
- Access distant AV sources or even to control remote computers
- Simultaneously transmits bidirectional analog stereo audio
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Transmitter Height: 0.99"
Transmitter Width: 7.91"
Transmitter Depth: 3.95"
Receiver Height: 0.99"
Receiver Width: 7.91"
Receiver Depth: 3.95"
Transmitter Weight (Approximate): 1.10 lb
Receiver Weight (Approximate): 1.10 lb
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: 4K USB 2.0 RS-232 Audio Video Extender DisplayPort
Manufacturer Part Number: UVX-DP-TP-100M
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- 1 x DisplayPort Transmitter
- 1 x DisplayPort Receiver
- 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips
- 2 x 3.5-mm, 2-pin male Phoenix connectors
- 2 x Mounting brackets
- User manual
Limited Warranty: 3 Year
