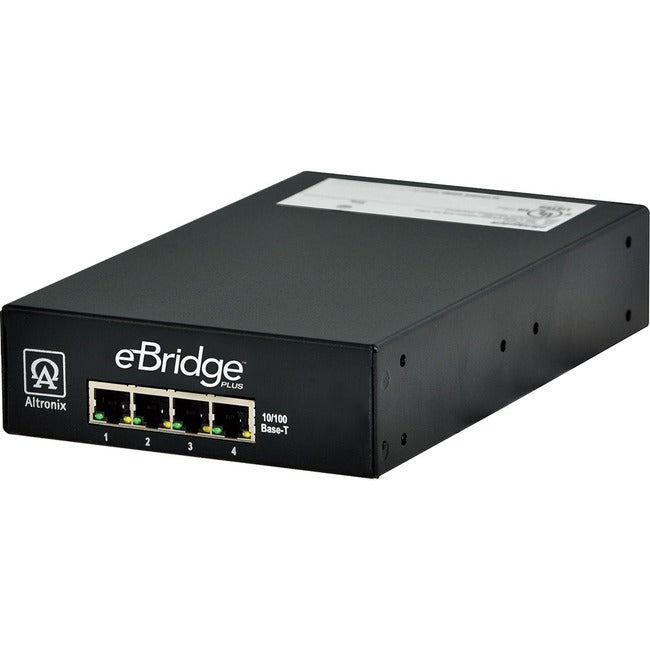

Altronix EBRIDGE4PCRM Video Extender Receiver
4-Port Ethernet over coax Receiver. Transmits IP video/data over coax up to 500m @ 25mbps full duplex and supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at). Compatible with eBridge1PCT and eBridge1PCTX transceivers. UL/cUL Listed (UL60950-1). CE Approved.
- Extends Network link distance in an industrial environment.
- Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Retrofit digital IP cameras in an analog CCTV installation.
- Eliminates the costs and labor associated with installing new network cabling.
- 25Mbps of data at distances up to 500m over Coax.
- IEEE 802.3af (15W) and IEEE 802.3at (30W).
Product Type: Video Extender Receiver
Receiver Height: 5.50"
Receiver Width: 12.50"
Receiver Depth: 20.25"
Receiver Weight (Approximate): 1.70 lb
Country Of Origin: United States
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: EBRIDGE4PCRM
Product Name: EBRIDGE4PCRM Video Extender Receiver
Product Line: eBridge
Manufacturer Part Number: EBRIDGE4PCRM
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
