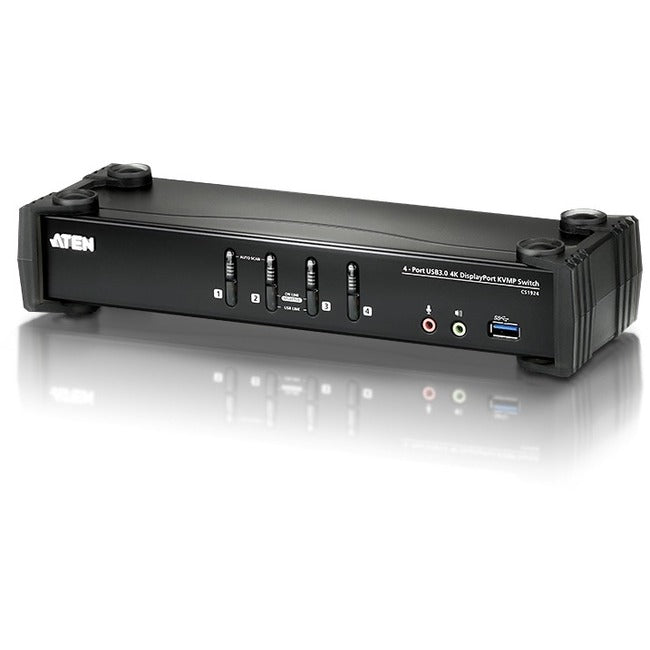

This KVM switch is perfect for professionals and IT administrators who need 4K DisplayPort switching with high-speed data transfer capabilities. Our ATEN Technologies CS1924 delivers:
-
4 port KVM switch with cables that provide complete connectivity solution
-
USB 3.0 technology for super-speed data transfer and device support
-
DisplayPort 4K cable compatibility for ultra-high resolution displays
-
KVMP functionality combining keyboard, video, mouse, and peripheral switching
Key Features
-
4K DisplayPort support delivering crisp 3840x2160 resolution at 60Hz
-
USB 3.0 SuperSpeed data transfer up to 5Gbps for external devices
- Optimized for peripheral sharing with 4 USB 3.0 hub ports
- Consistent audio switching with line-in/line-out and microphone support
-
Hot-pluggable design for seamless computer addition/removal
-
ATEN USB KVM cable compatibility for reliable connections
Technical Specifications
| Manufacturer |
ATEN Technologies |
| Model Number |
CS1924 |
| Type |
4-Port USB 3.0 KVM Switch |
| Video Interface |
4K DisplayPort (3840x2160@60Hz) |
| USB Standard |
USB 3.0 SuperSpeed (5Gbps) |
| Port Configuration |

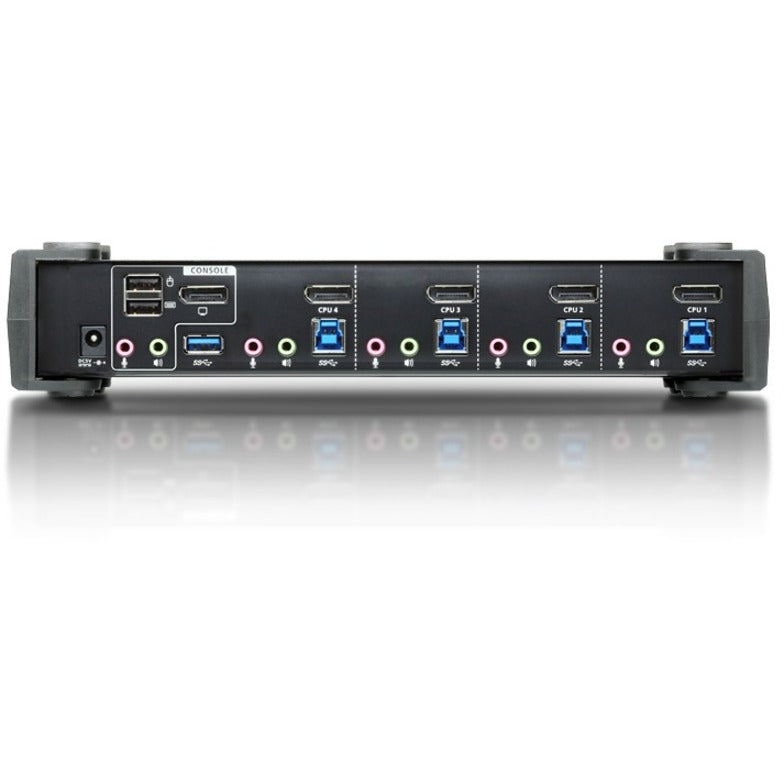

4 computer ports + 4 USB 3.0 peripheral ports |
| Audio Support |
Line-in/Line-out, Microphone switching |
| Switching Method |
Push-button, hotkey, RS-232 |
| Cable Length |
1.8m DisplayPort + USB cables included |
| Power Supply |
External 5V DC adapter |
| Compatible Systems |
Windows, Mac, Linux with DisplayPort output
|
Frequently Asked Questions
Q: What video resolution does this 4K DisplayPort KVM switch support?
A: This KVM switch supports full 4K DisplayPort resolution at 3840x2160@60Hz, perfect for high-resolution professional displays requiring DisplayPort 4K cable connectivity.
Q: How fast is the USB 3.0 data transfer on this KVMP switch?
A: Features USB 3.0 SuperSpeed with data transfer rates up to 5Gbps — ideal for sharing high-speed external drives and devices across multiple computers in your KVM monitor switches setup.
Q: Are all necessary cables included with this 4-port KVM switch?
A: Yes. This 4 port KVM switch with cables includes four 1.8m combo cables (DisplayPort + USB) for immediate installation, comparable to premium KVM switch cable solutions.
Q: Can I share USB peripherals and audio devices simultaneously?
A: Absolutely. The KVMP functionality allows sharing of keyboard, mouse, USB 3.0 devices, speakers, and microphone across all 4 connected computers with seamless switching capabilities.
KVM switch ATEN CS1924 4-port USB 3.0 4K DisplayPort KVMP. Includes cables, supports 4K@60Hz, USB 3.0 peripherals, professional switching.
