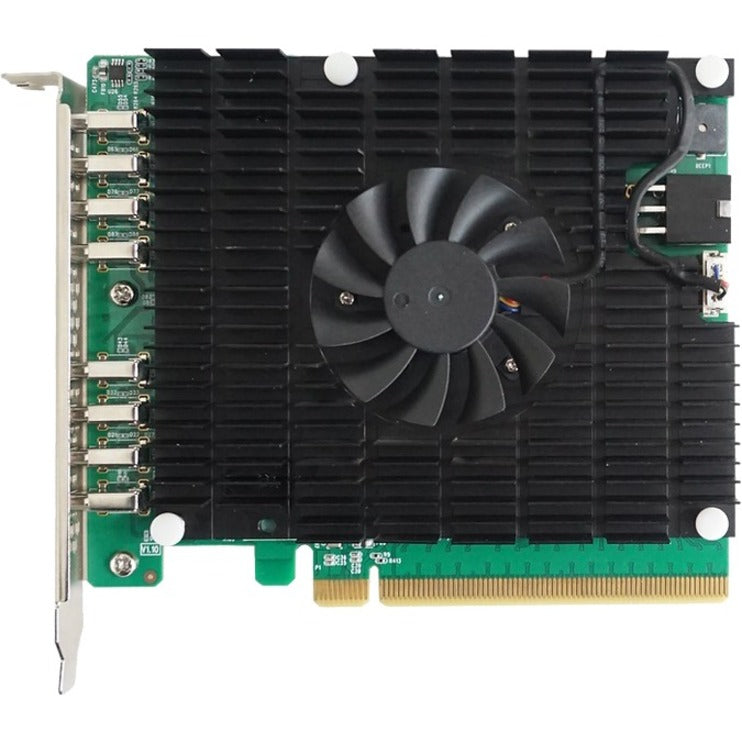

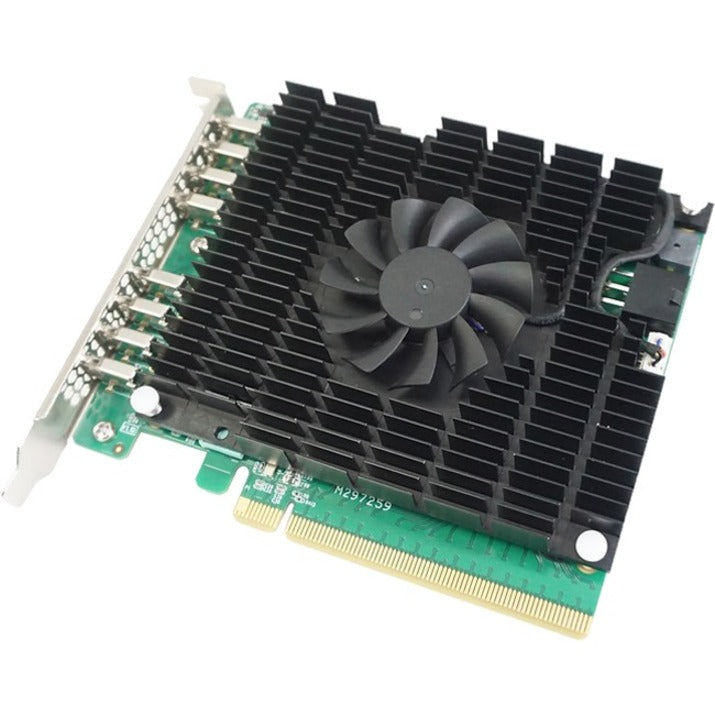

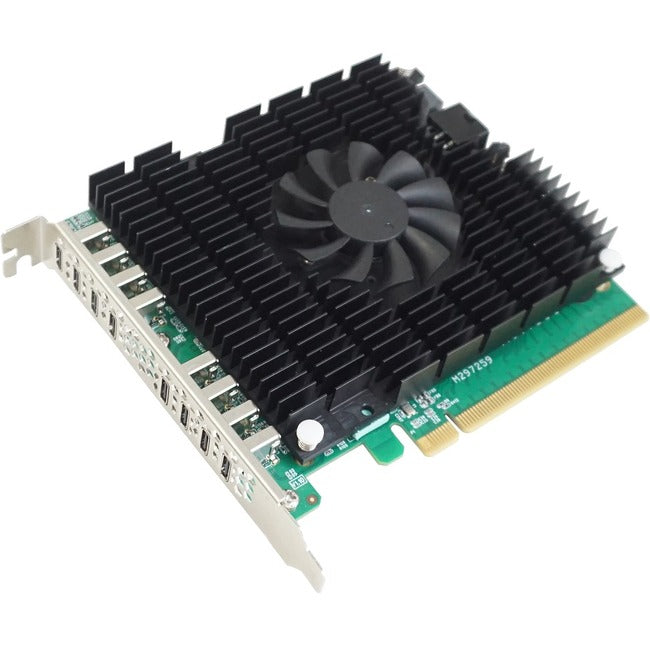

HighPoint RocketU 1488C
HighPoint RocketU 1400 Series PCIe controllers are the industry's fastest USB Host Adapters. Each USB device port is fully independent and powered by a dedicated 20Gb/s USB 3.2 controller chip, backed by a robust PCIe 3.0 host interface. Our unique 20Gb/s Per-Port Performance controller architecture ensures each hosted USB device can operate at peak performance without saturating the bus or taxing system resources.
Dedicated Per-Port Performance Architecture
Industry's Fastest USB Controller Cards
Unlike most USB controllers in today's marketplace, RocketU 1400 Series controllers feature fully independent USB device ports, each of which is powered by a dedicated USB 3.2 20Gb/s controller. This unique Per-Port Performance architecture enables each USB Type-C port to deliver maximum throughput.
Blazing Fast PCIe 3.0 Host Interface
The blazing fast PCIe 3.0 host interface works in tandem with our Per-Port Performance architecture to ensure each individual USB port can deliver maximum transfer bandwidth at all times, even in cases where each port is occupied and under heavy load.
Industry Proven Per-Port Performance USB Architecture; Dedicated Bandwidth & Independent Resources
RocketU 1400 Series controllers employ the latest generation of HighPoint's industry-proven Per-Port Performance USB architecture, which enables each Type-C port to deliver up 20Gb/s of transfer bandwidth. Each independent device channel is backed by a dedicated USB 3.2 20Gb/s controller, and robust PCIe 3.0 host interface. This unique connectivity architecture ensures each hosted USB device can continuously operate at maximum throughput, without interference from neighboring USB connections, or taxing system resources. The dedicated USB 3.2 controllers also allow each port to deliver up to 7.5W of power for device operation or charging purposes
Ideal for High-Speed Data Acquisition & Capture Applications
The RocketU 1400 Series performance-focused HBA architecture was designed for workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The independent USB 3.2 20Gb/s ports and PCIe 3.0 x16 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.
Universal Compatibility
RocketU 1400 Series controllers can be installed into any computing platform with a PCIe 3.0 or 4.0 slot. Each independent USB Type-C port is capable of supporting any industry-standard USB 2.0/ USB 3.2 Gen1/ USB 3.2 Gen2 device, including USB drives, cameras, printers, capture devices and peripherals.
- Available with 1x to 8x Dedicated USB Type-C 3.2 20Gb/s Ports
- Dedicated PCIe 3.0 x16 Host Interface
- True Alternative to Thunderbolt™3 Connectivity
- Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications
- Universal Type-C connectivity support any industry-standard USB device or peripheral
- Dedicated 20Gb/s transfer bandwidth per USB port
- Driverless Installation: Native xHCI Support
Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: REACH
Product Series: 1400
Brand Name: HighPoint
Form Factor: Plug-in Card
Manufacturer: HighPoint Technologies, Inc
Product Model: RU1488C
Product Name: RocketU 1488C
Product Line: RocketU
Manufacturer Part Number: RU1488C
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:
- RocketU 1488C
- 1x Quick Installation Guide
- 1x Low Profile Bracket
Limited Warranty: 2 Year
Weight (Approximate): 11.68 oz
