AtlasIED Speaker Kit
AtlasIED offers the SD72W-KIT4 to make ordering a complete solution easy for in-ceiling speaker applications. The kit includes products that have been selected to work perfectly together in BGM and paging applications.

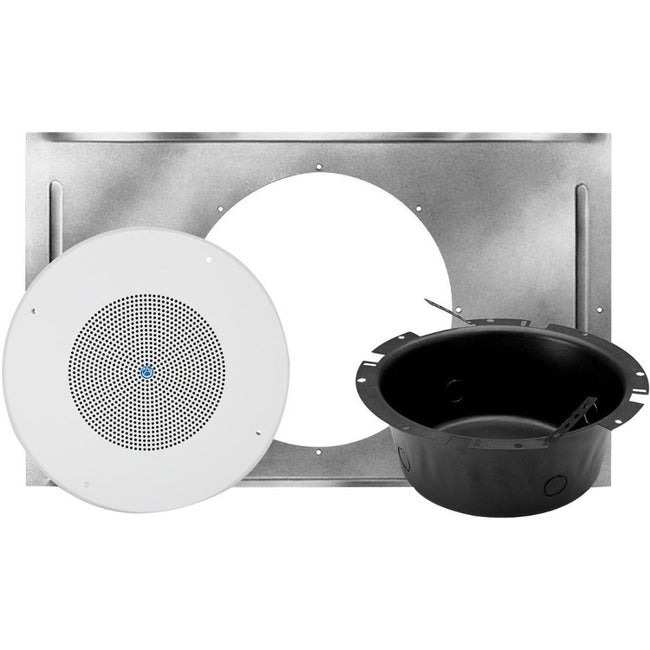

SD72W-KIT4 includes:
- SD72W 8" Dual Cone In-Celing Speaker with 25V/70V 5-Watt Transformer and 62-8 Baffle (Qty 4)
- CS95-8 8" Recessed Round Stacking Enclosure (Qty 4)
- 81-8R 8" T-Bar Tile Bridge (Qty 4)
- 18-2PX100 100' 18 Guage 2-Conductor Speaker Wire
The speaker used in the SD72W is the next generation of Atlas high performance cone speakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72W.

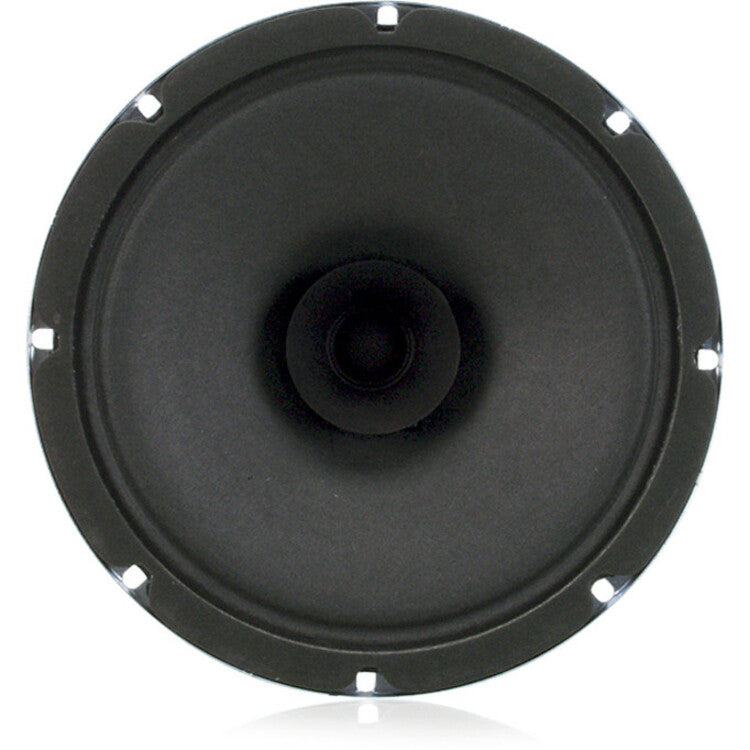

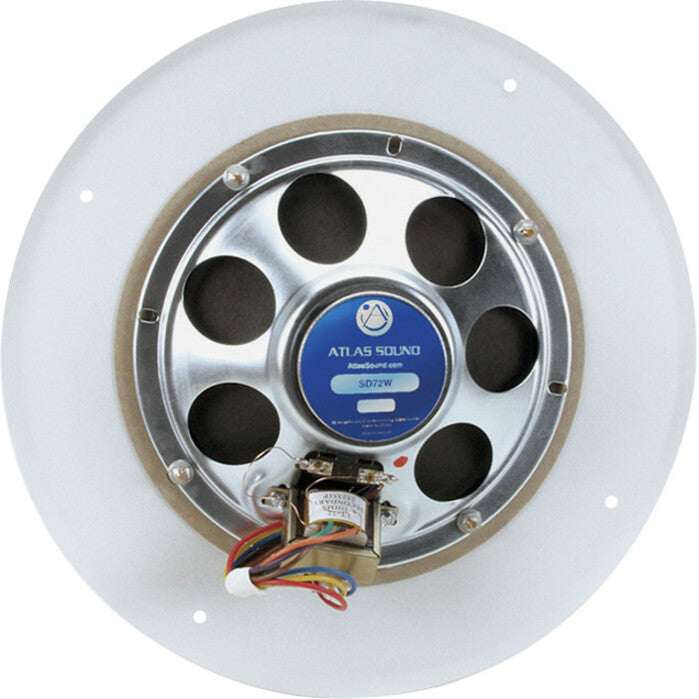

Model SD72W is a dual cone, 25 watt 8" (205mm) speaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
Model SD72W operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°.

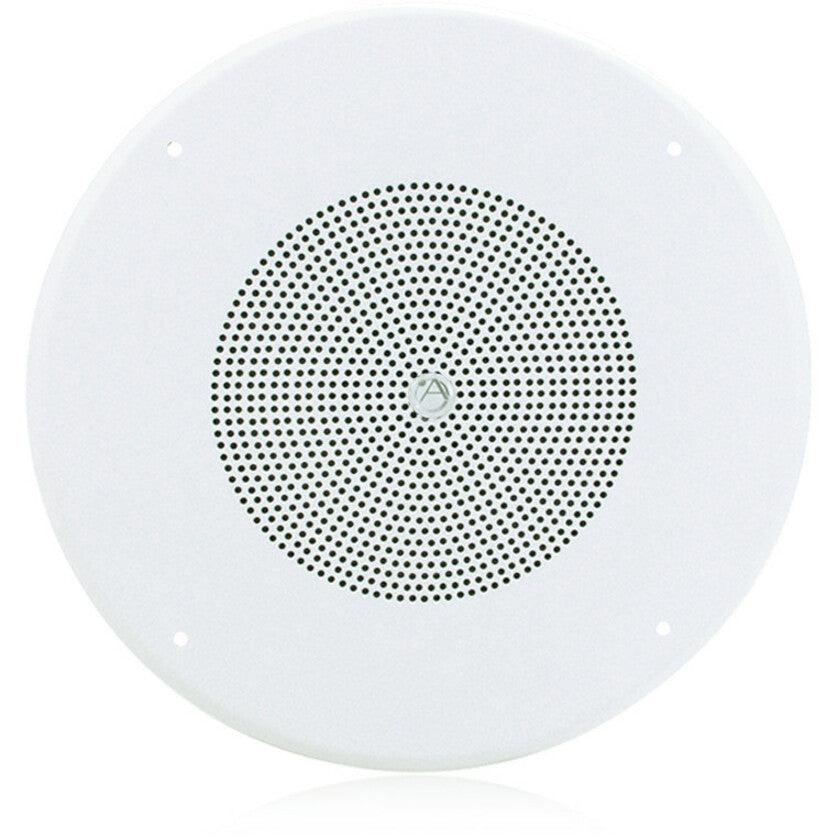

The SD72W includes a factory installed CRS baffle with concealed speaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of AtlasIED 8" tile bridges, mounting rings and enclosures.
The CS95-8 enclosure is furnished with four combination conduit knockouts 1/2" - 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.
The 81-8R tile bridge features a round cut-out designed to work with the CS95-8 enclosure. The unit is constructed of 24-gauge CRS with an electrogalvanized rust-resistant finish.
Product Type: Speaker Kit
Brand Name: AtlasIED
Manufacturer: Atlas Sound LP.
Product Name: Speaker Kit
Manufacturer Part Number: SD72W-KIT4
Manufacturer Website Address: http://www.atlassound.com
Package Contents:
- 4 x SD72W 8" Dual Cone In-Celing Speaker with 25V/70V 5-Watt Transformer and 62-8 Baffle
- 4 x 62-8 Baffle
- 4 x CS95-8 8" Recessed Round Stacking Enclosure
- 4 x 81-8R 8" T-Bar Tile Bridge
- 18-2PX100 100' 18 Guage 2-Conductor Speaker Wire
