AtlasIED IP-SDM Speaker System - White
AtlasIED IPX Series IP-SDM indoor wall mount IP speaker with display and talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-SDM registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN Network Architecture.
When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
IP-SDM IP speakers with display & talkback provide equality "effective communication".
"Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others."
What does it mean for communication to be "effective"? Simply put, "effective communication" means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.
Where 3rd party notification applications are not required, the IP-SDM speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.
Features
IP-SDM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.
The Grills for the IP-SDM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

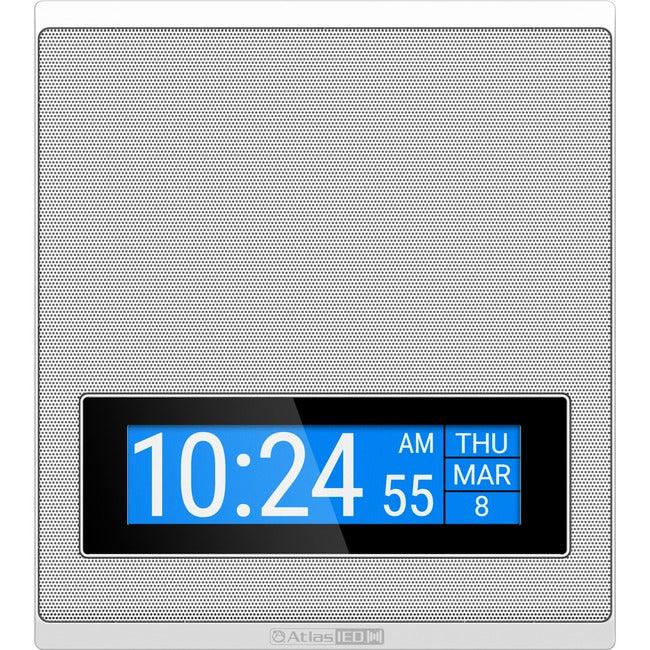

While in Standby, the IP-SDM displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the IP-SDM display changes from time to visual notifications by Scrolling text content over the LCD digital readout.
IP-SDM includes an omni directional subminiature, electret condenser microphone that is mounted behind the Grill's steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.
All AtlasIED IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
Product Type: Speaker System
Product Color: White
Brand Name: AtlasIED
Manufacturer: Atlas Sound LP.
Product Model: IP-SDM
Product Name: POE+ Indoor Wall Mount IP Speaker with LCD Display and Talkback Microphone
Mount Type: Wall Mountable
Manufacturer Part Number: IP-SDM
Manufacturer Website Address: http://www.atlassound.com
Limited Warranty: 1 Year
Weight (Approximate): 4.23 lb
