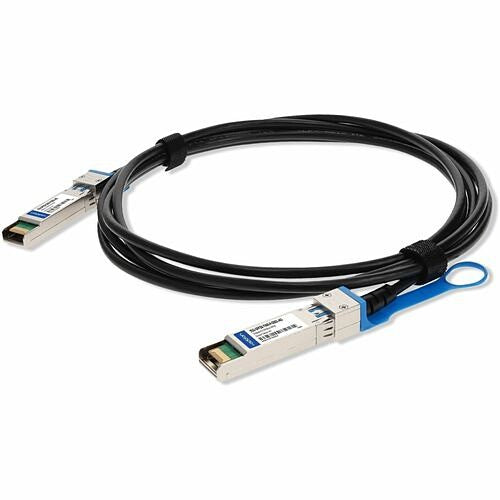

Add-On 25G-SFP28-TWX-P-0301-AO 25GBase-CU Direct Attach Cable
The Add-On 25G-SFP28-TWX-P-0301-AO is a 25GBase-CU SFP28 direct attach cable engineered for data center operators and network administrators requiring reliable, cost-effective short-reach connectivity. This passive copper DAC delivers 25Gbps performance over 3 meters, making it ideal for high-speed interconnects between switches, servers, and storage arrays in enterprise environments. Built as a Brocade-compatible solution, it provides drop-in compatibility with existing infrastructure while eliminating the complexity and expense of active optics.
Key Features
-
25GBase-CU Technology — Passive copper construction for power-efficient, latency-free connectivity
-
SFP28 to SFP28 Connectors — Direct attach design with no transceivers or modules required
- 3-Meter Reach — Optimized for short-distance data center and rack-level deployments
-
Brocade Compatible — Certified interoperability with Brocade networking equipment
- Passive Design — No power consumption, reduced heat generation, improved reliability
- 25Gbps Performance — Full-duplex, non-blocking throughput for demanding applications
- Cost-Effective Solution — Eliminates expensive active optics for short-reach scenarios
Technical Specifications
| Specification |
Details |
| Manufacturer |
Add-On |
| Part Number |
25G-SFP28-TWX-P-0301-AO |
| Cable Type |
25GBase-CU SFP28 Direct Attach Cable (DAC) |
| Connector Type |
SFP28 to SFP28 |
| Data Rate |
25 Gbps |
| Maximum Reach |
3 meters (9.8 feet) |
| Medium |
Passive Copper |
| Power Consumption |
None (Passive) |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Compatibility |
Brocade 25G-SFP28-TWX-P-0301 and equivalent platforms |
Frequently Asked Questions
What is a 25GBase-CU direct attach cable used for?
A 25GBase-CU DAC is used for short-reach, high-speed connections in data centers, connecting switches to servers, storage systems, and other network equipment. The passive copper design makes it ideal for distances up to 3 meters where active optics would be unnecessary and costly.
Is this SFP28 cable compatible with my Brocade switch?
Yes, the Add-On 25G-SFP28-TWX-P-0301-AO is designed as a Brocade-compatible 25GBase-CU cable and provides certified interoperability with Brocade networking platforms. Verify your switch model supports 25GBase-CU SFP28 ports before deployment.
What are the advantages of passive copper over active optics?
Passive copper direct attach cables consume no power, generate minimal heat, have lower latency, and cost significantly less than active transceivers. For short distances (under 3 meters), passive copper delivers identical performance without the complexity or expense of active solutions.
Can I use this 3-meter DAC for longer distances?
No, the 3-meter specification is the maximum certified reach for this 25GBase-CU passive copper cable. For longer distances, consider active DACs or fiber optic solutions designed for extended reach.
