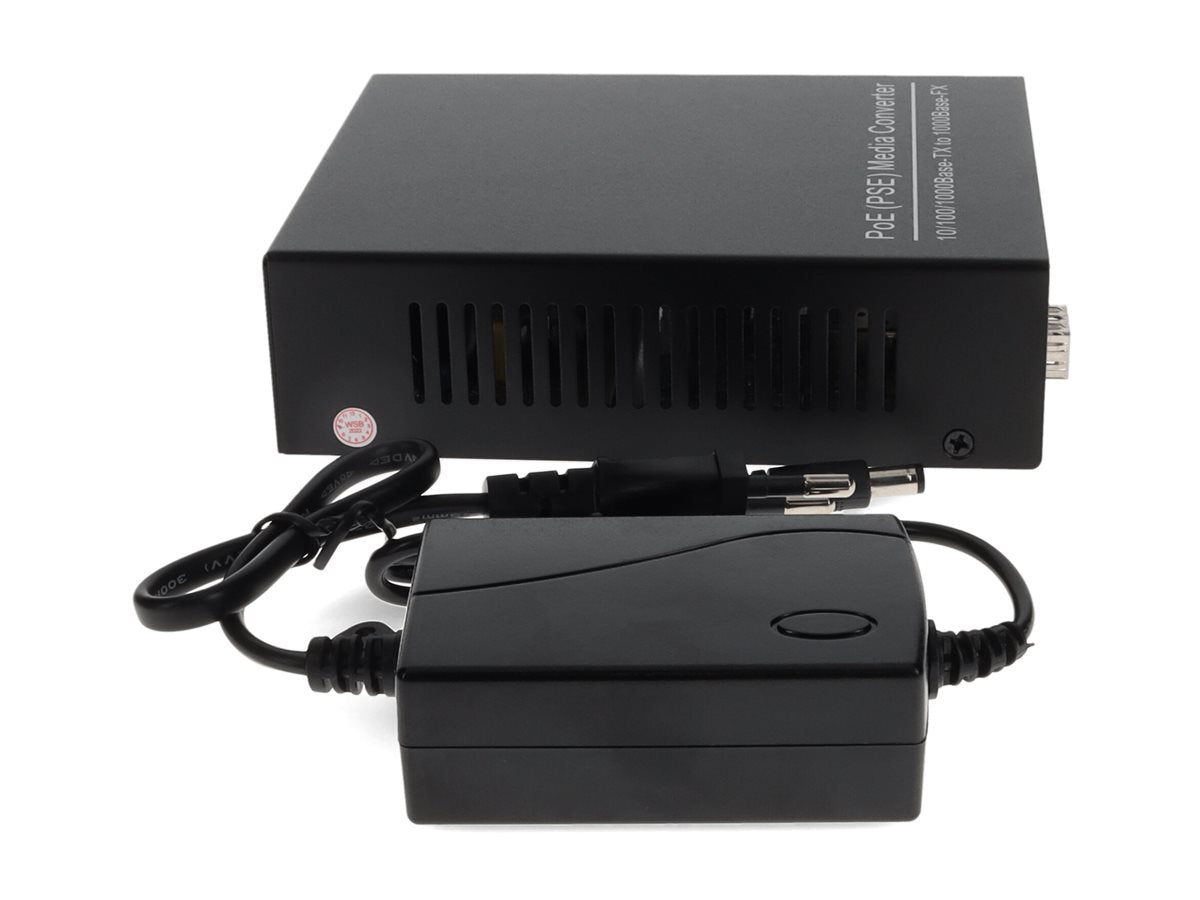

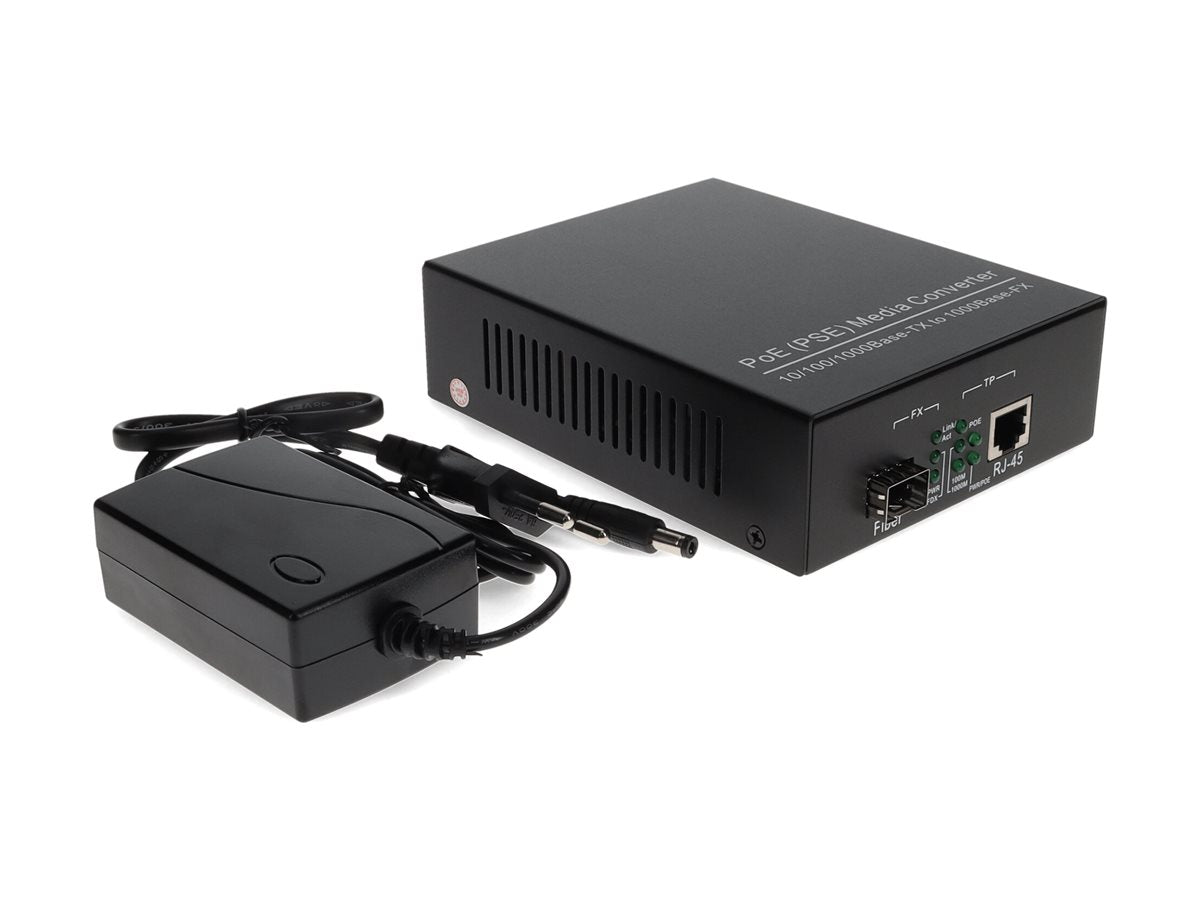

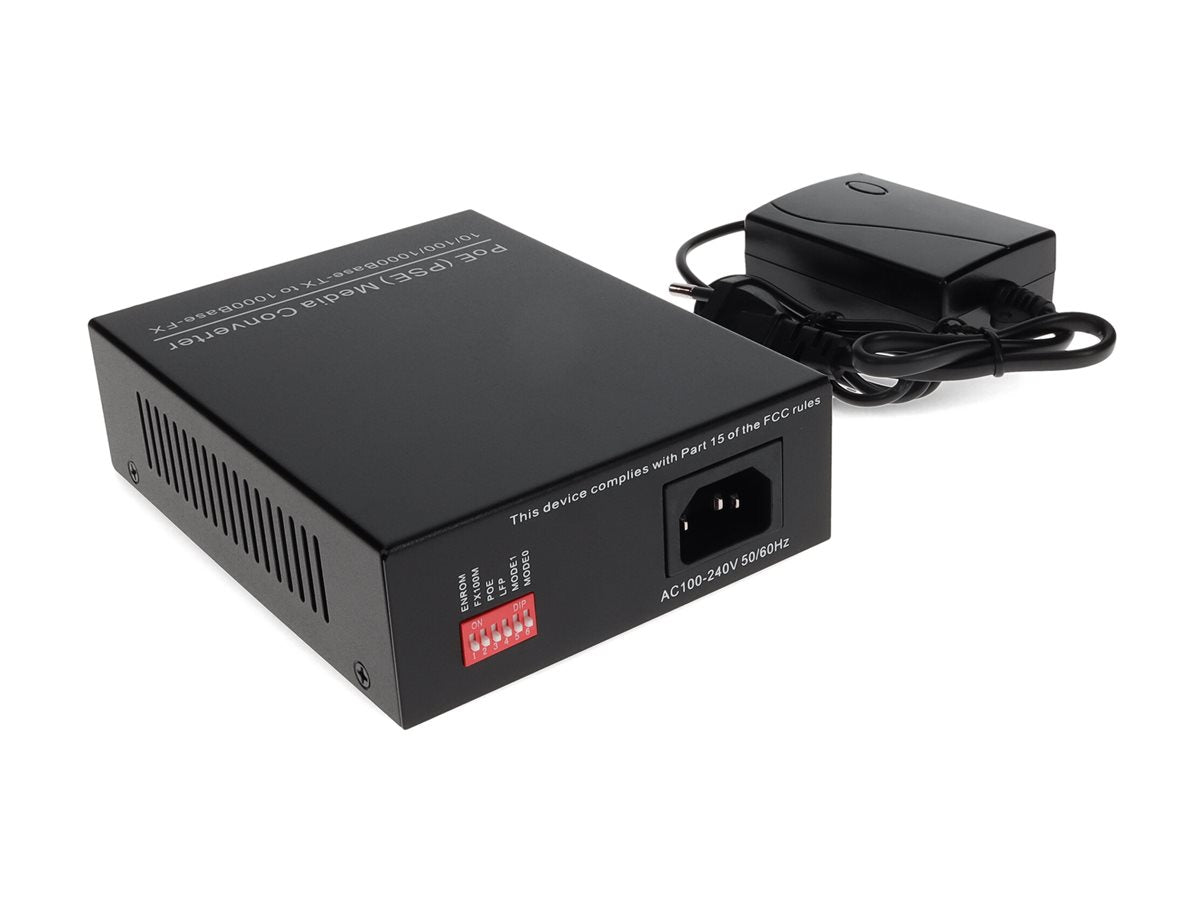

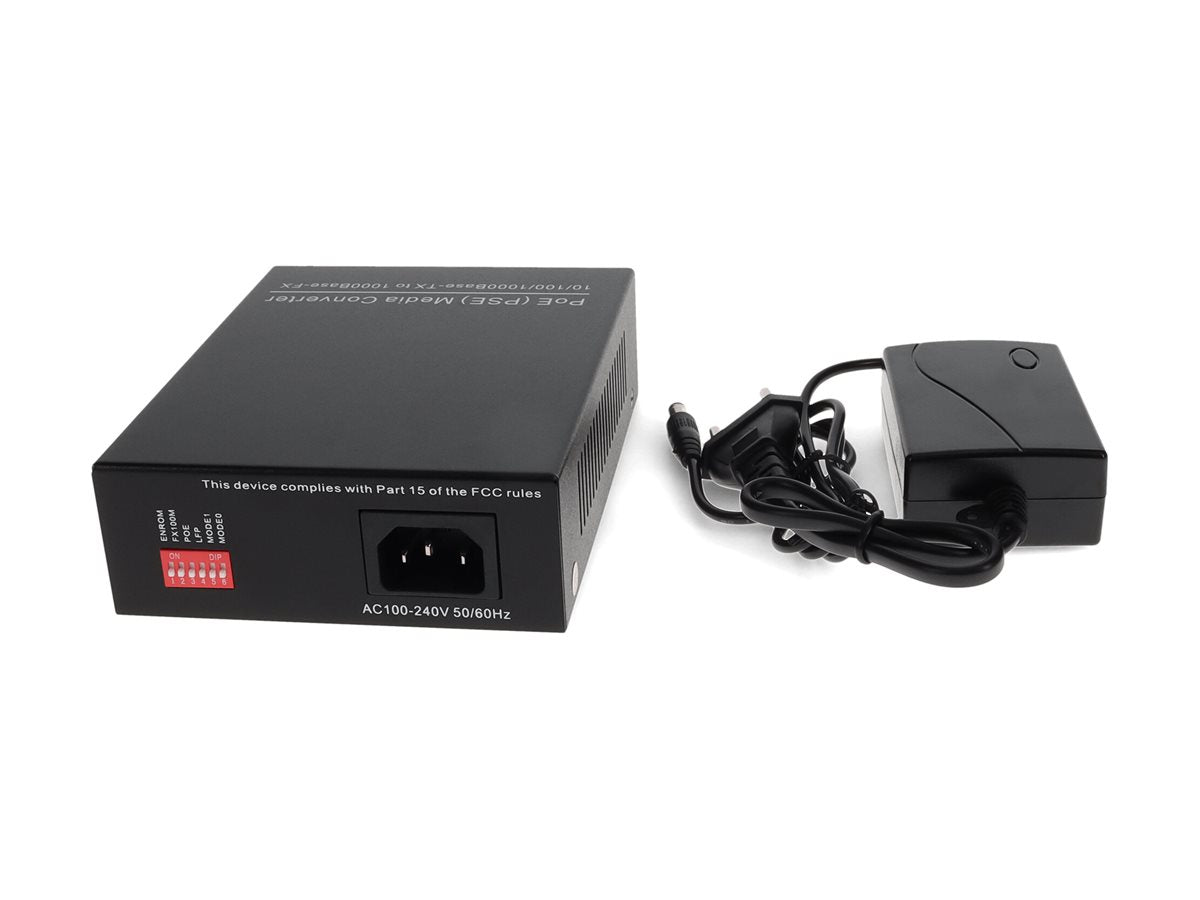

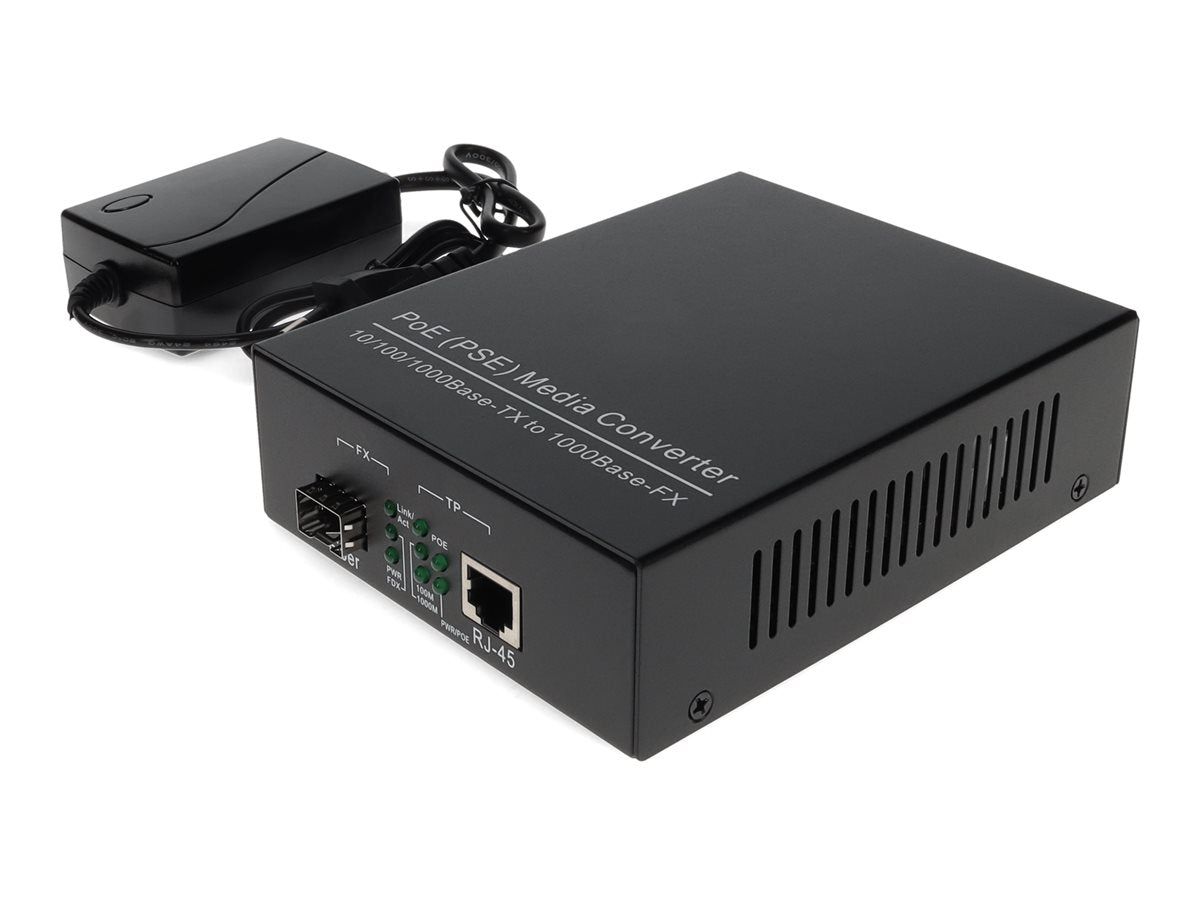

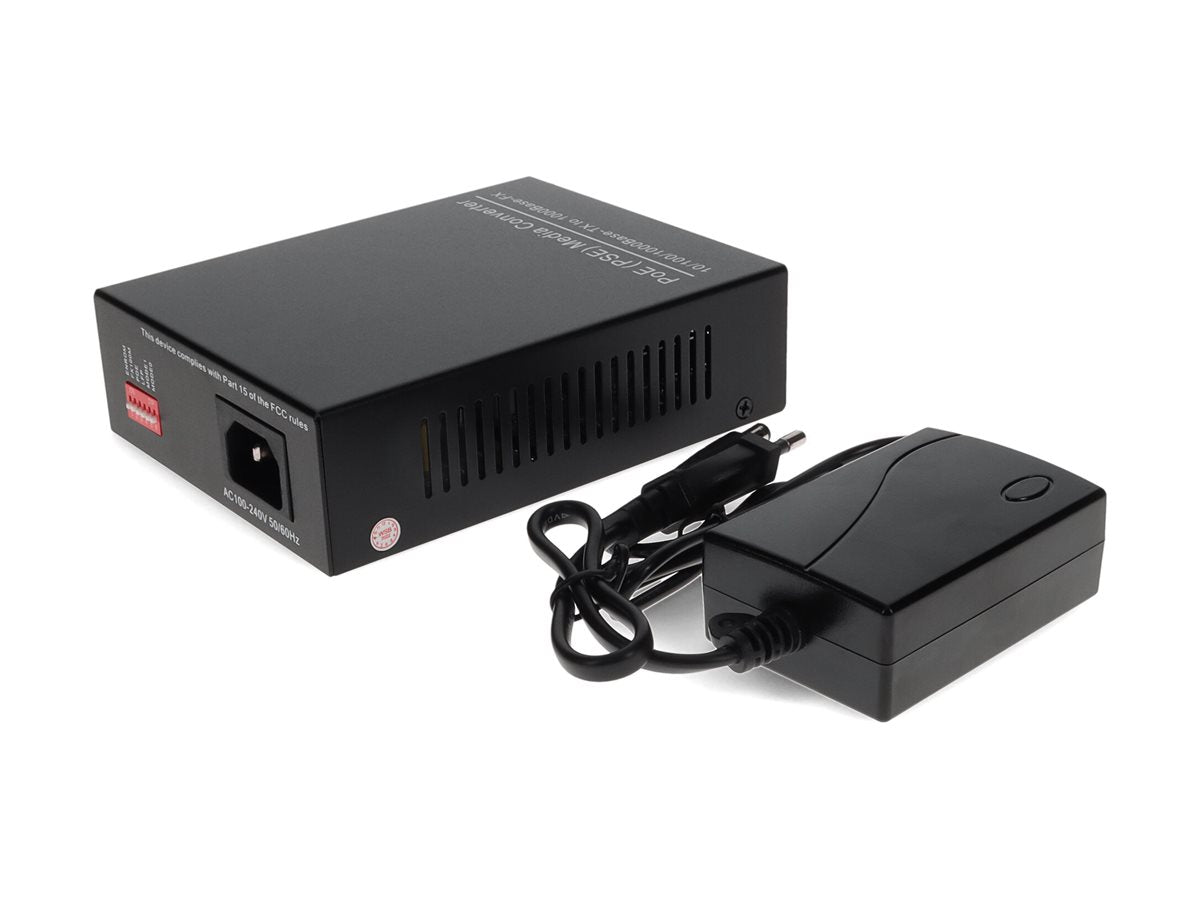

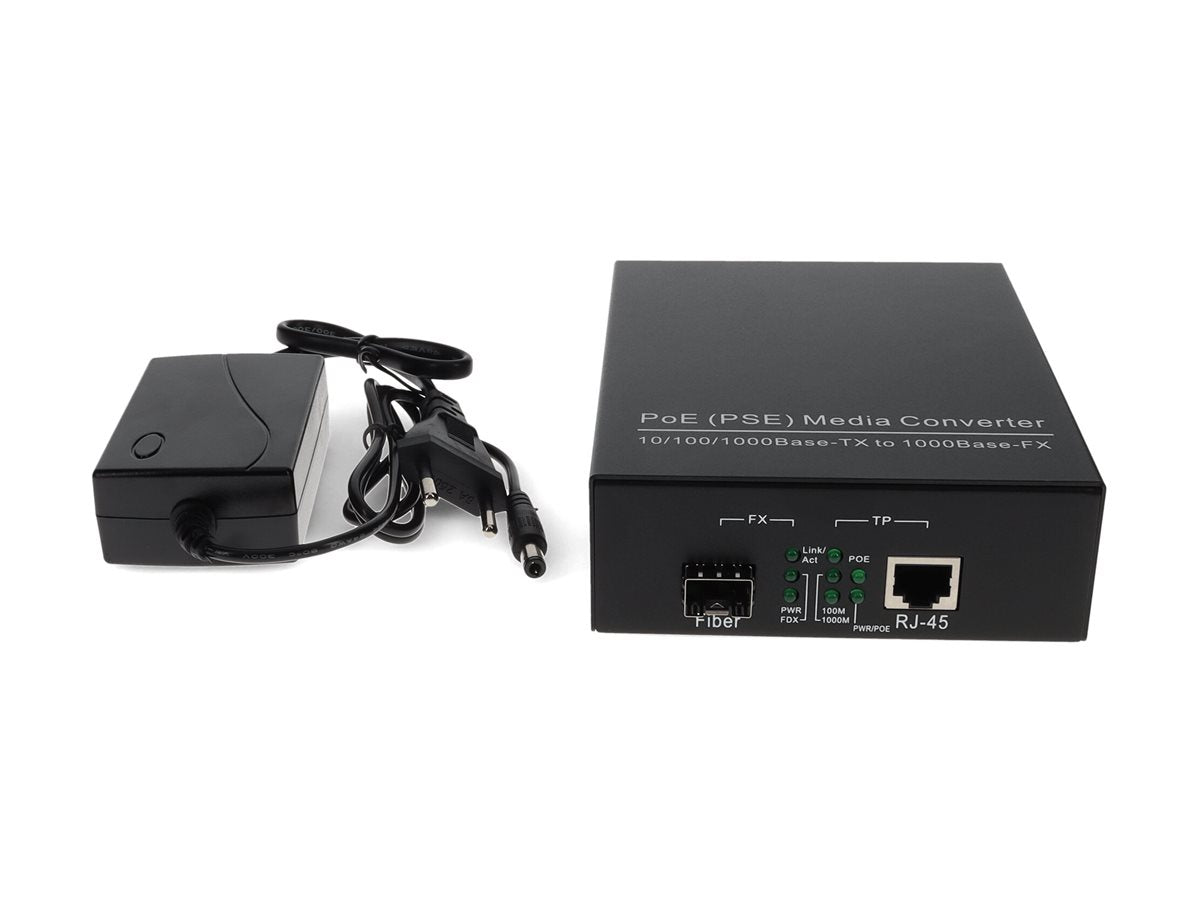

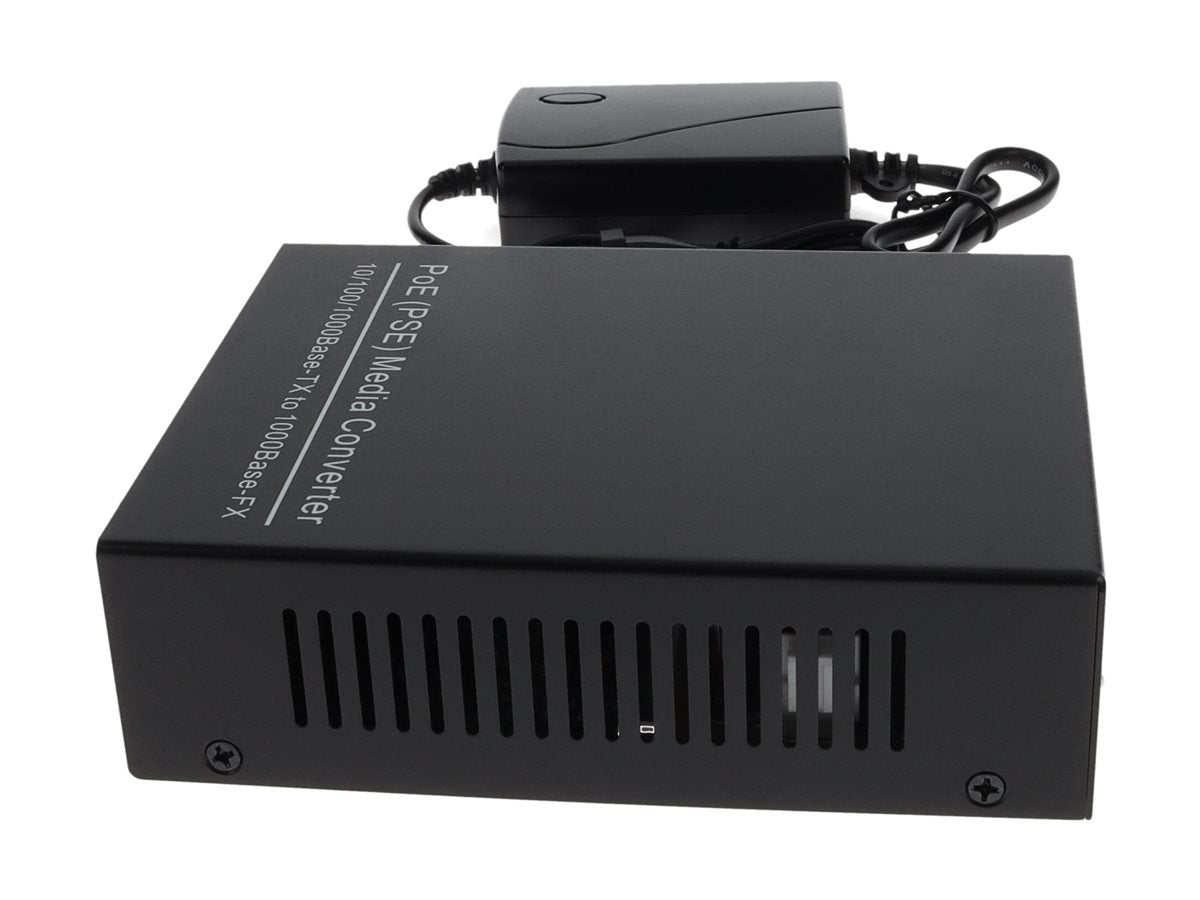

AddOn - Fiber media converter - 1GbE - 1000Base-TX - RJ-45 / SFP (mini-GBIC)
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- RJ-45 and SFP connectors for versatile network integration
- Supports Gigabit Ethernet with a 1 Gbps data transfer rate
- Power Over Ethernet (PoE) capability for efficient power management
- Features over-current protection and Link Fault Pass Through (LFP) for reliable operation
-
Efficient connectivity
The AddOn fiber media converter offers seamless integration between fiber optic and copper network types, ensuring robust connectivity with its RJ-45 and SFP connectors. This feature enables Ethernet 10Base-T/100Base-TX/1000Base-TX and Ethernet 1000Base-X interfaces, facilitating versatile network configurations and expansions.
-
Enhanced network performance
With a data transfer rate of 1 Gbps, this device supports Gigabit Ethernet, making it suitable for bandwidth-intensive applications. The inclusion of Power Over Ethernet (PoE) capability further simplifies network installation by eliminating the need for separate power supplies for PoE-enabled devices.
-
Reliable operation
Designed for dependable performance, the AddOn fiber media converter comes equipped with over-current protection and a Link Fault Pass Through function (LFP). These features ensure a stable network environment and minimize downtime by quickly addressing potential issues.
