4th Gen Intel Core i7/i5/i3/Pentium/Celeron, 95W/65W/45W/35W, 2.3 - 3.5 GHz, 3 - 8MB L3 Cache, AMI EFI 64 Mbit, Intel Q87, DDR3 1333/1600 MHz, 16 GB, 204-pin SODIMM, Gfx Gen 7.5, DirectX11.1, Open GL 4.0, 1920 x 2000 VGA, LVDS, CRT, HDMI, eDP, DisplayPort, PCIe x16, Mini PCIe, I217LM, RJ45, Realtek ALC892, USB 3.0, USB 2.0, 8-bit GPIO, COM RS232/422/485, ATX, ATX20P

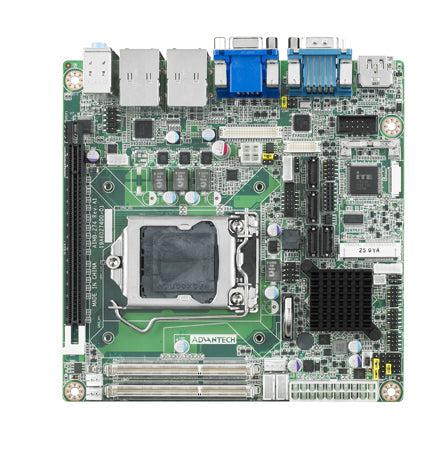

Advantech AIMB-274. Processor manufacturer: Intel, Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel Core i3/i5/i7/i9 series: i3-4xxx,i5-4xxx,i7-4xxx. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: mSATA. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
- Supports Intel® Core™ i7/i5/i3 desktop processor (LGA1150) with Intel Q87 chipset
- Two 204-pin SO-DIMM up to 16 GB DDR3/DDR3L 1333/1600 MHz SDRAM
- Supports triple display of VGA/DP/HDMI(DP)/LVDS(eDP)
- Supports PCIe x16 (Gen 3) and two mini PCIe
- Supports Intel vPro, AMT 9.0, PECI 3.0, Software RAID 0,1,5,10, TPM 1.2 (optional)
- Supports iManager, SUSIAccess and Embedded Software APIs
