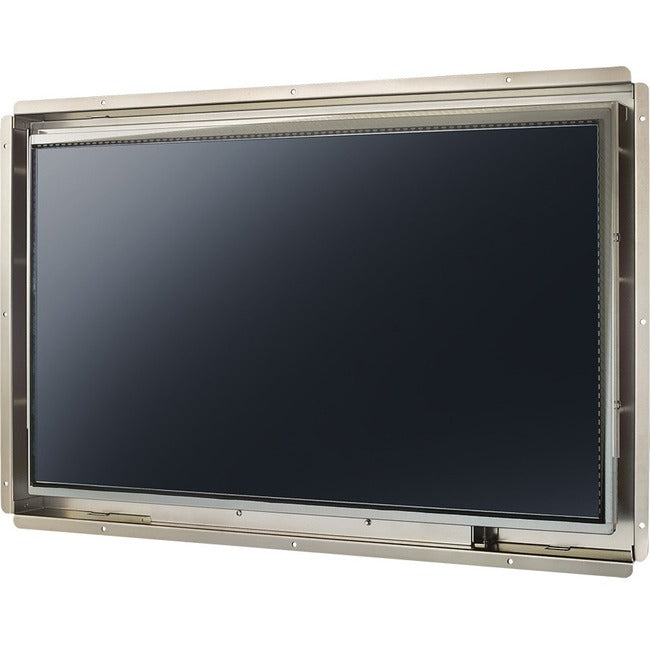

Advantech IDS-3118WP-30HDA1E 18.5" Open-frame LCD Touchscreen Monitor - 5 ms
The Advantech IDS-3118W Open Frame Monitor Series offer ultra slim design supporting a 18.5" 1366 x 768 pixels TFT LCD screen, with 0 ~ 55° C operating temperature, and optional resistive and projective capacitive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- 18.5" 1366x768 HD LCD panel with LED backlight for 20% power saving and environmental protection
- 0° ~ 55° C wide range operating temperature
- 5-wire resistive and P-cap touchscreen solution
- Touch interface: USB & RS-232
- Multiple signal interface with VGA, DVI & HDMI
- Integrated bracket for easy installation
- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Optical bonding (optional)
Product Type: Open-frame LCD Touchscreen Monitor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Vesa Mount Compatible: Yes
Vesa Mount Standard: 100 x 100
Country Of Origin: Taiwan
Product Series: IDS-3118W
Brand Name: Advantech
Manufacturer: Advantech Co., Ltd
Product Model: IDS-3118WP-30HDA1E
Product Name: IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor
Manufacturer Part Number: IDS-3118WP-30HDA1E
Manufacturer Website Address: http://www.advantech.com
Package Contents:
- IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 meter
- 8 x Clamper
- 8 x Screw of clamper M4_25L
- 1 x Cable clamp
- 1 x Screw of cable clamp
- 1 x cable tie
Limited Warranty: 2 Year
Weight (Approximate): 10.36 lb
