Mfr Part Number: HCG1000 GOLD
-
Features:
-
Guaranteed 1000W of Continuous Power from Antec
-
100% ModularImproves airflow and reduces clutter
-
80 PLUS GOLD certifiedUp to 92% efficient, to reduce your electricity bill
-
PhaseWave DesignA server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
-

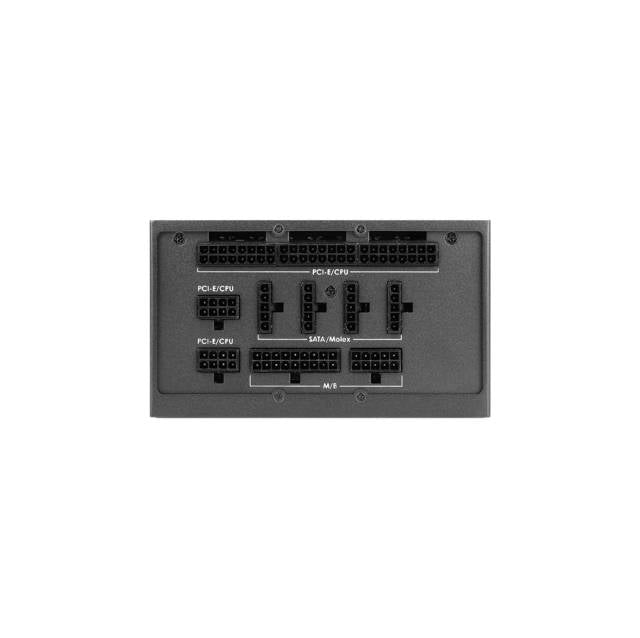

16 pin SocketIndustry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and
-
allow for future connector changes
-
Antec Quality 10-year warranty and lifetime global 24/7 support
-
135mm FDB SilenceWhisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
-
Zero RPM ManagerAn advanced low voltage fan control with fan-off mode at low loads for absolute silence
-
99%+12V - Output for maximum CPU & GPU support
-
CircuitShieldFull suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
-
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your systems performance
-
28(18+10) pin MBU socket - For possible future MBU connectors
-
ATX12V 2.4Engineered according to the newest PSU guideline and compatible with the latest CPU generation
-
HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50C ambient.
-
Maximum Power: 1000 W
-
Input:
-
Voltage: 100 - 240 VAC 10%
-
Current: 13 - 6.5 A
-
Frequency Range: 50 - 60 Hz
-
Type: ATX 12V 2.4
-
Power Factor Correction: Active PFC (>0.9 typical)
-
Efficiency: 92% Typically
-
Fan: 1x 135 mm FDB Fan
-
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70A, -12V @ 0.3A, +5Vsb @ 3.0A
-

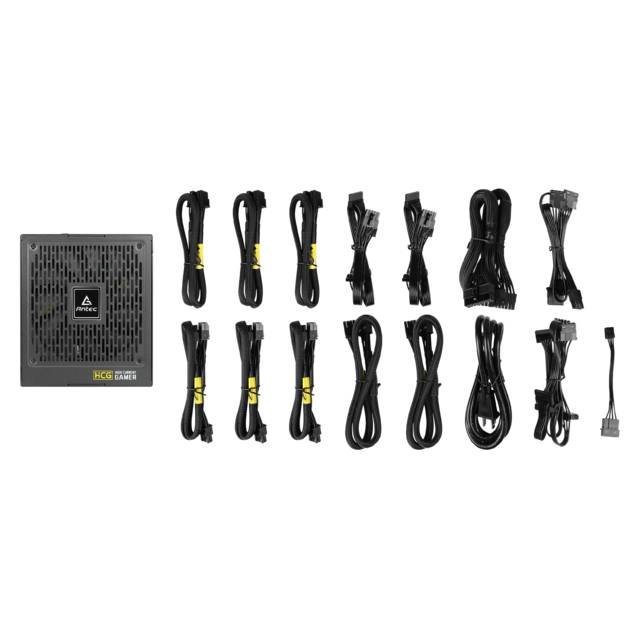

Connectors: 1x 24(20+4)pin Main Power Connector, 2x 8(4+4)pin EPS12V Connectors, 8x 8(6+2)pin PCI-Express Connectors, 12x SATA Connectors, 6x Molex Connectors, 1x FDD Connector
-
Protection : OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
-
Operation Temperature : 0~50C
-
Regulatory: cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR/BIS/UKCA/ICES
-
Dimensions (WxLxH): 160.0 x 150.0 x 86.0 mm
-
Net Weight: 1.66 kg
-
Gross Weight : 3.40 Kgs
