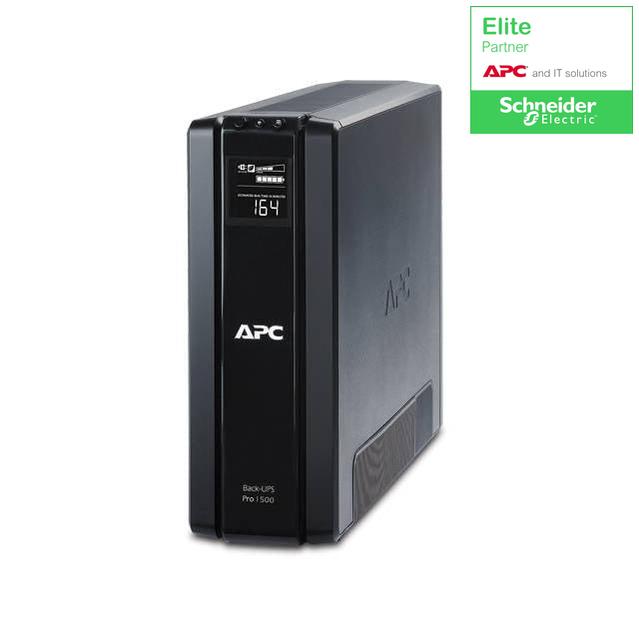

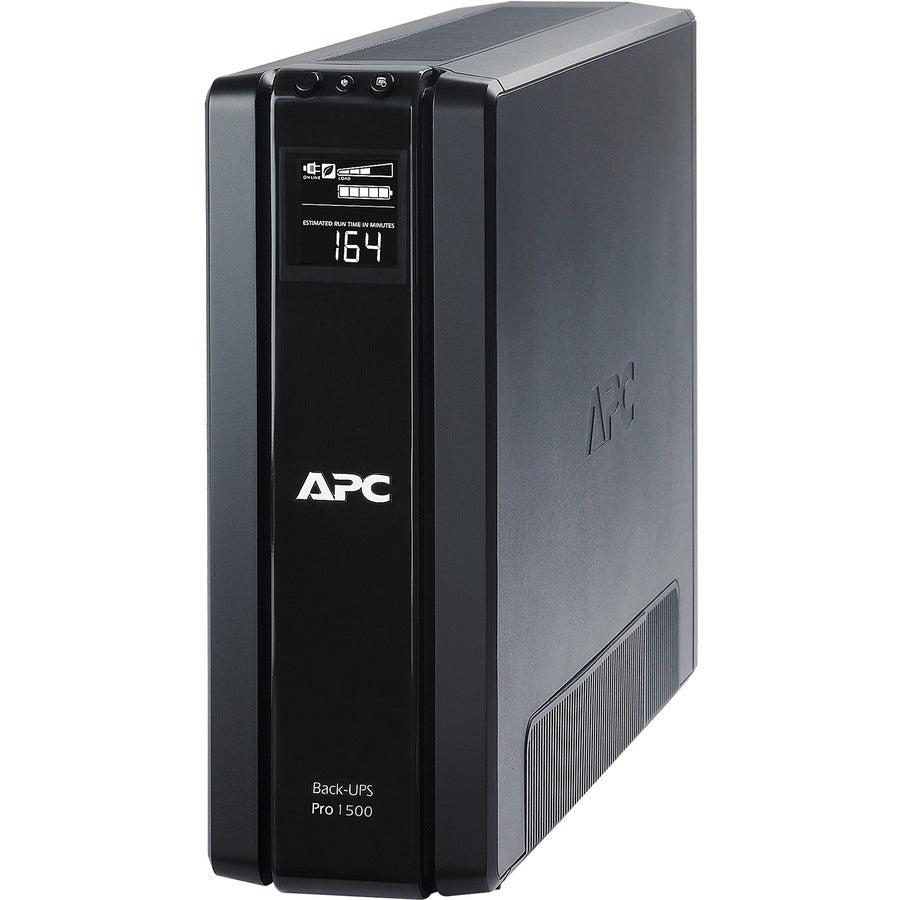

Mfr Part Number: BR1500G
-
Output:
-
Output Power Capacity: 865 Watts / 1500 VA
-
Nominal Output Voltage: 120V
-
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
-
Output Connections:
- 5x NEMA 5-15R (Surge Protection)
- 5x NEMA 5-15R (Battery Backup)
-
Input:
-
Nominal Input Voltage: 120V
-
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
-
Input voltage range for main operations: 88 - 139V
-
Input Connections: NEMA 5-15P
-
Cord Length: 1.83 meters
-
Surge Protection and Filtering:
-
Surge energy rating: 355 Joules
-
Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
-
Data Line Protection: Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector),Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
-
Regulatory Approvals: FCC Part 15 Class B,FCC Part 68,NOM,TUV
-
Color: Black
-
Dimensions (WxDxH): 112 x 381 x 302 mm
-
Weight: 13.36 kg
-
Replacement Battery APCRBC124 (Part# UPS-RBC124)
- Extended Run Options BR24BPG (Part# UPS-BR24BG)
