Description

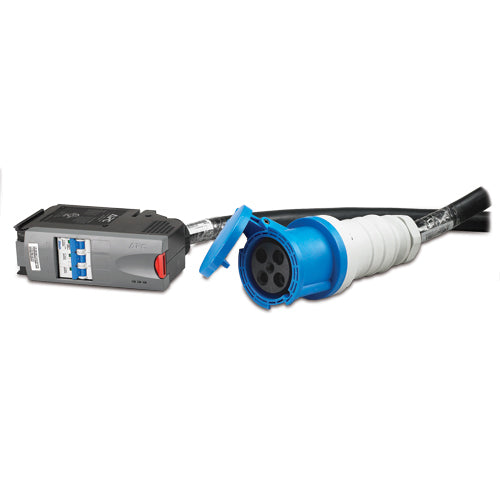

208V 3PH In / Out, 60A, 1 x IEC 309 (3P+PE), LCD, 560cm
APC PDM3460IEC309-560. PDU types: Metered, Monitored, Product colour: Grey, Display: LCD. AC outlets quantity: 1 AC outlet(s), Output connections: 1 x IEC 309. Cable length: 5.6 m, Certification: UL. Management platform: Web/SNMP. Nominal input voltage: 208 V, AC input frequency: 60 Hz, Nominal output voltage: 208 V
APC IT Power Distribution Module 3 Pole 4 Wire 60A IEC309 560cm
A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.
Network Management
Provides proactive power and environmental management via web and/or SNMP
Information Displays
Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
Smallest footprint
Minimizes your real estate expenses
System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
Modular Power Accessories Features & Benefits
Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Manageability
Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
Quick status information LEDs
Access status information about the performance of the Power Distribution Module
Convenience
Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
