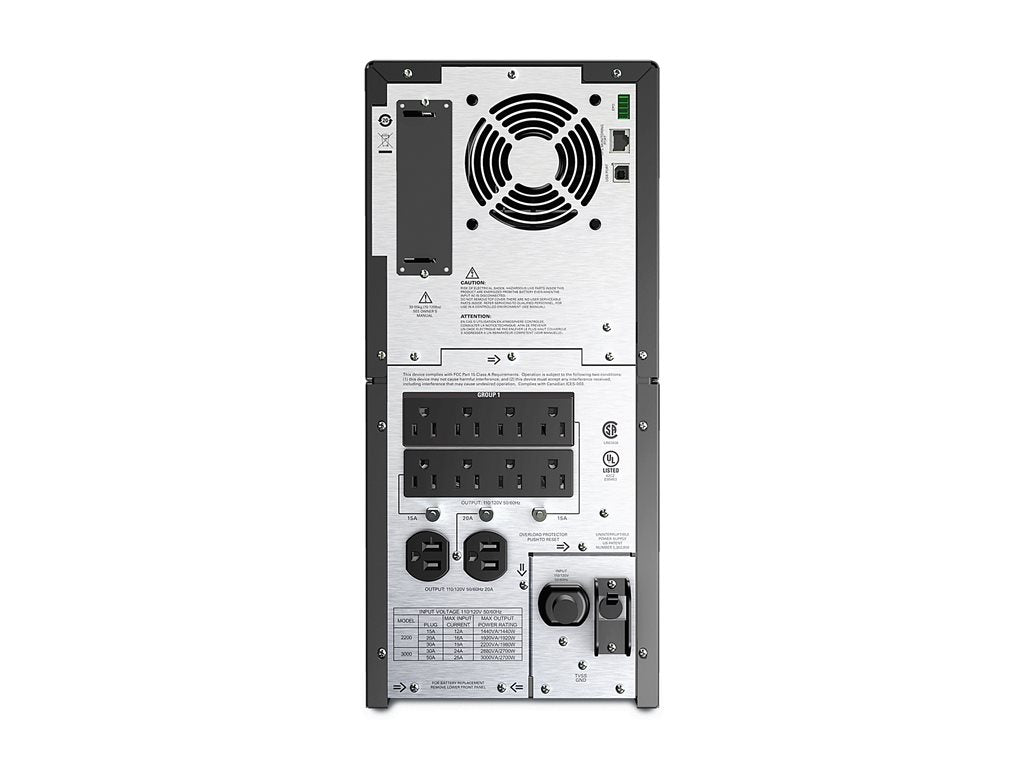

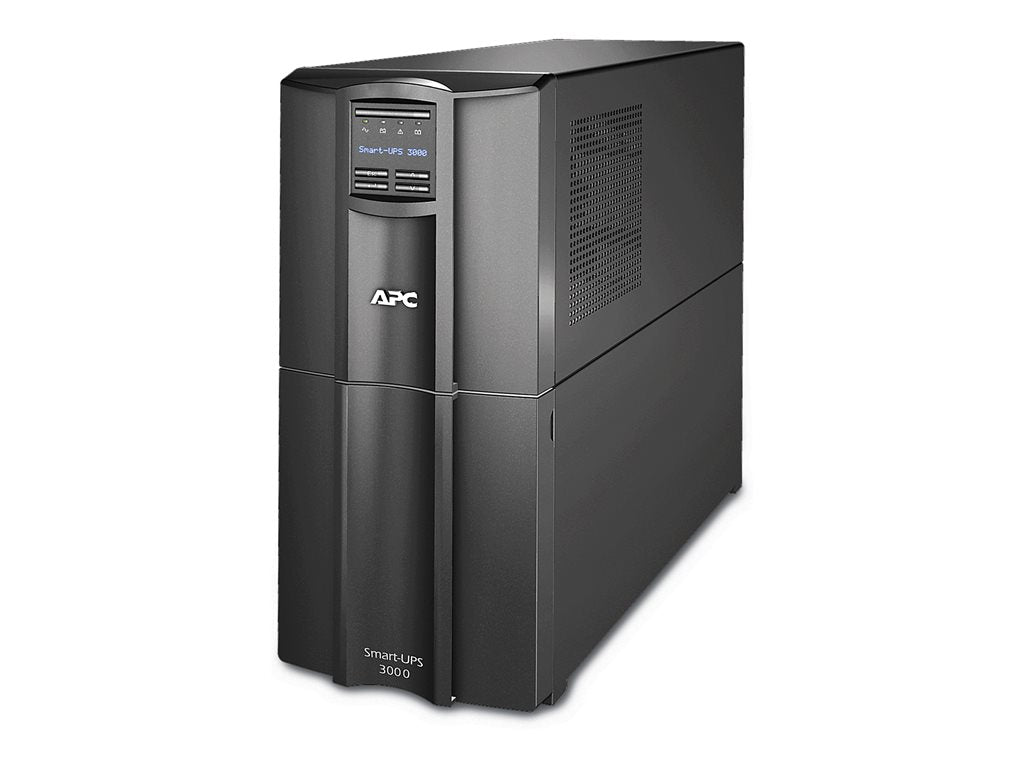

APC Smart-UPS 3000 LCD - UPS - AC 120 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 10 - black
- Intuitive LCD interface
- Predictive replace battery date
- Energy meter
- InfraStruXure Central compatible
- Pure sine wave output on battery
- Single switched outlet group
- Battery failure notification
- Cold-start capable
- Resettable circuit breakers
- Hot-swappable batteries
- Disconnected battery notification
- Automatic self-test
- Automatic restart of loads after UPS shutdown
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Audible alarms
- USB connectivity
- Serial connectivity
- Temperature-compensated battery charging
- Boost and trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Safety-agency approved
- Power conditioning
- Network manageable
- Adjustable voltage sensitivity
- Predicative failure notification
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
-
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
-
Resettable circuit breakers
Enables a quick recovery from overload events.
-
Network manageable
Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
-
Boost and Trim Automatic Voltage Regulation (AVR)
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
-
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
-
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
-
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
-
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
-
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
-
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
-
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
-
Disconnected battery notification
Warns when a battery is not available to provide backup power.
-
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
-
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
-
Audible alarms
Provides notification of changing utility power and UPS power conditions
-
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
-
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
-
Cold-start capable
Provides temporary battery power when the utility power is out.
-
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
-
Network manageable
Provides remote power management of the UPS over the network.
-
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
-
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
-
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
-
Serial connectivity
Provides management of the UPS via a serial port.
-
SmartSlot
Customize UPS capabilities with management cards.
-
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
-
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
-
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
-
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
-
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
What's in the box:
- CD with software
- Documentation CD
- Smart UPS signalling RS-232 cable
- USB cable
