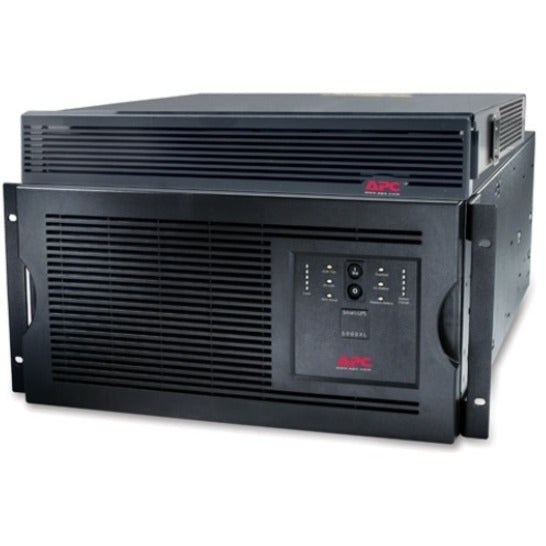

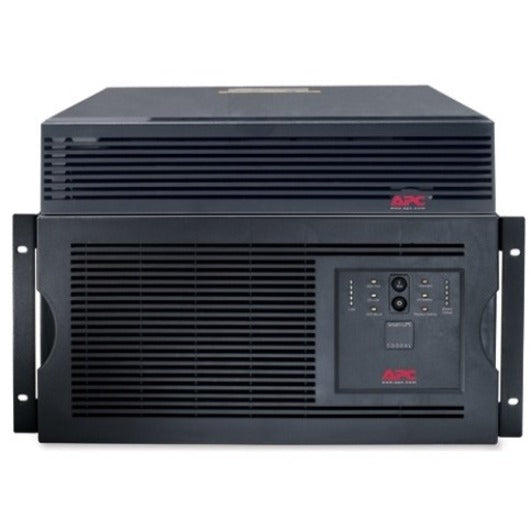

This APC Smart-UPS 5000VA rack mount system is perfect for data center managers, IT administrators, and facility operators requiring robust transformer UPS protection for critical servers, networking equipment, and high-power infrastructure. Our 208V UPS with transformer delivers:
-
Built-in isolation transformer providing 208V input to 120/208V dual voltage output capability
-
5000VA/4000W power capacity supporting high-density server and networking loads
-
Rack mount design optimized for data center and server room deployment
-
Advanced battery management with temperature compensation and intelligent charging
Key Features
-
Isolation transformer technology providing electrical isolation and dual voltage output
-
5000VA Smart-UPS capacity delivering reliable power protection for critical applications
-
208V input with 120/208V output supporting diverse equipment voltage requirements
-
Rack mount form factor designed for standard 19-inch server racks
-
Intelligent battery management maximizing battery performance and service life
-
Network management capabilities with optional SmartSlot accessories
-
Hot-swappable batteries enabling maintenance without system shutdown
-
Pure sine wave output ensuring compatibility with all electronic equipment types
-
Automatic voltage regulation correcting power quality issues without battery usage
-
LED status indicators providing clear system status and fault indication
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SUA5000R5TXFMR |
| Product Type |
Smart-UPS Rack Mount with Transformer |
| Power Rating |
5000VA / 4000W |
| Input Voltage |
208V AC (3-wire + ground) |
| Output Voltage |
120V and 208V AC (dual voltage) |
| Transformer Type |
Built-in isolation transformer |
| Form Factor |
5U Rack Mount (19-inch) |
| Topology |
Line-Interactive with Automatic Voltage Regulation |
| Waveform |
Pure Sine Wave |
| Frequency |
50/60 Hz ± 3 Hz (47-63 Hz on battery) |
| Transfer Time |
2-6 ms (typical) |
| Runtime (Half Load) |
Approximately 13 minutes |
| Runtime (Full Load) |
Approximately 6 minutes |
| Recharge Time |
3 hours to 90% capacity |
| Battery Type |
Maintenance-free sealed lead-acid with AGM technology |
| Hot-Swappable Batteries |
Yes - Field replaceable |
| SmartSlot |
1 x SmartSlot for accessory cards |
| Communication Ports |
Serial RS-232, USB, Emergency Power Off (EPO) |
| Output Receptacles |
8 x NEMA 5-20R (120V), 2 x L6-20R (208V) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Dimensions (WxDxH) |
17 x 24.6 x 8.7 inches (43.2 x 62.5 x 22.1 cm) |
| Weight |
203 lbs (92 kg) |
| Certifications |
UL Listed, cUL, CE, FCC Class A |
| Warranty |
2-year comprehensive warranty |
Frequently Asked Questions
Q: What is the purpose of the isolation transformer in this UPS?
A: The built-in isolation transformer in the SUA5000R5TXFMR provides electrical isolation between input and output, reduces harmonic distortion, and enables dual voltage output capability. This transformer UPS design accepts 208V input and provides both 120V and 208V outputs, making it ideal for mixed equipment environments requiring different voltage levels while maintaining electrical isolation for enhanced safety and performance.
Q: How does this 5000VA UPS compare to standard UPS models?
A: This APC Smart-UPS 5000VA with transformer offers unique advantages over standard UPS systems: built-in voltage transformation, dual output voltages, electrical isolation, and enhanced power quality conditioning. The 5000VA rack mount design provides substantial power capacity for high-density server environments while the transformer technology ensures clean, isolated power delivery for sensitive equipment.
Q: What equipment can be connected to this transformer UPS?
A: This 208V UPS with transformer is designed for data centers and server rooms requiring mixed voltage support. Connect servers, networking equipment, storage systems, and telecommunications gear requiring either 120V or 208V power. The Smart-UPS transformer configuration is particularly valuable for facilities with legacy equipment, international devices, or installations requiring electrical isolation for safety and performance.
Q: What network management options are available?
A: This networkable UPS features a SmartSlot for optional network management cards, enabling SNMP monitoring, web-based management, environmental monitoring, and remote control capabilities. The included PowerChute software provides automatic shutdown, energy management, and detailed power monitoring. The server rack battery backup system integrates with virtualization platforms and data center infrastructure management (DCIM) solutions for comprehensive monitoring.
APC Smart-UPS 5000VA rack mount UPS SUA5000R5TXFMR with isolation transformer, 208V input, dual 120/208V output for data center power protection.
